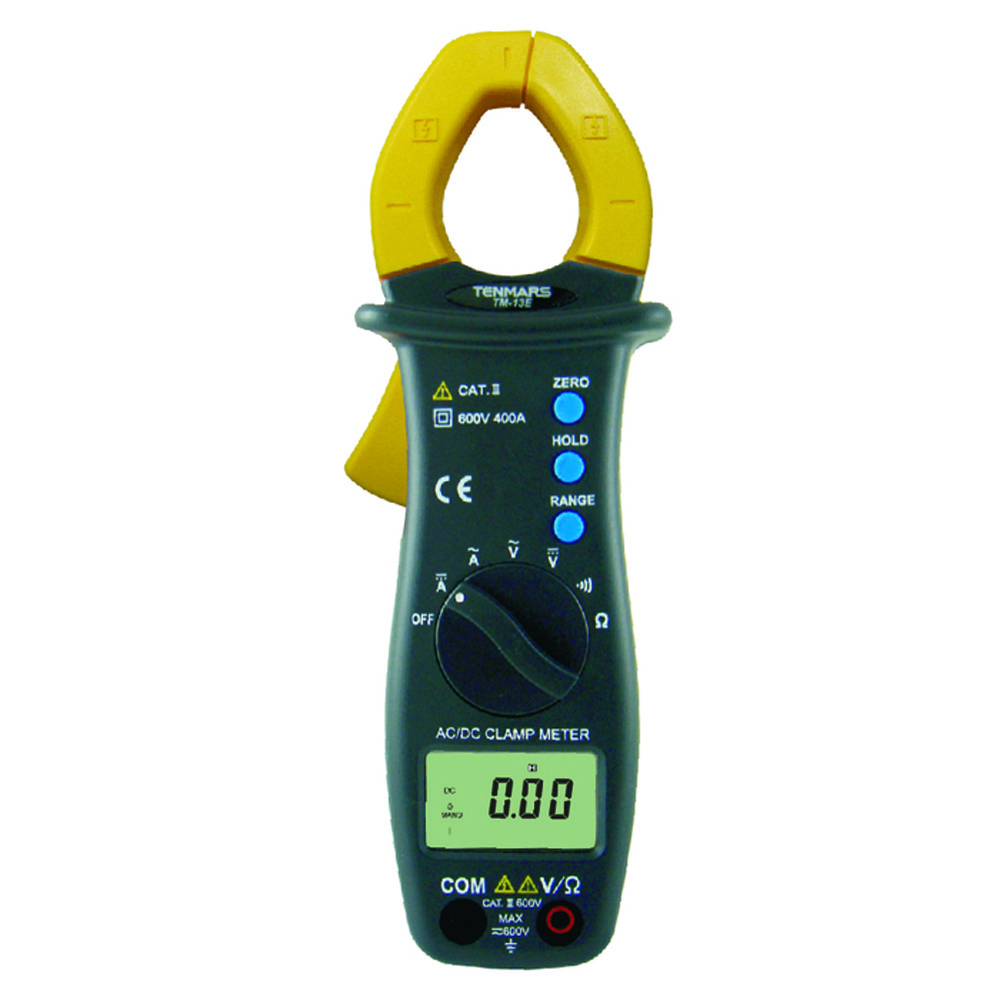

TM-13E
AC/DC Clamp Meter

APPLICATION

EMC:This apparatus was designed in accordance with EMC standards in force and its compatibility has been tested in accordance EN61326 (1997) + A1 (1998) + A2 (2001).

FEATURES

  • Jaws opening up to 30mm.
  • The maximum conductor size is Ø30mm.
  • Safety sockets designed.
  • Data Hold.
  • Impedance in circuit is below 40Ω. The buzzer will sound.
  • Polarity Indication: Automatic polarity, “-“ display for negative input.
  • Overload Indication: LCD will show a “OL” in the left highest position.
  • Low Battery Indication : Replace battery as LCD display “BAT”.

SPECIFICATIONS

  • Display:3¾LCD with maximum reading 3999 units plus decimal point signs plus backlight
  • Sample rate:2 times/sec.
  • Jaws opening:30mm
  • Max conductor size:30mm
  • Dimension: 195mm(L)x64mm(W)x30mm(H).
  • Weight:about 240g. (Including battery)
Electrical Specifications(23℃±5℃, with RH< 75％RH )
DCA (Auto/Manual)
Range
Resolution
Accuracy
Overload
Protection
40A
0.01A
±(2.0%+10)
600A rms
(60 second)
400A
0.1A
ACV (Auto/Manual)
Range
Resolution
Accuracy
50Hz~500 Hz
Input
Impedance
Overload Protection
400mV
0.1mV
±(1.0%+3)
40Hz~60Hz
100MΩ
DC/AC
660V rms
4V
1mV
±(1.0%+3)
11MΩ
40V
10mV
10MΩ
400V
100mV
600V
1V
±(1.2%+3)
DCV (Auto/Manual)
Range
Resolution
Accuracy
Input Impedance
Overload
Protection
400mV
0.1mV
±(0.8%+2)
100MΩ
DC/AC
660V rms
4V
1mV
11MΩ
40V
10mV
10MΩ
400V
100mV
600V
1V
±(1.0%+2)
Continuity
Range
Buzzer
Max. Open
Voltage
Overload
Protection
below 40
About-1.5VDC
600V rms
Resistance (Auto/Manual)
Range
Resolution
Accuracy
Max.
Sensitivity
Overload
Protection
400Ω
0.1Ω
±(1%+5)
about -1.5VDC
DC/AC
600V rms
(60Second)
4KΩ
1Ω
±(1%+3)
About-0.45VDC
40KΩ
10Ω
400KΩ
100Ω
4MΩ
1KΩ
40MΩ
10Ω
±(3%+3)
