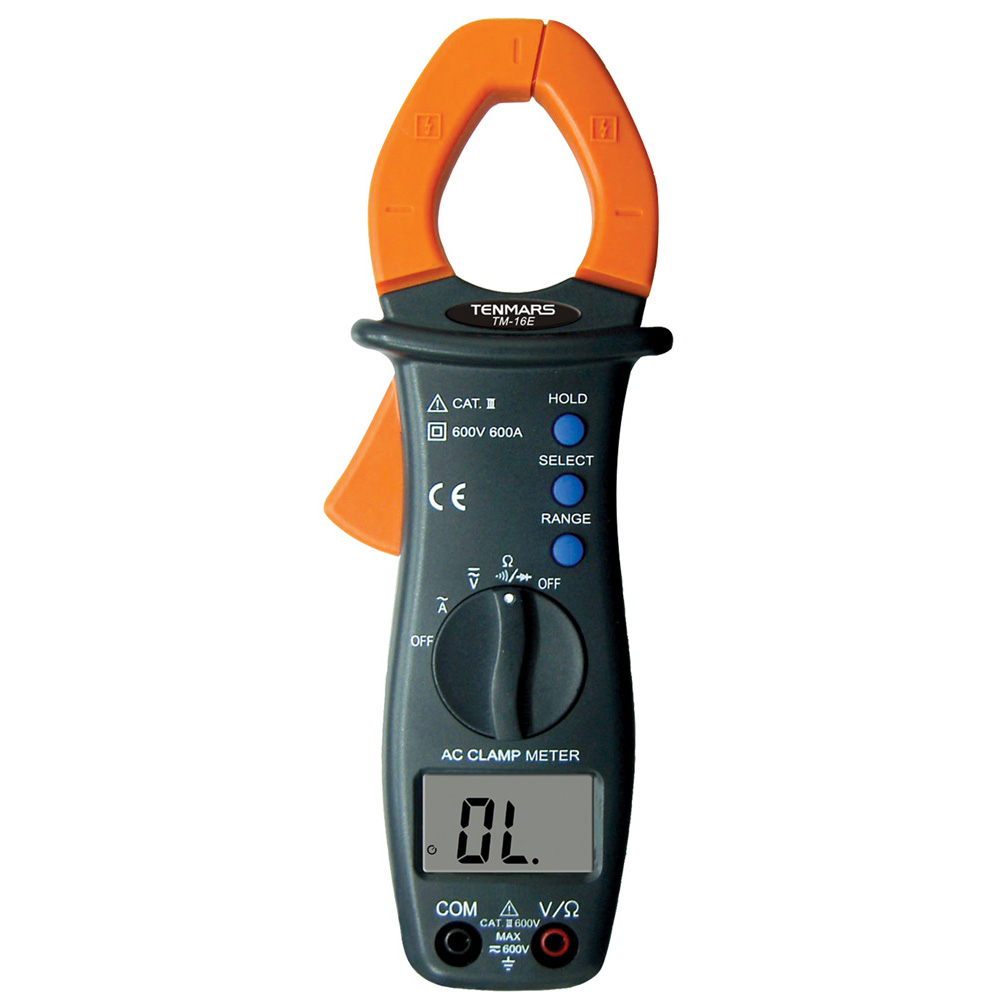

TM-16E AC Clamp Meter

APPLICATION

Measuring voltage over 20V as it may cause human body electricity conduction.
Measure AC power.
Operating Environment: Indoor use. This instrument has been designed for using in an environment of pollution degree 2.
Operation Altitude: up to 2000m.
Operating Temperature & Humidity: 5℃ ~ 40℃,below 80%RH.
Storage Temperature & Humidity: -10℃ ~ 60℃, below 70%RH.
Fingers should hold under the protection guard of test probe.
Category: CATⅡ 600V for body. CATⅢ 600V for clamp.

AC Current (ACA) measurement

Make sure that all the test leads are disconnected from the meter’s terminal for current measurement.

AC Voltage (ACV) measurement

Resistance measurements

Before taking any in circuit resistance measurement, remove power from the circuit being tested and discharge all the capacitors. If a reading is over range, the message “OL” will be displayed.

Display: 3½digits LCD with maximum reading 1999, Plus decimal point, unit symbol indication.
Overload Indication: LCD will show a “1” in the left highest position.
Low Battery Indication: Replace battery as LCD display “ ”.
Sampling Rate: 2 times per second for digital display.
Jaws opening:30mm
Max conductor size:30mm
Dimension: 195mm(L)x64mm(W)x30mm(H).
Weight:about 240g. (Including battery)

Electrical Specifications

ACV Input Impedance 1MΩ
