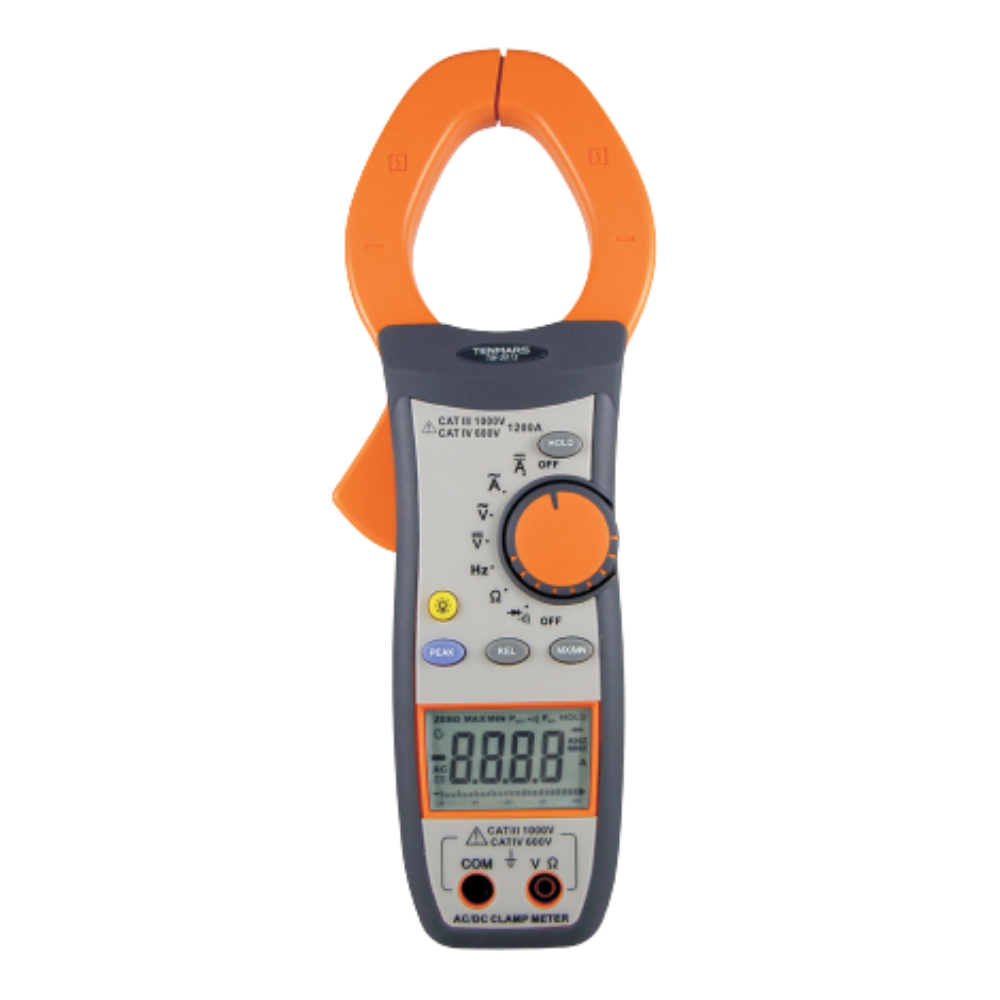

TM-3013
AC/DC Clamp Meter

This apparatus conforms to safety standard EN 61010

APPLICATION

It can be used for CURRENT and VOLTAGE measurements on installations of surge voltage category CAT IV 600 V, CAT III up to 1000 voltage between Phase and Earth (fixed installations) and for current measures up to  CAT III 1000V/1200A CATIV 600V/1200A

FEATURES

The apparatus can perform the following measurements:
  • AC current (IAC).
  • AC voltage (VAC).
  • DC voltage (VDC).
  • Resistance.
  • Continuity Test.
  • Diode test.

SPECIFICATIONS

  • Display:3 ½ LCD with maximum reading 3999 units plus decimal point signs.
  • Sample rate:2 times/sec.
  • Conversion mode:mean value
  • Jaws opening:50mm
  • Max conductor size:52mm
  • Dimension: 252mm(L)x91mm(W)x47mm(H).
  • Weight:about 580g. (Including battery)
CHARACTERISTICS SPECIFICATIONS(23℃±5℃, below 75％RH )
DC Current
Range
Resolution
Accuracy
Overload Protection
400A
0.1A
±(1.5%+5)
1200A rms
(60 second)
1200A
1A
±(2.0%+5)
AC Curren
Range
Resolution
Accuracy
(50~60 Hz)
Overload Protection
400A
0.1A
±(2.0%+5)
1200A rms
(60 second)
1200A
1A
±(2.5%+5)
DC Voltage
Range
Resolution
Accuracy
Input
impedance
OverloadProtection
400V
0.1V
±(0.5%+3dgt)
10MΩ
DC 1000V
AC750Vrms
1000V
1V
±(0.8%+3dgt)
AC Voltage
Range
Resolution
Accuracy
Input
impedance
OverloadProtection
400V
0.1V
±(0.5%rdg+3 dgt)
10MΩ
DC 1000V
AC750Vrms
750V
1V
±(0.8%rdg+3 dgt)
Resistance
Range
Resolution
Accuracy
Max.Open
Loop voltage
Overload Protection
400Ω
0.1Ω
±(1.0rdg+5dgt)
About 3.0VDC
DC 1000V
AC750Vrms
4000Ω
1Ω
±(1.0rdg+3dgt)
Continuity and Diode test
Range
Buzzer
Max.Open
Loop voltage
Overload Protection
Activated for R<40
About 3.0VDC
DC 1000V
AC750Vrms
Frequency” tests
Range
Resolution
Accuracy
Max.Open
Loop voltage
Overload Protection
660Hz
0.1Hz
±(0.5%rdg+3 dgt)
About 3.0Vms
DC 1000V
AC750Vrms
6.6Hz
1Hz
66KHz
10Hz
100KHz
100Hz
