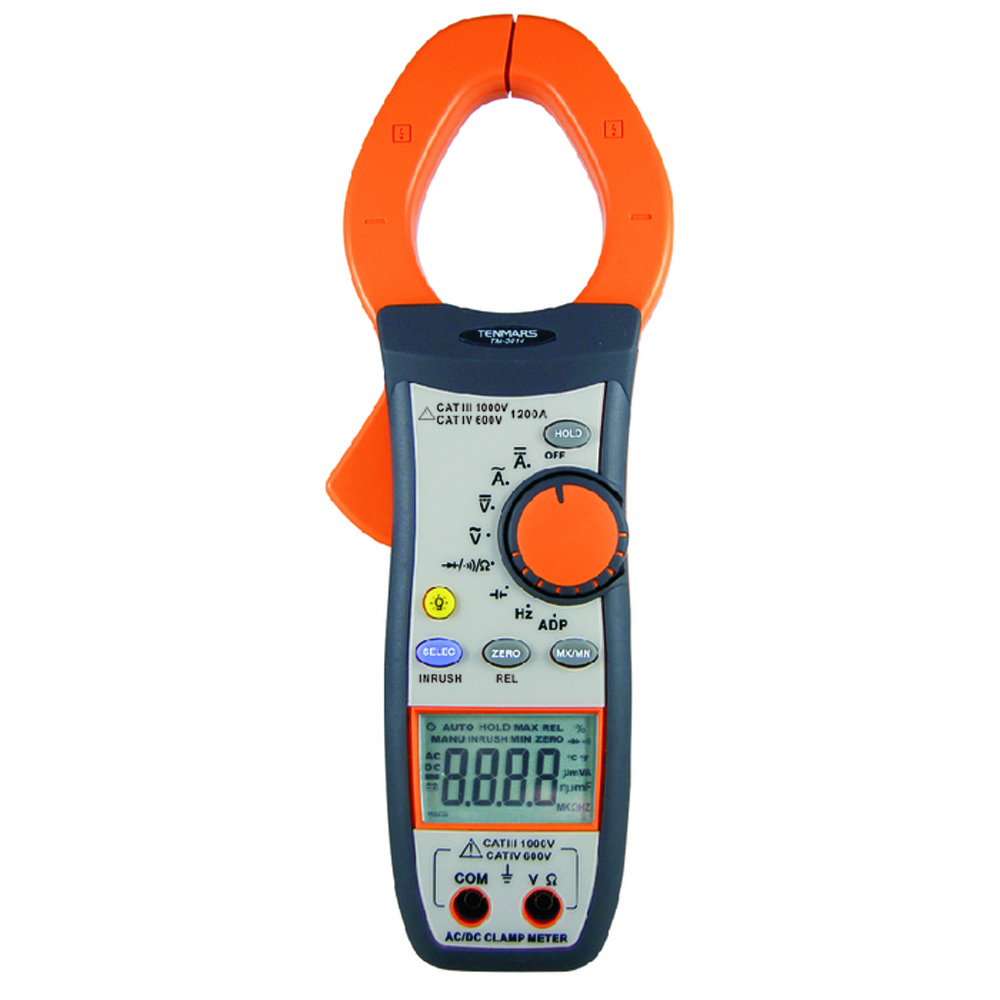

TM-3014
AC/DC Clamp Meter

This apparatus conforms to safety standard EN 61010

APPLICATION

It can be used for CURRENT and VOLTAGE measurements on installations of surge voltage category CAT IV 600 V, CAT III up to 1000 voltage between Phase and Earth (fixed installations) and for current measures up to CAT III 1000V/1200A CATIV 600V/1200A .

FEATURES

The apparatus can perform the following measurements:
  • AC current (IAC).
  • AC voltage (VAC).
  • DC voltage (VDC).
  • Resistance.
  • Continuity Test.
  • Diode test.

SPECIFICATIONS

  • Display:5/6 LCD with maximum reading 6600 units plus decimal point signs.
  • Sample rate:2 times/sec.
  • Conversion mode:mean value
  • Jaws opening:40mm(TM-2012/2013) 50mm
  • Dimension: 266mm(L)x93mm(W)x47mm(H).
  • Weight:about 580g. (Including battery)
CHARACTERISTICS SPECIFICATIONS(23℃±5℃, below 75％RH )
DC Current
Range
Resolution
Accuracy
Overload Protection
660A
0.1A
±(1.5%+5)
1200A rms
( 60 second)
1200A
1A
±(2.0%+5)
AC Current
Range
Resolution
Accuracy
(50~60 Hz)
Overload Protection
660A
0.1A
±(1.5%+10)
1200A rms
( 60 second)
1200A
1A
±(1.5%+5)
DC Voltage
Range
Resolution
Accuracy
Input impedance
OverloadProtection
6.6V
1mV
±(0.5%rdg+3 dgt)
11MΩ
DC 1000V
AC750Vrms
66V
10mV
10MΩ
660V
100mV
1000V
1V
±(0.8%rdg+3 dgt)
AC Voltage
Range
Resolution
Accuracy
Input impedance
OverloadProtection
6.6V
1mV
±(1.2%rdg+3 dgt)
11MΩ
DC 1000V
AC750Vrms
66V
10mV
10MΩ
660V
100mV
1000V
1V
±(1.5%rdg+4 dgt)
AC voltage
(TRUE RMS: from 10% to 100% of the range)
Range
Resolution
Accuracy
Input impedance
Overload Protection
6.6V
1mV
±(1.2%+10)
50Hz~500 Hz
± (1.5%+10)
500Hz~1KHz
 11MΩ
DC 1000V
AC750Vrms
66V
10mV
10MΩ
660V
100mV
750V
1V
±(1.5%+5)
50Hz~500 Hz
±(2.0%+5)500Hz~1KHz
Input Impedance: 10MΩ// less than 100Pf.
Crest factor :  >3:1.
Resistance
Range
Resolution
Accuracy
Input impedance
Overload Protection
660Ω
0.1Ω
±(1.0rdg+5dgt)
About 3.0VDC
DC 1000V
AC750Vrms
6.6KΩ
1Ω
±(1.0rdg+3dgt)
About 0.45VDC
66KΩ
10Ω
660KΩ
100Ω
6.6MΩ
1KΩ
66MΩ
10KΩ
±(3.0rdg+3dgt)
Continuity test
Range
Resolution
Accuracy
Input impedance
Overload Protection
0.1Ω
<35Ω
About 1.2V
DC 1000V
AC750Vrms
Diode test
Range Resolution Max. Open Loop voltage
Overload Protection
10mV About3.0VDC
DC 1000V
AC750Vrms
Frequency” tests
Range
Resolution
Accuracy
Input impedance
Overload Protection
660Hz
0.1Hz
±(0.5%rdg+3 dgt)
>1.5VACrms
<5VACrms
DC 1000V
AC750Vrms
6.6Hz
1Hz
66KHz
10Hz
100KHz
100Hz
Capacitance Test
Range
Resolution
Accuracy
Overload Protection
6.6uF
0.001uF
±(2.0% rdg + 8dgt)
DC 1000V AC
750Vrms
66uF
0.01uF
660uF
0.1uF
6.6mF
1uF
±(5.0% rdg + 20dgt)
66mF
10uF
