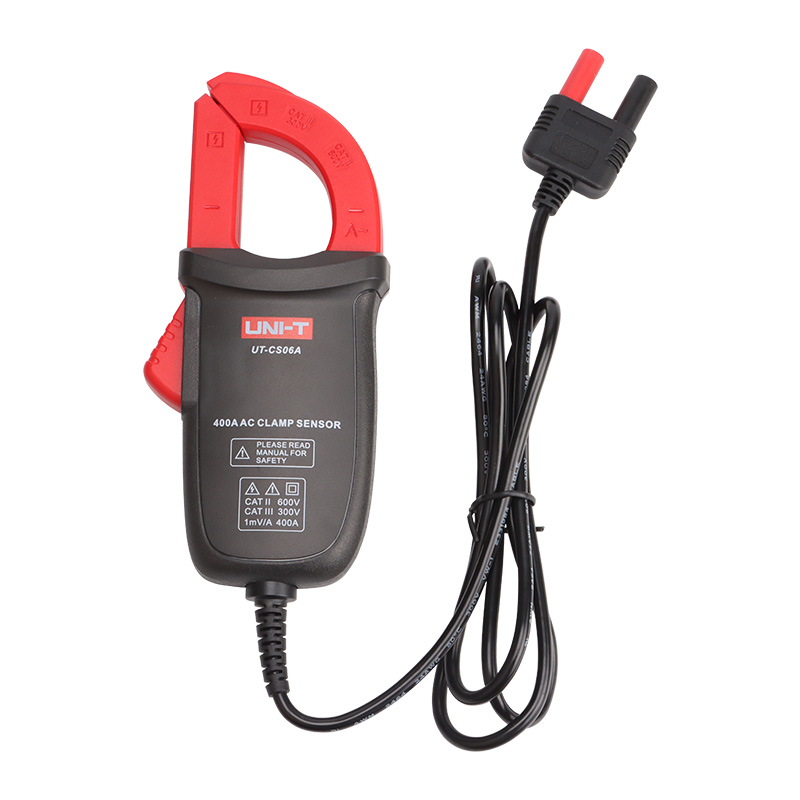

UT-CS06A
400A AC Current Clamp Sensor

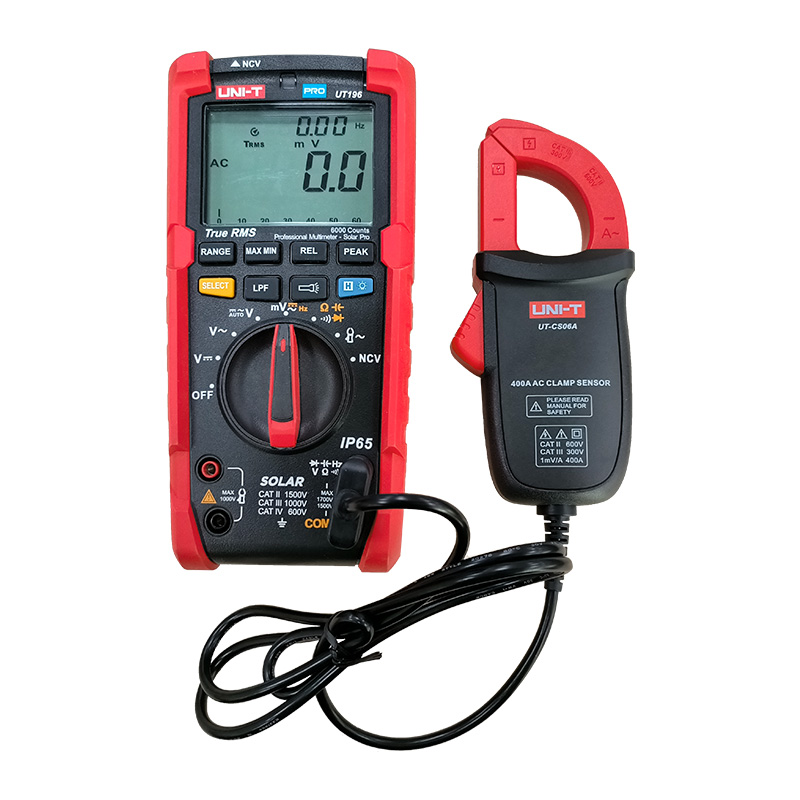

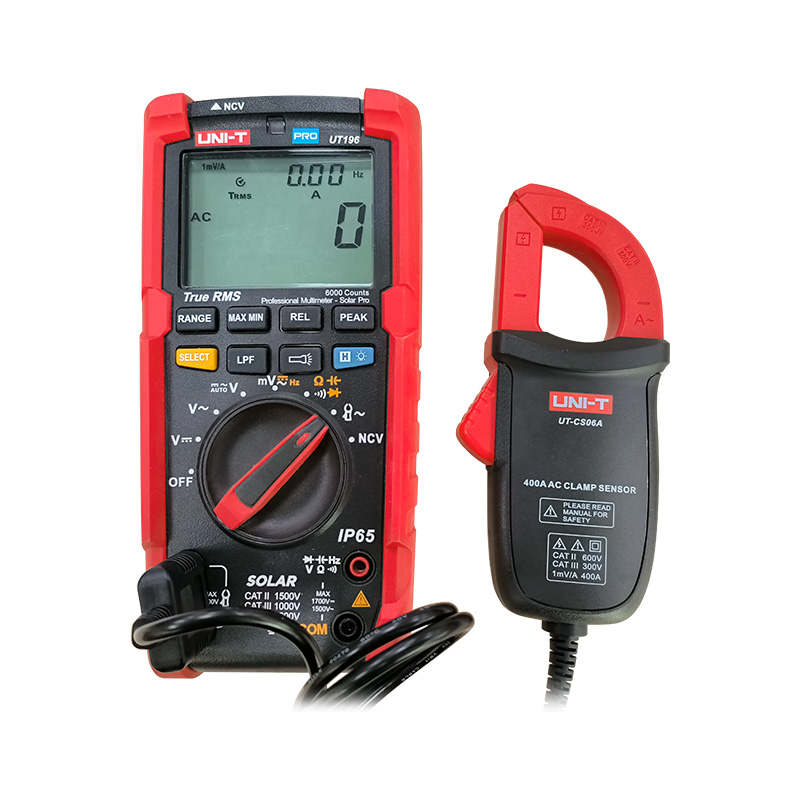

UT-CS06A 400A AC Current Clamp is a current entry-level sensor for AC Current measurement of multimeter/data logger.

It suits most UNI-T multimeters and features a small-sized and convenient-to-use design, which is an ideal tool to extend the current ranges for the Multimeters.

Features of UT-CS06A 400A AC Current Clamp Sensor

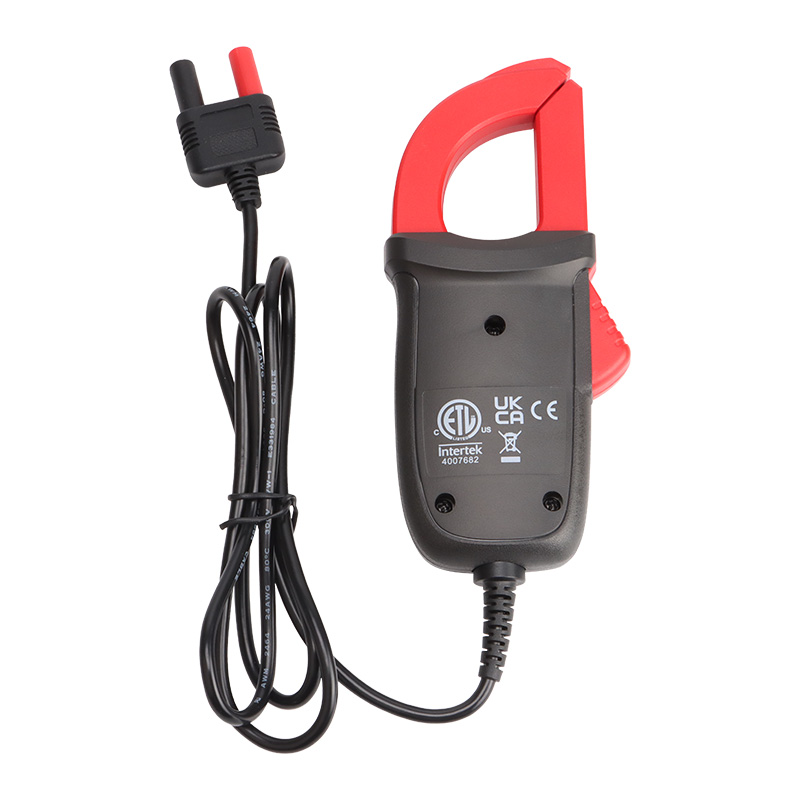

Certificates: CE, UKCA

  • Compact design, easy to operation
  • 400A AC current measurement
  • AC A Frequency: 50 Hz to 400 Hz
  • Output ratio: 1mV/A

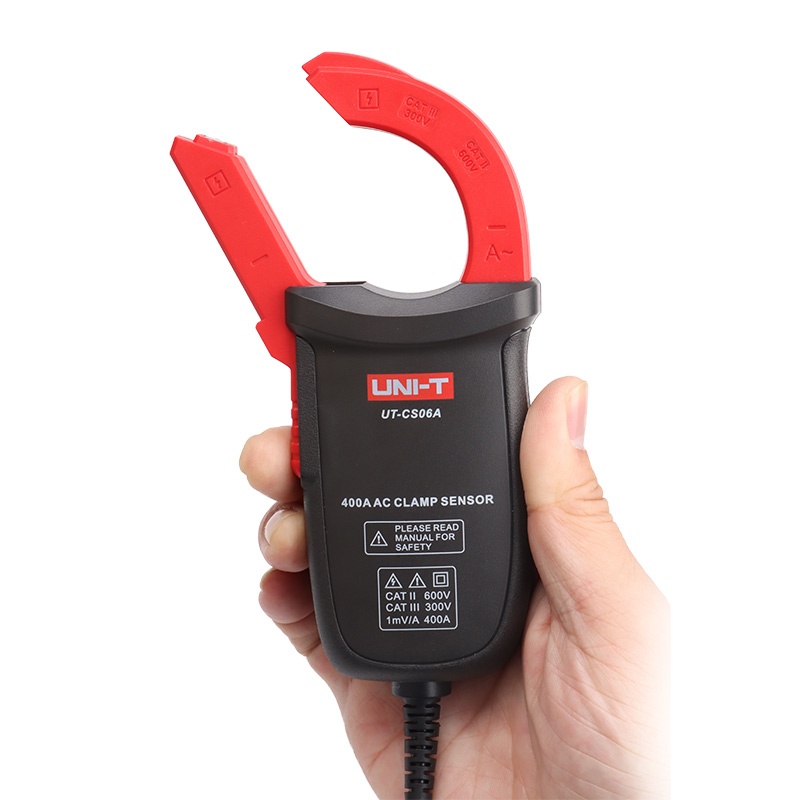

  • Clamp Jaw size: 28mm
  • Suitable for most UNI-T multimeters
  • Drop protection: 1m
  • Overvoltage category: CAT Ⅲ 300V/CATII 600V

SPECIFICATIONS

Specifications of UT-CS06A 400A AC Current Clamp Sensor

Technical Specifications UT-CS06A
Dimension 158*65*33mm
ACA Current 1-400A
Accuracy ±2.5%±0.5A@50-60Hz
±2.8%±0.5A@60-400Hz
Jaw opening 28mm
Output ratio 1mV/A
Wire length 1.1m
True RMS Depends on the Multimeter
Response time Depends on the Multimeter
Frequency 50 Hz~400 Hz
Waveform display Adaptable oscilloscope
Accuracy Depends on the Multimeter
Power supply No need battery
Drop test 1m
Overvoltage category CAT III 300V, CAT II 600V
Certificates CE, UKCA

APPLICATIONS

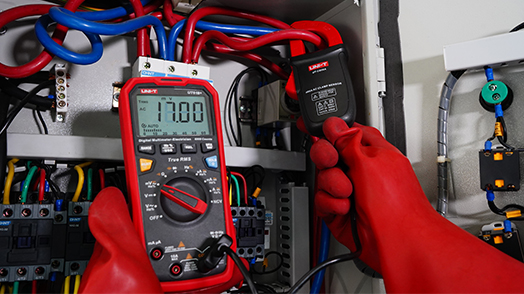

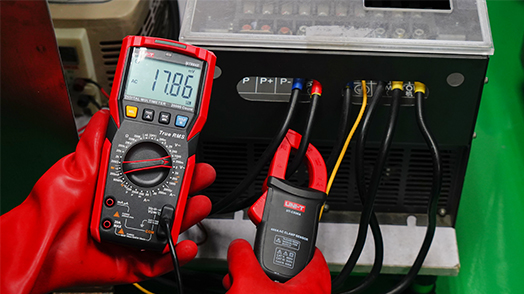

Applications of UT-CS06A 400A AC Current Clamp Sensor
