UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.

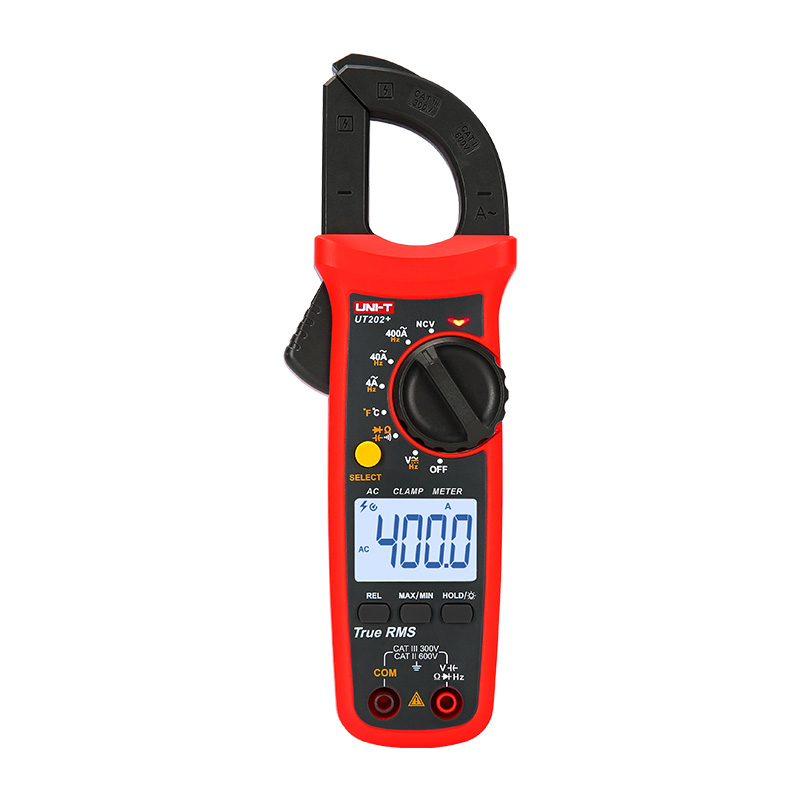

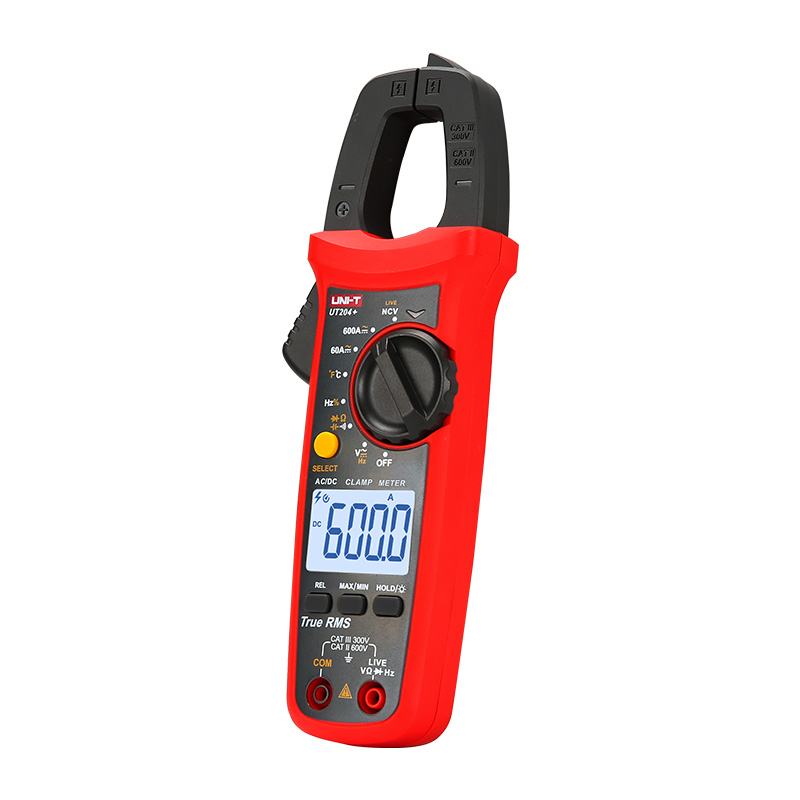

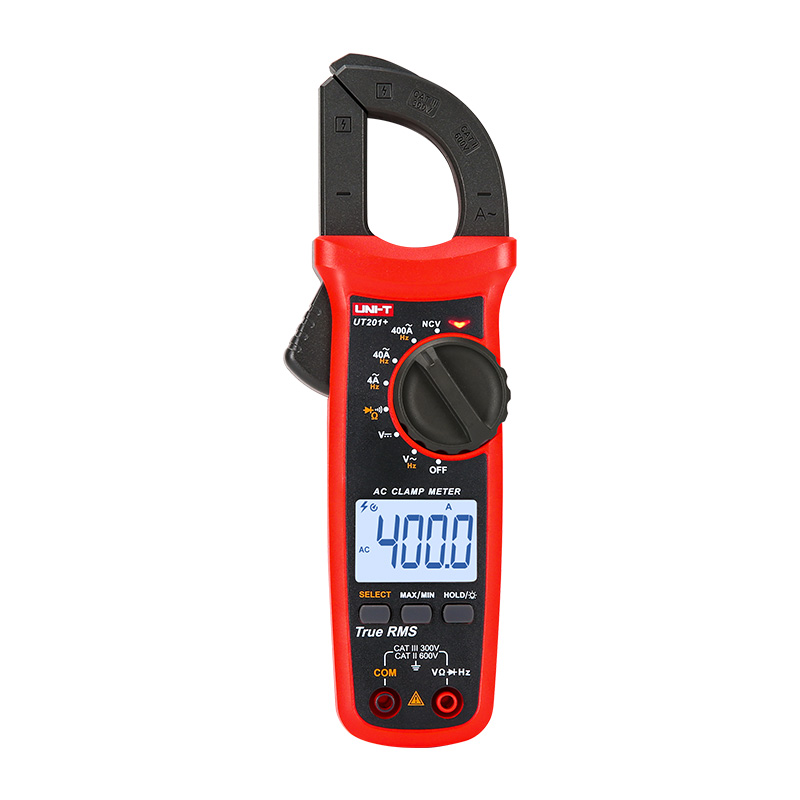

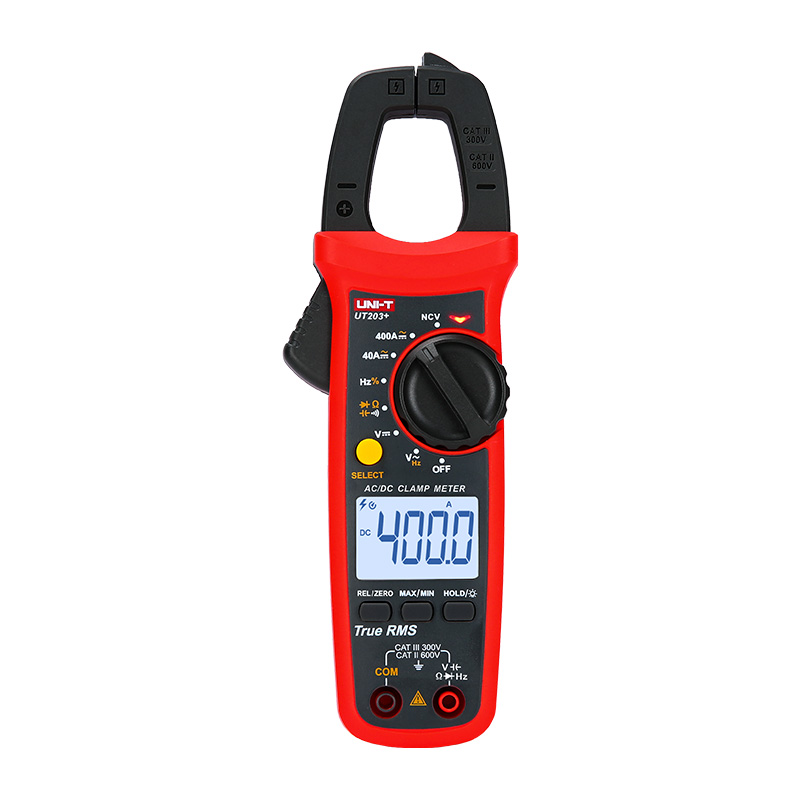

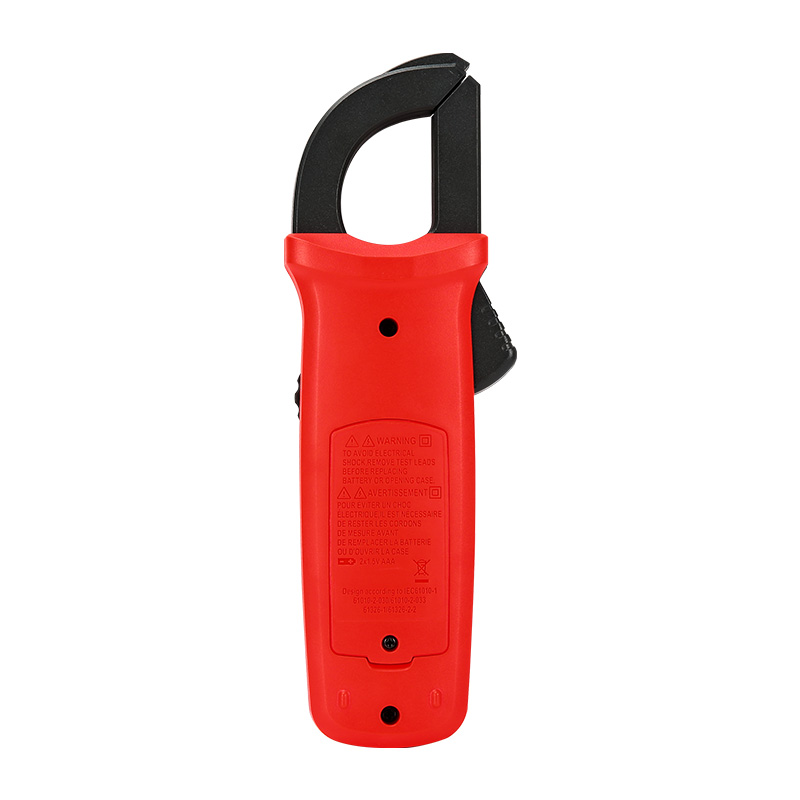

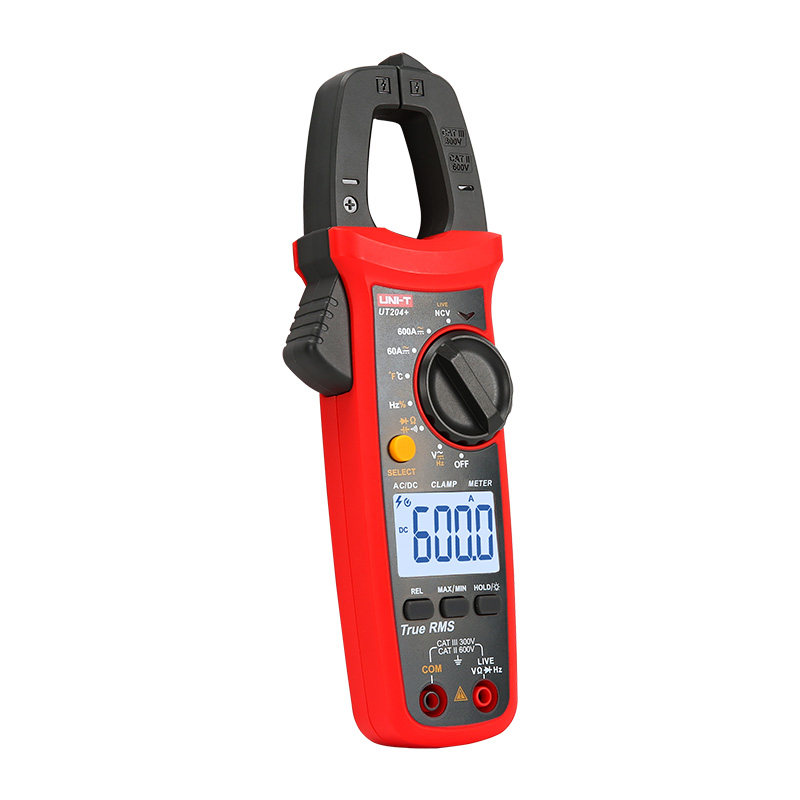

Models in UT200+ Series: UT201+, UT202+, UT202A+, UT203+, UT204+
Features of UT200+ Series 400A/600A Digital Clamp Meters
Specifications of UT200+ Series 400A/600A Digital Clamp Meters
| Specifications | Range | UT201+ | UT202+ | UT202A+ | UT203+ | UT204+ |
| AC current (A) | 400A | ±(2%+10) | ±(2%+10) | ±(2.5%+5) | ||
| 600A | ±(2%+10) | ±(2.5%+5) | ||||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||
| DC current (A) | 400A | ±(2.5%+5) | ||||
| 600A | ±(2.5%+5) | |||||
| AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||
| 10Hz~60kHz | ±(0.5%+2) | ±(0.5%+2) | ||||
| DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) | ||
| 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ||||
| Capacitance (F) | 4mF | ±(4%+5) | ||||
| 40mF | ±(4%+5) | |||||
| 60mF | ±(4%+5) | ±(4%+5) | ||||
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) | |||
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | ||
| Features | ||||||
| Display count | 4000 | 4000 | 6000 | 4000 | 6000 | |
| Auto range | √ | √ | √ | √ | √ | |
| Jaw opening | 28mm | 28mm | 28mm | 28mm | 28mm | |
| True RMS | √ | √ | √ | √ | √ | |
| NCV | √ | √ | √ | √ | √ | |
| Live wire test | √ | √ | ||||
| Continuity test | √ | √ | √ | √ | √ | |
| Diode | √ | √ | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | √ | √ | |
| Relative mode | √ | √ | √ | √ | ||
| Zero mode | √ | √ | ||||
| Data hold | √ | √ | √ | √ | √ | |
| Low battery indication | √ | √ | √ | √ | √ | |
| Auto power off | √ | √ | √ | √ | √ | |
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 37mm x 25mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT201+/UT202+/UT202A+：248g; UT203+/UT204+:235g | |||||
| Product size | 215mm x 63mm x 36mm | |||||
| Standard accessories | Batteries, test leads, Themocouple (UT202+/UT204+) | |||||
| Standard individual packing | Gift box, Carring bag, English manual | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | 485mm x 295mm x 385mm | |||||
| Standard carton gross weight | UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg | |||||
Applications of UT200+ Series 400A/600A Digital Clamp Meters

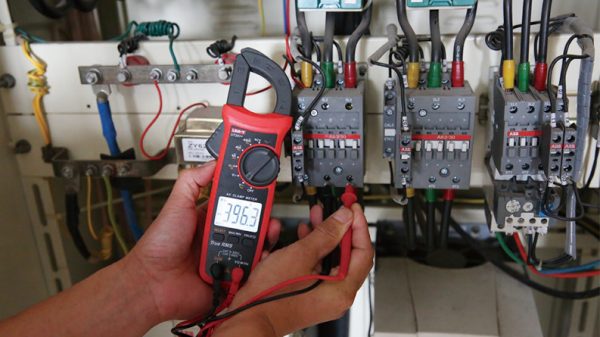

Industrial electricity

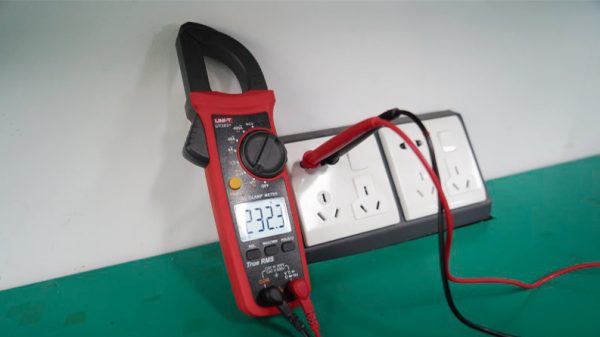

Residential electricity

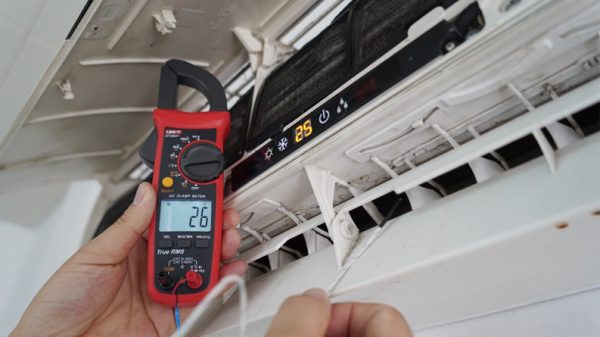

Air conditioning

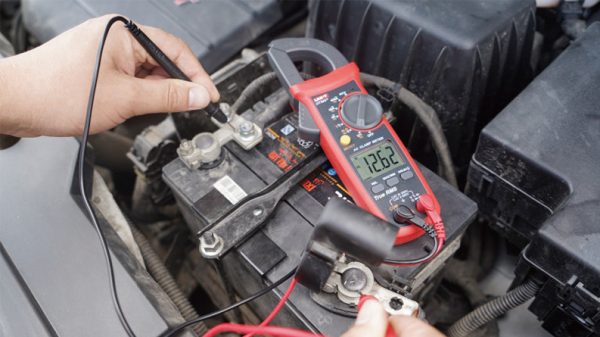

Automobile
