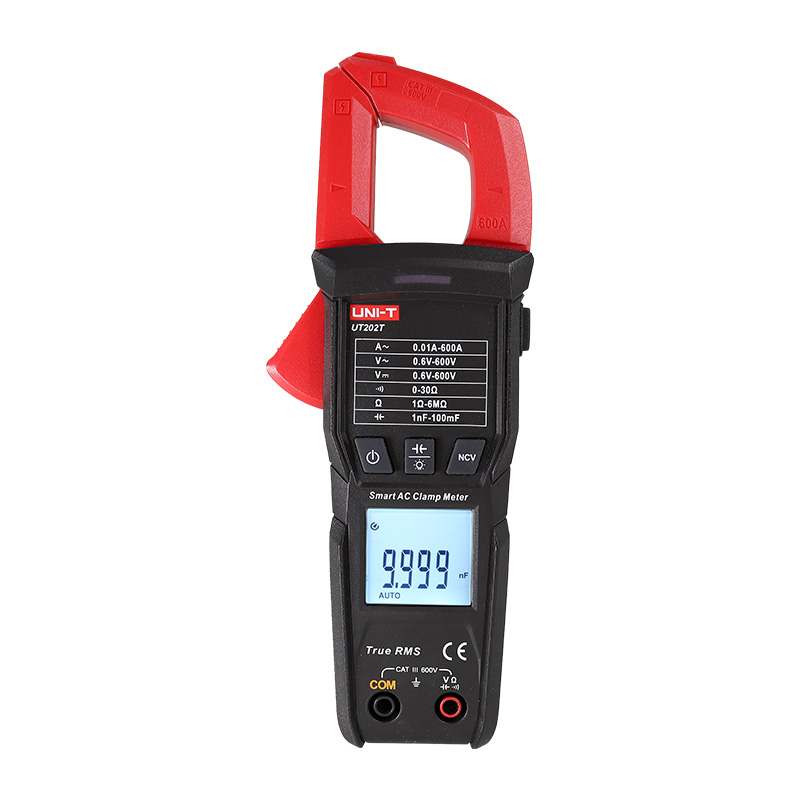

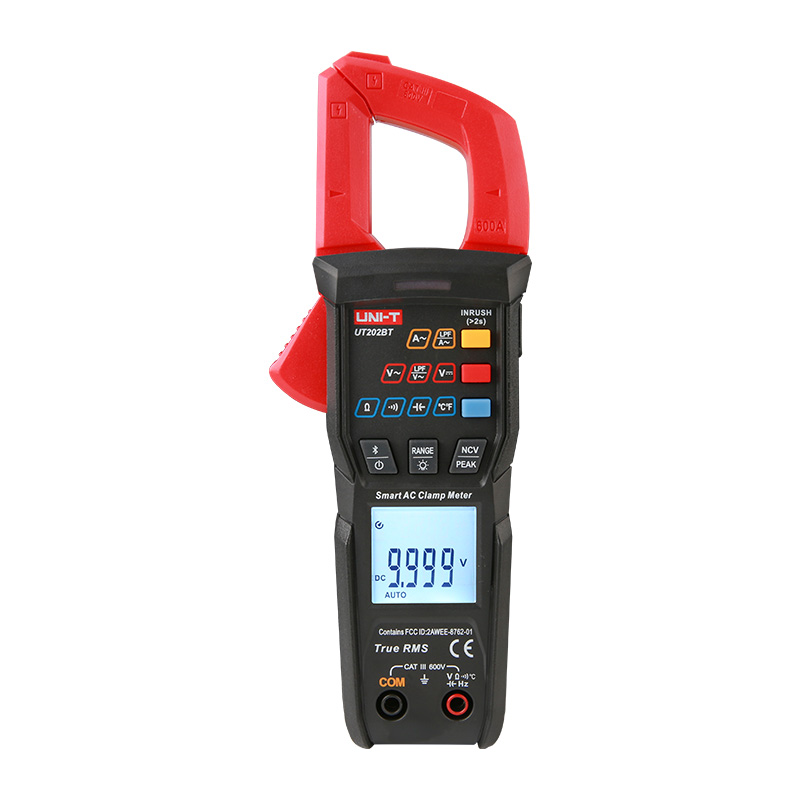

UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions. UT202T is a simple to use smart clamp meter which can automatically detect most common parameters.
Models: UT202BT, UT202T
Features of UT202BT/UT202T Smart AC Clamp Meters
Certificates: CE, UKCA, cETLus
Specifications of UT202BT/UT202T Smart AC Clamp Meters
| Specifications | Range | UT202T | UT202BT |
| Certificates | CE/UKCA/cETLus | ||
| DC voltage (V) | 600V | ±(0.5%＋3) | ±(0.5%＋3) |
| AC voltage (V) | 600V | ±(0.8%＋3) | ±(0.8%＋3) |
| AC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) |
| Resistance (Ω) | 6MΩ | ±(0.8%+3) | |
| 100MΩ | ±(0.8%+3) | ||
| Frequency (Hz) | 40Hz~1000Hz | ±(1.0％+5) | ±(1.0％+5) |
| Capacitance (F) | 100mF | ±(4%+5) | ±(4%+5) |
| Temperature (℃/℉) | -40℃~1000℃/-40℉~1832℉ | ±5/±9 | |
| Features | |||
| Jaw opening | 28mm | 28mm | |
| Display count | 9999 | 9999 | |
| Dual display | √ | √ | |
| Auto range | √ | √ | |
| NCV | √ | √ | |
| Continuity | √ | √ | |
| PEAK hold | √ | ||
| Low pass filter | √ | ||
| Inrush current | √ | ||
| Audible visual indication | √ | √ | |
| Low battery indication | ＜2.4V approximately | √ | √ |
| Data hold | √ | √ | |
| Auto power off | Approximately 15 minutes | √ | √ |
| Flashlight | √ | √ | |
| Bluetooth | √ | ||
| Safety rating | CAT Ⅲ 600V | ||
| General Characteristics | |||
| Power | AAA 1.5V x 2 | ||
| Product color | Red+Gray | ||
| Product net weight | UT202T: 241g (Including batteries); UT202BT: 251g (Including batteries) | ||
| Product size | 201.5 x 47 x 28mm | ||
| Standard accessories | UT202T: Test leads, batteries; UT202BT: Test leads, batteries, temperature probe | ||
| Standard individual packing | Gift box, carrying bag, English manual | ||
| Standard quantity per carton | 40 pcs | ||
| Standard carton measurement | 485×295×385mm | ||

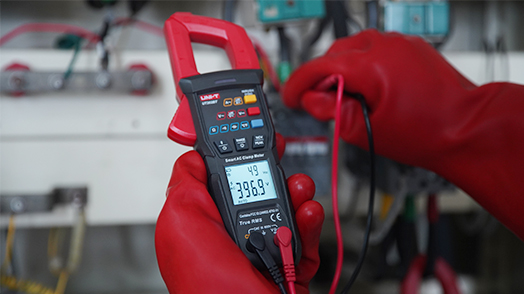

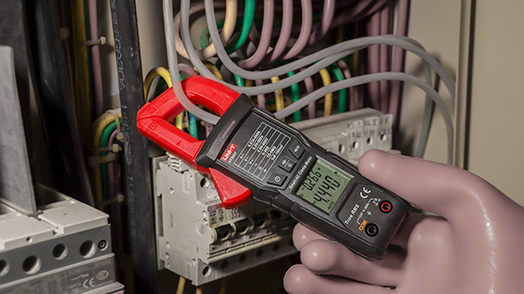

Applications of UT202BT/UT202T Smart AC Clamp Meters
