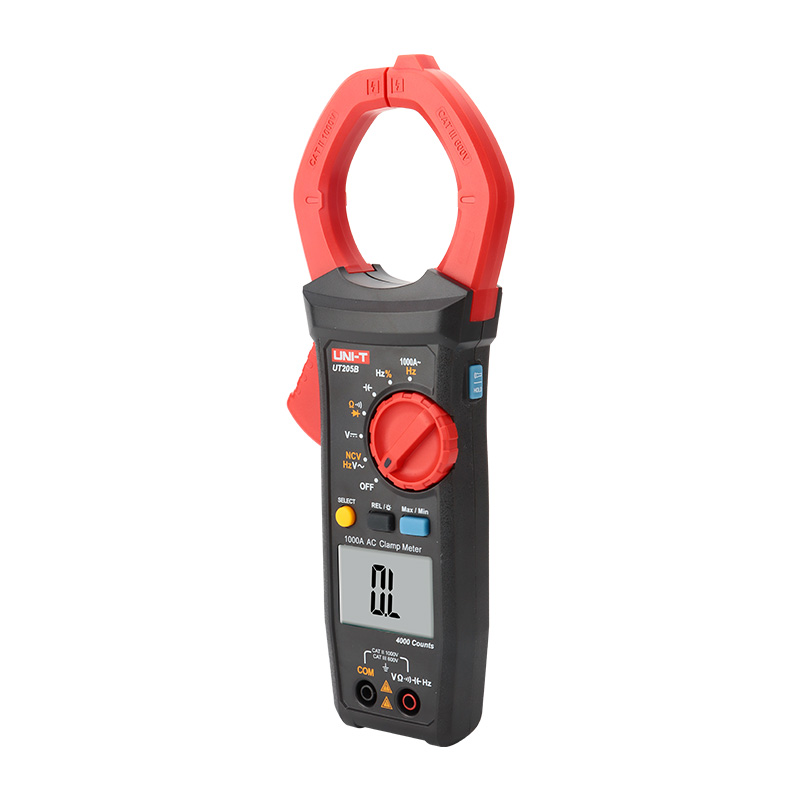

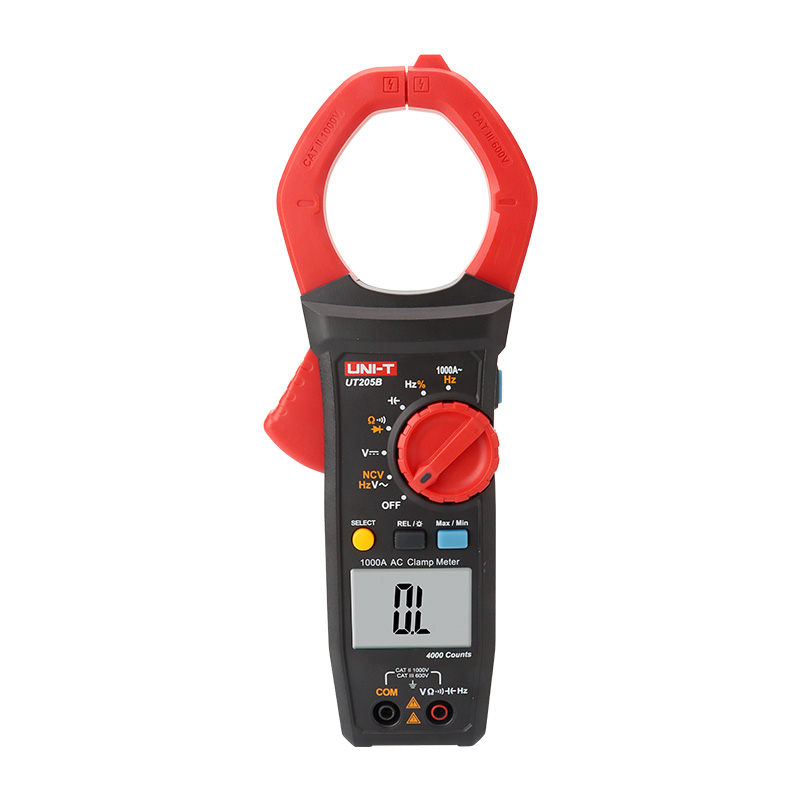

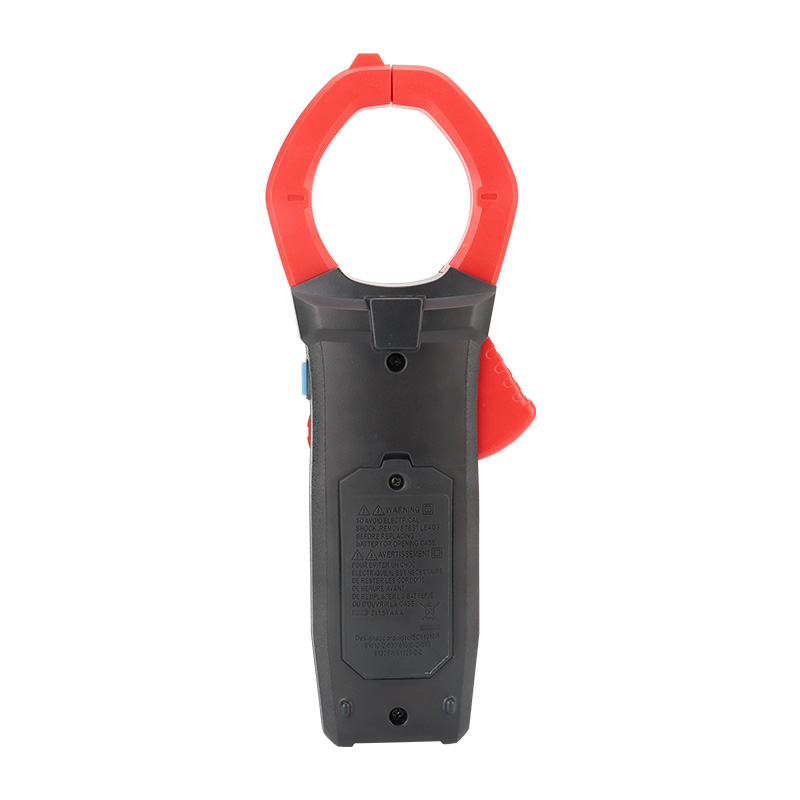

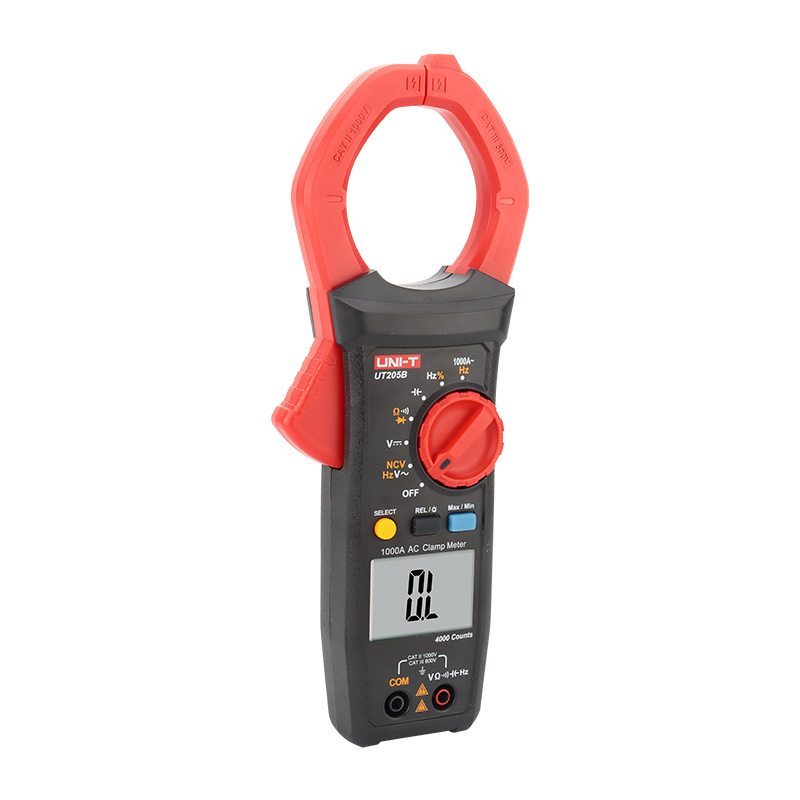

UT205B
1000A AC Clamp Meter

UT205B 1000A AC clamp meter has a large size of Jaw (up to 60mm) and can suit more application scenarios. The lightweight and slim design, and the backlight/flashlight functions are good for dark environment operation; The meter also supports duty cycle, NCV, MAX/MIN, etc. functions, it is a reliable and portable electronic tool.

Features of UT205B 1000A AC Clamp Meter

Certificates: ROW

  • 1000A AC current measurement
  • 1000V AC/DC voltage measurement
  • 40MΩ resistance measurement
  • 40mF capacitance measurement
  • 10MHz frequency measurement
  • Duty cycle/NCV test/flashlight
  • Diode/Continuity Test
  • Relative value/Max & Min value
  • 55mm Clamp jaw size, opening 60mm
  • Pliers head uses an air core coil, which is light-weight and easy to carry

SPECIFICATIONS

Specifications of UT205B 1000A AC Clamp Meter

Specifications Range Accuracy
AC current (A) 1000A ±（1.5%+5)
ACA frequency (Hz) 40Hz～1kHz ±（1.0%＋5）
AC voltage (V) 1000V ±（1.0%＋2）
ACV frequency (Hz) 10Hz～10kHz ±（1.0%＋5）
DC voltage (V) 1000V ±（0.8%＋2）
Resistance (Ω) 40.00MΩ ±(2.5%+5)
Capacitance (F) 40mF ±(10%)
Frequency (Hz) 10Hz  ～   10MHz ±（0.1%+4)
Duty cycle 0.1%～99.9% ±（3.0%+5)
Features
Jaw opening 60mm
Jaw size 55mm
NCV √
Continuity √
Diode test √
LCD screen 42*30mm
Display count 4099
Low battery indication √
Data hold √
Auto power off Around 15 minutes
Max/Min √
Flashlight √
Backlight √
Relative mode √
Overvoltage category CAT II 1000V/CAT III 600V
