UT210 Series
Mini Clamp Meters

UT210 series mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.

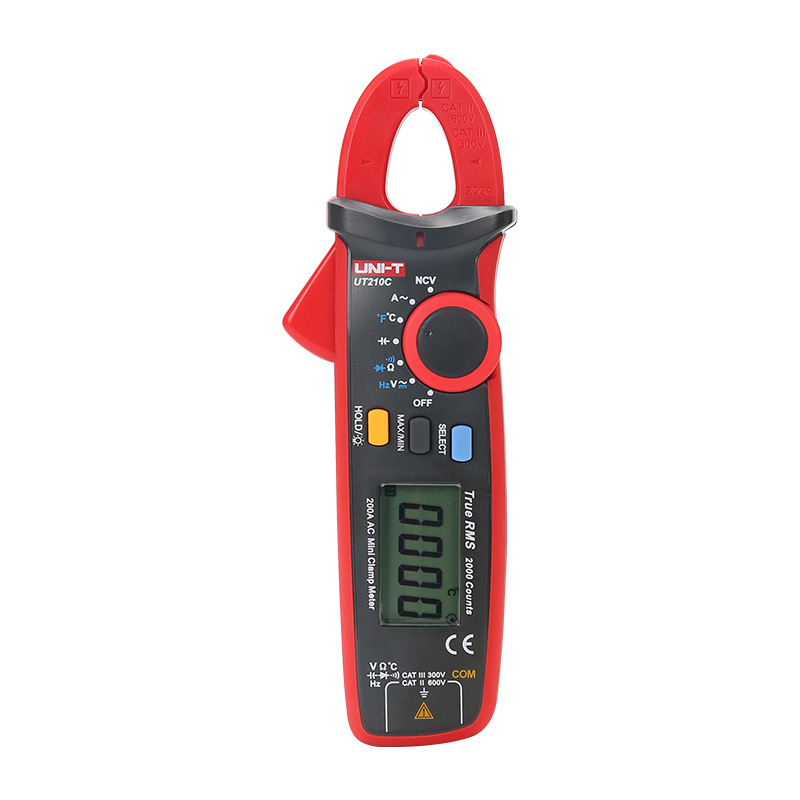

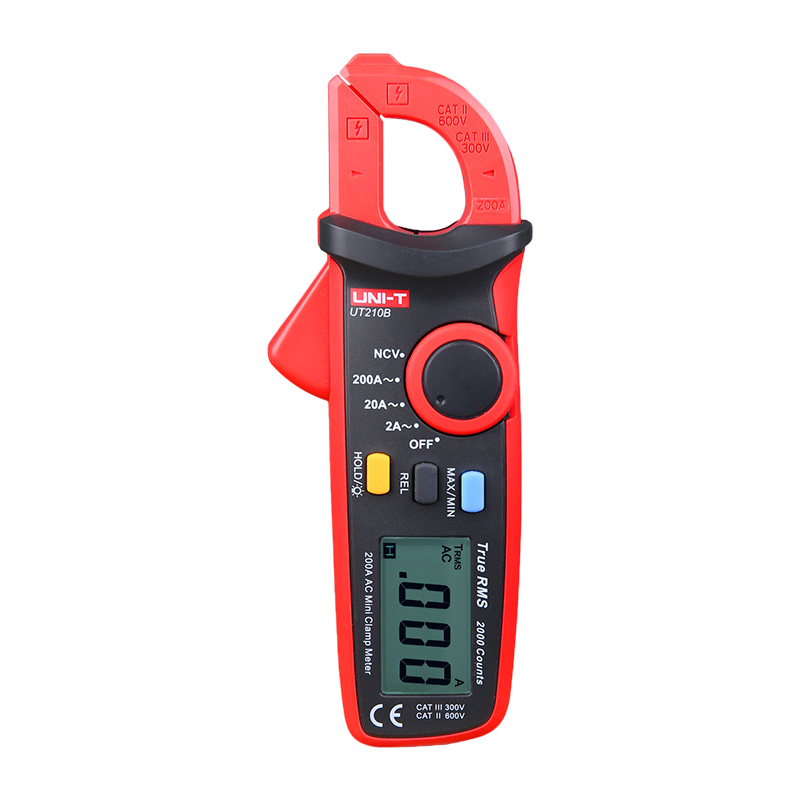

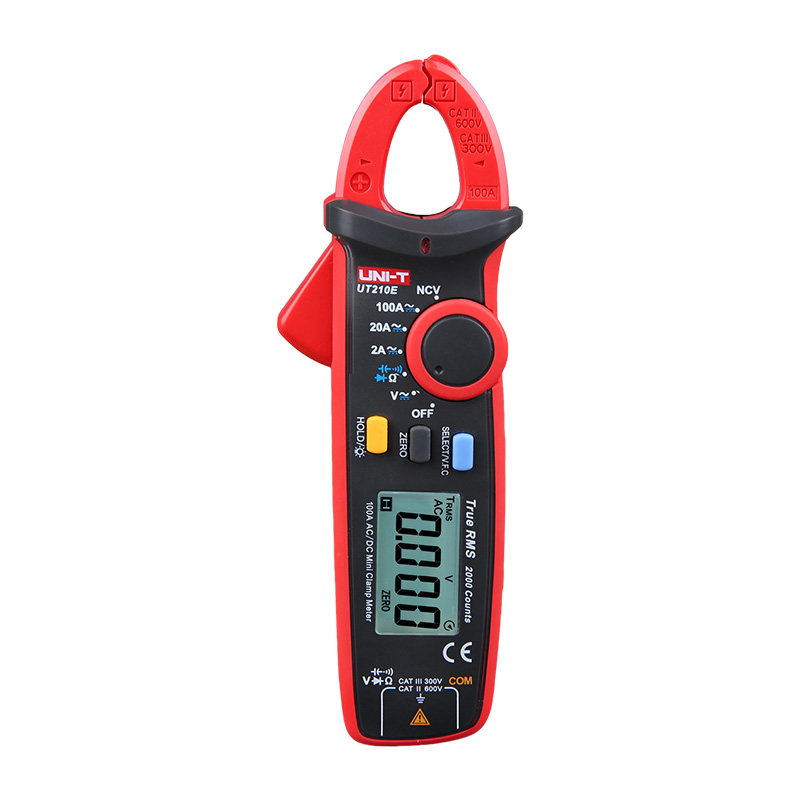

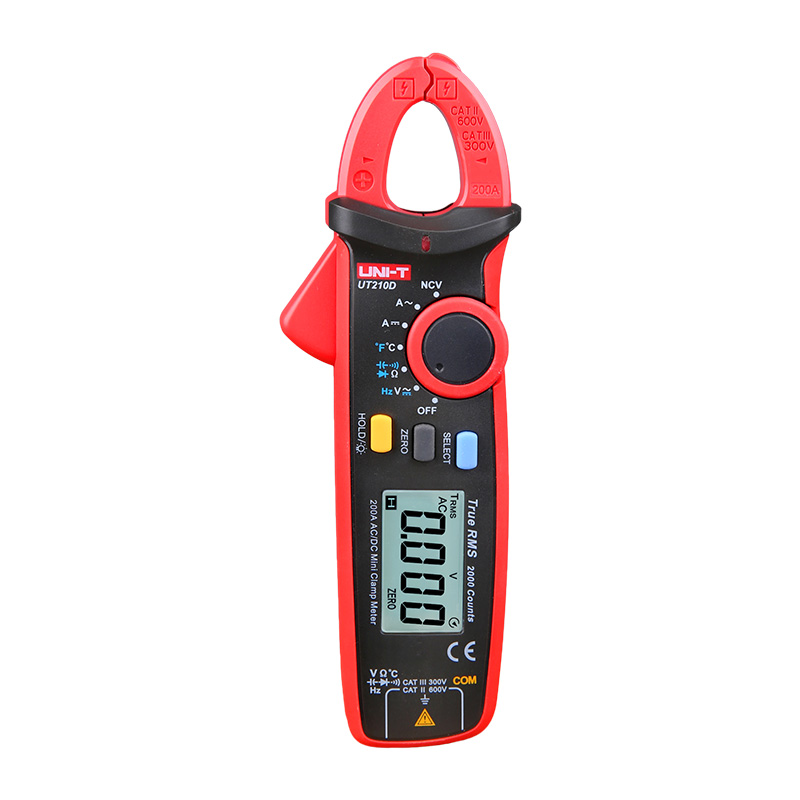

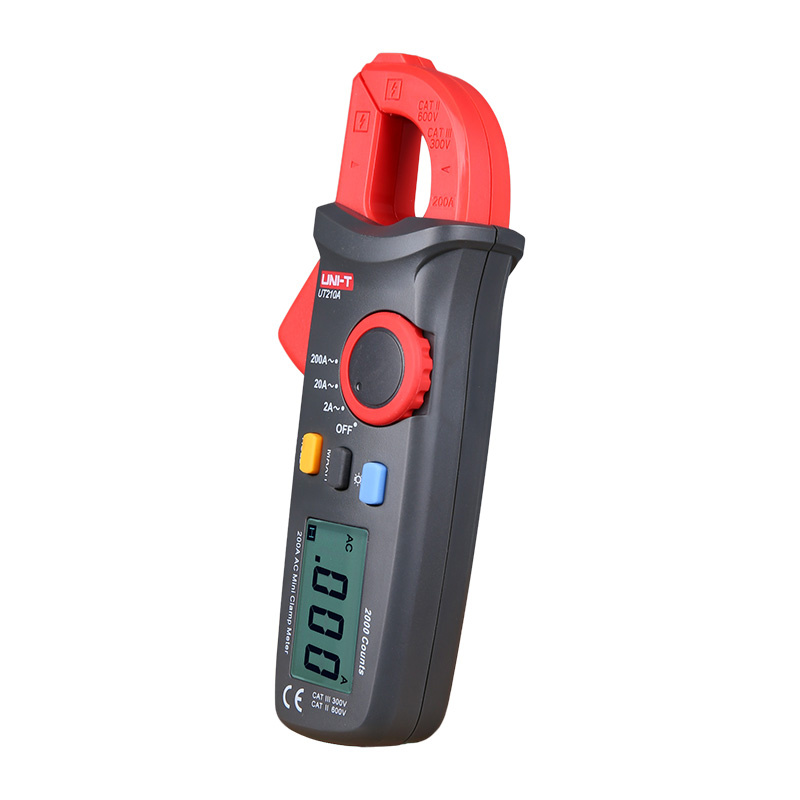

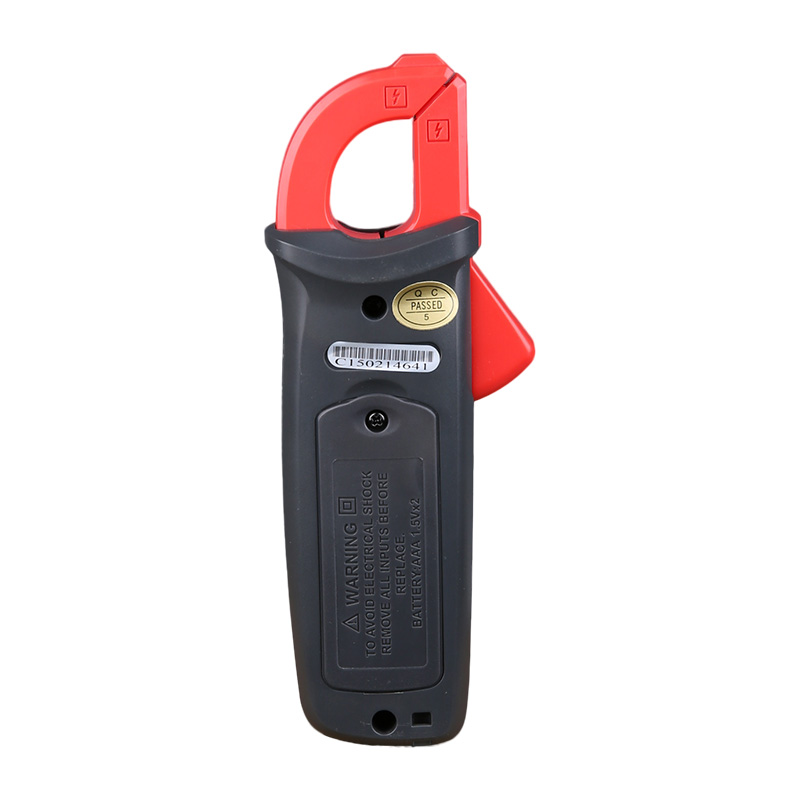

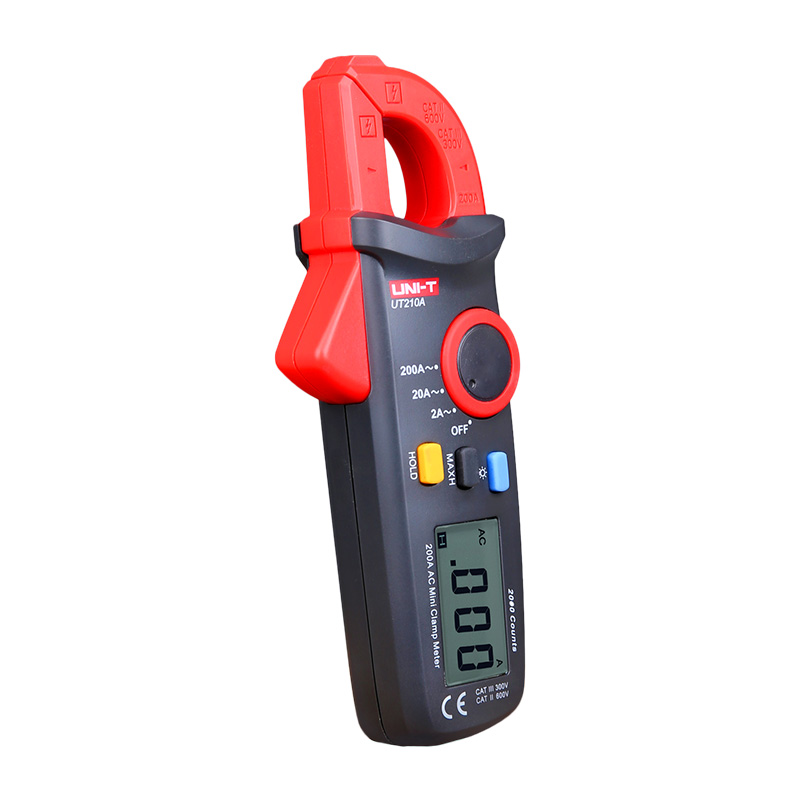

Models in UT210 series: UT210A, UT210B, UT210C, UT210D, UT210E

Features of UT210 Series Mini Clamp Meters

Certifications: CE, UKCA, cETLus

  • Ergonomic and lightweight
  • Auto range, 2~3 times/s sampling rate
  • LCD backlight, data hold
  • Auto power off, low battery indication

SPECIFICATIONS

Specifications of UT210 Series Mini Clamp Meters

Specifications Range UT210A UT210B UT210C UT210D UT210E
AC current (A) 200A ±(2.5%+20) ±(2.5%+20) ±(2%+10) ±(2.5%+8)
100A ±(2.5%+5)
DC current (A) 200A ±(2%+3)
100A ±(2%+3)
AC voltage (V) 600V ±(1%+3) ±(1%+3) ±(1%+3)
DC voltage (V) 600V ±(0.7%+3) ±(0.7%+3) ±(0.7%+3)
Resistance (Ω) 20MΩ ±(1%+2) ±(1%+2) ±(1%+2)
Frequency (Hz) 60kHz ±(0.1%+4)
Capacitance (F) 20mF ±(4%+5) ±(4%+5) ±(4%+5)
Temperature -40~1000℃ ±(1%+3) ±(1%+3)
-40~1832℉ ±(1.5%+5) ±(1.5%+5)
Features
Display count 2000 2000 2000 2000 2000
Continuity buzzer √ √ √ √ √
Auto range √ √ √
Jaw opening 16mm 16mm 17mm 17mm 17mm
Diode test Around 3.0V √ √ √
General Characteristics
Power 1.5V battery (R03) x 2
Display 39.3mm x 26.5mm
Product color Red and grey
Product net weight UT210A/B: 150g (batteries included); UT210C/D/E: 170g
Product size UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm
Standard accessories Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)
Standard individual packing Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)
Standard quantity per carton 40pcs
Standard carton measurement UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm
Standard carton gross weight UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg

APPLICATIONS

Applications of UT210 Series Mini Clamp Meters

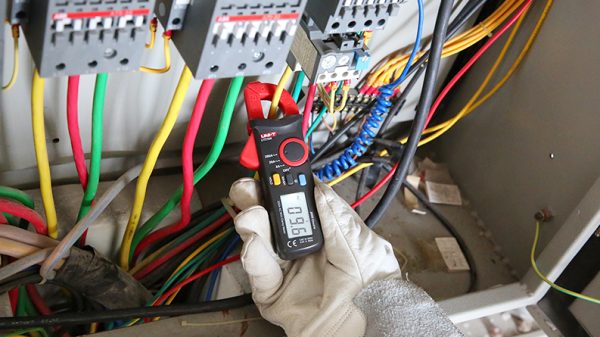

UT210A current measurement

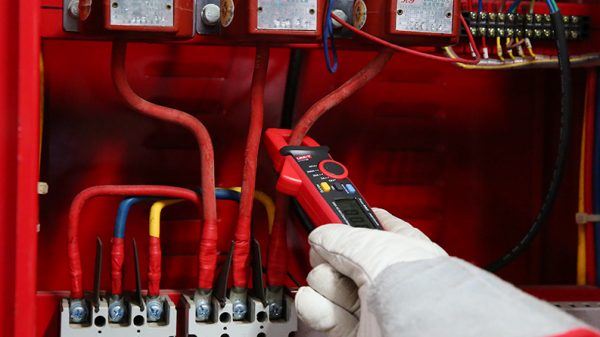

UT210B Current measurement
