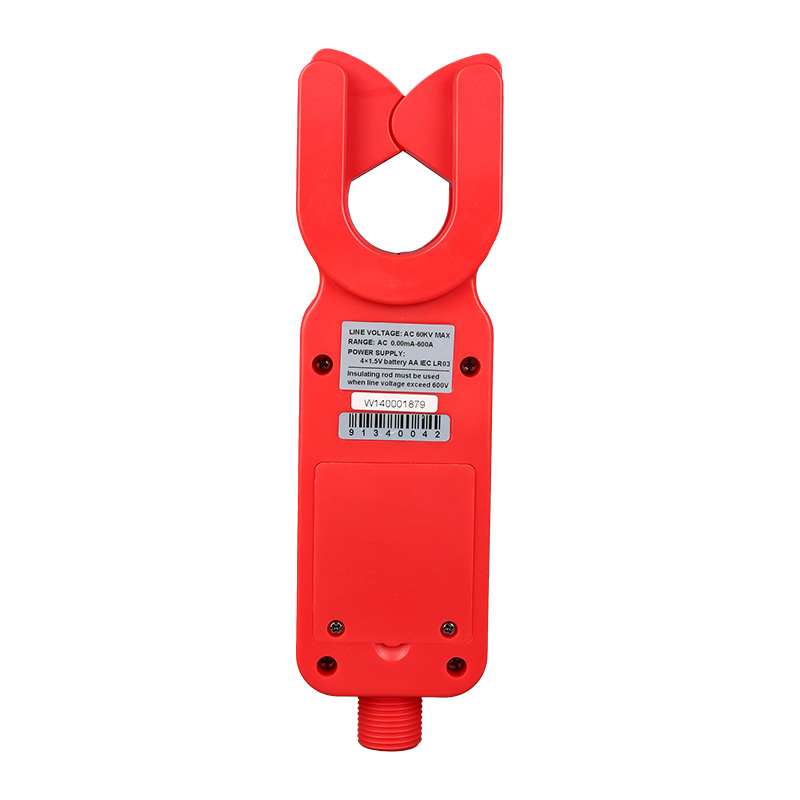

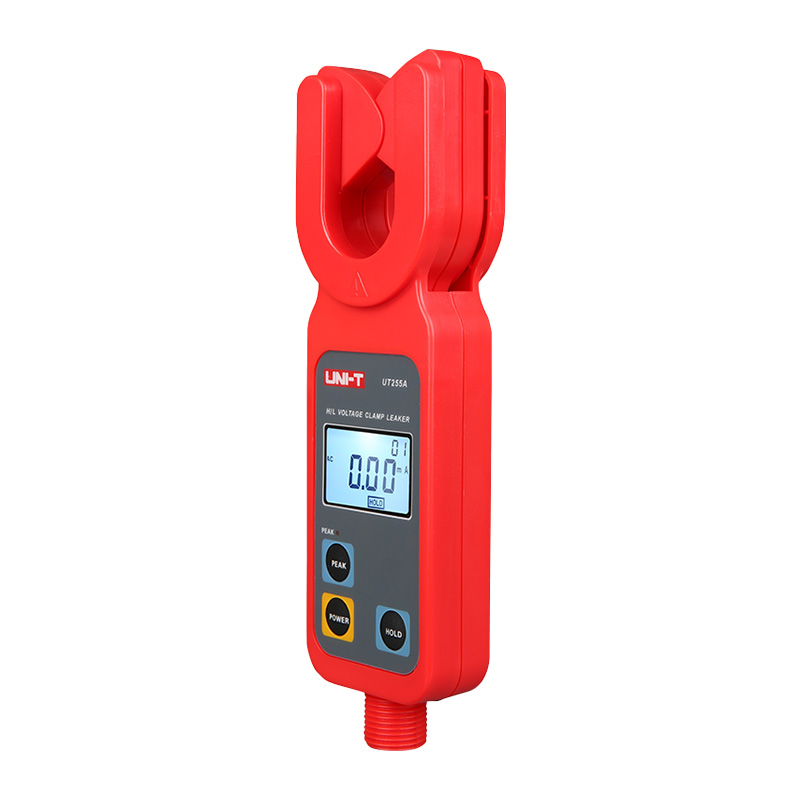

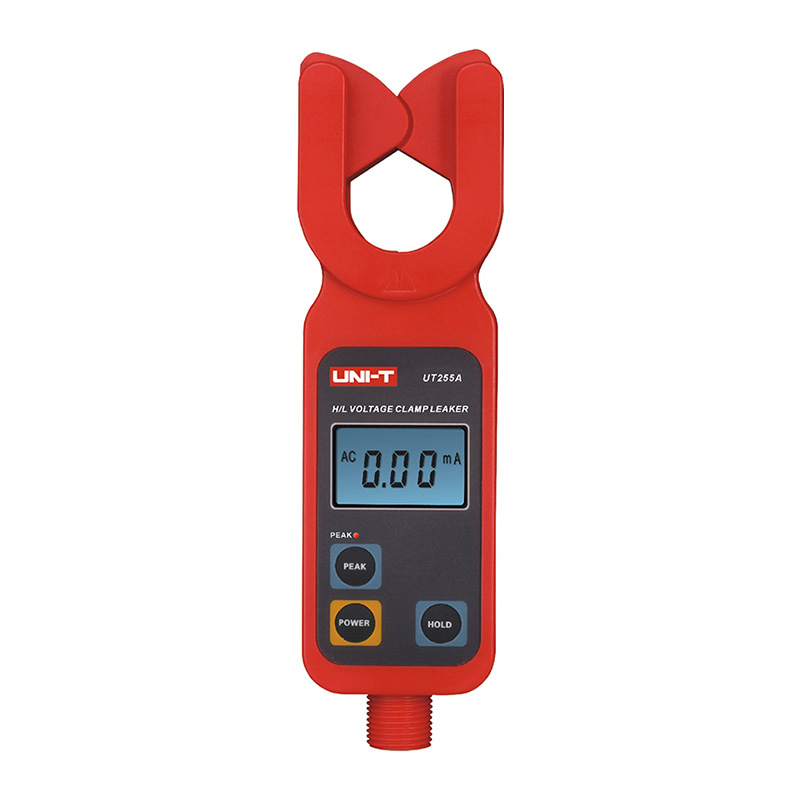

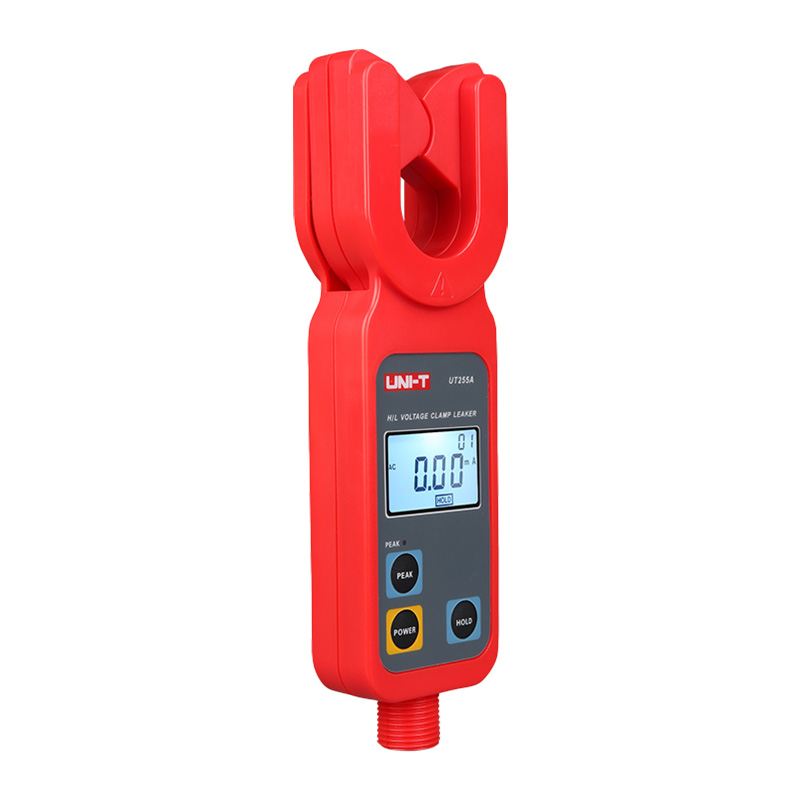

UT255 Series
High Voltage Clamp Ammeters

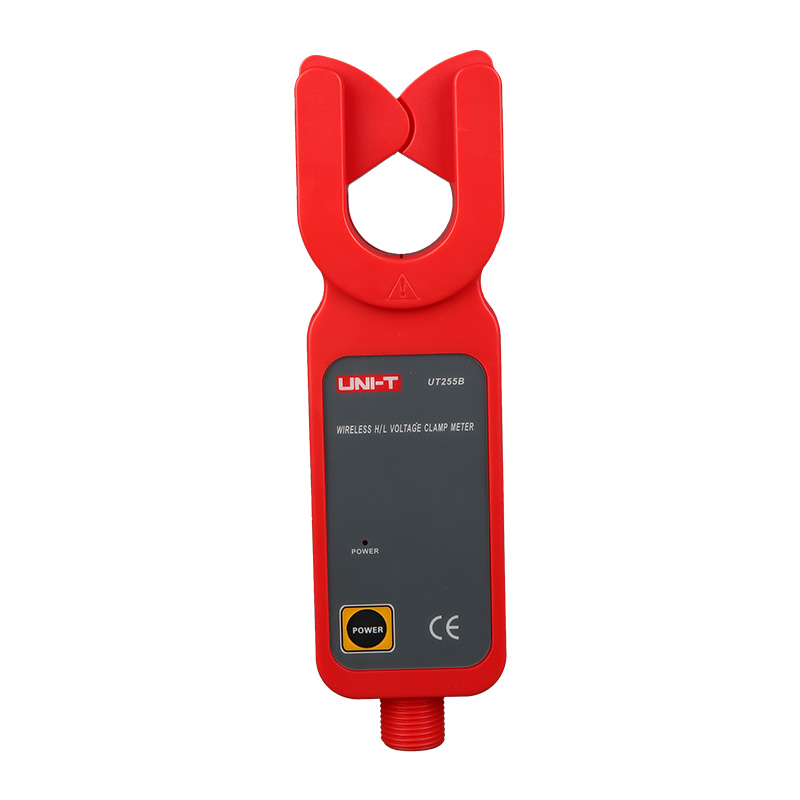

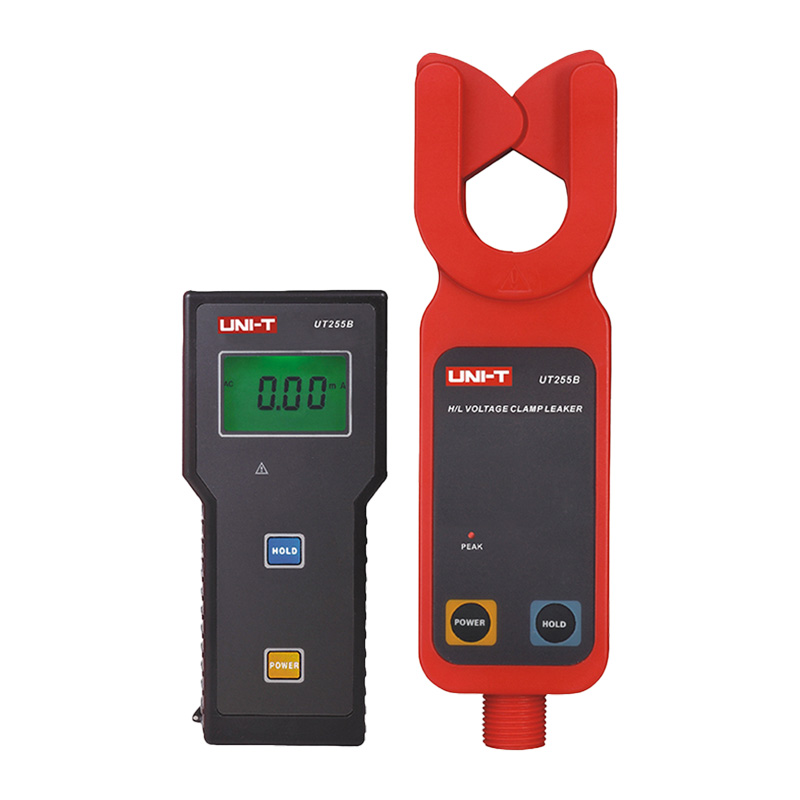

UT255 series high voltage clamp ammeters can measure up to 69kV high voltage line current and leakage current. UT255 comes with an insulation rod, allowing professional users to check status of lightning arresters. The wireless model (UT255B) is also able to wirelessly transmit data in real-time up to 30m range. Its clamp can be easily removed from wire by pressing or pulling back the insulation rod.

Models in UT255 series: UT255A, UT255B

Features of UT255 Series High Voltage Clamp Ammeters

  • Auto range, 2 times/s sampling rate
  • Peak hold
  • Manual range/stores 99 sets of data
  • RS-232 interface
  • Data hold
  • Auto power off
  • LCD backlight
  • Overload protection, low battery indication
  • Automatic plug clamp

SPECIFICATIONS

Specifications of UT255 Series High Voltage Clamp Ammeters

Specifications Range UT255A UT255B
Leakage current (A) 0.01mA~100A ±(1%+5) ±(1%+5)
100A~600A ±(2%+5) ±(2%+5)
Voltage (Freq.)  0V~69kV (50Hz/60Hz) √ √
Features
Display mode 4 digits LCD √ √
Jaw opening 33mm 33mm
Auto range √ √
Wireless transmission ≤30m √
Data recall √ √
Data storage 99 99
Peak value √ √
LCD backlight √ √
Data hold √ √
Auto power off √ √
Low battery indication √ √
Over-range display OL √ √
Test mode Clamp CT, integration √ √
Sampling rate About 2 times/s √ √
General Characteristics
Power 1.5V Battery (LR03) x 4
Display 47mm x 28.5mm
Product color Red and grey
Product net weight 335g
Product size 68mm x 245mm x 40mm

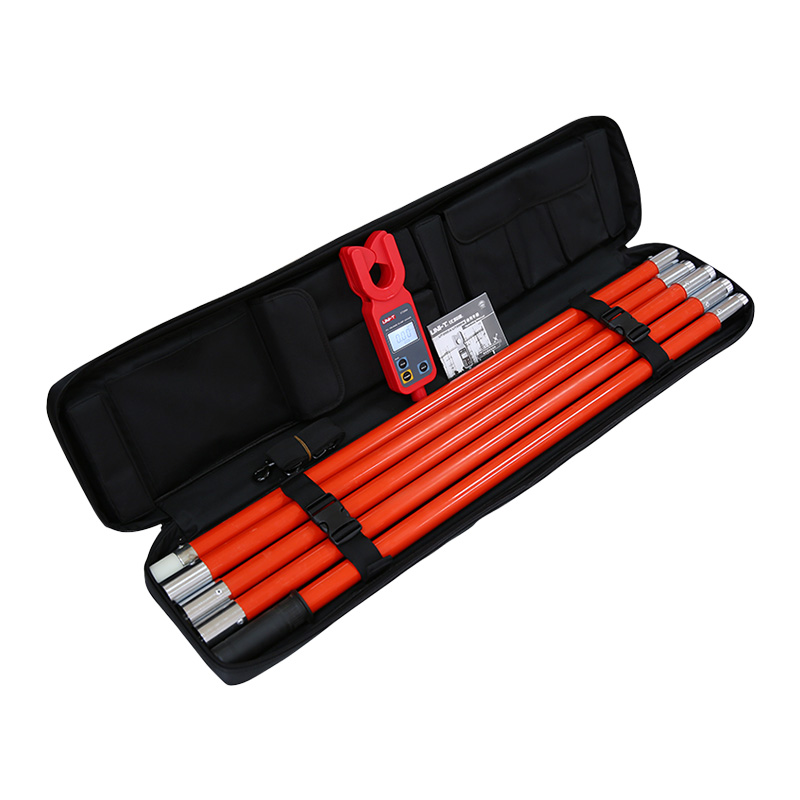

Standard accessories Batteries, insulation rod, receiver (UT255B)
Standard individual packing Gift box, English manual, tool box
Standard quantity per carton 1pcs
Standard carton measurement 1040mm x 240mm x 140mm
Standard carton gross weight 6.8kg

APPLICATIONS

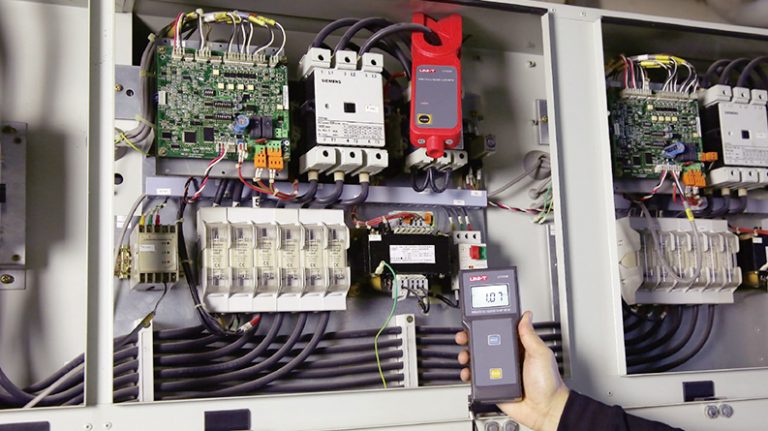

Applications of UT255 Series High Voltage Clamp Ammeters
