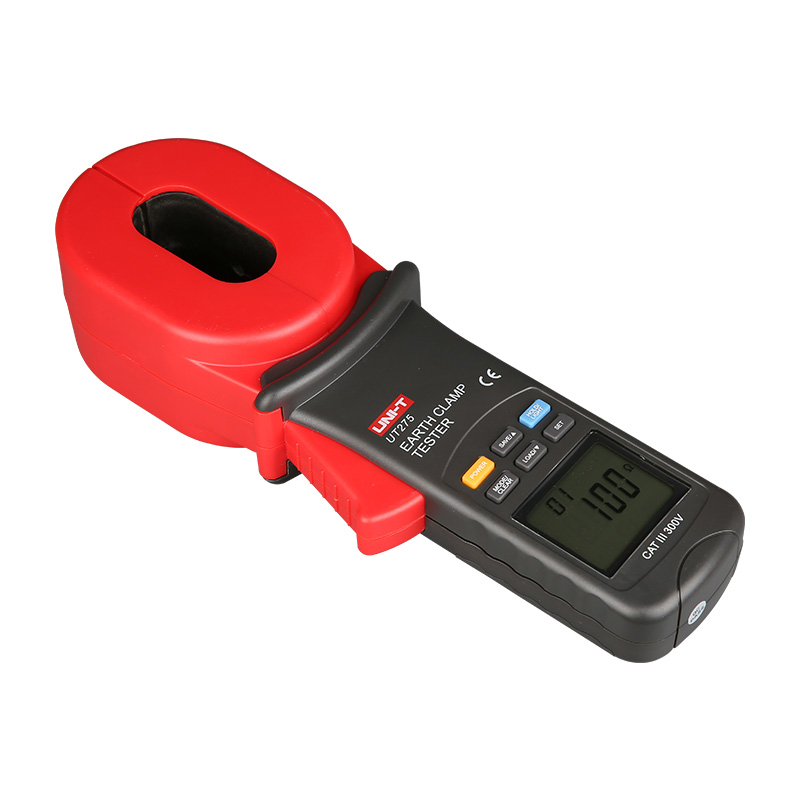

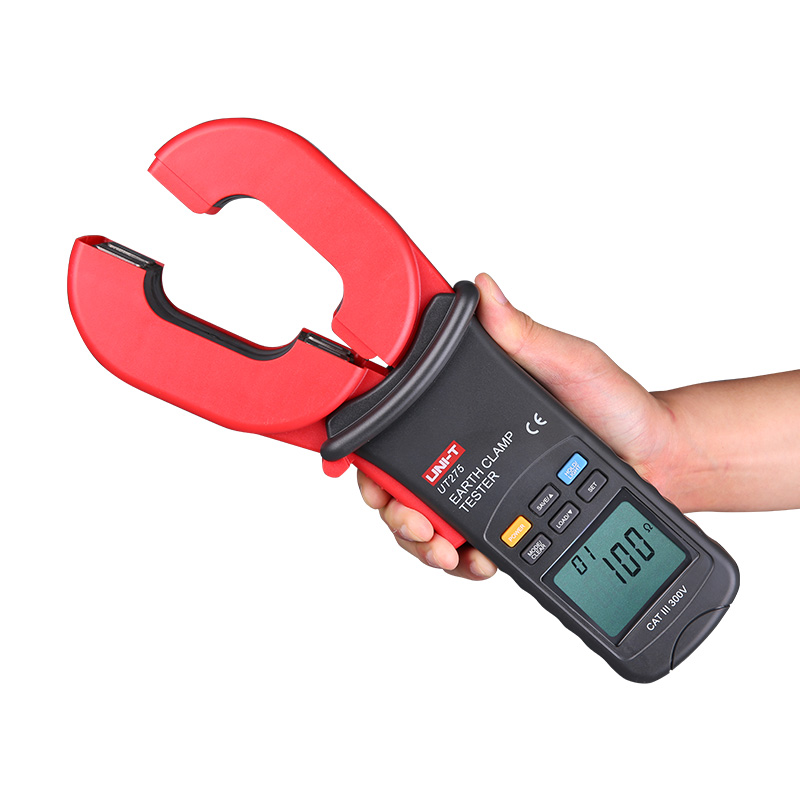

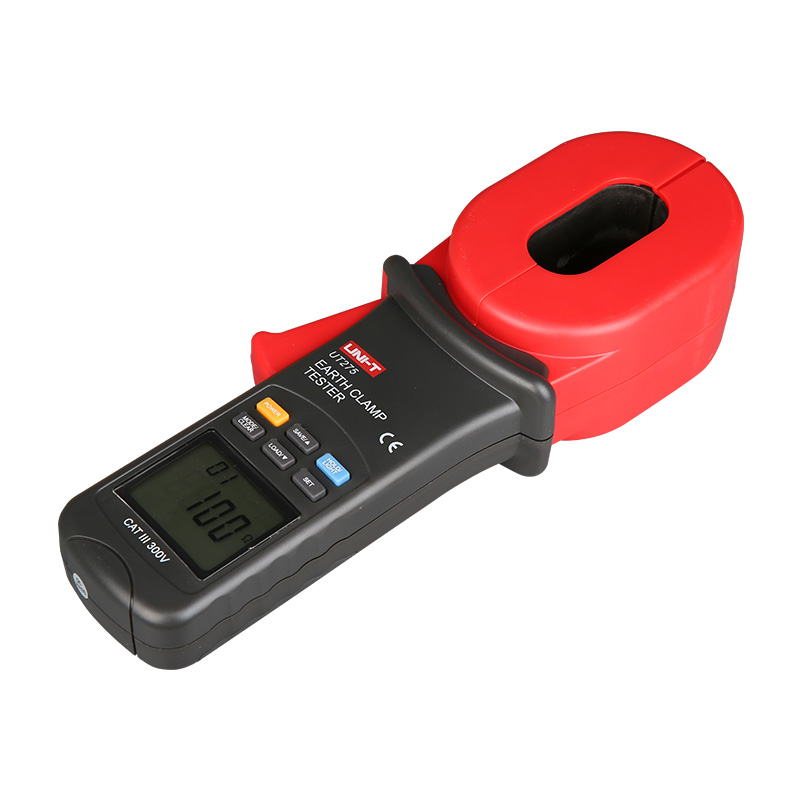

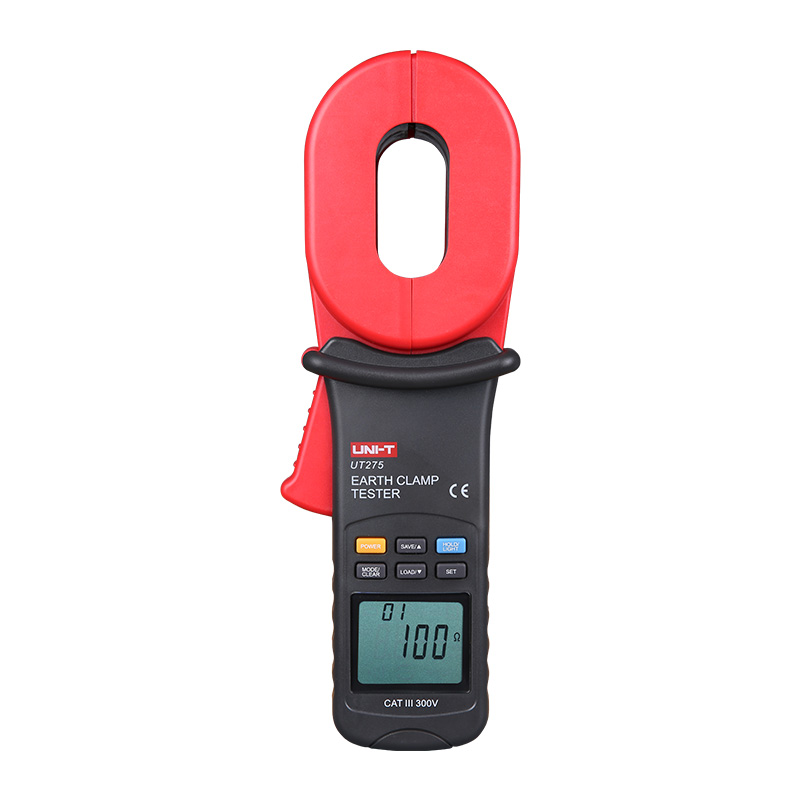

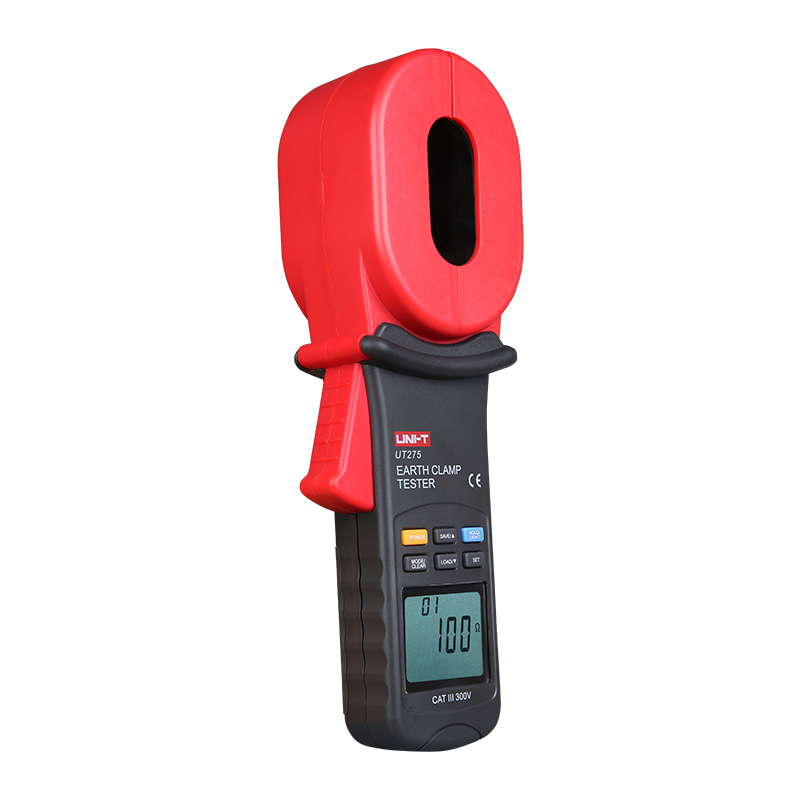

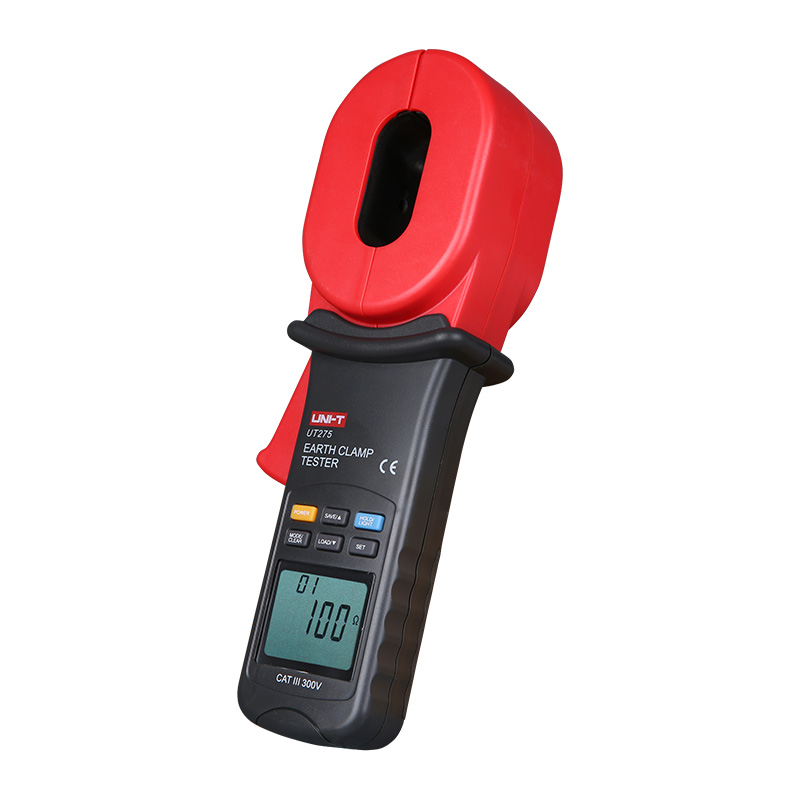

UT275
Clamp Earth Ground Tester

UT275 can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. UT275 can also measure leakage current up to 30A. These clamps’double insulation design makes them durable tools for outdoor work and effective in blocking interference signals from the environment.

Features of UT275 Clamp Earth Ground Tester

  • Resistance limit alarm
  • Auto range
  • Low battery indication
  • Data hold
  • Data recall
  • LCD backlight
  • Auto calibration

SPECIFICATIONS

Specifications of UT275 Clamp Earth Ground Tester

Specifications Range UT275
Earth Ground Resistance (Ω) 0.01~0.099Ω ±(1%+0.01)
0.1~0.99Ω ±(1%+0.01)
1~49.9Ω ±(1.5%+0.1)
50~99.5Ω ±(2%+0.5)
100~199Ω ±(3%+1)
200~395Ω ±(10%+5)
400~590Ω ±(20%+10)
600~800Ω
600~1000Ω ±(25%+20)
800~1200Ω
Leakage current (A) 0mA~9mA
10mA~99mA
100mA~299mA
0mA~299mA ±(2.5%+2mA)
0.3A~2.99A ±(2.5%+100mA)
3A~9.9A
10A~20A
3A~30A ±(2.5%+300mA)
Display count 10000
Jaw opening 28mm
Visual and audible alarm
Auto power off √
Jamming signal recognition
Over-range display
Data storage 30
Display type LCD
Ω+A display
General Characteristics
Power 1.5V battery (LR6) x 4
Display 47mm x 28.5mm
Product net weight 1.32kg
Product size 293mm x 90mm x 66mm
Standard accessories Batteries, test ring, English manual
Standard individual packing Gift box, tool box
Standard quantity per carton 5pcs
Standard carton measurement  510mm x 375mm x 320mm
Standard carton gross weight 15.2kg
