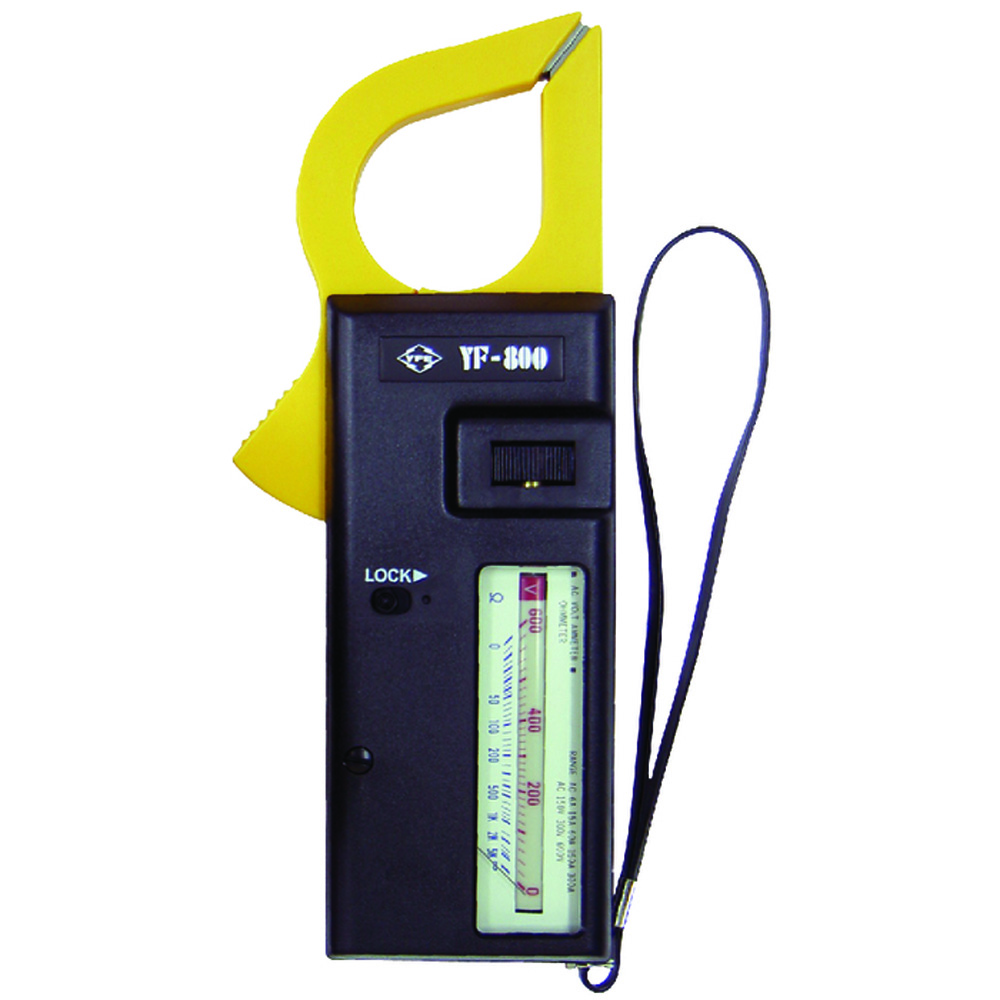

YF-800
AC Analog Clamp Meter

APPLICATION

  • Unlock the pointer lock switch. So the pointer is free to move.
  • If the pointer does not normally rest exactly over the”0″ of the V A scale, carefully adjust the zero adjustment
  • screw at the center of the meter to bring the pointer over the “0”.
  • Any exceeding range measurement is not permitted. Always start from the top range for any unknown range test.
  • Pull the ohm probe off when in current or voltage measurement.
  • The maximum voltage limit is 600V for this unit. Any overload usage is extremely dangerous.

FEATURES

  • A rotary scales presents one range at a time, reducing error possibility in reading.
  • A pointer lock freezes reading when in dimly lit areas.
  • Unique slopping-shape insulated jaw suits for any narrow or crowded wire field.
  • Jaw opens to 44mm and maximum conductor size is up to 40mmΦ.
  • With Complete range capability, AC Amp 6/15/60/150/300A;AC voltage up to 600V and resistance to 5K ohm.

SPECIFICATIONS

  • Dimension: 220mm(L)x85mm(W)x33mm(H).
  • Weight:about 340g. (Including battery)
 AC Current
 0-6A, 15A, 60A, 150A, 300A
 AC Voltage
 0-5K ohm (Miscalled 200 ohm)
 Accuracy
 AC current within ±3% of full scale.
 AC Voltage within ±3% of full scale.
 Resistance within ±3% of full scale.
 Frequency
 50/60Hz
