APPLICATION
This unit is a compact 3½digit digital clamp meter for measuring AC voltage, AC current, resistance, continuity and frequency. It can be operated easily and is an ideal instrument tool.
YF-8020A

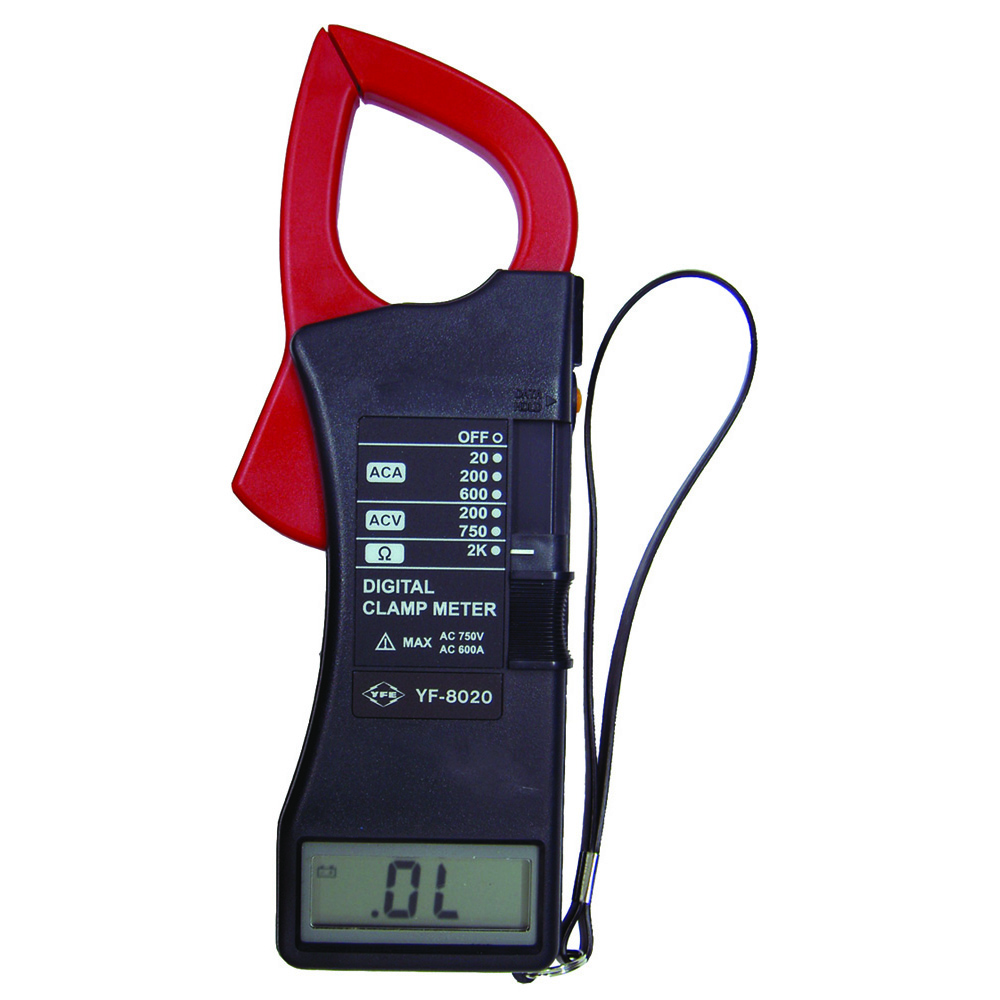

AC Clamp Meter
FEATURES
-
Display: 3 1/2 -digit LCD with a max. reading of 1999
-
Overrange indication : “1” shown on LCD
-
Sampling rate: Approximate 3 times per sec.
-
Error caused by improper position: 1% of reading (Note: The conductor should be placed in the
-
center of the jaws to avoid this error)
-
Sensor : Clamp-shape transformer for AC measurement
-
Jaw opening capability : 40mm
-
Max. measurable conductor:Ø37mm
SPECIFICATIONS
-
Dimensions:205x80x35mm(length x width x height).
-
Weight: Approximately 257 grams.(incl. Battery)
Electrical Specifications
|
AC Voltage
|
|||
|
Range
|
Resolution
|
Accuracy
|
Overload Protection
|
|
200V
|
0.1V
|
±(1.2%+3)
|
DC 1000V
AC 750V rms |
|
750V
|
1V
|
||
-
Input impedance: 10MΩ
-
Frequency response: 40Hz~400Hz
-
Max. permitted input voltage: 750Vrms
|
AC Current
|
|||
|
Range
|
Resolution
|
Accuracy
|
Overload Protection
|
|
20A
|
10mA
|
±(2%+5)
|
600A
(30 secs.) |
|
200A
|
100mA
|
||
|
600A
|
1A
|
±(4%+8)<6A
|
|
|
±(2%+5)
|
|||
|
±(4%+8)>590A
|
|||
-
Response: Average, calibrated in rms of sine wave.
-
Frequency range: 50 – 60Hz
|
Frequency
|
|||
|
Range
|
Resistance
|
Accuracy
|
Overload Protection
|
|
2000Hz
|
1Hz
|
±(0.8%+3)
|
350Vrms
|
Sensitivity:≥1V rms
|
Resistance
|
|||
|
Range
|
Resistance
|
Accuracy
|
Overload Protection
|
|
2000Ω
|
1Ω
|
±(1.0%+2)
|
350V rms
|
Max. opencircuit voltage: about 1.5V
|
Audible Continuity
|
|||
|
Range
|
Opencircuit voltage
|
Description
|
Overload protection
|
 |
<1.5V
|
If resistance is less than about 40Ω, the built-in buzzer will sound
|
350Vrms
|
Note:
When the resistance is between 400 and 1200,
the buzzer may sound or may not sound.
When the resistance is more than 1200, the buzzer will not sound.
