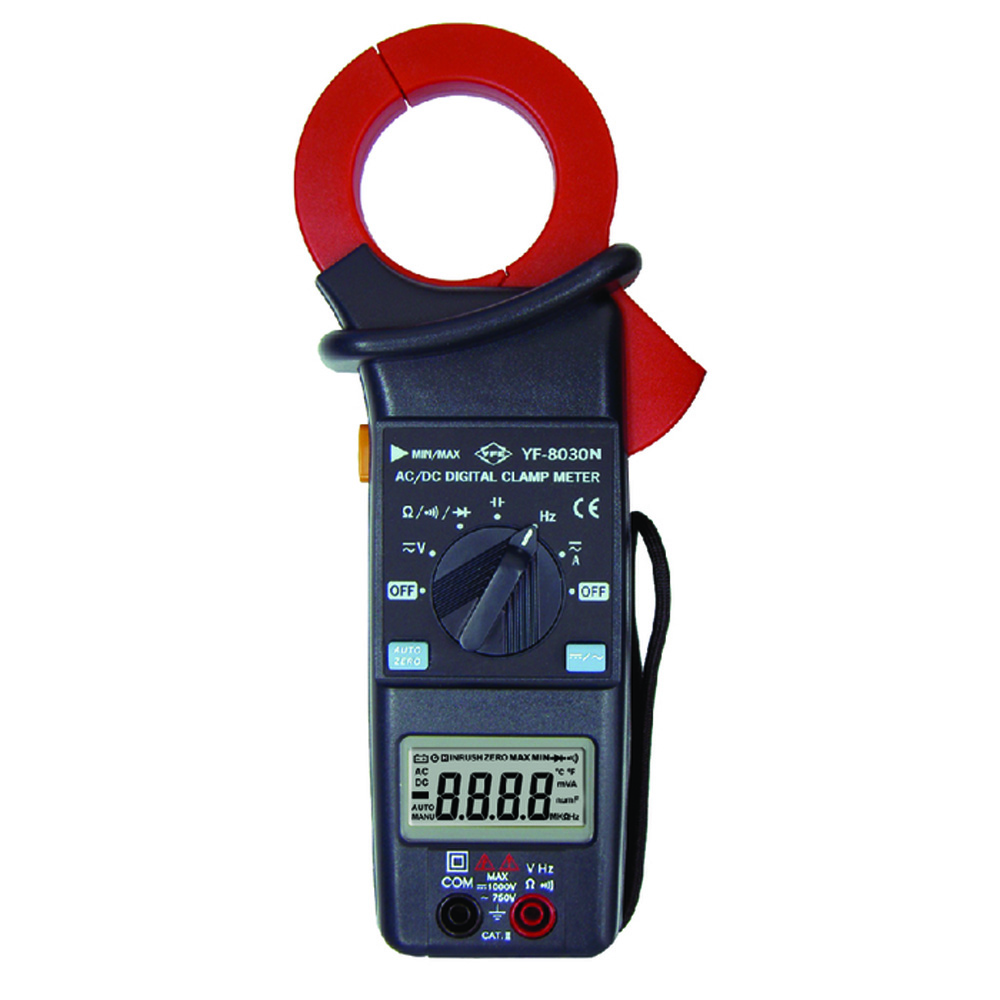

YF-8030N
AC/DC Clamp Meter

APPLICATION

  • AC/DC Current measurement
  • AC/DC Voltage measurement (Auto ranging)
  • Resistance(Ω)/continuity/Diode measurement
  • Frequency Measurement (Auto ranging).
  • Capacitance measurement (Auto ranging) .
  • MIN MAX Minimum (MIN), Maximum(MAX), Recording

FEATURES

  • Max. opening size up to 53mm.
  • Auto-indication of measuring units and functions.
  • MIN/MAX hold.(MIN MAX)
  • Current measurement protection up to 1200A.
  • Rugged, tough and reliable quality.
  • Voltage, Resistance, Frequency and Capacitance auto-ranging.
  • Auto zero.

SPECIFICATIONS

  • Overload Indication: LCD will display “OL” or “-OL” flash in the highest position accompanied with a continuous buzz.
  • Polarity Indication: Automatic polarity, “_”
  • display for negative input.
  • Sampling time: 2 times / sec.
  • MIN/MAX hold.(MIN MAX)
  • Max. Conductor size: 52mm.
  • Dimension: 221mm(L)x62mm(W)x35mm(H).
  • Weight:about 500g. (Including battery)
Electrical Specifications(23℃±5℃,below 80％RH )
DC Current (Auto Ranging)
Range
Resolution
Accuracy
Overload
Protection
660.0A
0.1A
±(1.5%+5)
1200A/60sec
1200A
1A
±(2%+5)
AC Current (Auto Ranging)
Range
Resolution
Accuracy
(50Hz~60Hz)
Overload
Protection
660.0A
0.1A
±(2%+5)
1200A/60sec
1200A
1A
DC Voltage (Auto Ranging)
Range
Resolution
Accuracy
Input
Impedance
Overload
Protection
6.600V
1mV
±(0.5%+3)
11MΩ
DC 1000V
AC750Vrms
66.00V
10mV
10MΩ
660.0V
100mV
1000V
1V
±(1.5%+4)
AC Voltage (Auto Range)
Range
Resolution
Accuracy
Input
Impedance
Overload
Protection
6.600V
1mV
±(1.2%+3)
11MΩ
DC1000V
AC750Vrms
66.00V
10mV
10MΩ
660.0V
100mV
750V
1V
±(1.5%+4)
Resistance (Auto Ranging)
Range
Resolution
Accuracy
Input
Impedance
Overload
Protection
660.0Ω
100mΩ
±(1.0%+5)
About 1.5V
DC /AC 600Vrms
6.600KΩ
1Ω
±(1.0%+3)
About 0.45V
66.00KΩ
10Ω
660.0KΩ
100Ω
6.600MΩ
1KΩ
66.00MΩ
10KΩ
±(3.0%+5)
Frequency Test (Auto Ranging)
Range
Resolution
Accuracy
Input
Impedance
Overload
Protection
660.0Hz
0.1Hz
±(0.5%+1)
5Vrms
AC/DC 600Vrms
6.600KHz
1Hz
66.00KHz
10Hz
100.0KHz
100Hz
Diode Test
Range
Resolution
Accuracy
Open
Voltage
Overload
Protection
1mV
±(1.5%+5)
About 3V
AC/DC 600Vrms
Continuity
Range
Resolution
Sound Level
Open
Voltage
Overload
Protection
0.1Ω
Blow 35Ω
About 0.45V
AC/DC 600Vrms
Capacitance Test (Auto Range)
Range
Resolution
Accuracy
Overload
Protection
6.600uF
1nF
±(2.0%+8)
AC/DC 600Vrms
66.00uF
10nF
660.0uF
100nF
6.600mF
1uF
±(5.0%+20)
66.00mF
10uF
