APPLICATION

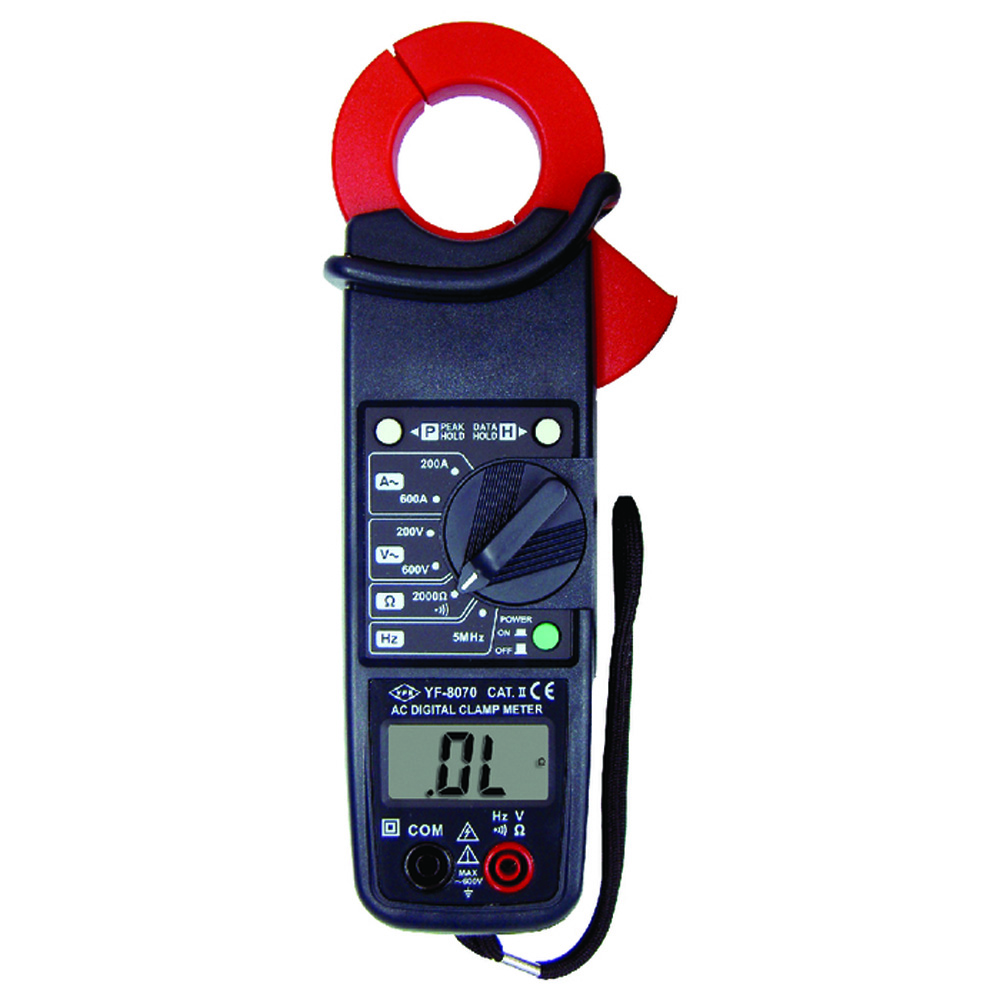

This unit is a compact 3½digit digital clamp meter for measuring AC voltage, AC current, resistance and frequency. It can be operated easily and is an ideal instrument tool.
FEATURES
-
The maximum opening size of the jaw up to 36mm.
-
The inner dimension of the jaw for clamping test leads is Ø35mm.
-
The meter is double insulated and designed for your safety requirements.
-
Safety socket design.
-
Indication of measurement units and functions.
-
Peak Hold function.
-
In continuity test, A buzz will sound with any readinc, below approx 30Ω.
-
Data Hold function.
SPECIFICATIONS
-
Dimensions:205x80x35mm(length x width x height).
-
Weight: Approximately 257 grams.(incl. Battery)
Electrical Specifications
|
AC Current
|
|||
|
Range
|
Resolution
|
Accuracy
50Hz~500Hz |
Overload Protection
|
|
200A
|
0.1A
|
±(1.5%+4)
|
800A(within 60 sec.)
|
|
600A
|
1A
|
||
|
AC Voltage
|
||||
|
Range
|
Resolution
|
Accuracy
50Hz~500Hz |
Input Impedance
|
Overload Protection
|
|
200V
|
0.1V
|
±(1.2%+4)
|
10MΩ
|
DC 1000V
AC 750V |
|
750V
|
1V
|
|||
| Resistance | ||||
| Range | Resistance | Accuracy | Max.Open Voltage | Overload Protection |
| 2000Ω | 1Ω | ±(1.0%+2) | 0.35V approx. | 600V rms |
*Also with buzz function for continuity purpose, buzz will sound
when the measured resistance is below 30Ω.
| Frequency (Auto-range) | ||||
| Range | Resolution | Accuracy | Max.Sensitivity | Overload Protection |
| 2KHz | 1Hz | ±(0.8%+3) | 3Vrms | 600Vrms |
| 20KHz | 10Hz | |||
| 200KHz | 100Hz | |||
| 2MHz | 1KHz | |||
| 5MHz | 10KHz | ±(1.2%+3) | 5Vrms | |
|
* Above measurements can also be completed by using clamp jaw. *
|
||||
|
Frequency region
by clamp jaw |
Test region
|
Max. Sensitivity
|
|
10Hz～10KHz
|
10Hz ～ 200Hz
|
2A
|
|
201Hz ～ 400Hz
|
3A
|
|
|
401Hz ～ 600Hz
|
4A
|
|
|
601Hz ～ 800Hz
|
5A
|
|
|
801Hz ～ 1000Hz
|
6A
|
|
|
1.001KHz ～ 1.9KHz
|
10A
|
|
|
1.91KHz ～ 4KHz
|
20A
|
