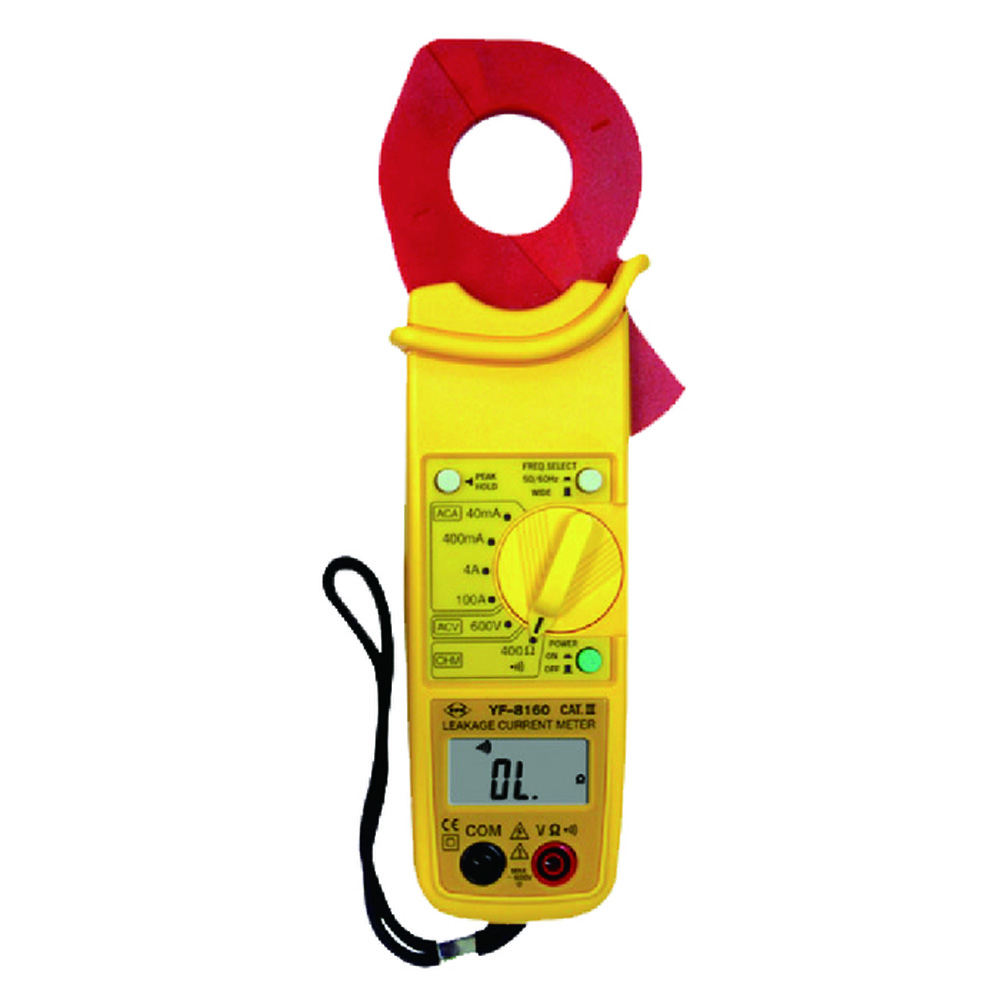

YF-8160
100A Leakage AC Clamp Meter

APPLICATION

  • Installation categoriesⅢ.
    Pollution degree 2
    Double and Reinforce Insulation .
  • Operation height-2000M under the elevation above sea level.
  • Operation temperature and humidity:-10°C~50°C, below 80% RH.
  • Storage Temperature and Humidity: -20 ℃～60℃, below 70% RH.

FEATURES

  • The maximum opening size of the jaw up to 36mm.
  • The inner dimension of the jaw for clamping test  leads is Ø35mm
  • The meter is double insulated and designed for your safety requirements.
  • With safety sockets design.
  • With indication of measurement units and functions.
  • With Peak Hold function.
  • In continuity test, reading below 100Ωapprox. will be in company with a buzz.
  • Overload indication: Display the highest “OL” at left side.
  • Low battery indication: Replace battery as LCD displays.
  • Peak Hold: To hold the maximum reading of the measured value.

SPECIFICATIONS

  • Display: 3 3/4 digit LCD with maximum reading 3999, units, decimal point, and symbols.
  • Sampling time: 2.5 times/sec.
  • Test leads: YU FONG, MODEL YF-1010, MAX 1200V ⎓
  • Dimension: 221mm(L)x62mm(W)x35mm(H).
  • Weight:about 324g. (Including battery)
Electrical Specifications(23℃±5℃,below 80％RH )
AC current
Range
Resolution
Accuracy (40HZ～1KHZ)
Overload
 Protection
 40mA
0.01 mA
±(1.5%+2)
1A
400mA
 0.1 mA
10A
4A
1 mA
100A
100A
0.1A
±(1.5%+5) (4~80A)
500A
0.1A
±(10%+5) (80.1~100.0A)
500A
* 40mA range is so sensitive that the reading is easily changed or not zero .
AC Voltage
Range
Resolution
Accuracy
50Hz ～ 500Hz
nput
Impedance
Overload Protection
600V
1V
±(1.5%+5)
10M
DC 600V
AC 600Vrms
Resistance
Range
Resolution
Accuracy
MAX. Open Voltage
Overload  Protection
400Ω
 0.1Ω
±(1.2%+3)
3.3V approx
AC/DC
500 Vrms
*Also with buzz function for continuity, buzzer will sound as the measured resistance is below 100Ω.
