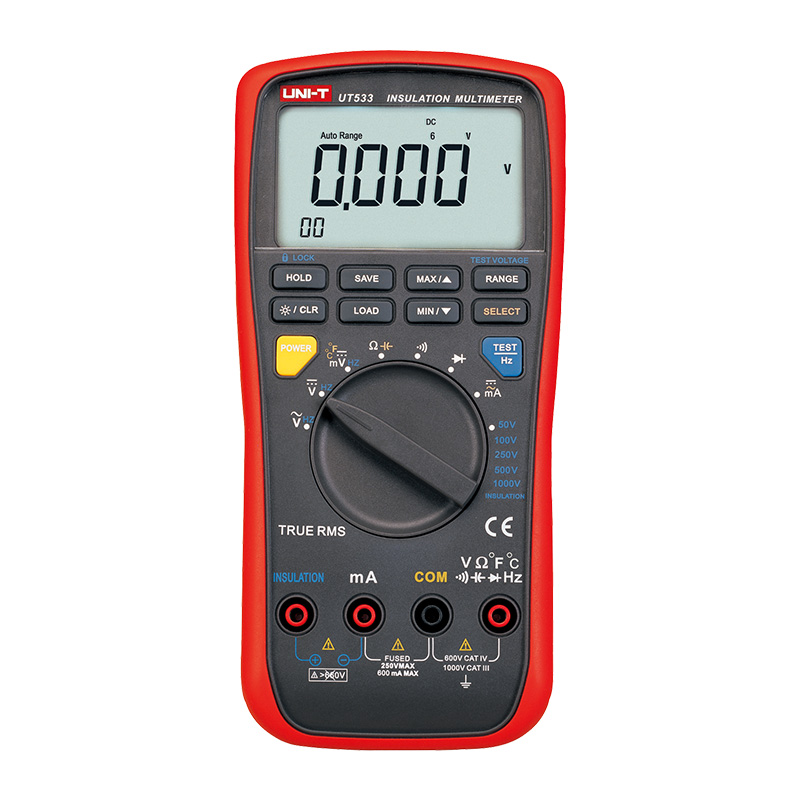

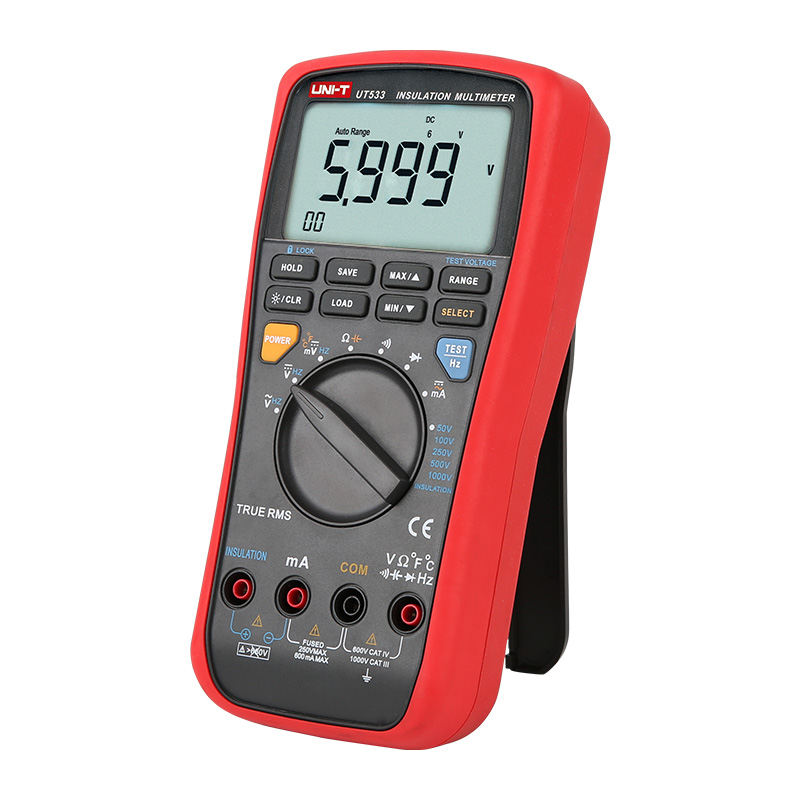

UT533 insulation multimeter is a fully functional digital multimeter and digital insulation tester with RMS, widely used in industrial, laboratory, home and other Applications. It features AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also has 1000V testing voltage insulation resistance measurement function.
Features of UT533 Insulation Multimeter
Certifications: CE, RoHS
Specifications of UT533 Insulation Multimeter
| Specifications | Range | UT533 |
| Insulation resistance | 0.1MΩ~2GΩ | ±(5%+5) |
| Output voltage | 50~1000V | – |
| AC voltage (V) | 6V~1000V | ±(2%+3） |
| DC voltage (V) | 6mV~1000V | ±(0.3%+4） |
| AC Current | 60mA ~600mA | ±(1.5%+2） |
| DC Current | 60mA ~600mA | ±(1.0%+2) |
| Resistance (Ω) | 600Ω~40MΩ | ±(1.5%+3) |
| Capacitance (F) | 10nF~100uF | ±(3%+5) |
| Frequency (Hz) | 60Hz~1MHz | ±(0.1%+3) |
| Temperature(℃) | -40℃ ~ 537℃ | ±(1%+10) |
| Features | ||
| Display count | 5999 | |
| Diode & Continuity | √ | |
| Dual display | √ | |
| Auto/Manual range | √ | |
| Backlight | √ | |
| MAX/MIN | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Data hold | √ | |
| Category ratings | CAT III 1000V, CAT IV 600V | |
| Certificates | CE/RoHS | |
| General Characteristics | ||
| Standard accessories | Test lead, battery, Crocodile clip, K type thermal probe | |
| Power | 1.5V LR6 * 6 | |
| Display | 81 * 46mm | |
| Product size | 96.7 * 202.8 * 46mm | |
| Product net weight | 505g | |
| Standard quantity per carton | 20 pcs | |
| Standard carton measurement | 460 * 400 * 368mm | |
| Standard carton gross weight | 22.2Kg | |

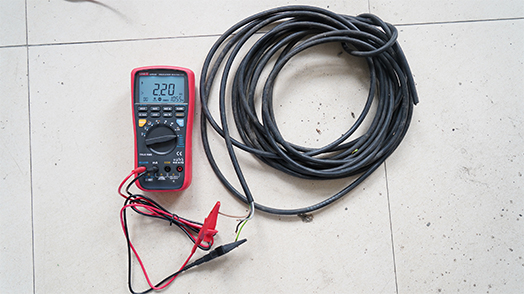

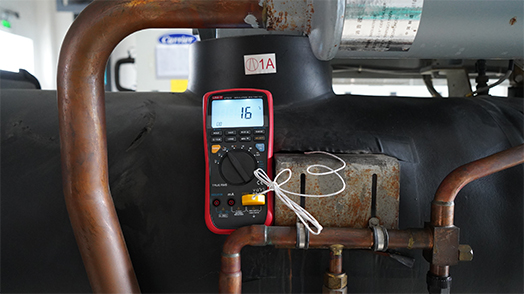

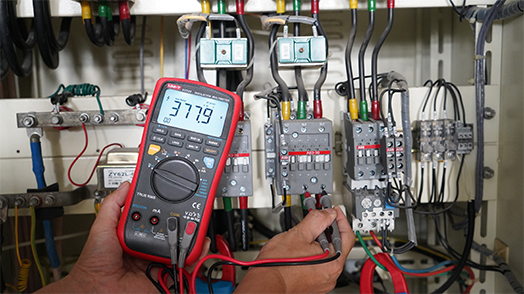

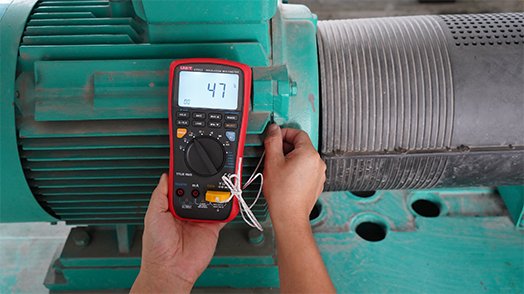

Applications of UT533 Insulation Multimeter
