Active magnetic loop antenna MDF 50400X
• Includes high performance 40dB preamplifier with battery
• Frequency range: 500kHz – 400MHz (1MHz – 40MHz with max +/- 1.0dB deviation)
• Exterm high gain for measurement of weakest signals
• Perfect for magnetic field tracking
• Handy and compact
• Can be connected to any Spectrum Analyzer or any Oscilloscope
• Connector: SMA connector (N via optional adapter)
• Nominal Impedance: 50 Ohm
• Tripod connection: 1/4 ”
• Weight: 360gr
• Dimensions: 180x180x85mm
• Supplied with high quality, waterproof outdoor case with foam inserts, pistol grip with mini tripod function and USB power adapter to charge the preamplifier

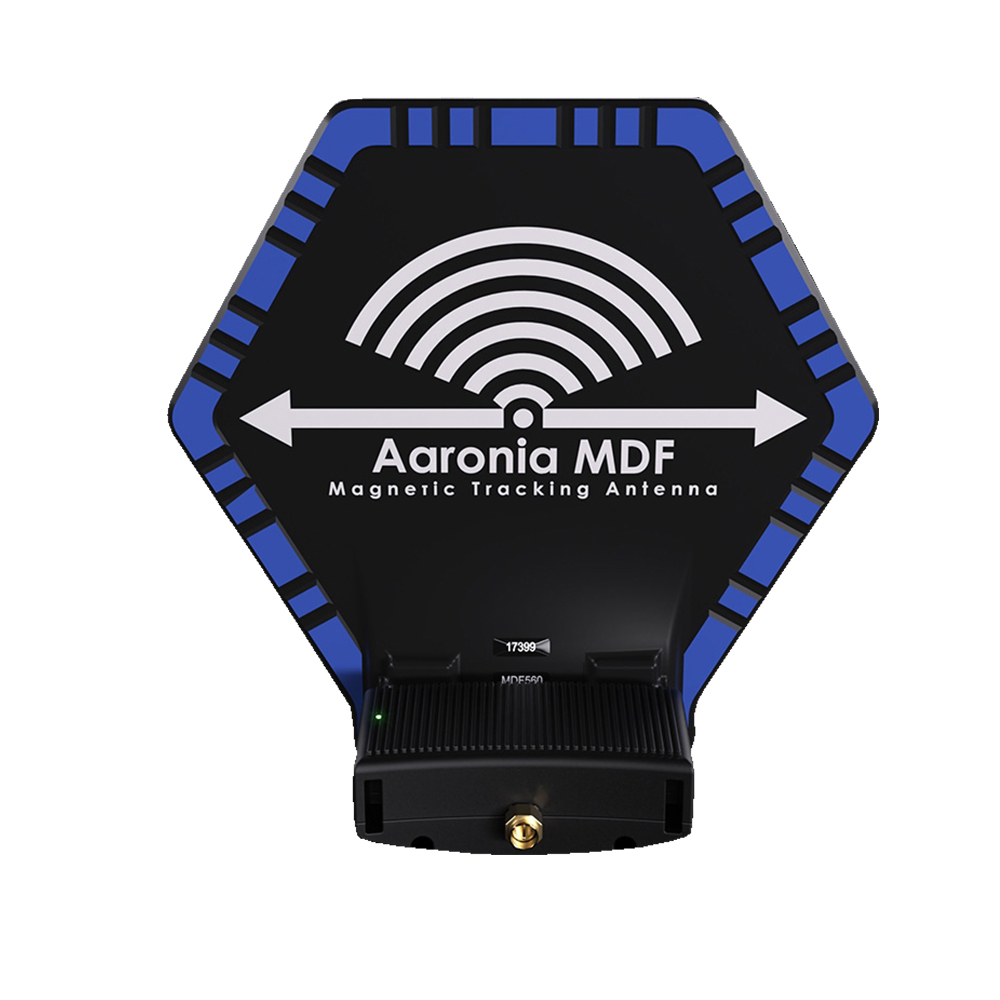

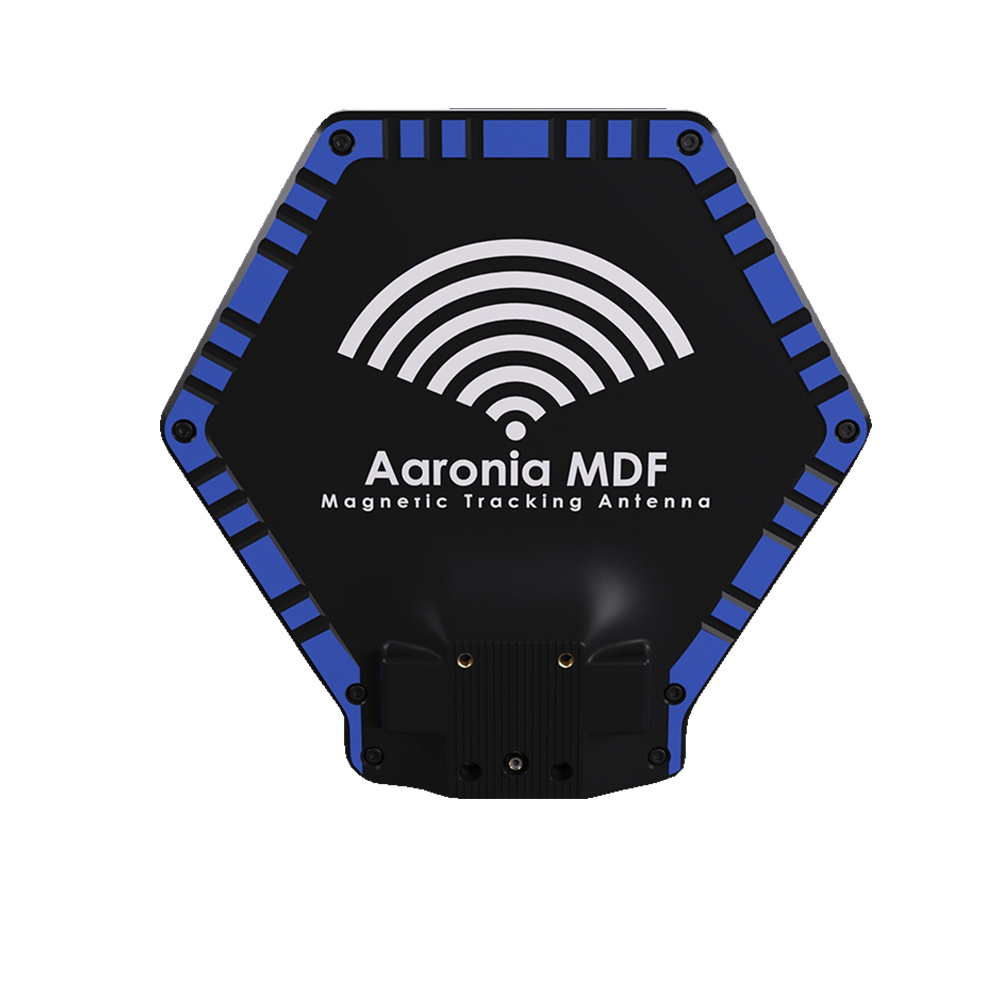

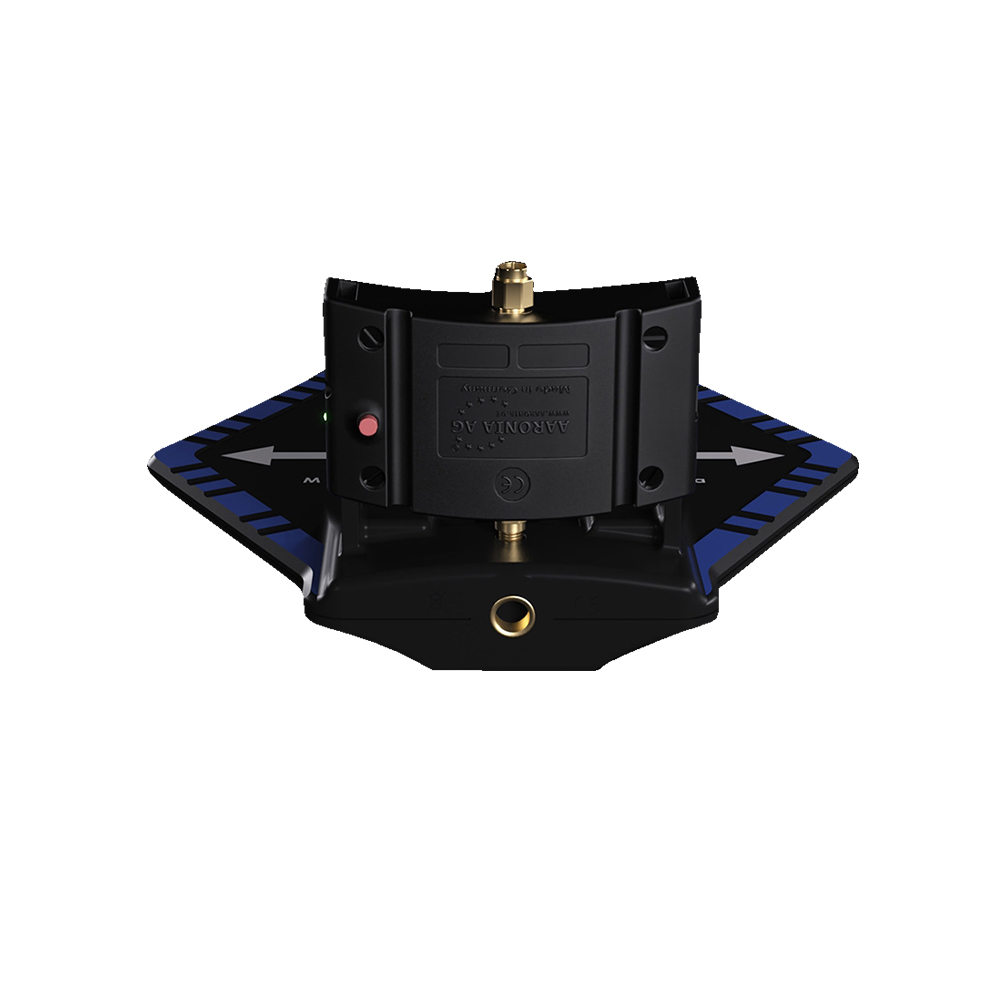

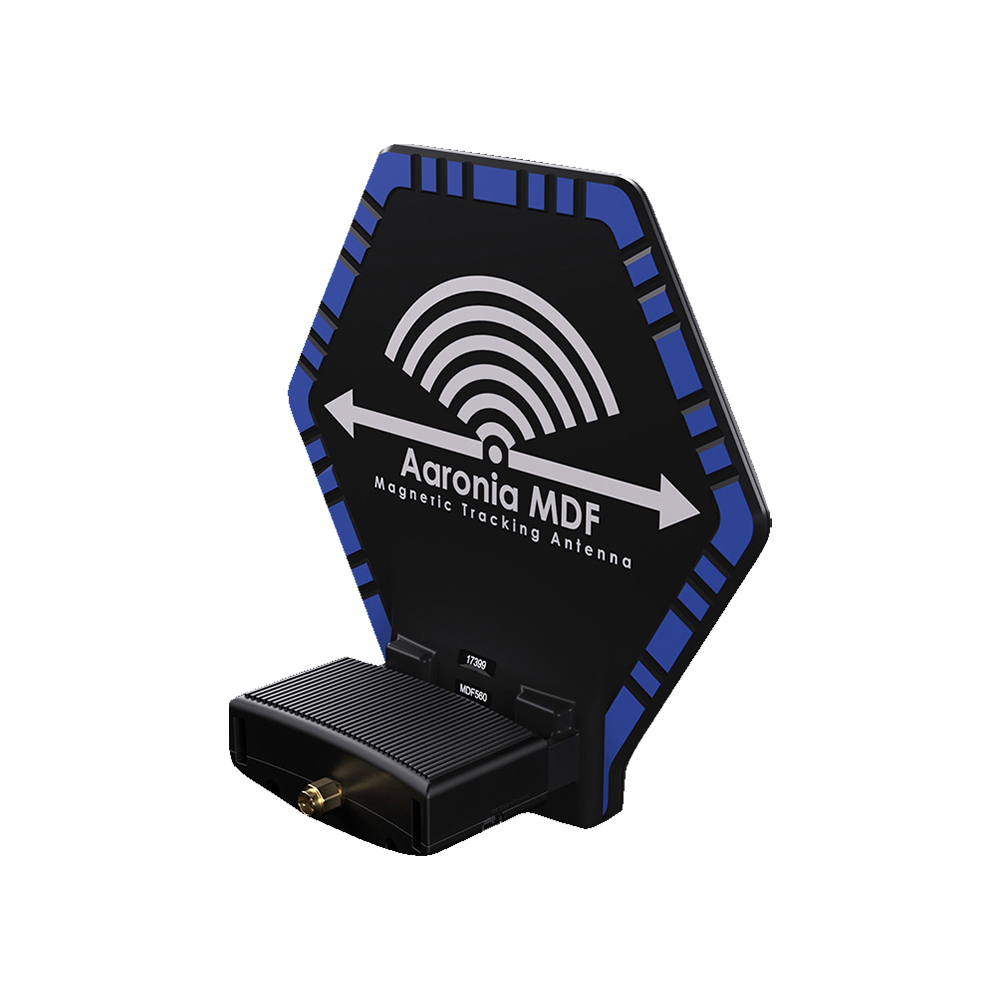

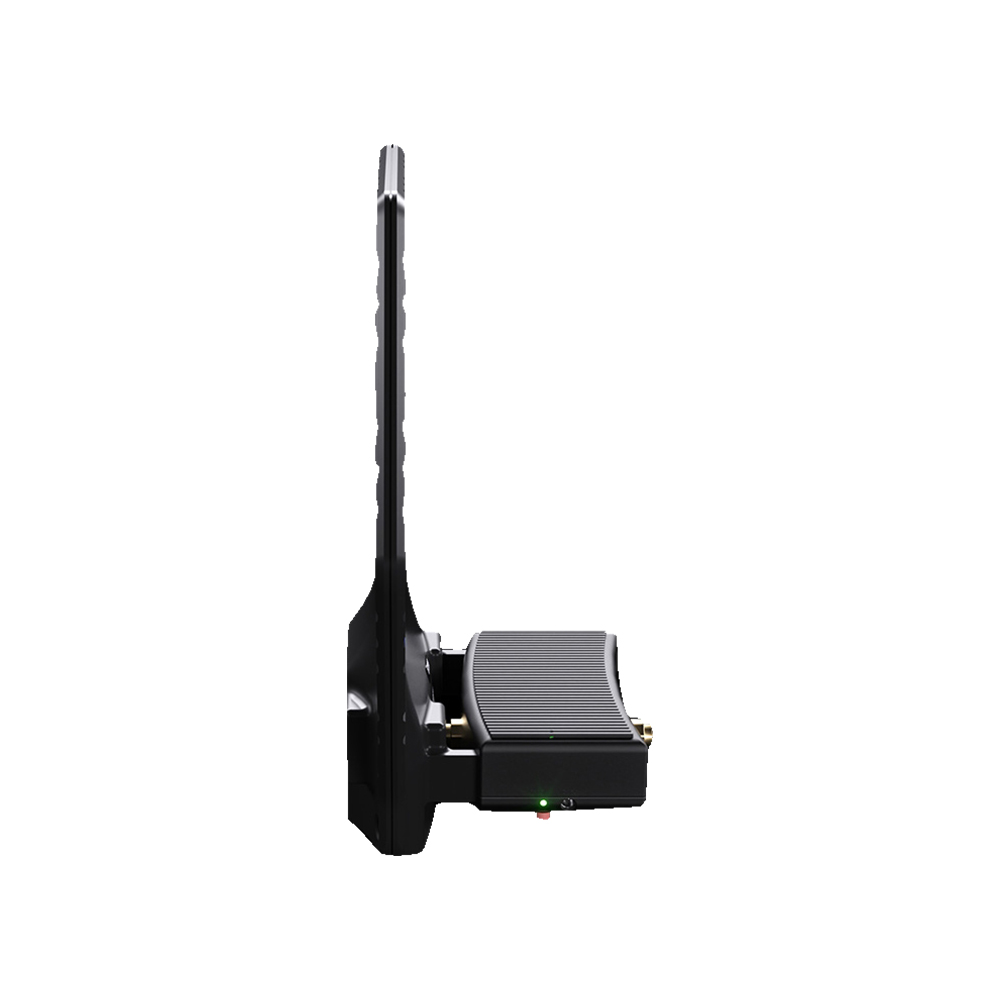

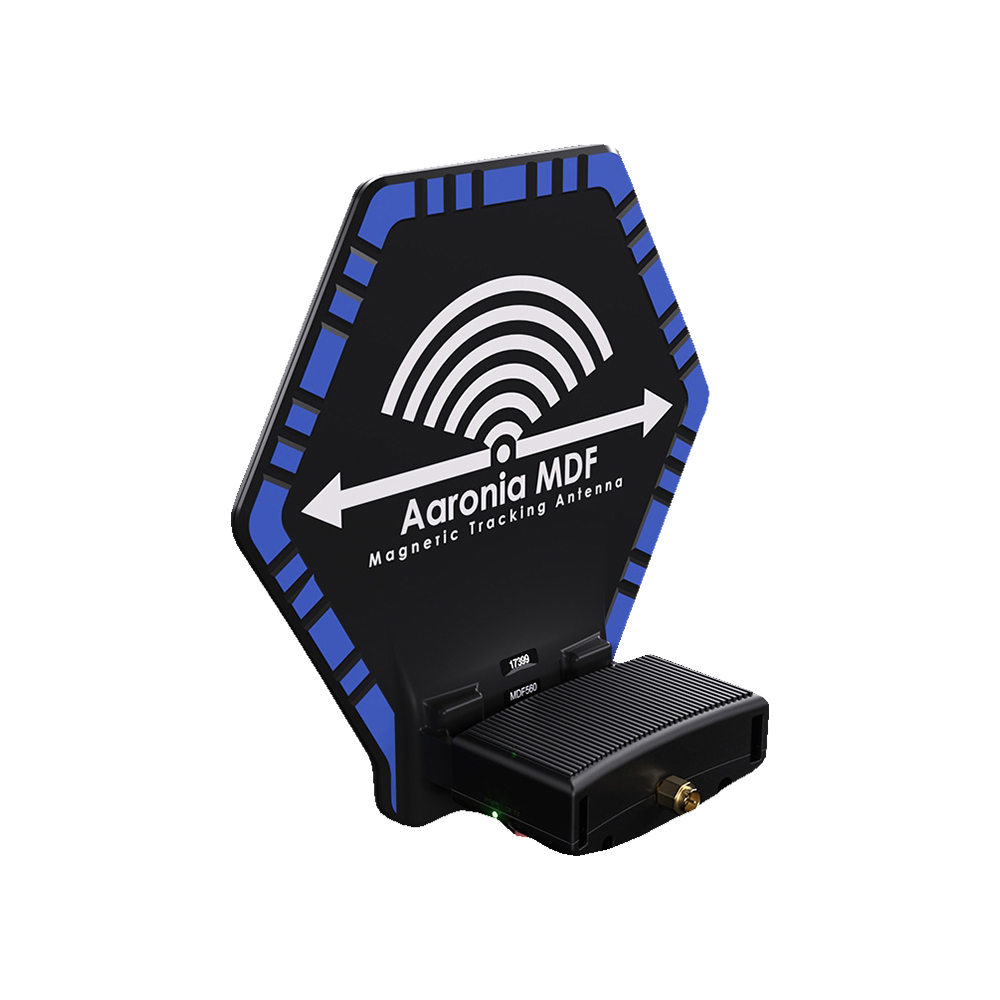

Active Loop Antenna Aaronia MDF 50400X
The Aaronia MDF 50400X is an active, broadband magnetic field tracking antenna, suitable for signal tracking and field strength measurements.
In contrast to the passive version, the MDF 50400X comes with directly attached 40dB preamplifier. The thus reached extremely high antenna gain allows the measurement of ultra-weak signals.
The MDF antenna provides a very high accuracy over a wide frequency range.
This feature allows the use of the MDF as a highly accurate field strength meter in conjunction with power meter or spectrum analyzer.
The preamplifier of the antenna can be operated by an internal battery or by the included USB AC adapter. The battery time is approx. 3-4 hours.
