IsoLOG® 3D DF 160 SHF Antenna
16 sectors with 32 antennas | Frequency range: 400 MHz* to 18 GHz | Tracking accuracy (line-of-sight): 1 to 3°
Aaronia´s new patented 3D RF Tracking Antenna IsoLOG® 3D DF is the first and only DF antenna also offering the ellevation and altitude of any RF source! This makes it the perfect choice for tracking flying transmitters e.g. drones or airplanes. In addition the IsoLOG® 3D DF offers the by far fastes tracking speed of down to 8µS per sector on the market. This offers a unique real time monitoring/tracking feature for ALL RF transmitter (all directions/altitude and frequencys at the same time). And finally our latest development, an ultra high dynamic RF over Fiber solution, eliminates the need of signal damping RF cables, now offering an allmost unlimted cable length (10 or more km) without cable loss.

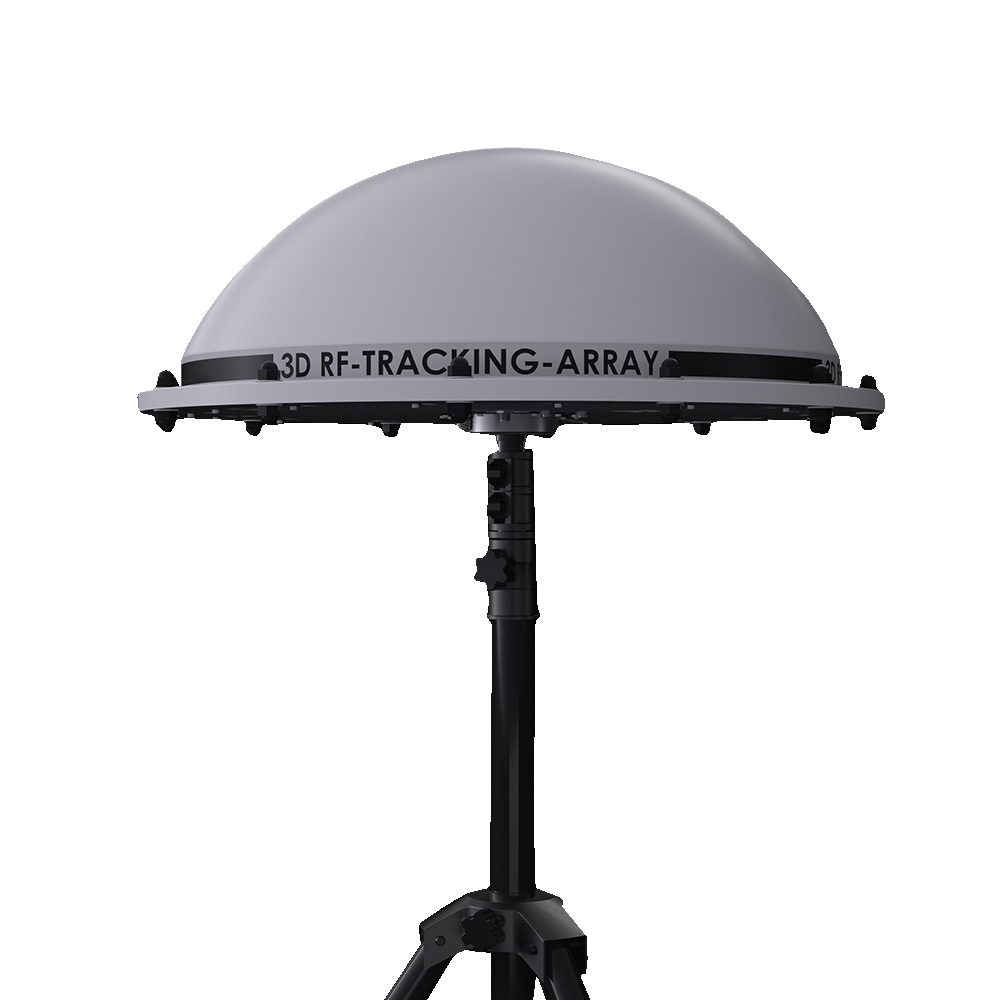

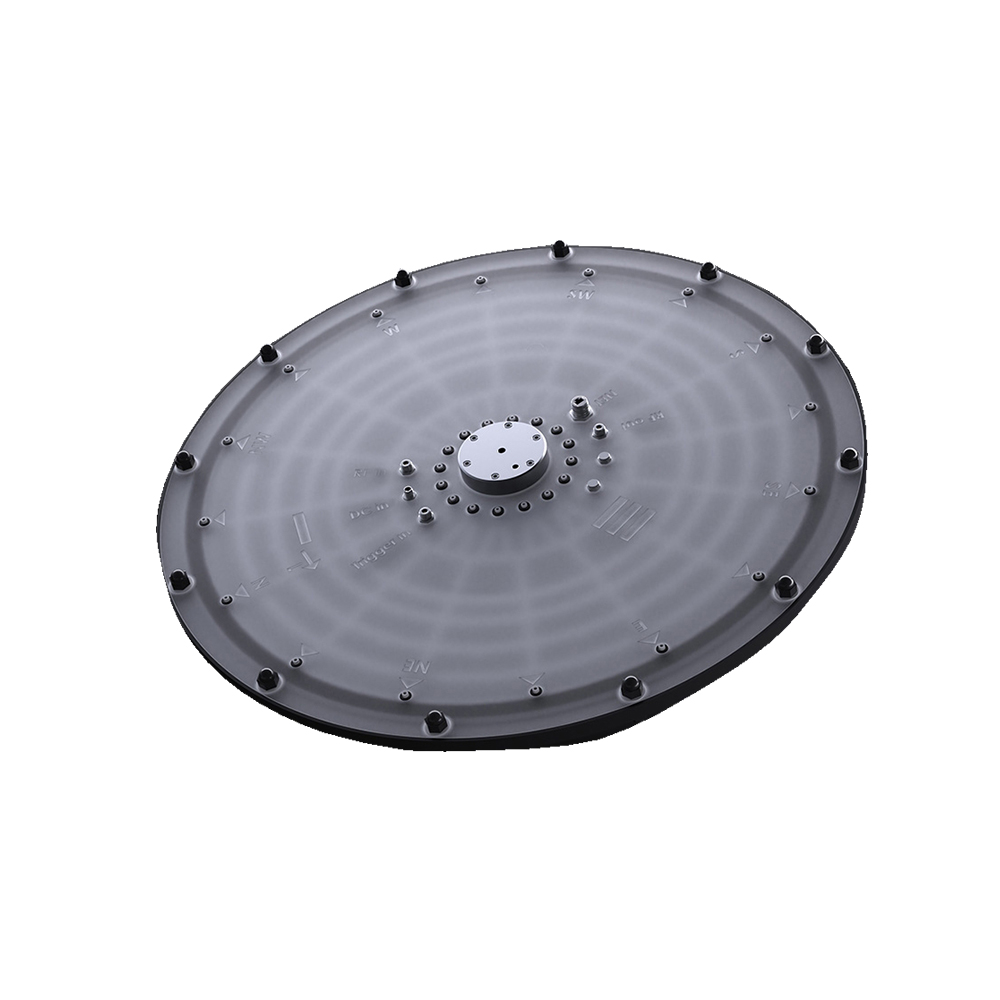

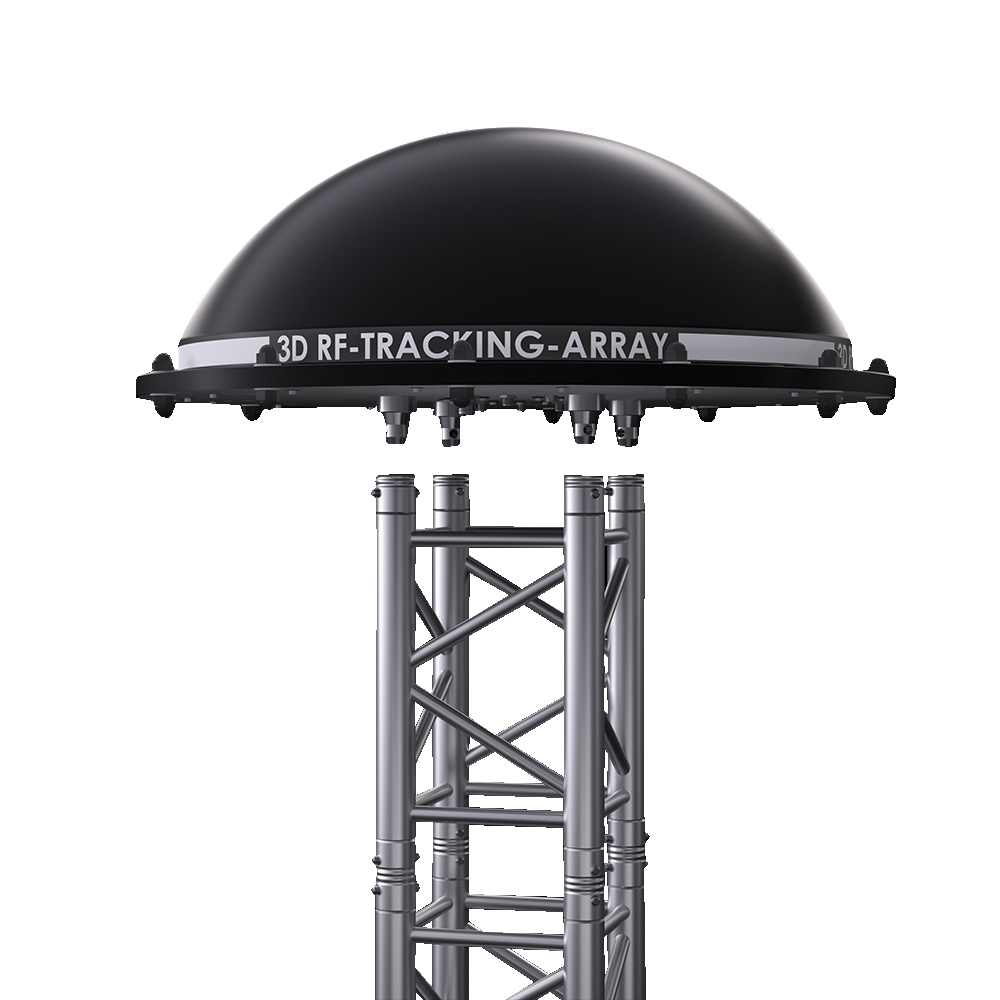

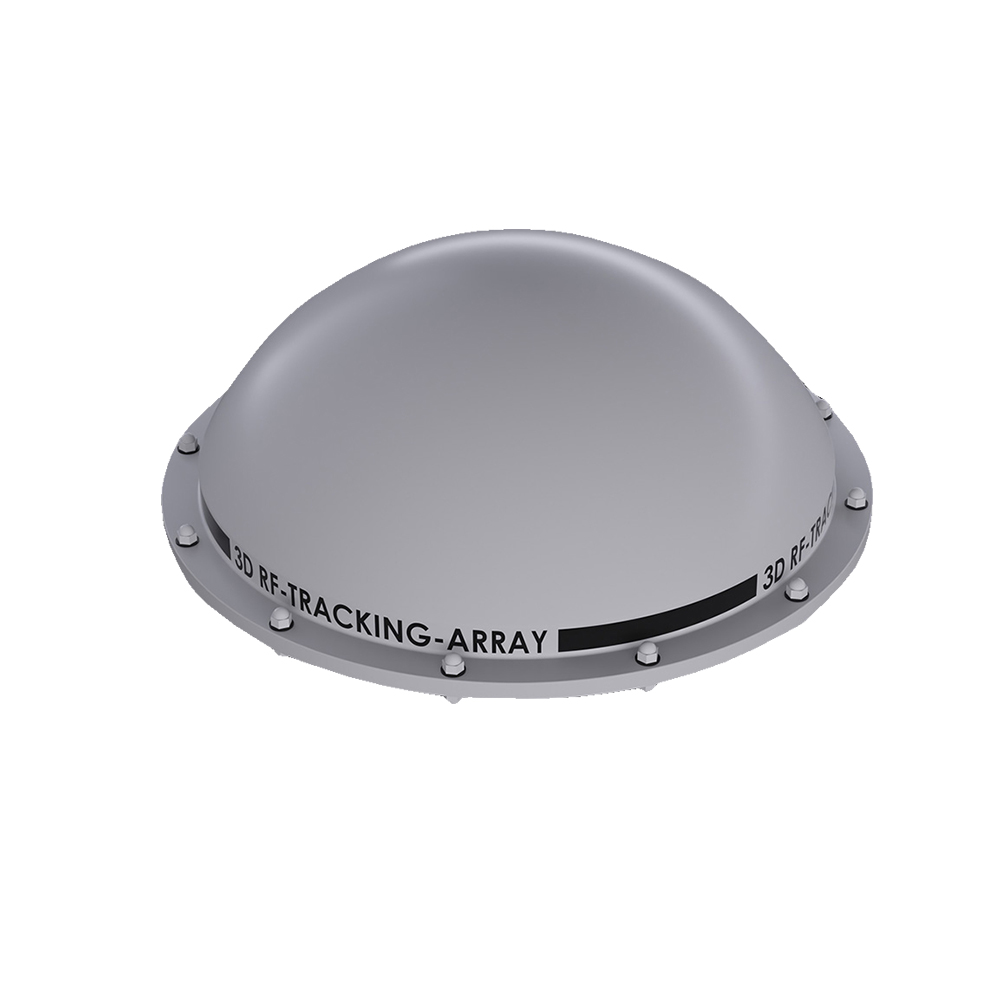

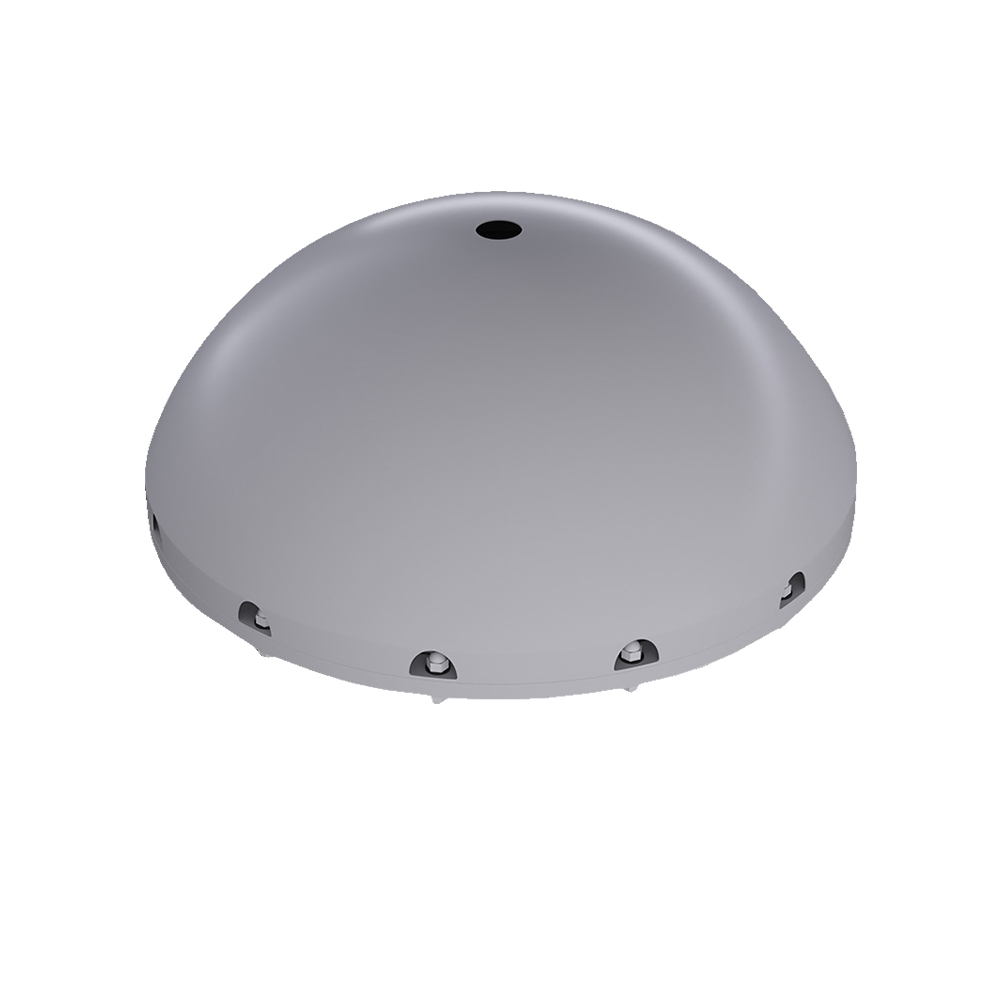

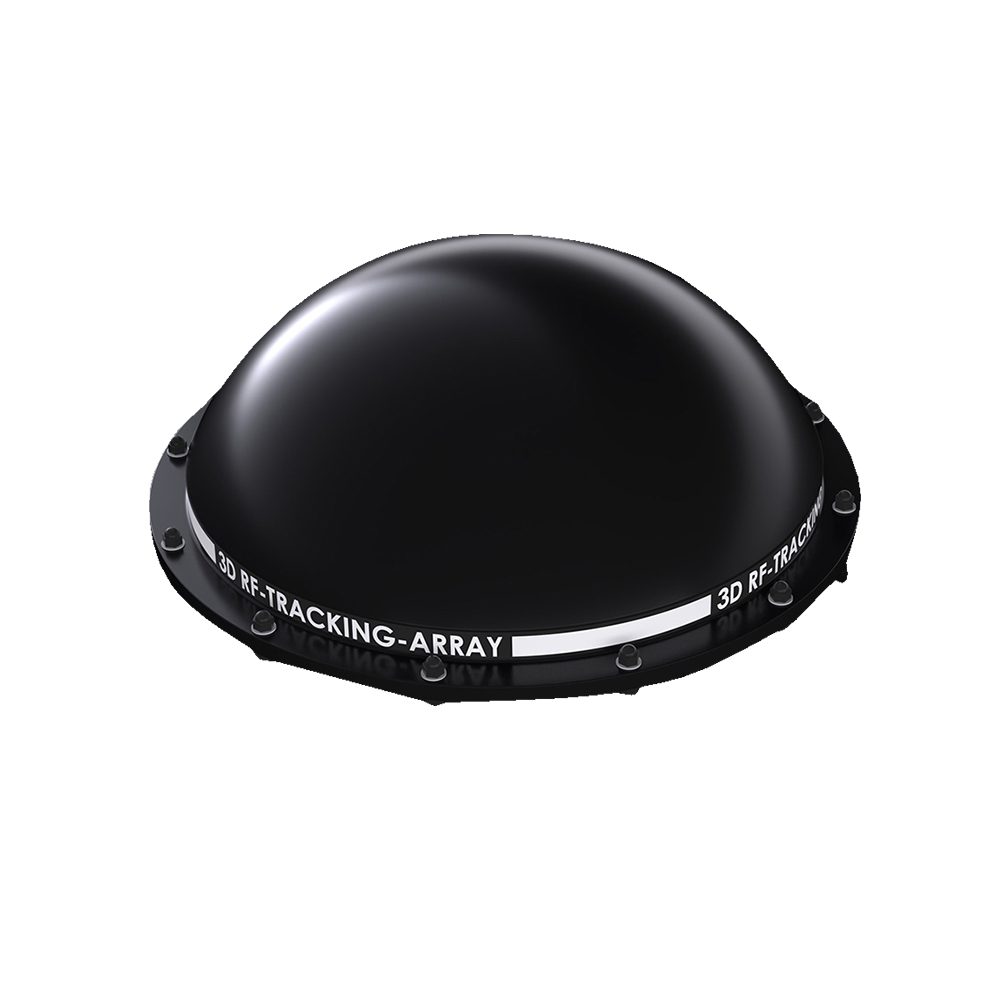

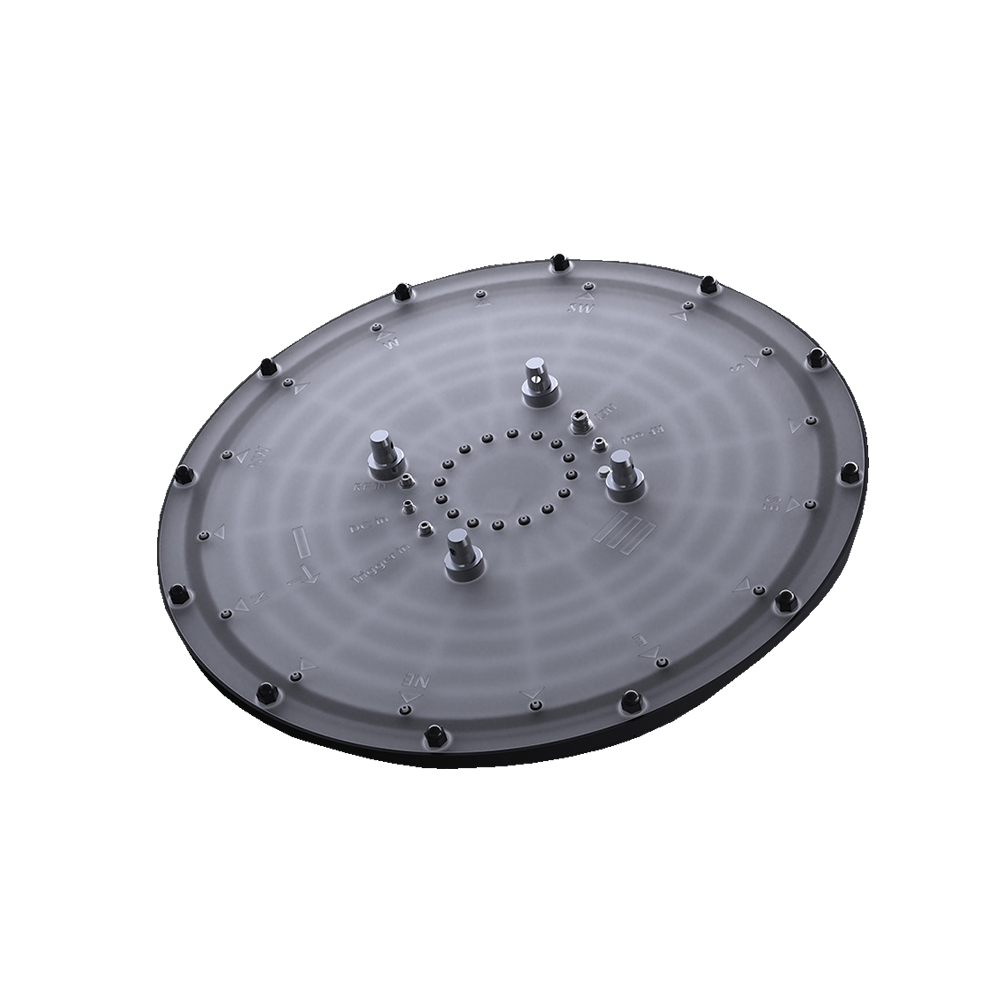

The IsoLOG® 3D DF consists of a high density, customizable sector array and is protected by a included radom which can be ordered in any color and optional prints. The radom is watertight, shock- and heat-proofed to widthstand even hardest conditions.

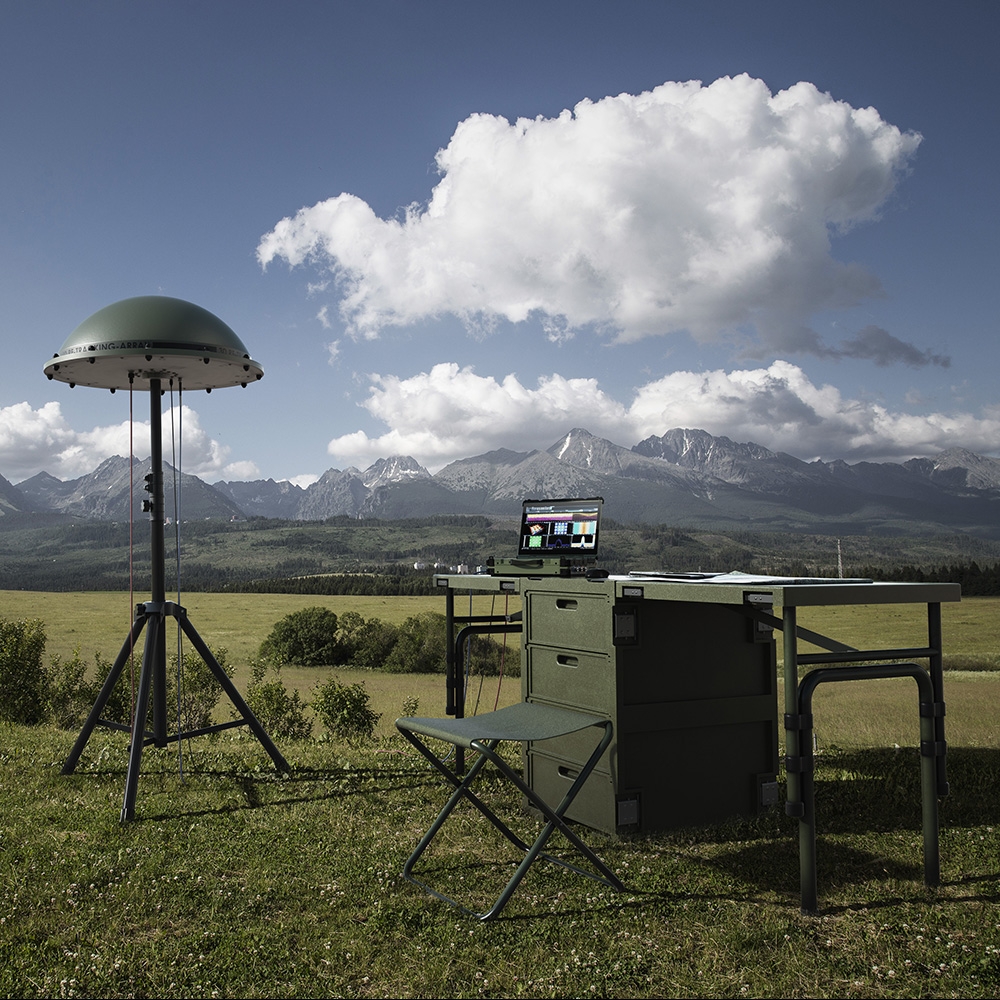

With the “auto rotate-switch function” it can be used with any spectrum analyzer brand. The IsoLOG® 3D DF perfect solution for counter-surveillance measurements or drone-detection-systems (UAV tracking). The wide frequency range eliminates the typical need of various DF antenna set ups to save space and system cost. This makes it usable for mounting on even small vehicles (e.g. drive test cars) and for hidden operations.
Looking like a satellite dish for camping vans the IsoLOG® 3D DF is not recognized as a tracking antenna. The IsoLOG® 3D DF is sensitive to the majority of incoming signal polarizations including all linear polarizations, allowing reliable detection of signals including those invisible to most DF systems that use only vertically polarized antennas. The IsoLOG® 3D DF only needs a power source and an Ethernet connection for easy integration and control over any existing network.
A powerful control software is included for free, for operation on Windows, Linux and Mac OS systems. The control software allows various tracking and selection setups, e.g. sweep all antennas horizontal, vertical, switch all in one sector etc. This makes it the perfect tool to track signals in no time. The integrated switch array uses high-end digital switches instead of common RF-relays, which offer a garanteed lifetime operation, even at 24/7 operation.
NEW: 8 µs ultra fast tracking mode (Optional add-on | For this option, a SPECTRAN® V6 device is additionally required.)
NEW: Ultra high dynamic RF over Fiber solution/connection (Optional add-on)
Highlights:
Worlds first 3D tracking sntenna showing ellevation and height!
400 MHz* to 18 GHz frequency range
Extremely fast tracking speed (down to 8µs)
Perfect for wideband, real-time spectrum monitoring
Ultra high tracking accuracy
Very high OIP3 of up to 35dBm
Glitch free high-end digital RF-switches
Ethernet remote-control
Suitable for vehicle mounting
Suitable for harsh environments (IP65 certified)
Incl. control software
* Directional from 700 MHz
