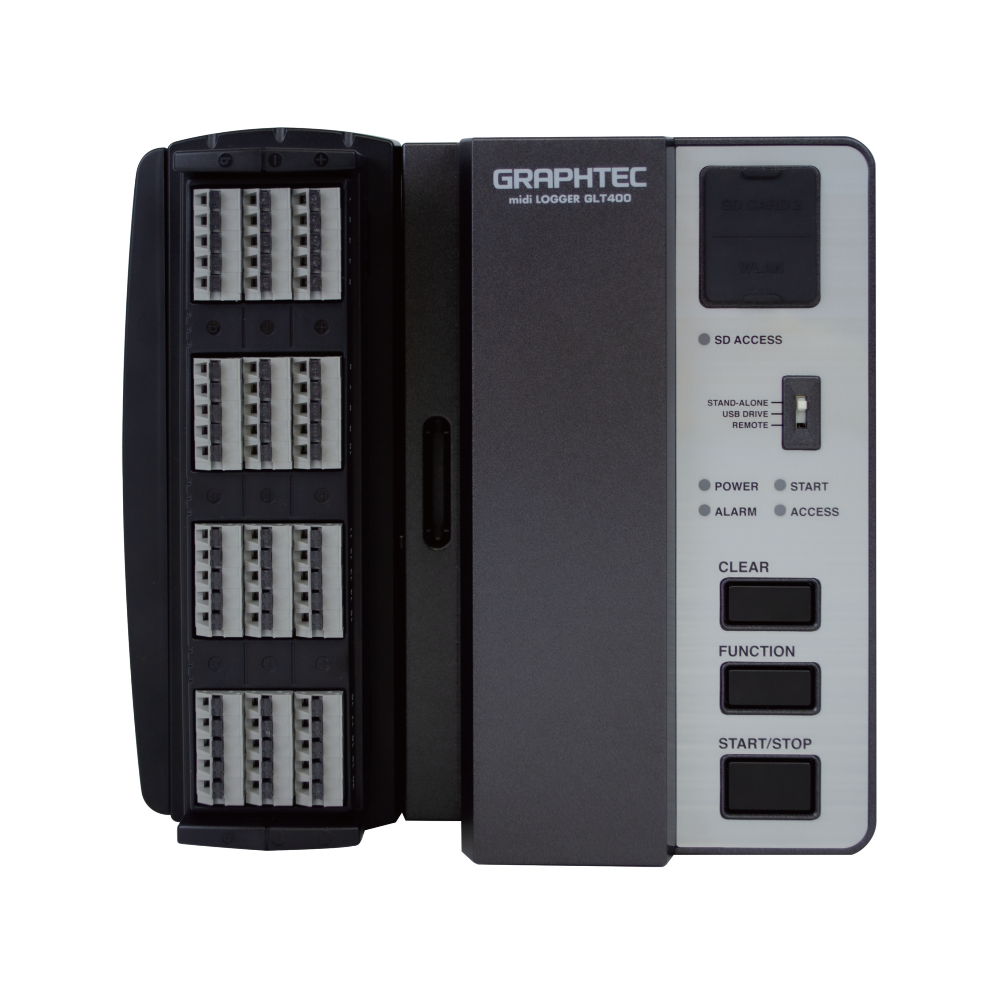

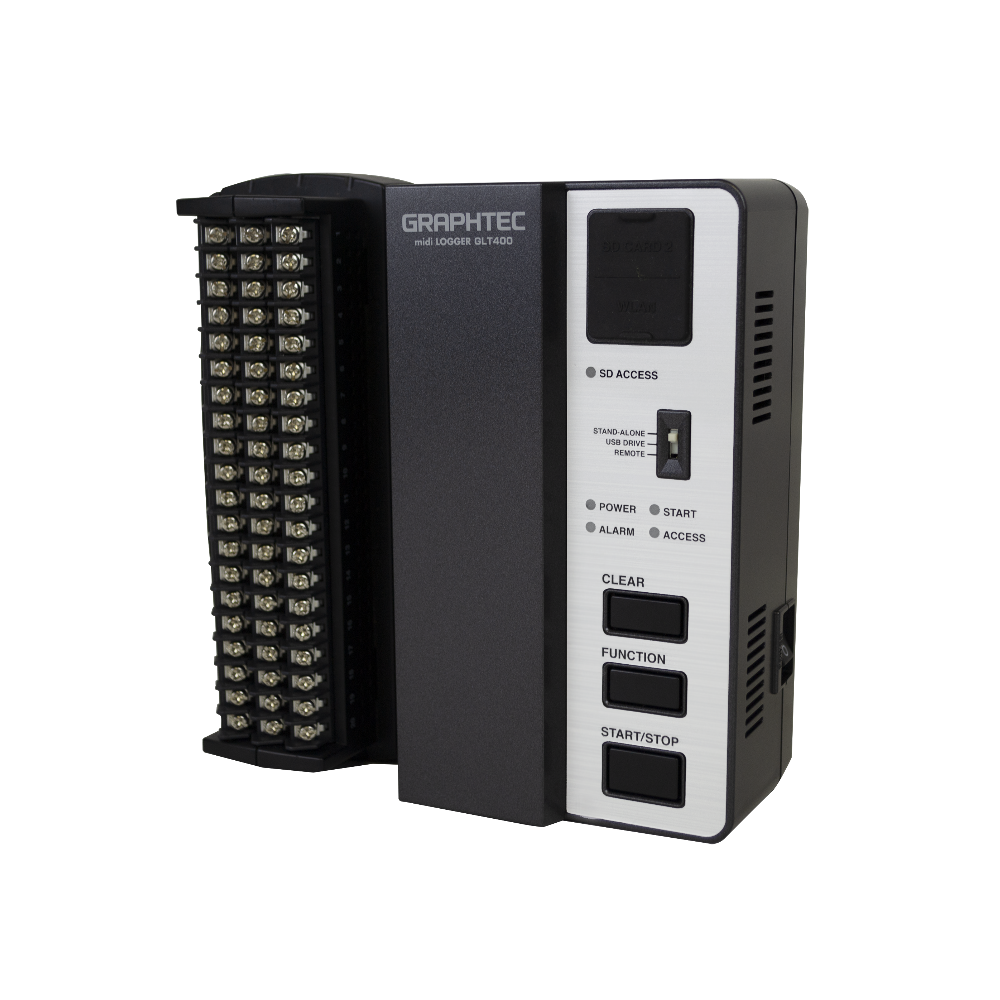

GLT400
Multi-Use Data Logger

Embedded into system or recorded data can be transferred to PLC as additional I/O. Remote terminal unit of GL840.

Useful functions of GLT400

Can record standalone

* Option B-568 is required for wireless LAN operation

Mount or embed in a system

Real time remote monitoring and control via Ethernet, Wireless LAN * and USB (Software is standard accessory)

Modbus/TCP for for PLC I/O channels

Bidirectional comminucation between PLC and GLT400 via Modbus /TCP, Start or stop command can be sent from PLC.

Enable to use as PC hosted data logger

Connection to PC via USB ,LAN and Wireless LAN. Standalone or PC hosted data logger for R&D, Quality and Production.

Connect as a remote terminal unit of GL840

Expand up to 200 ch (incl.GLT400) per GL840 or Up to 5 units of GLT400 can be connected to GL840 host.
Setup and control GLT400 with GL840. Captured GLT400 data can be viewed and stored on GL840.

* Option B-568 is required for wireless LAN operation

Wireless LAN Connection

Direct connection by Wireless LAN
(When using multiple devices, use Router by WPS)

Ethernet Connection

Connect directly by Ethernet
(When connecting multiple devices, use network hub)

Wireless LAN & Ethernet Connection

Data recorded by GLT400 and GL840 set up on the 1st and 2nd floors of a building can be set, controlled and confirmed on the 3rd floor PC.

How to embed into the system

Optional DIN rail kit, part B-540. One B-540 required for GLT400 and one B-540 for B-566 base terminal.

Automatically switches to AC to USB PD

Expandable and various input terminals depending on applications

Combinations of input terminal / terminal base can make suitable machine configurations depending on measurement conditions.

Reliable channel-to-channel isolated input
Analog input terminal capable of multi-input (common analog input terminal)

Voltage, temperature, and humidity can be selected for each input channel.
Use EU scaling for other measurement parameters.

Measure voltage

Supports wide operating range (from 20 mV to 100 V)

Measure temperature

Thermocouple：K, J, E, T, R, S, B, N, C (WRe5-26)
RTD: Pt100, JPt100,Pt1000 (IEC751)

Measure current (4 -20 mA)

Shunt resistor (250Ω) is available as an option.
Equipped with a dedicated 1-5V range for the measurement range

Shunt resistance 250Ω (B-551)
* Cannot use B-551 resistor with B-564SL input terminal

Measure humidity

A humidity sensor is available as an option.
Power for the sensor is also supplied from the main unit.
Equipped with a dedicated humidity range

Humidity sensor (B-530)

Digital I/O port available

Digital I / O can be used by connecting an optional I / O cable.

* Input/Output cable (B-513)
* When connected as a remote terminal unit of GL840, this function cannot be used.

Logic/Pulse inputs (4 channels)

Logic

No-voltage contact (A contact, B contact, NO, NC) ,Open collector, Voltage input (H.L decision)

Pulse

3 types of selections (Rotation / Quantity count / Instantaneous) per channel

Alarm output (4Channels) & Signal input for external trigger (1Channel)

Start/Stop recording with external trigger.
Alarm output port (1 to 4) are set for each analog input channel.

Various terminals for different applications

Various terminals for different applications. Choose based on connector type, accuracy or isolation differences.
Configure for application requirements.

Temperature accuracy is the value when 100 °C is measured when using a K-type thermocouple (including reference contact compensation accuracy).

Terminal Base Cover (B-588)

Compatible with all input terminals
* Except using with shunt resistor (B-551)

Expandable up to 200 channels

By adding an analog input terminal and an terminal base, it can be expanded in 20ch increments from a min of 20ch to a max of 200ch.

Channel Expansion (Sample) 20ch 40ch 100ch 200ch
GLT400 main unit 1 1 1 1
Terminal base 1 2 5 10
Input terminal (*2) 1 2 5 10
(*2)
Input terminal price is means of standard terminal price.
Terminals (B-564,B-564SL,B-565) can be mixed. However, if you mix B-565 with B-564 or B-564-SL, the specification of B-565 will be equivalent as B-564 or B-564-SL.
When connected as a remote unit of the GL840 series, 180ch is the maximum. (GL840: 20ch + GLT400: 180ch) (sytem max. 200ch)

Expansion method (2 types)

The measurement data is safely stored in the flash memory of the main unit

Standard 4GB Built-in Flash memory and available SD card slot.

Internal memory : 4GB
SD card slot : Support SDHC and Max 32 GB
* SD card cannot be used when the wireless LAN unit is used.
* Max single file size is 2GB. (use Relay mode to extend recording)

Support long term Data recording

Number of channels and sampling interval

Sampling interval 10ms 20ms 50ms 100ms 200ms 500ms 1s 2s
Number of Channels 1 2 5 10 20 50 100 200
Measurement
target		 Voltage ● ● ● ● ● ● ● ●
Temperature – – – ● ● ● ● ●

Sampling Interval and Capturing time

When all 20 analog channels are being used, File size of captured data is 2GB.

Sampling interval 10ms 50ms 100ms 200ms 500ms 1s 10s
GBD Format (Graphtec Binary Data) 31 days 77 days 95 days 108 days 270 days Over 365 Over 365
CSV Format 3 days 11 days 16 days 21 days 54 days 109 days Over 365
*
Since the recording time is an approximation, there is a limit to the number of channels depending on the sampling speed.
10ms：1ch, 50ms：5ch, 100ms：10ch

Convenient Data Recording Functions

Ring capture function

The old data is deleted, and most recent data is saved. When stop the recording, selected data point is saved.
(Number of capturing data is 1000 to 2000000 points)

Relay capture function

Save data to multiple files with specified capturing time or file size until recording data is stopped.

Hot-swapping the SD memory card

SD card can be replaced during data capture when the sampling interval is 100ms or slower.

*SD card cannot be used in the slot while the wireless LAN unit (B-568) is used.

Back up recording data

The recorded data can be automatically backed up to other storage media at regular intervals. FTP backup has a function to delete files in the main unit when the backup is successful.
Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: Built-In Flash memory, SD memory card, FTP server
Data file format: GBD (binary) or CSV (text)

*Available sampling speed is 100 ms or slower when recording in CSV format.
*When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
*The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
*When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

USB drive mode

Connect the GLT400 to PC with a USB cable and boot in USB drive mode, it will be recognized as an external drive for your PC. The measurement data in GLT400 can be transferred to PC by drag and drop.

Standard Accessory for 2 types of PC software and web browser function

Simple Operation Software “GLT400 SETTING APP”

Easily enter settings and monitor measured data from a PC. GLT400 is ideal for use with single unit. GLT400 inherited the setting screen menus from GL series.

Advanced Function Software “GL-Connection”

Max 20 units of GLT400 can be connected.
Display modes come standard with a Y-T View, Digital View, XY View and FFT View.
Contains direct Excel functions and a file connection function. Can convert GBD files to CSV format.

Direct Excel function installed

A function that transfers recorded data directly to specified Excel template file with recording start.
Creates a measured data file when stop recording by utilizing a computational expression and macro in combination.

Settings, control, data confirmation/transfer are possible from a PC without using dedicated software

Equipped with a WEB browser function that allows settings, control, and real-time measurement values with a WEB browser without using dedicated software, and an FTP client function that transfers files to a PC.
Supported browser : Google Chrome (Recommended), Microsoft Edge, Firefox

Available functions on 2 software and web browser

Item GLT400 SETTING APP GL-Connection WEB browser
Device connection Wire LAN ● ● ●
Wireless LAN ● ● ●
USB ● ● ×
Number of connected units 1 unit 20 units 1 unit
Device setting ● ● ×
Device control(Start/Stop) ● ● ●
Display data Digital value ● ● ●
Waveform × ● ●
Other × ● ×
Redisplaying the recorded file × ● ×
Connect/ Disconnect during recording ● × ●
Data transfer to PC ● ● ●
File conversion (CSV) × ● ×
Supported model GLT400 only GL seires * GL series *
*
GL7000 / GL2000 / GL980 / GL840 series / GL240 / GLT400 (Currently-used models only)

SDK (Software Development Kit) is offered for free

Please select the OS that may be used to develop for your software

  • USB Driver
  • Manual (Product-releated, Communication interface-releated,Data files-releated, ModbusTCP specification)
  • LabVIEW VI
  • Sample Program (C# / VisualC++ / VisualBasic)
  • Digital certificate installation tool

SPECIFICATION & ACCESSORY

Main unit specifications

Item Description
Number of analog terminal units Up to 10 units (200CH)
Analog terminal unit type Standard terminal, Withstand high-voltage high-precision terminal, Screwless terminal
Sampling speed 10msec to 1 hour (Only voltage:10ms to 50ms with limited channels), External (Able to select at only “STAND ALONE” mode) (*1)
Trigger, Alarm
function		 Repeat Trigger Off, On
Trigger types Start: Data capture starts when a trigger is generated.
Stop: Data capture stops when a trigger is generated.
Trigger conditions Start: Off, level value, alarm, external input, specified time, specified day of the week, certain time
Stop: Off, level value, alarm, external input, specified time, specified day of the week, certain time
Alarm judgment modes Combination: Analog, Logic or “AND” / “OR” of pulse
Analog judgment: H (↑), L (↓), Window In, Window Out
Logic judgment: Pattern
Pulse judgment: H (↑), L (↓), Window In, Window Out
Operation of the alarm output function Alarm Lamp on device, Email Alarm Notification, Alarm Output (4channels (“REMOTE” 1 channel only))
Alarm output Yes (hold function) Yes
External input /
output (*1)		 Input type Trigger input (1 ch) or External sampling input (1 ch),
Logic input (4 ch) or Pulse input (4 ch) (Only when the GLT400 is set to STAND-ALONE)
Input specifications Input voltage range : 0 to +30 V (single-ended ground input)
Input signal: No-voltage contact (a-contact, b-contact, NO, NC), Open collector, Voltage input
Input threshold voltage: Approx. +2.5 V
Hysteresis: Approx. 0.5 V (+2.5 to +3 V)
* Switch between Logic and Pulse. Switch between Trigger and External sampling.
Output type Alarm output (4 ch) (Only 1 ch when the GLT400 is set to REMOTE)
Alarm output
specifications		 Output format: Open collector output (5 V, pull-up resistance 10 kΩ)
<Maximum ratings of output transistor>
• Collector-GND voltage : 50 V
• Collector current: 2 A
• Collector dissipation: 0.3 W
Pulse input Revolutions mode This mode counts the number of pulses per sampling interval, and then converts
them by multiplying the scaling factor to the RPM.
Settable the number of pulses per revolution during revolution
Spans: 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M RPM/F.S.
Counts mode Displays a count of the number of pulses for each sampling interval from the start of
measurement.
Spans: 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S.
Inst. mode Counts the number of pulses for each sampling interval.
Resets the count value after each sampling interval.
Spans: 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S.
Maximum number
of pulse inputs		 Maximum input frequency: 50 kHz
Maximum number of count: 50 kC/sampling (16-bit counter)
Calculation
between CHs		 Calculation type Four arithmetic operations (+, –, ×, ÷)
Target input Analog CH1 to CH200
Scaling function （EU） • 4 points can be set for each channel
• Temperature range scaling function is available: 2 points
Annotation input
function		 Function A comment can be entered for each channel
Input table characters Alphanumerics
Number of characters 31
PC I/F Interface types Ethernet (10BASE-T/100BASE-TX), USB 2.0, Wireless LAN (Option)
Functions Setup and control of the GLT400 from PC, Data transfer to the PC,
Connect to network as a remote terminal unit of GL840
Ethernet functions Web server functions, FTP server function, FTP client function, NTP client function,
DHCP client function, DHCP server function, Modbus/TCP Protocol
USB functions USB drive mode: Transfer and delete the captured files in the internal memory or SD CARD
Realtime data transfer speed 10 msec/1 ch maximum (The transfer speed depends on the number of channels.)
Memory devices Memory capacity (*2) Internal memory (MEM): approx. 4GB
SD CARD slot: 1
(Compatible with SDHC, up to approx. 32GB memory available. The memory format only supports FAT/FAT32. )
Memory contents Setup conditions, Measured data
Data backup
function		 Backup Interval (*3) Off, 1, 2, 6, 12, 24 hours, Each file
(* Each file can be selected only when the backup destination is set to FTP and
the captured file is deleted when the backup of the FTP client settings is activated normally.)
Backup Destination (*3) Internal memory, SD CARD, FTP
Data format (*3) GBD（Graphtec Binary Data）or CSV
Capture function Functions OFF, Ring capturing, Relay capturing
Ring capturing Save most recent data of specified number (Number of capturing points: 1000 to 2000000)
* When ring capture is ON, the memory space that can be used for capture is one third of the free space or less.
Relay capturing The captured data is continuously captured by files separated in the set relay unit without losing data.
Data format GBD（Graphtec Binary Data）or CSV
Functions during capture Replacement of the SD CARD
Data save function Capture destination: Internal memory or SD CARD
Captured data: Settings, Screen data, measured data
Operating Environment -20 to +60°C only when using B-564 or B-564SL input terminals & DC power.
0 to +45°C when using B-565 input terminal or AC Adapter
5 to 85%R.H. (non condensed)
(When using the USB PD as the power supply, the spec. is based on power supply requirements.)
Power source AC Adapter 100 to 240 V AC, 50/60 Hz
DC power 8.5 to 24V DC (maximum 26.4V) (DC drive cable (option B-514) is required))
USB PD USB PD compatible, external USB PD compatible battery (USB Power Delivery Revision 2.0 later) (not supplied)
Power consumption Max. 24 VA (when using the supplied AC adapter, AC100V)
External dimensions [W×D×H] (approx.)
(excluding protrusions)		 Standard terminal (B-564) or Screwless terminal (B-564SL) is attached: 187.5 × 183 × 65.5 mm
Withstand high-voltage high-precision terminal (B-565) is attached: 187.5 × 183 × 73.4 mm
Weight (approx.)
(AC adapter is not included)		 Standard terminal (B-564) is attached: 1090g
Screwless terminal (B-564SL) is attached: 1020g
Withstand high-voltage high-precision terminal (B-565) is attached: 1120g
Others Vibration: Automobile parts Type 1 Class A equivalent
(*1)The Input/output cable for GL B-513 (option) is required to use the external output I/O function.
(*2)1 File size is up to 2GB.
(*3)- When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
– When there are many of active channels or the sampling time is fast, or the backup interval is long, it may take time to close the data file after recording stops because the size of the data to be backed up becomes large.
– When saving file to FTP server using wireless LAN connection, backup may fail depending on the communication condition.
– Available sampling speed is 100 ms or slower when using the CSV format.
– When backup is enabled and data file format is specified as CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

Analog Input terminal specifications (Option)

Item Description
Standard terminal
(B-564)		 Screwless terminal
(B-564SL)		 Withstand high-voltage high-precision terminal (B-565)
Number of analog channels 20ch
Input terminal type M3 screw type terminal Screwless terminal M3 screw type terminal
Input method Photo MOS relay scanning system. All channels isolated balanced input
* Terminal b to be used to connect the RTD and is shorted within all channels.
Measurement ranges Voltage 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 100 V; 1-5 V F.S.
Temperature Thermocouples: K, J, E, T, R, S, B, N, C (WRe5-26)
RTD: Pt100, JPt100, Pt1000 (IEC751)
Temperature range: 100°C, 500°C, 2000°C (In the case of Fahrenheit: 150°F, 750°F, 3000°F)
Humidity 0 to 100% (voltage 0 to 1 V scaling conversion) fixed (* B-530(option) is required)
Filter (moving average basis) Off, 2, 5, 10, 20, 40
Filter operation is on a moving average basis.
The average value of the set sampling count is used.
If the sample interval exceeds 30 seconds, the average value of data obtained in a sub-sample (30 seconds) is used.
A/D converter Method ΔΣ method
Resolution 16-bit (Effective resolution: About 1/40000 of the +/– range)
Input resistance 1 MΩ ±5%
Allowable signal source resistance Less than < 300 Ω Less than < 100 Ω
Maximum
input voltage		 Between (+) / (-) terminal 20 mV to 2 V range (60 Vp-p)
5 V to 100 V range (110 Vp-p)
Channels ((-) / (-)) 60 Vp-p 600 Vp-p
Channel / GND 60 Vp-p 300 Vp-p
Withstand voltage Between channels 350 Vp-p 1 minute 600 Vp-p
Channel / GND 350 Vp-p 1 minute 2300 VACrms 1 minute
Operating environment
(When connecting with GLT400)		 -20 to 60 ºC (5 to 85% R.H.) 0 to 45 ºC (5 to 85% R.H.)

Measurement accuracy of Analog Input terminal

Subject to the following conditions:
• Room temperature is 23 ºC ± 5 ºC.
• When 30 minutes or more have elapsed after power has turned on.
• Filter is set to 10.
• Sampling rate is set to 1 sec, using 20-channel.
• GND terminal is connected to ground.

Voltage

Item Standard terminal B-564 / Screwless terminal B-564SL Withstand high-voltage high-precision terminal B-565
Input Measurement Accuracy Measurement Accuracy
Voltage ±0.1％ of F.S. ±（0.05％ of F.S. +10μV）

Temperature (Thermocouple) *

* Wire size of thermocouple used is 0.32mm diameter in the T or K type and 0.65mm diameter in other types.

Item Standard terminal B-564 / Screwless terminal B-564SL Withstand high-voltage high-precision terminal B-565
Input Type Measurement Range
(TS: Temp Sense)		 Measurement Accuracy Measurement Range
(TS: Temp Sense)		 Measurement Accuracy
Thermocouple R / S 0°C≦TS≦100°C ±5.2°C 0°C≦TS≦100°C ±4.5°C
100°C＜TS≦300°C ±3.0°C 100°C＜TS≦300°C ±3.0°C
R:300°C＜TS≦1600°C ±（0.05% of rdg +2.0°C） R:300°C＜TS≦1600°C ±2.2°C
S:300°C＜TS≦1760°C ±（0.05% of rdg +2.0°C） S:300°C＜TS≦1760°C ±2.2°C
B 400°C≦TS≦600°C ±3.5°C 400°C≦TS≦600°C ±3.5°C
600°C＜TS≦1820°C ±（0.05% of rdg +2.0°C） 600°C＜TS≦1820°C ±2.5°C
K -200°C≦TS≦-100°C ±（0.05% of rdg +2.0°C） -200°C≦TS≦-100°C ±1.5°C
-100°C＜TS≦1370°C ±（0.05% of rdg +1.0°C） -100°C＜TS≦1370°C ±0.8°C
E -200°C≦TS≦-100°C ±（0.05% of rdg +2.0°C） -200°C≦TS≦-100°C ±1.0°C
-100°C＜TS≦800°C ±（0.05% of rdg +1.0°C） -100°C＜TS≦800°C ±0.8°C
T -200°C≦TS≦-100°C ±（0.1% of rdg +1.5°C） -200°C≦TS≦-100°C ±1.5°C
-100°C＜TS≦400°C ±（0.1% of rdg +0.5°C） -100°C＜TS≦400°C ±0.6°C
J -200°C≦TS≦-100°C ±2.7°C -200°C≦TS≦-100°C ±1.0°C
-100°C＜TS≦100°C ±1.7°C -100°C＜TS≦100°C ±0.8°C
100°C＜TS≦1100°C ±（0.05% of rdg +1.0°C） 100°C＜TS≦1100°C ±0.6°C
N -200°C≦TS＜0°C ±（0.1% of rdg +2.0°C） -200°C≦TS＜0°C ±2.2°C
0°C≦TS≦1300°C ±（0.1% of rdg +1.0°C） 0°C≦TS≦1300°C ±1.0°C
C (W) 0°C≦TS≦2000°C ±（0.1% of rdg +1.5°C） 0°C≦TS≦2000°C ±1.8°C
Reference contact compensation accuracy – ±0.5°C – ±0.3°C

Temperature (RTD) (Supports 3-wire type sensor)

Item Standard terminal B-564 / Screwless terminal B-564SL Withstand high-voltage high-precision terminal B-565
Input Type Measurement Range Applied current Measurement Accuracy Measurement Range Applied current Measurement Accuracy
RTD Pt100 -200°C～850°C
(FS=1050°C)		 1mA ±1.0°C -200°C≦TS≦100°C 1mA ±0.6°C
100°C＜TS≦500°C ±0.8°C
500＜TS≦850°C ±1.0°C
JPt100 -200°C～500°C
(FS=700°C)		 1mA ±0.8°C -200°C≦TS≦100°C 1mA ±0.6°C
100°C＜TS≦500°C ±0.8°C
Pt1000 -200°C～500°C
(FS=700°C)		 0.3mA ±0.8°C -200°C≦TS≦100°C 0.3mA ±0.6°C
100°C＜TS≦500°C ±0.8°C

GL-Connection specifications (in STAND-ALONE mode only)

Item Description
Supported OS Windows 10 / 8.1
* We cannot support OS that is no longer supported by the OS manufacturer.
Function Main unit control, realtime data capture, data conversion
Number of CHs per 1 group Up to number of connected units
Maximum number of channels 2000 ch maximun
Settings AMP settings, capture settings, trigger/alarm settings, others
Captured data Realtime data (CSV, GBD Binary)
Data in Internal memory or SD CARD (CSV, GBD binary)
Display Analog waveforms, logic waveforms, pulse waveforms, digital values
Display modes Y-T View, Digital View, XY View, FFT View
File conversion Between cursors, All data
Statistical calculation Maximum, Minimum, and Avarage during data capturing
E-mail function Alarm monitor enables sending of e-mail to the specified address

GLT400 SETTING APP specifications

Item Description
Supported OS Windows 10 / 8.1
* We cannot support OS that is no longer supported by the OS manufacturer.
Function Change main unit setting, File operation, Monitering digital value, Firmware update for main unit
* When REMOTE mode is selected, File operation and monitering digital values are not available.
Number of connectable unit 1 unit
Setting range AMP settings, Recording settings, Trigger/Alarm settings, I/F settings, others
* When REMOTE mode is selected, only I/F settings are available

Wireless LAN unit (option) specifications

Item Description
Model number B-568
Communication method Wireless communication (2.4GHz band)
Installed location Insert into the SD CARD slot
* When the wireless unit is inserted, an SD CARD cannot be inserted into the SD CARD slot.
Supported WLAN system IEEE802.11b / g / n
Function Communication range: Approx. 40 m(Range varies depending on the obstacles and the surrounding environment)
Controlling from PC and transferring recorded data to PC (Connect as a remote unit of GL840 in “REMOTE”)
WPS: Push button or PIN method
Encryption function: WEP64, WEP128, WPA-PSK/WPA2-PSK, TKIP/AES

Humidity Sensor (option) Specifications

Item Description
Model number B-530
Allowable temperature range -25 to 80°C
Allowable humidity range 0 to 100％ RH
Relative humidity measurement accuracy ±3％ RH（5 to 98％ RH at 25°C）
Method Capacitance method
Relative humidity measurement
accuracy (5 to 98%)		 Measurement environment Measurement accuracy
0 to 10°C ±5％ RH
1 to 20°C ±4％ RH
20 to 30°C ±3％ RH
30 to 40°C ±4％ RH
40 to 50°C ±5％ RH
50 to 60°C ±6％ RH
60 to 70°C ±7％ RH
70 to 80°C ±8％ RH
* Measurement accuracy at 60°C or more is a reference value.
Response time 15 sec. (90% response when membrance filter is installed)
Sensor output 0 to 1 VDC
External dimensions Φ14 mm × 80 mm (excluding cable)
Cable length 3 m
Sensor power source DC between +5 to +16 V
Power consumption approx. 4 mA

Standard accessories

  • AC cable / AC adapter
  • Spacer (Large: 1, Small: 2 (Used when the terminal base is installed.))
  • Quick Start Guide
  • TO ENSURE SAFE AND CORRECT USE

Options & Accessories

Item Model Description
Standard Terminal B-564 Analog Input terminal
Screwless terminal B-564SL Analog Input terminal
Withstand high-voltage high-precision terminal B-565 Analog Input terminal
Expansion terminal base B-566 Used for attaching each input terminal (B-564, B-564SL or B-565)
Expansion terminal connection cable (50 cm) B-567-05 Cable to connect GLT400 and B-566, 50 cm long
Expansion terminal connection cable (2 m) B-567-20 Cable to connect GLT400 and B-566, 2 m long
Terminal base cover B-588 Mountable each analog terminal. Not mountable when B-551 Shunt resistor used.
Input/Output cable for GL series B-513 2 m long (teminated with mating connector and bare wires)
DC drive cable B-514 2 m long (teminated with mating connector and bare wires)
Humidity sensor B-530 3 m, with a dedicated power connector (Allowable operating temperature range: -25°C to +80°C)
Bracket for DIN rail B-540 Bracket for DIN rail (GLT400 or B-566)
Humidity sensor power box B-542 Used for connecting 10 humidity sensors : Built to order
Shunt resistance B-551 250Ω (± 0.1%), rated power 1W, maximum operating voltage15.8V
Wireless LAN unit B-568
Needle-shape K-type thermocouple RIC-410 -100 to 300°C, Class 1, Cord length: 1.1 m
Stationery-surface K-type thermocouple RIC-420 -30 to 400°C, Class 2, Cord length: 1.1 m
L-type stationery-surface K-type thermocouple RIC-430 -30 to 600°C, Class 2, Cord length: 1.1 m
AC power adapter ACADP-20 For replacement

Dimensions

GLT400 Main unit with Standard Terminal

Scale: mm, Tolerance: ±3mm

Input terminal / Base unit

Standard Terminal (B-564) with Base unit (B-566)

Screwless terminal (B-564SL) with Base unit (B-566)

Withstand high-voltage high-precision terminal (B-565) with Base unit (B-566)

Base unit (B-566)

When two Base unit (B-566) are connected

*Scale: mm, Tolerance: ±3mm

DOCUMENT

GLT400 Brochure
