UT3200+ SERIES
Multi-Channel Temperature Loggers

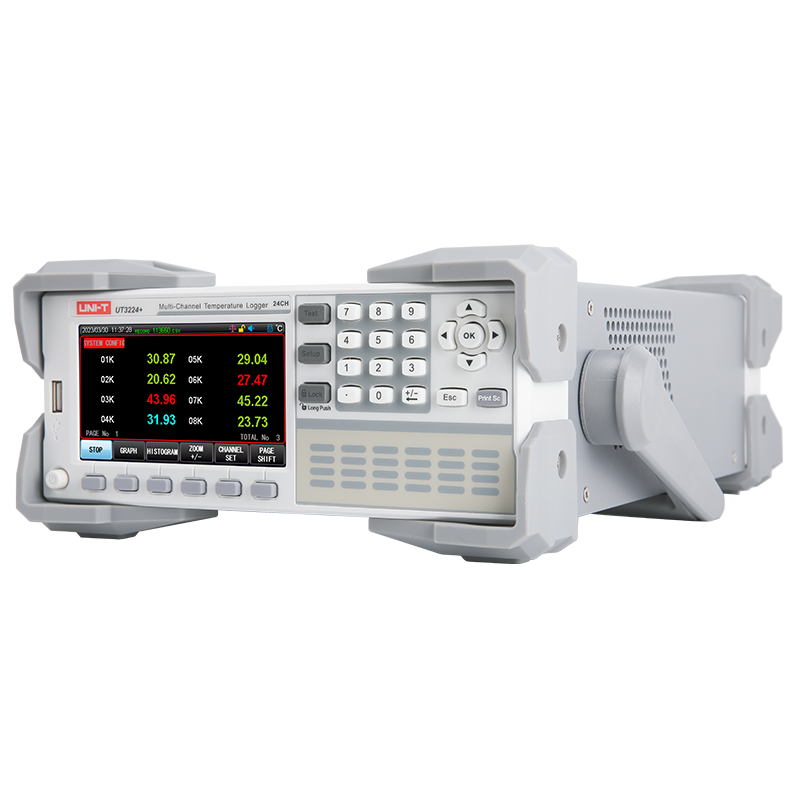

UT3200+ series multi-channel temperature tester has 6 models of 8, 16, 24, 32, 40, 48 channels. 4.3-inch LCD color screen display, beautiful interface. Multiple channels of temperature data can be collected at the same time. The response speed is fast and the data is stable. It is suitable for multi-point temperature monitoring by manufacturers and quality inspection departments in industries such as home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, and LEDs.



CHANNELS
TEMPERATURE RANGE
8/16/24/32/40/48
-200~1800℃



RESOLUTION
SCANNING SPEED
0.01℃
10rdgs/s



THERMOCOUPLE
CONNECTIVITY
J,K,T,E,S,N,B,R
RS-232,LAN



SIZE
DISPLAY
½ 2U
4.3” TFT LCD

Man-machine separation

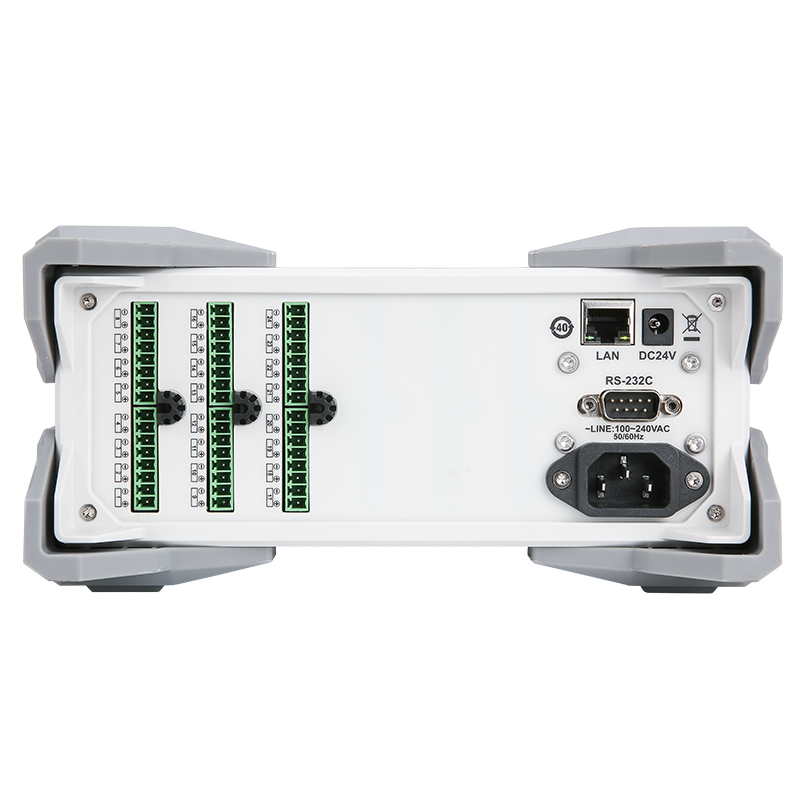

Configure RS232 and LAN ports, support SCPI and MODBUS dual protocols

Data collection software

Standard data acquisition software to realize remote control, data storage and data analysis

Data storage

Standard 8G U disk, during the test, real-time storage of measurement data for later analysis

Comparator function

Color differentiation and alarm tone prompt. The upper and lower limits can be set for each channel, and the abnormal temperature area can be found in time

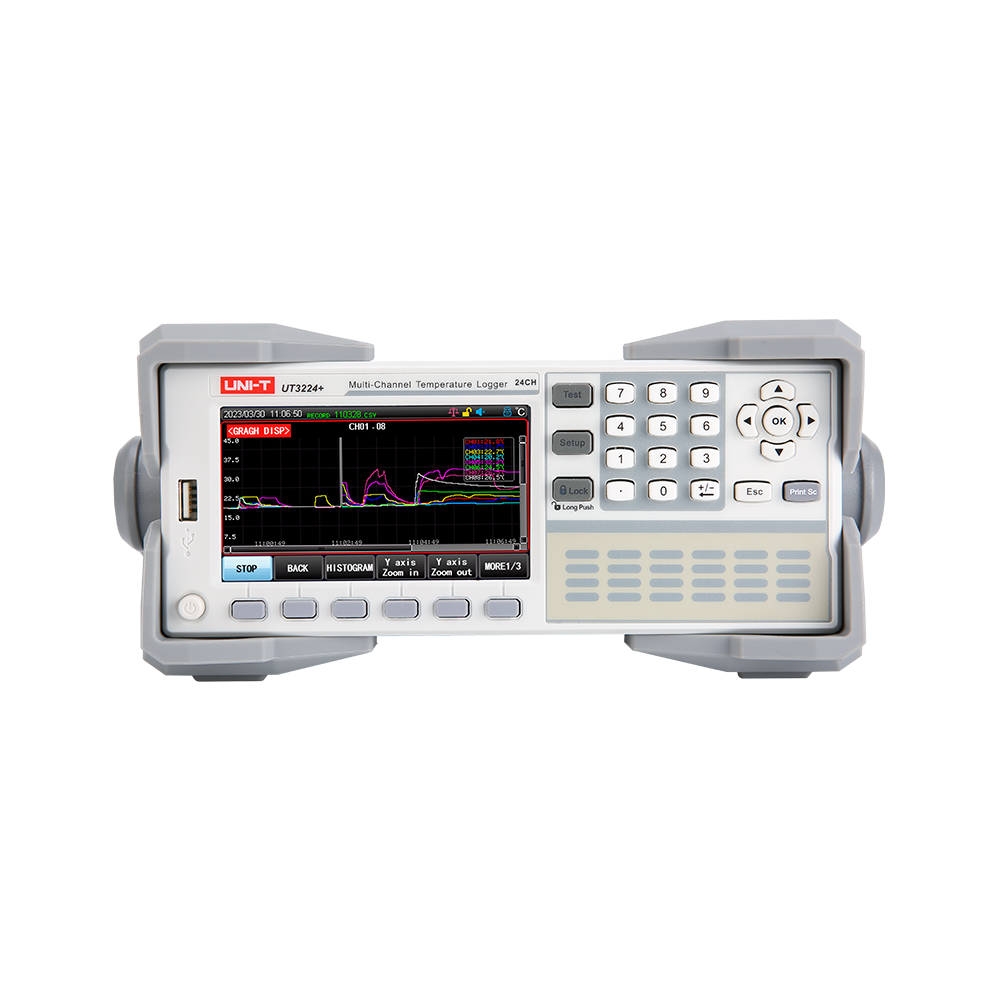

Digital and graphical display

Graph, histogram, and number display modes provide a better representation of temperature trends

Model Channels Temperature Range Resolutıon Scannıng Speed Thermocouple Connectıvıty Sıze Dısplay
UT3248+ 48 -200~1800℃ 0.01℃ 10rdgs/s J,K,T,E,S,N,B,R RS-232, LAN ½ 2U 4.3” TFT LCD
UT3240+ 40 -200~1800℃ 0.01℃ 10rdgs/s J,K,T,E,S,N,B,R RS-232, LAN ½ 2U 4.3” TFT LCD
UT3232+ 32 -200~1800℃ 0.01℃ 10rdgs/s J,K,T,E,S,N,B,R RS-232, LAN ½ 2U 4.3” TFT LCD
UT3224+ 24 -200~1800℃ 0.01℃ 10rdgs/s J,K,T,E,S,N,B,R RS-232, LAN ½ 2U 4.3” TFT LCD
UT3216+ 16 -200~1800℃ 0.01℃ 10rdgs/s J,K,T,E,S,N,B,R RS-232, LAN ½ 2U 4.3” TFT LCD
UT3208+ 8 -200~1800℃ 0.01℃ 10rdgs/s J,K,T,E,S,N,B,R RS-232, LAN ½ 2U 4.3” TFT LCD
