SBX 400
4400 MHz Rx/Tx (40 MHz)

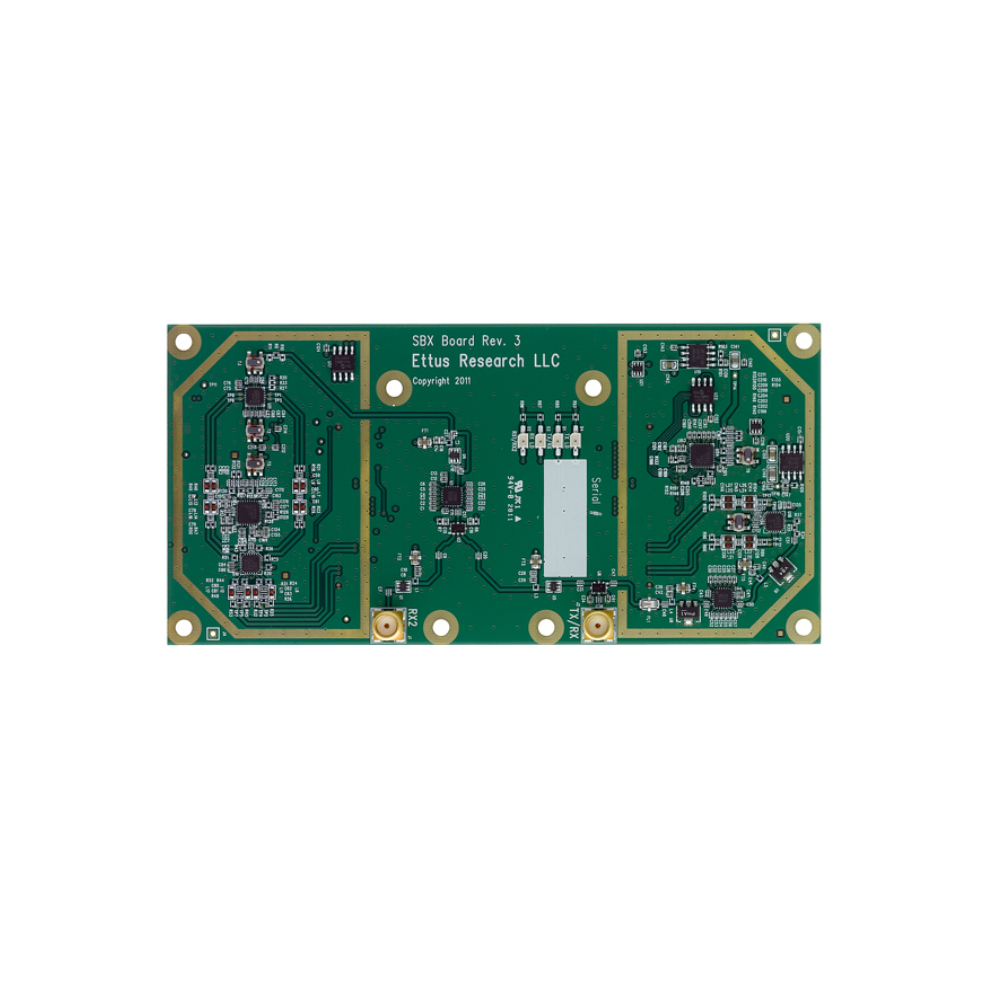

SBX USRP Daughterboard (400 MHz – 4.4 GHz)
The SBX is a wide bandwidth transceiver that provides up to 100 mW of output power, and a typical noise figure of 5 dB. The local oscillators for the receive and transmit chains operate independently, which allows dual-band operation. The SBX is MIMO capable, and provides 40 MHz of bandwidth. The SBX is ideal for applications requiring access to a variety of bands in the 400 MHz-4400 MHz range. Example application areas include WiFi, WiMax, S-band transceivers and 2.4 GHz ISM band transceivers.

The SBX is a wide bandwidth transceiver that provides up to 100 mW of output power, and a typical noise figure of 5 dB. The local oscillators for the receive and transmit chains operate independently, which allows dual-band operation. The SBX is MIMO capable, and provides 40 MHz of bandwidth. The SBX is ideal for applications requiring access to a variety of bands in the 400 MHz-4400 MHz range. Example application areas include WiFi, WiMax, S-band transceivers and 2.4 GHz ISM band transceivers.
