WBX 50
2200 MHz Rx/Tx (40 MHz)

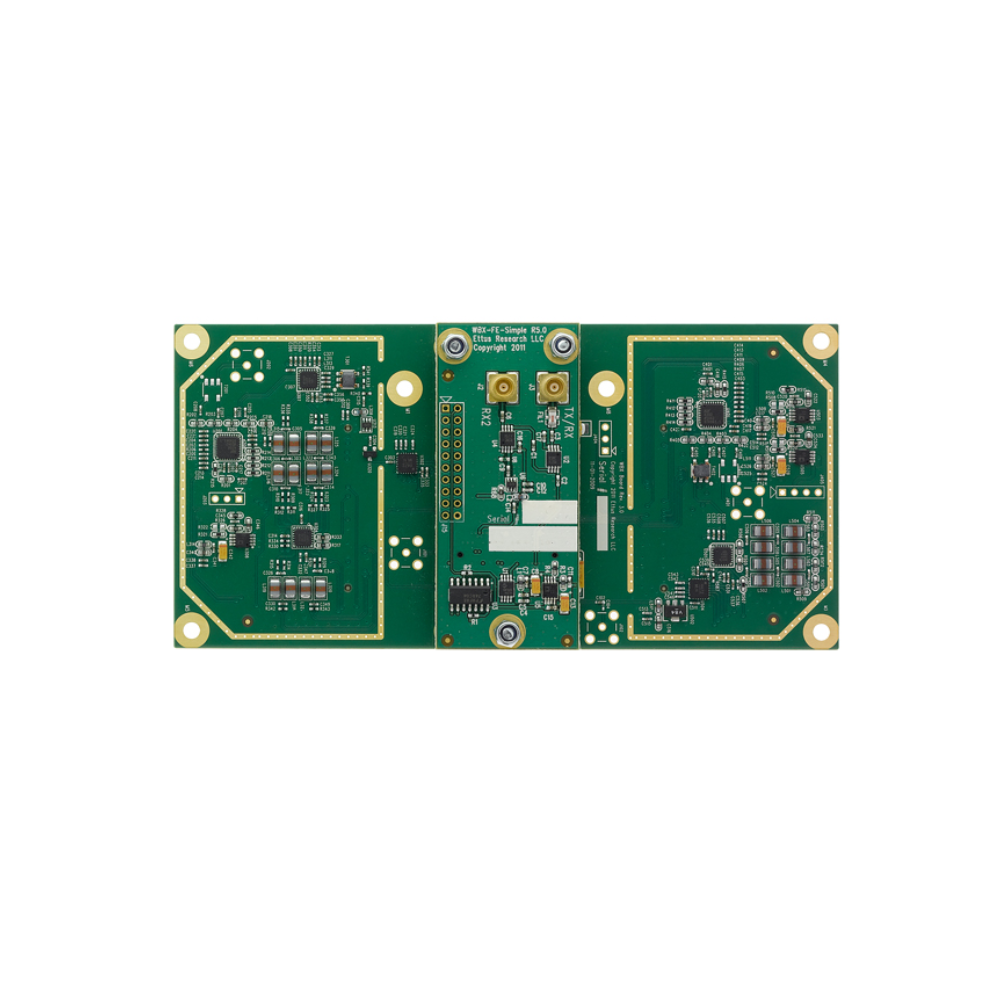

WBX USRP Daughterboard (50 MHz – 2.2 GHz) with 2 MCX Bulkhead RF Cables
The WBX is a wide bandwidth transceiver that provides up to 100 mW of output power and a noise figure of 5 dB. The LO’s for the receive and transmit chains operate independently, but can be synchronized for MIMO operation. The WBX provides 40 MHz of bandwidth capability and is ideal for applications requiring access to a number of different bands within its range – 50 MHz to 2.2 GHz. Example application areas include land-mobile communications, maritime and aviation band radios; cell phone base stations, PCS and GSM multi-band radios; coherent multi-static radars; wireless sensor networks; transceiver covering 6 amateur bands; broadcast TV; white spaces; public safety; ISM. As of May 22nd 2013, this kit includes two MCX-Bulkhead cables. A second cable is only necessary for applications requiring full duplex operation or the use of both connections on the WBX.

The WBX is a wide bandwidth transceiver that provides up to 100 mW of output power and a noise figure of 5 dB. The LO’s for the receive and transmit chains operate independently, but can be synchronized for MIMO operation. The WBX provides 40 MHz of bandwidth capability and is ideal for applications requiring access to a number of different bands within its range – 50 MHz to 2.2 GHz. Example application areas include land-mobile communications, maritime and aviation band radios; cell phone base stations, PCS and GSM multi-band radios; coherent multi-static radars; wireless sensor networks; transceiver covering 6 amateur bands; broadcast TV; white spaces; public safety; ISM. As of May 22nd 2013, this kit includes two MCX-Bulkhead cables. A second cable is only necessary for applications requiring full duplex operation or the use of both connections on the WBX.
