TM-902
LAN Cable Tester

Detects opens, shorts, miswires and split pairs on the twisted pair cabling on the LAN cable.

APPLICATION

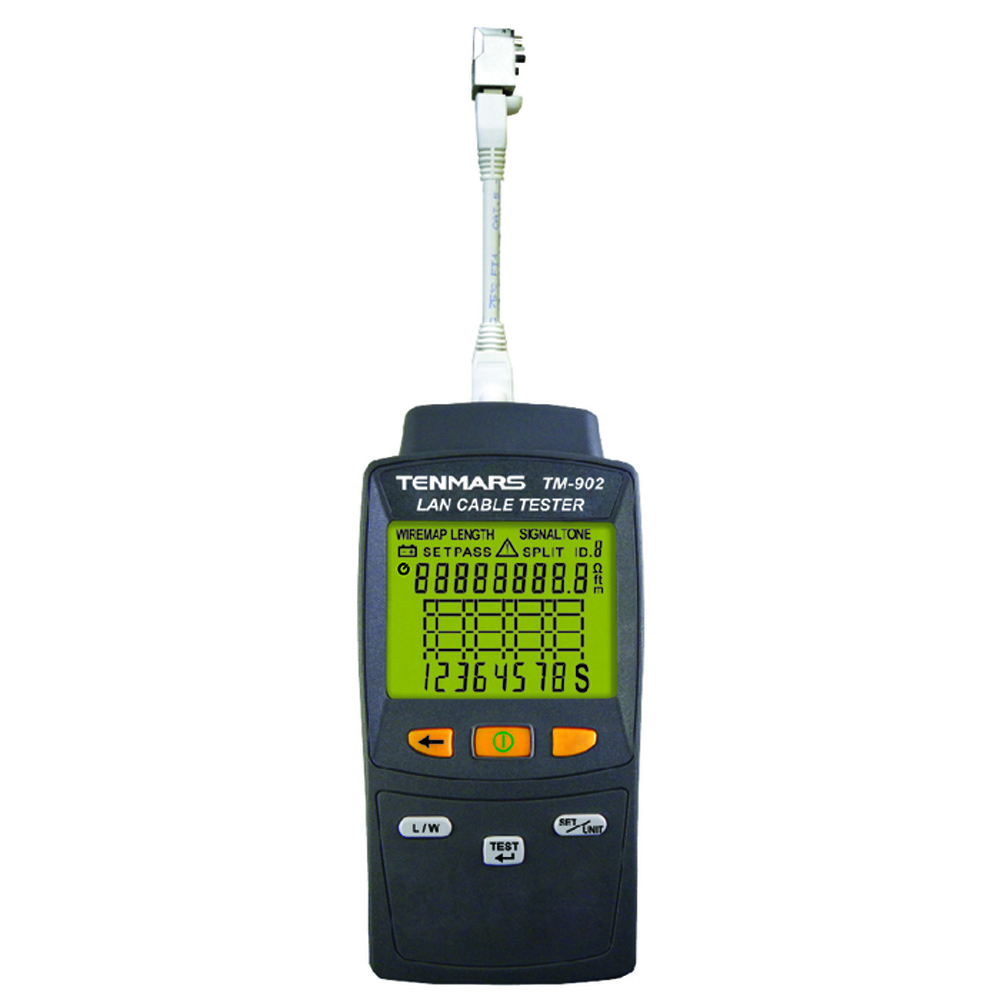

The TM-902 is a hand-held test instrument that lets you verify and troubleshoot the Lan cable of twisted pair.
The backlit LCD screen displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen. Using multiple remote ID up to 8 locators to test on RJ-45 (UTP, STP) LAN cable.

FEATURES

  • Detects opens, shorts, miswires and split pairs on twisted pair cabling.
  • Displays graph wiremap , opens, shorts, miswires, split pairs, and the remote ID number all on one screen.
  • Identify remote ID number only one pair.
  • Measures length.
  • Using multiple remote ID up to 8 locators.
  • Low battery detector .
  • Auto backlight.
  • Auto power off.

SPECIFICATIONS

  • Cable types tested : UTP, STP
  • Wiremap test : Detects opens, shorts, miswires, split pairs
  • Length test : Range : up to 255 m (836 ft)
                       Resolution : 0.1 m (ft)
                       Unit : meter and foot
                       Typical accuracy : ± 10%+1.0m (3 ft)
  • Display : 58mm(W) x45mm(L) Monochrome LCD with backlight.
  • Shutoff Rate Power :1uA
  • Operate Maximum Power :20mA
  • Operating temperature and humidity :5℃to 40℃,below 80% RH.
  • Storage temperature and humidity : -10℃ to 60℃, below 70%.
  • Dimensions:156x73x35mm(length x width x height).
  • Weight: Approximately 170 grams.

ACCESSORIES

  • User’s manual
  • 1.5V AAA battery
  • CAT5 STP Cable
  • remote ID(1)
