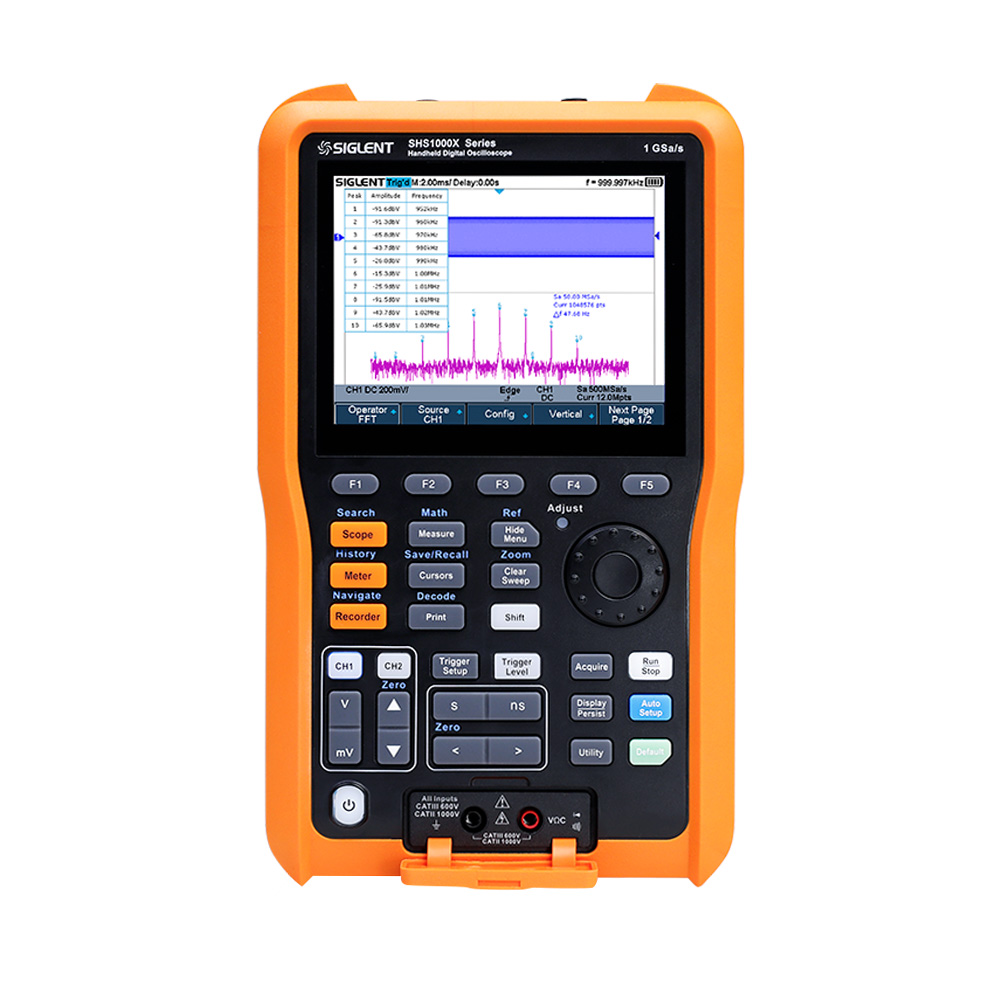

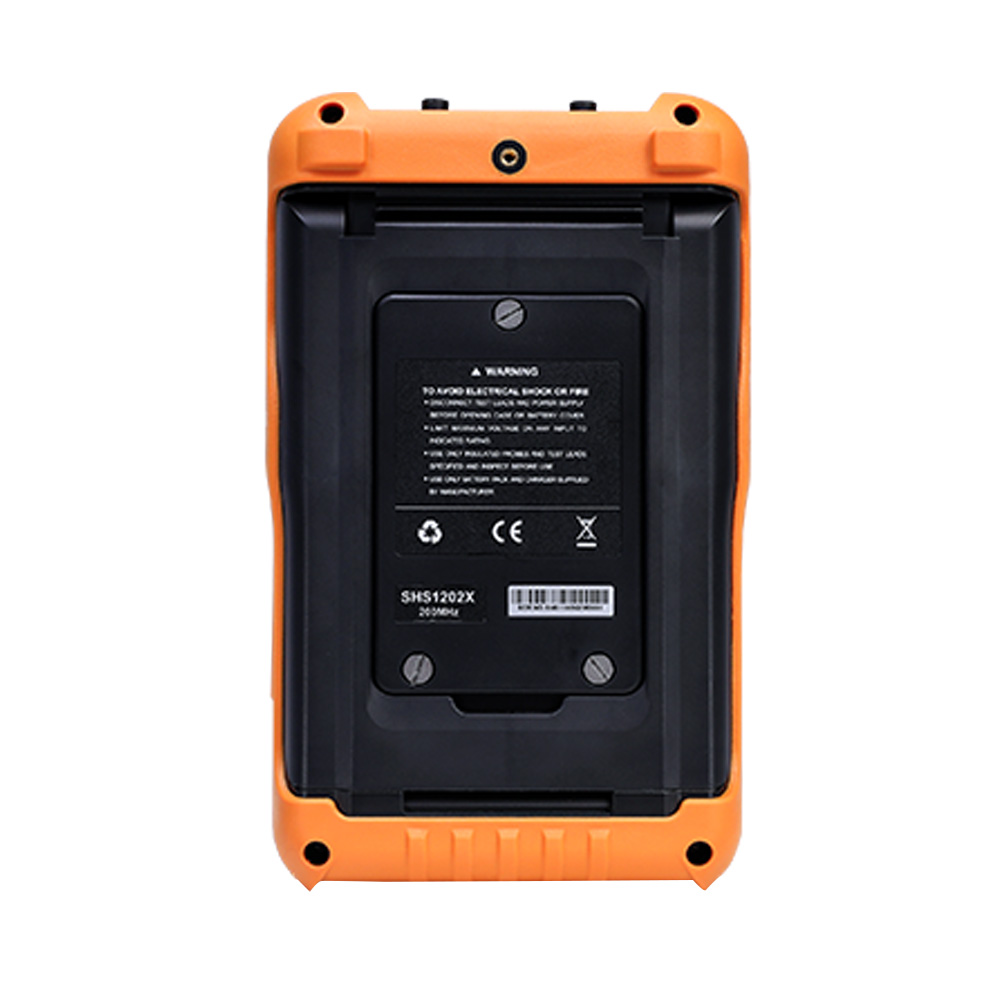

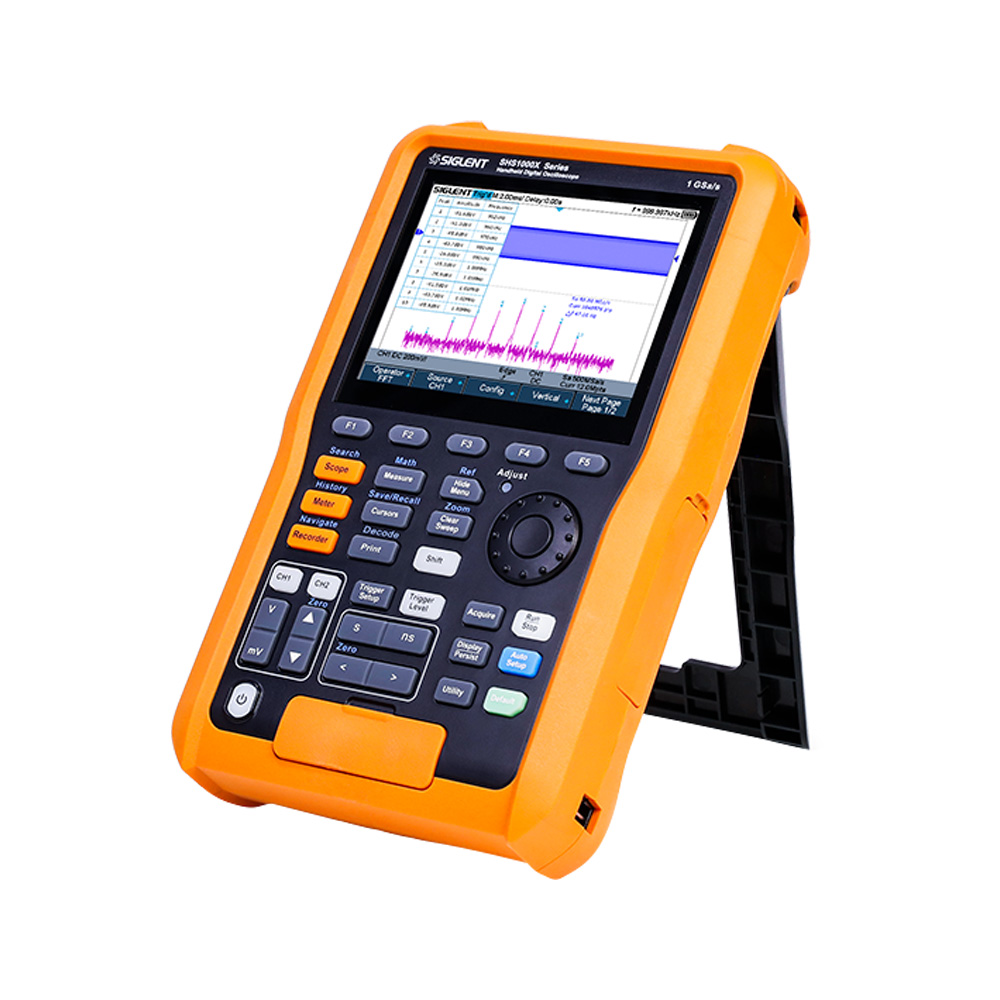

SHS1000X
Handheld Oscilloscope

Isolation voltage：CATIII 600 Vrms, CATII 1000 Vrms
Integrate oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
100 MHz or 200 MHz bandwidth models
sample rate of 1 GSa/s (single-channel), sample rate of 500 MSa/s (two-channels)
record length up to 12 Mpts.
Hardware-based ture RMS multimeter
IP51 certified

OVERVIEW

Full Isolation

IEC61010-2-030 defines measurement categories that rate the ability of measuring instruments to withstand short-term transient overvoltages outside the operating voltage.
For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms.
SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.

Standard Serial trigger and decode

Standard Serial trigger and decode: IIC, SPI, UART, CAN, LIN, widely used in automotive and embedded industries. Because of its unique portable design and battery power supply, it can better meet the testing needs of the automotive and embedded industries that require on-site decoding.

Hardware-based True RMS multimeter

Integrated 6000 count (~ 3.5 digit) digital multimeter
Hardware-Based True RMS Measurement
Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points

IP51 certified

The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.

Specifications

**Scope Specification**
	SHS1102X	SHS1202X
	100 MHz	200 MHz
Sample rate (Max.)	Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s
Channels	2 analog oscilloscope channels, 1 multimeter channel
Memory depth (Max.)	6 Mpts/CH (dual-channel mode),12 Mpts/CH (single channel mode)
Waveform capture rate (Max.)	100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Trigger type	Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger and decoder	IIC, SPI, UART, CAN, LIN
Data Logger(Recorder)	Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s
	Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4
I/O	USB Host, USB Device
Max input Voltage (Scope)	CAT III 600 Vrms, CAT II 1000 Vrms Between BNC Signal and Protecting Earth CAT III 600 Vrms, CAT II 1000 Vrms Between BNC GND and Protecting Earth CAT III 300 Vrms Between BNC Signal and BNC GND
Max input Voltage (Meter)	CAT III 600 Vrms, CAT II 1000 Vrms
Probe	PB925

**Multimeter Specification**
Maximum Resolution	6000
DC Voltage	60 mV 600 mV-600 V	±1%±15 digit ±1%±5 digit
AC Voltage(45 Hz～400 Hz)	60 mV-750 V	±1.5%±15 digit
DC Current	60 mA-600 mA 6 A-10 A	±1.5%±5 digit ±2%±5 digit
AC Current (45 Hz～400 Hz)	60 mA 600 mA 6 A-10 A	±1.5%±5 digit ±2%±5 digit ±3%±5 digit
Capacitance	40 nF 400 nF-400 μF	±3%±10 digit ±4%±5 digit)
Resistance	600 Ω-6 MΩ 60 MΩ	±1%±5 digit ±3%±5 digit
Continuity	Continuous beep when resistance < 50 Ω
Diode	0～2 V

**Other Specification**
Display	5.6-inch TFT-LCD (640×480)
Power Supply	Rechargeable 6900 mA high-capacity lithium battery
Weight	Without package 1.75 kg. With package 3.5 kg
Domesion	276 mm * 168 mm * 68 mm
Accessories	Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Power cord

MODEL

Model	Bandwıdth	Channels	Max real tıme samplıng rate	Multımeter	Isolatıon level	Memory depth
SHS1102X	100 MHz	2 CH	1 GSa/s	Voltage, current, resistance and other eight common functions	CAT III 600 Vrms, CAT II 1000 Vrms	12 Mpts
SHS1202X	200 MHz	2 CH	1 GSa/s	Voltage, current, resistance and other eight common functions	CAT III 600 Vrms, CAT II 1000 Vrms	12 Mpts

COMPARE

Comparatıve Data	SHS1000X	Keysıght U1600A	Fluke 190-102 Serıes III
Bandwıdth	200/100 MHz	200/100 MHz	100 MHz
Max Floatıng Voltage	CATIII 600 Vrms, CATII 1000 Vrms	CAT III 300 V	CAT III 1000 V/CAT IV 600 V
Bandwıdth Lımıt	20 MHz	10 kHz and 20 MHz (selectable)	20 MHz and 10 kHz
Scope Channel	2	2	2
CH to CH ısolatıon	DC-Max BW; >40 dB	–	–
Samplıng rate	1 Gsa/s	2 /1 Gsa/s	1.25 GS/s
Memory Depth	12 Mpts in total	2 Mpts/ 120 kpts	10 kpts
Wavefrom Capture Rate	100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)	–	–
ERES	Enhance bits:0.5, 1.5, 2, 2.5, 3	–	–
Vertıcal Scale	5 mV/div-100 V/div	2 mV/div – 50 V/div	2 mV/div-100 V/div
DC Gaın Accuracy	≤±2%; ≥10 mV/div, ≤±3%: <10 mV/div	± 4% of full scale	–
Tımebase Scale	1.0 ns/div-100 s/div	U1620A : 2 ns/div to 50 s/div, U1610A : 5 ns/div to 50 s/div	5 ns/div-4 s/div
Trıgger Types	Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern,Video	Edge, Glitch, TV, Nth Edge, CAN, LIN	Automatic, Edge, Pulse Width, N-Cycle
Serıal Trıgger and decoder	IIC, SPI, UART, CAN, LIN	No	No
Measurement Statıstıcs	Current, Mean, Min, Max, Stdev, Count	–	add, subtract, multiply; X-Y-mode; Frequency Spectrum using FFT
FFT poınts	1 Mpts	1024 pts	–
DMM Counts	6,000 counts	10,000 counts	5,000 counts
IP Ratıng	IP51	IP41	IP51
Battery	6900 mA 4 hours	10.8 V 3 hours	3.5 hours,with BP290: 10.8V, 2500 mAh 7 hours with BP291 (5000 mAh) optional
