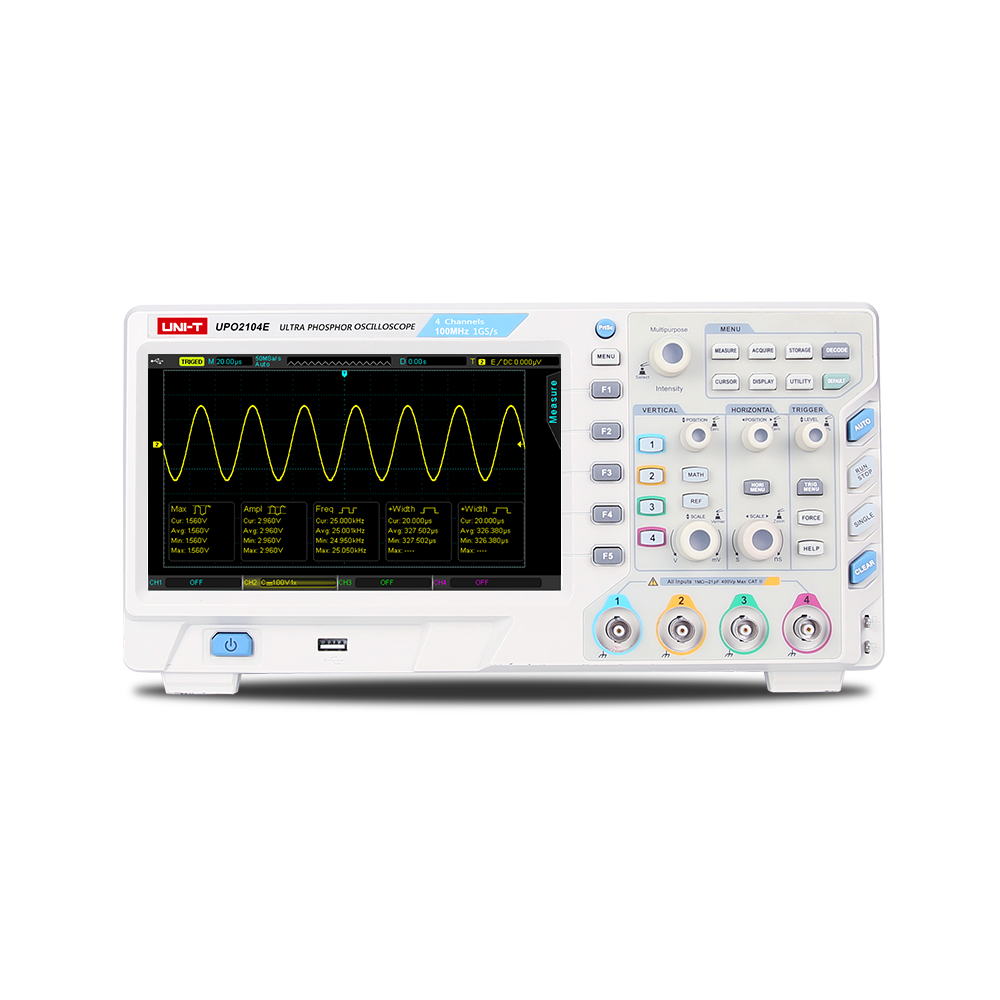

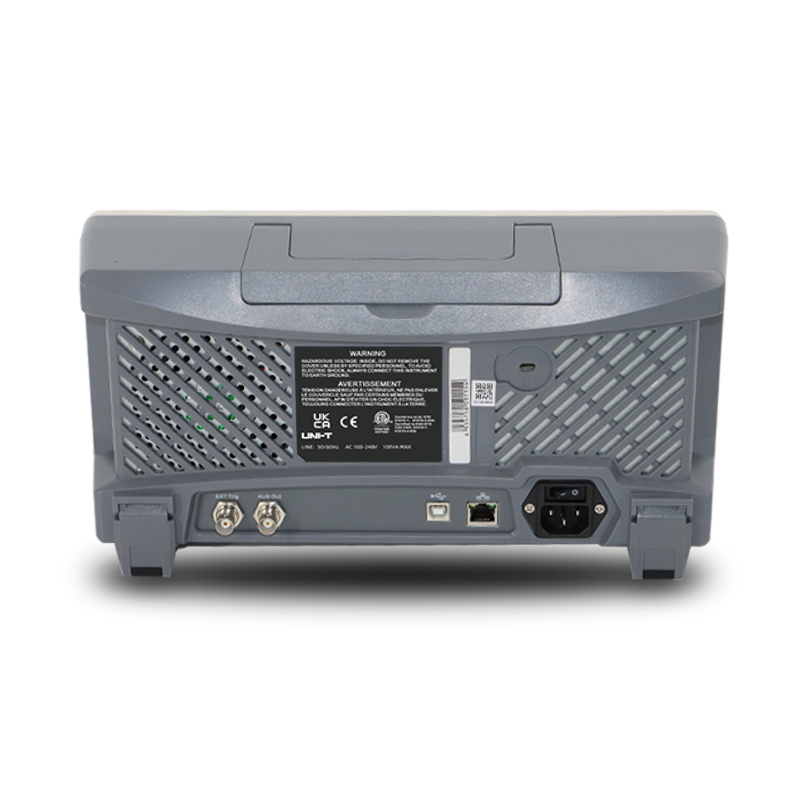

UPO2000E SERIES
Digital Oscilloscopes

The UPO2000E Series offers unprecedented value in customer applications

with its innovative technology,industry leading specifications, powerful trigger

functions and broad analysis capabilities.

The Series is available in 70MHz and 100MHz bandwidth and 2 or 4 analog channels.

It adopts UNI-T UPO visualization technology, has a maximum sample rate

of 1GSa/s and a standard memory depthof 56Mpts.

It comes with a minimum vertical scale input range of 1mV/div, an innovative

digital trigger system with high sensitivity and low jitier,

and a waveform capture rate of 80,000wfms/s.

BANDWIDTH	ANALOG CHANNELS
70 MHz to 100 MHz	4

REAL-TIME SAMPLE RATE	MAX. MEMORY DEPTH
1GSa/s	56Mpts

WAVEFORM CAPTURE RATE	DIGITAL CHANNELS
80000 wfms/s	–

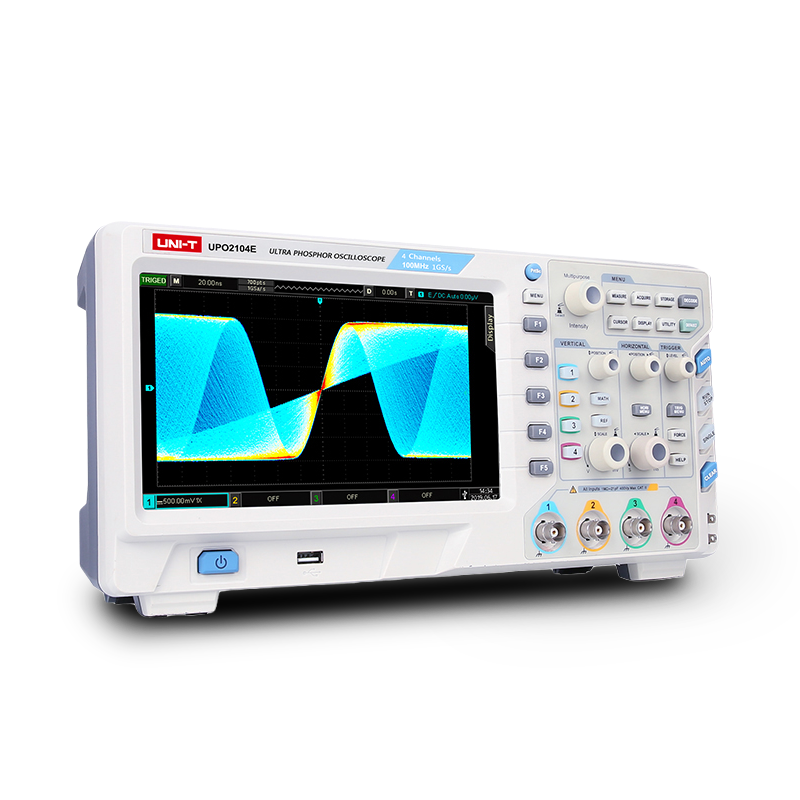

256-level grayscale display capability, timely reflecting

the probability of the appearance of the waveform,

and the waveform change is clearly visible.

Up to 56Mpts storage depth, users can capture longer

Time signal without losing waveform details.

Up to 80,000wfms/s waveform capture rate,discover occasional problems

in time, greatly improve the ability to capture extremely low-probability events,

and observe signal jitter and glitches more intuitively

The time base of each channel is independently adjustable,

which is convenient for users to observe four channels of

frequencies at the same time Significantly different signals

Support 34 kinds of automatic measurement parameter functions,

Support Zoom, Math, statistics and advanced calculation functions.

Model	Bandwidth	Analog Channels	Real-Time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels	Waveform Generator
UPO2104E	100 MHz	4	1 GSa/s	56 Mpts	80,000 wfms/s	–	–
UPO2102E	100 MHz	2	1 GSa/s	56 Mpts	80,000 wfms/s	–	–
UPO2074E	70 MHz	4	1 GSa/s	56 Mpts	80,000 wfms/s	–	–
UPO2072E	70 MHz	2	1 GSa/s	56 Mpts	80,000 wfms/s	–	–
