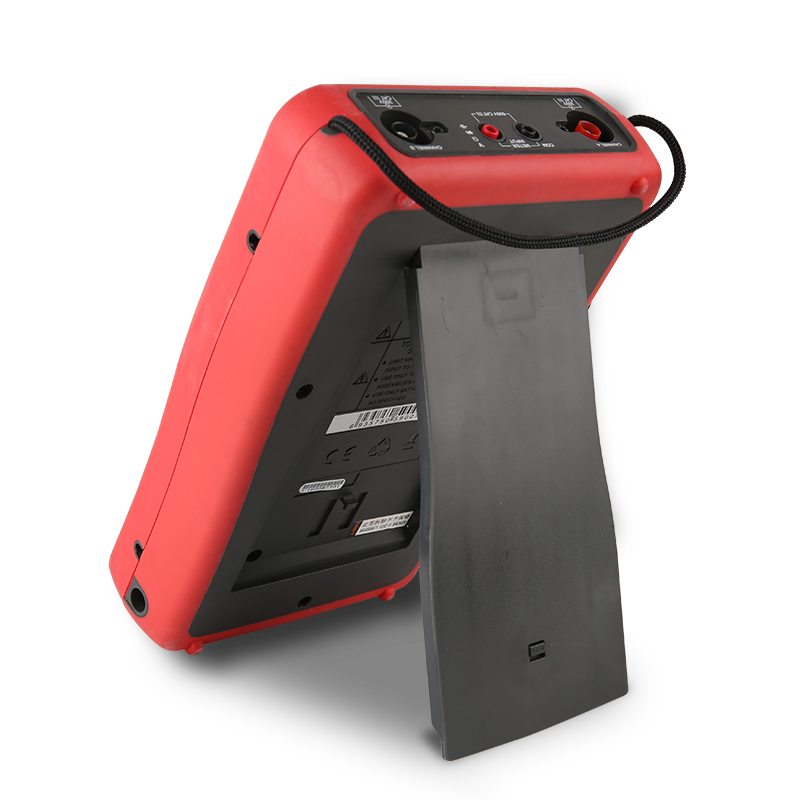

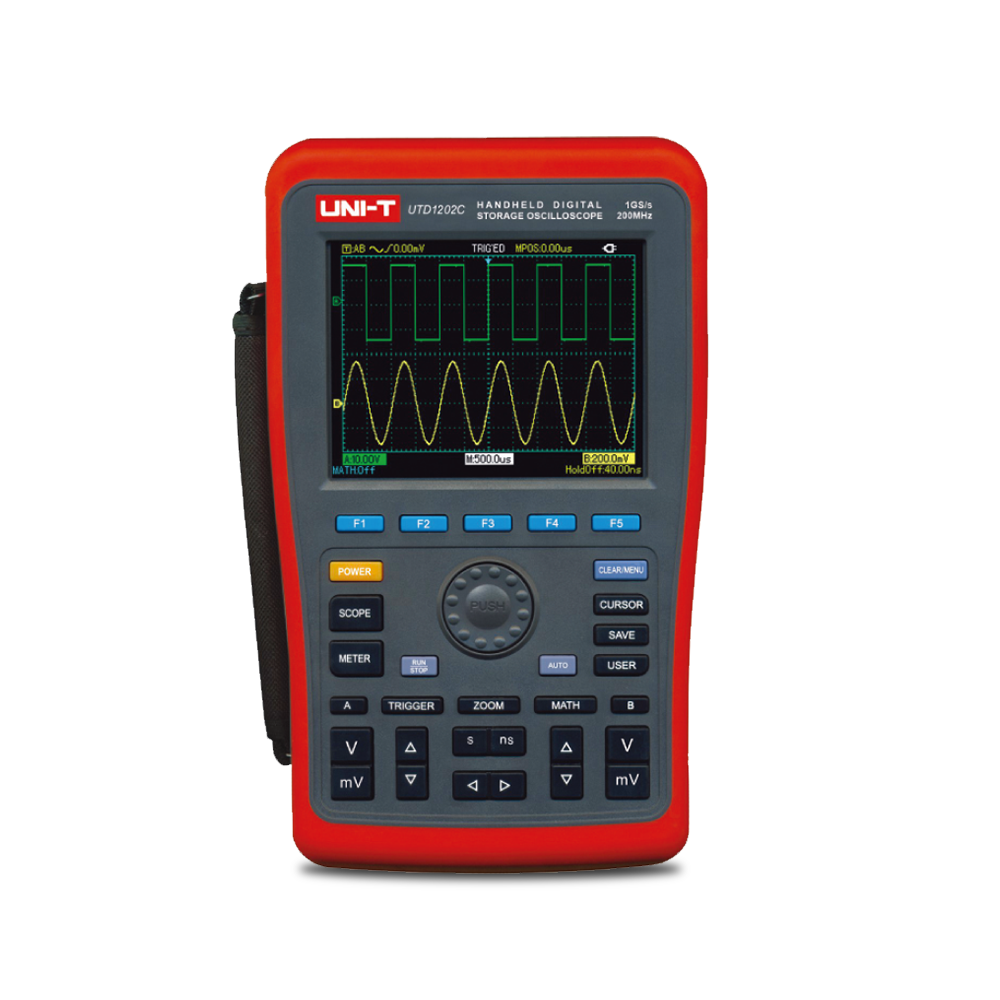

UTD1000C SERIES
Handheld Oscilloscopes

The UTD1000C Series handheld oscilloscope offers user-friendliness, outstanding technical indicators and a host of advanced features which can be powered by external AC power supply or powered by built-in lithium batiery. Its powerful trigger and analytical functions also make it easy to acquire and analyses waveforms, while the sharp and clear LCD and mathematics functions ensure clear observation and reliable analysis of signal conditions. It is the perfect tool for completing testing switily and efficiently. As the design is based on the controls of traditional instruments, users can use the new units without spending considerable time in learning and familiarizing with operation.



BANDWIDTH
ANALOG CHANNELS
60 MHz to 200 MHz
2



REAL-TIME SAMPLE RATE
MAX. MEMORY DEPTH
1 GSa/s
7.5 kpts



MULTIMETER
DISPLAY
voltage, current, resistance, etc. Display count:5
5.7” LCD panel

Auto configuration

Powerful automatic setting function, fast and accurate automatic setting for signals containing any DC component

Fully automatic setup function

Automatic setting function (AUTO SCALE) Vertical and time base gears can be automatically adjusted with signal changes without manual intervention

Monochrome display

Single color display can be set, more suitable for outdoor use under strong light

More parameter measurement types

Display cursor peak-to-peak value, amplitude, maximum value, minimum value, top value, bottom value, middle value, average value, rms value, overshoot, preshoot, frequency, period, rise time, fall time during automatic measurement , positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, rise delay, fall delay measurement of a total of 27 kinds

2 in 1

Oscilloscope & Multimeter

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Multimeter Capabilities Display
UTD1202C 200 MHz 2 1 Gsa/s 7.5 kpts Voltage, current, resistance, etc. (5 display count) 5.7 inches TFL LCD
UTD1102C 100 MHz 2 500 Msa/s 7.5 kpts Voltage, current, resistance, etc. (5 display count) 5.7 inches TFL LCD
UTD1062C 60 MHz 2 250 Msa/s 7.5 kpts Voltage, current, resistance, etc. (5 display count) 5.7 inches TFL LCD
