Math function
Support addition, subtraction, multiplication, division, and waveform calculation functions
ZOOM function
You can observe the overall situation and details of the waveform
XY mode (also called Lissajous graphics mode)
Can measure the phase difference between two signals of the same frequency
Brand new AUTO strategy
The state after AUTO can be set
Standard square wave output
With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output
Automatic parameter measurement
With 34 kinds of automatic parameter measurement, 5 groups of customizable parameter display
Grade Display
Grade display can view the worst case of changing waveforms, capture rare and abnormal signals
Alternate trigger
It can be effectively applied to trigger signals without frequency correlation.
| Model | Bandwidth | Analog Channels | Real-Time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels | Waveform Generator |
|---|---|---|---|---|---|---|---|
| UTD2152CL | 150 MHz | 2 | 500 MSa/s | 64 kpts | 5,000 wfms/s | – | – |
| UTD2072CL | 70 MHz | 2 | 500 MSa/s | 64 kpts | 5,000 wfms/s | – | – |
| UTD2052CL | 50 MHz | 2 | 500 MSa/s | 25 kpts | 2,000 wfms/s | – | – |
| UTD2025CL | 25 MHz | 2 | 250 MSa/s | 25 kpts | 2,000 wfms/s | – | – |
| UTD2102CL+ | 100 MHz | 2 | 500 MSa/s | 64 kpts | 5,000 wfms/s | – | – |

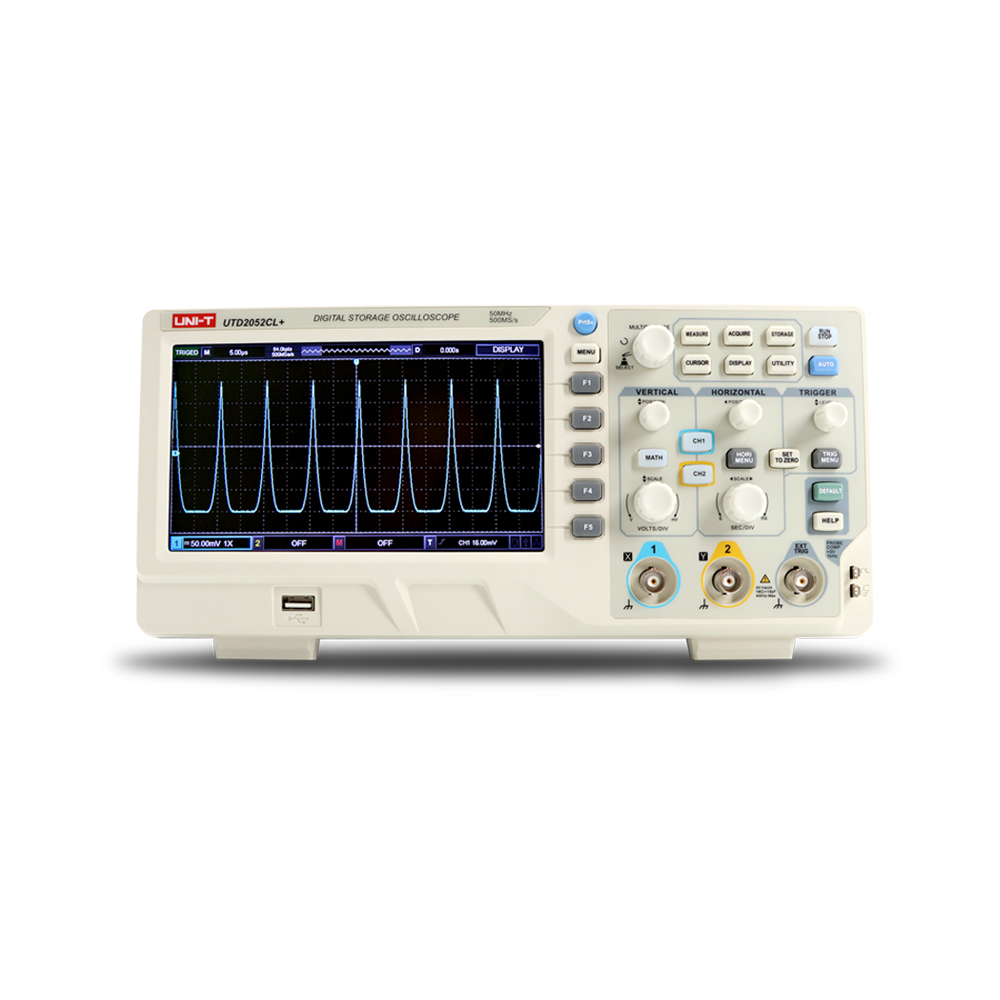

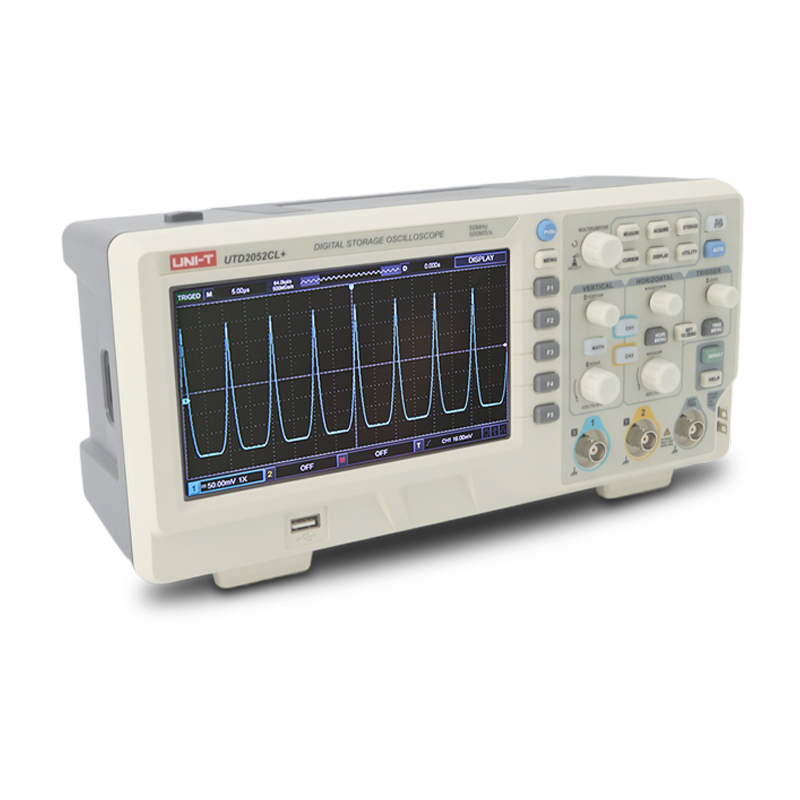

| UTD2052CL+ | 50 MHz | 2 | 500 MSa/s | 64 kpts | 5,000 wfms/s | – | – |
