Amplifiers
RF MW mmWave Amplifiers



Model Number Case Style Subcategories F Low (MHz) F High (MHz) Gain (dB) Typ. NF (dB) Typ. Power Out (dBm) @ 1dB Comp. Typ. Out. IP3 (dBm) Typ. Input VSWR (:1) Typ. Output VSWR (:1) Typ. Voltage (V) DC Current (mA) Connector Type Option Interface Impedance (Ohms)
AMP-15 PP120 Low Noise Amplifier 5 1000 13 2.8 8 22 2 2 15 29 – – Plug-In 50 N
AMP-75+ PP120 Low Noise Amplifier 5 500 19 2.4 12 28 2 2 15 31 – – Plug-In 50 N
AMP-77+ PP120 Gain Block 5 500 15 3.3 16 32 2 2 15 56 – – Plug-In 50 N
AVA-5R183-D+ Gain Block 500 18000 13.3 2.8 18.6 23.3 1.33 1.119 5 85 – – Die 50 N
AVA-5R183+ DG1847-1 Gain Block 500 18000 14.4 3.4 16.8 27.9 1.38 1.28 5 85 – – SMT 50 N
AVA-24A+ DQ849 Gain Block 5000 20000 11.8 5.7 18.4 25 1.38 1.7 5 120 – – SMT 50 N
AVA-24A-D+ Gain Block 5000 22000 13 5.8 19.2 25 1.3 1.9 5 126 – – Die 50 N
AVA-054-D+ Gain Block DC 50000 16.1 4 19.3 26.9 1.32 1.37 5 160 – – Die 50 N
AVA-183A+ DQ849 Gain Block 5000 18000 14 5 19 26 1.9 1.9 5 131 – – SMT 50 Y
AVA-183A-D+ Gain Block 5000 20000 14.5 4.3 18.2 25 1.6 1.7 5 131 – – Die 50 N
AVA-183P+ DQ1225 Gain Block 500 18000 8.1 4.8 11.7 21.5 1.67 1.92 5 46 – – SMT 50 Y
AVA-183P-D+ Gain Block 500 18000 8.1 4.8 11.7 21.5 1.67 1.92 5 46 – – Die 50 N
AVA-183MP+ DG1847-1 Low Noise Amplifier 50 18000 16.5 1.8 23.8 31.1 1.53 1.22 8 160 – – SMT 50 N
AVA-183MP-D+ Gain Block DC 18000 14.5 2.8 23.2 29.5 1.49 1.25 8 160 – – Die 50 N
AVA-0233LN+ DG1677-4 Low Noise Amplifier 2000 30000 17 2.2 13.5 25.7 1.33 1.22 5 65 – – SMT 50 N
AVA-0233LN-D+ Low Noise Amplifier 2000 30000 17 2.2 13.5 25.7 1.33 1.22 5 65.2 – – Die 50 N
AVA-2183+ DG1847-1 Gain Block 2000 20000 16.4 5.2 19.3 24.7 1.45 1.22 4 210 – – SMT 50 N
AVA-2183-D+ Gain Block 2000 18000 17.2 5.5 19.6 27.4 1.49 1.25 4 210 – – Die 50 N
AVA-20453BL-D+ Gain Block 20000 45000 23.5 9.7 23 30 1.3 1.3 5 450 – – Die 50 N
AVA-20453MP-D+ Gain Block 20000 45000 20.8 9.2 20.5 27.7 1.67 1.28 4.5 300 – – Die 50 N
AVA-26453LN-D+ Gain Block 26000 45000 22.2 2.9 11.1 19.2 1.68 1.49 3 80 – – Die 50 N
CMA-62+ DL1721 Gain Block 10 6000 15.4 5.1 19.2 33 1.5 1.8 5 82 – – SMT 50 Y
CMA-63+ DL1721 Gain Block 10 6000 20.3 3.9 18.4 32 1.1 1.4 5 69 – – SMT 50 Y
CMA-81+ DL1721 Gain Block DC 6000 10 7.4 19.6 34 1.3 1.6 5 103 – – SMT 50 Y
CMA-82+ DL1721 Gain Block DC 7000 14.1 6.7 20.6 36.4 1.4 1.9 5 106 – – SMT 50 Y
CMA-83LN+ DL1721 Low Noise Amplifier 500 8000 21.5 1.3 20.3 30.1 1.32 1.31 5.0/6.0 50/62 – – SMT 50 N
CMA-84+ DL1721 Gain Block DC 7000 20.2 5.5 21 34.5 1.4 3 5 108 – – SMT 50 Y
CMA-103+ DL1721 Low Noise Amplifier 50 4000 11.0 0.8 23.1 44.8 1.38 1.36 3.0/5.0 60/97 – – SMT 50 N
CMA-162LN+ DL1721 Low Noise Amplifier 700 1600 23.2 0.49 19.9 30.3 1.4 1.2 4 55 – – SMT 50 Y
CMA-183L+ LZ1737 Gain Block DC 18000 14.2 5.5 5.4 17.5 – – 5 20 – – SMT 50 N
CMA-252LN+ DL1721 Low Noise Amplifier 1500 2500 16.8 1 17.8 30 1.5 1.3 4 57 – – SMT 50 Y
CMA-545+ DL1721 Low Noise Amplifier 50 6000 14.2 0.8 20 35 2.3 1.5 3 80 – – SMT 50 Y
CMA-545G1+ DL1721 Low Noise Amplifier 400 2200 31.8 0.9 23.3 36.5 1.9 1.4 5 158 – – SMT 50 Y
CMA-5043+ DL1721 Low Noise Amplifier 50 4000 18.4 0.75 19.8 33.5 1.7 1.5 5 58 – – SMT 50 Y
DVGA1-242A+ DG1677 Variable Gain Amplifier 450 2400 29.3 2.4 22.9 35.9 2.43 1.66 5 155 – – SMT 50 Y
DVGA1-242APP+ DG1677 Variable Gain Amplifier 450 2400 29.5 2.6 22.8 35.5 2.54 1.39 5 158 – – SMT 50 Y
DVGA2-33A+ DG1677 Variable Gain Amplifier 50 3000 18.1 5.3 18 31.3 1.6 1.43 5 91 – – SMT 50 Y
DVGA2-33APP+ DG1677 Variable Gain Amplifier 50 3000 19.3 5.3 16.4 31.5 1.53 1.39 3 & 5 91 – – SMT 50 Y
DVGA3-122+ DG1677-2 Variable Gain Amplifier 900 1200 20 0.5 15.6 28 1.92 2.6 5 52.2 – – SMT 50 Y
EHA-24L-D+ Gain Block DC 20000 13.4 5.1 6.8 16.6 1.433 1.377 5 19.1 – – Die 50 N
EHA-163L+ MC1630-1 Gain Block DC 16000 15.3 5.2 6.5 15.6 1.67 1.57 5 20.9 – – SMT 50 N
EHC-24L+ AF320 Gain Block DC 20000 15.1 5.2 7 19.2 1.28 1.43 5 19.1 – – SMT 50 N
ERA-1+ VV105 Gain Block DC 8000 10.9 4.3 12 26 1.5 1.5 3.4 40 – – SMT 50 Y
ERA-1SM+ WW107 Gain Block DC 8000 10.9 4.3 12 26 1.5 1.5 3.4 40 – – SMT 50 Y
ERA-2+ VV105 Gain Block DC 6000 14.4 4 13 26 1.3 1.2 3.4 40 – – SMT 50 Y
ERA-2SM+ WW107 Gain Block DC 6000 14.4 4 13 26 1.3 1.2 3.4 40 – – SMT 50 Y
ERA-3+ VV105 Gain Block DC 3000 18.7 3.5 12.5 25 1.5 1.4 3.2 35 – – SMT 50 Y
ERA-3SM+ WW107 Gain Block DC 3000 18.7 3.5 12.5 25 1.5 1.4 3.2 35 – – SMT 50 Y
ERA-4+ VV105 Gain Block DC 4000 13.4 4.2 17.3 34 1.2 1.3 4.5 65 – – SMT 50 Y
ERA-4SM+ WW107 Gain Block DC 4000 13.4 4.2 17.3 34 1.2 1.3 4.5 65 – – SMT 50 Y
ERA-5+ VV105 Gain Block DC 4000 18.5 4.3 18.4 32.5 1.3 1.2 4.9 65 – – SMT 50 Y
ERA-5SM+ WW107 Gain Block DC 4000 17.6 4.3 18.4 32.5 1.3 1.2 4.9 65 – – SMT 50 Y
ERA-6+ VV105 Gain Block DC 4000 12.2 4.5 17.9 36 1.3 1.6 5 70 – – SMT 50 Y
ERA-6SM+ WW107 Gain Block DC 4000 12.2 4.5 17.9 36 1.3 1.6 5 70 – – SMT 50 Y
ERA-8SM+ WW107 Gain Block DC 2000 19 3.1 12.5 25 1.4 1.8 3.7 36 – – SMT 50 Y
ERA-9SM+ WW107 Gain Block DC 8000 8.3 5.3 14.1 31.3 1.2 1.2 4 50 – – SMT 50 Y
ERA-21SM+ WW107 Gain Block DC 8000 12.2 4.7 12.6 26 1.1 1.3 3.5 40 – – SMT 50 Y
ERA-33SM+ WW107 Gain Block DC 3000 17.4 3.9 13.5 28.5 1.6 1.25 4.3 40 – – SMT 50 Y
ERA-50SM+ WW107 Gain Block DC 2000 19.4 3.5 17.2 32.5 1.3 1.2 4.4 60 – – SMT 50 Y
ERA-51SM+ WW107 Gain Block DC 4000 16.1 4.1 18.1 33 1.1 1.2 4.5 65 – – SMT 50 Y
ERA-51SM-D+ Gain Block DC 4000 16.1 4.1 18.1 33 1.1 1.2 4.5 65 – – Die 50 N
GALI-1+ DF782 Gain Block DC 8000 11.8 4.5 10.5 27 1.3 1.4 3.4 40 – – SMT 50 Y
GALI-2+ DF782 Gain Block DC 8000 14.8 4.6 11 27 1.6 1.6 3.5 40 – – SMT 50 Y
GALI-3+ DF782 Gain Block DC 3000 19.1 3.5 10.5 25 1.5 1.2 3.3 35 – – SMT 50 Y
GALI-4+ DF782 Gain Block DC 4000 13.5 4 16 34 1.2 1.4 4.6 65 – – SMT 50 Y
GALI-4F+ DF782 Gain Block DC 4000 13.4 4 13.8 32 1.2 1.5 4.4 50 – – SMT 50 Y
GALI-5+ DF782 Gain Block DC 4000 17.5 3.5 16 35 1.2 1.4 4.4 65 – – SMT 50 Y
GALI-5F+ DF782 Gain Block DC 4000 17.4 3.5 14.2 31.5 1.2 1.4 4.3 50 – – SMT 50 Y
GALI-6+ DF782 Gain Block DC 4000 11.3 4.5 18.2 35.5 1.5 1.8 5 70 – – SMT 50 Y
GALI-6F+ DF782 Gain Block DC 4000 11.6 4.5 15.8 35.5 1.5 1.9 4.8 50 – – SMT 50 Y
GALI-19+ DF782 Gain Block DC 7000 11.6 6.5 9 23.7 1.6 1.5 3.6 40 – – SMT 50 Y
GALI-21+ DF782 Gain Block DC 8000 13.1 4 10.5 27 1.1 1.3 3.5 40 – – SMT 50 Y
GALI-24+ DF782 Gain Block DC 6000 16.6 4.3 19.3 35.3 1.4 2 5.8 80 – – SMT 50 Y
GALI-29+ DF782 Gain Block DC 7000 19.7 6 10 24.7 1.5 1.5 3.6 40 – – SMT 50 Y
GALI-33+ DF782 Gain Block DC 4000 17.5 3.9 11.4 28 1.6 1.2 4.3 40 – – SMT 50 Y
GALI-39+ DF782 Low Noise Amplifier DC 7000 19.7 2.4 9 22.9 1.6 1.5 3.5 35 – – SMT 50 Y
GALI-39-D+ Gain Block DC 7000 19.7 2.4 10.5 22.9 1.79 2.3 3.5 35 – – Die 50 N
GALI-49+ DF782 Gain Block DC 5000 13.6 4.4 16.4 33.3 1.2 1.2 4.5 65 – – SMT 50 Y
GALI-51+ DF782 Gain Block DC 4000 16.1 3.5 16.5 35 1.3 1.5 4.5 65 – – SMT 50 Y
GALI-51F+ DF782 Gain Block DC 4000 15.9 3.5 14.4 32 1.2 1.5 4.4 50 – – SMT 50 Y
GALI-52+ DF782 Low Noise Amplifier DC 2000 17.8 2.7 15.5 32 1.35 1.4 4.4 50 – – SMT 50 Y
GALI-55+ DF782 Gain Block DC 4000 18.5 3.3 15.5 28.5 1.25 1.3 4.3 50 – – SMT 50 Y
GALI-59+ DF782 Gain Block DC 5000 18.3 4.3 17.6 33.3 1.6 1.5 4.8 65 – – SMT 50 Y
GALI-74+ DF782 Low Noise Amplifier DC 1000 21.8 2.7 18.3 38 1.2 1.6 4.8 80 – – SMT 50 Y
GALI-84+ DF782 Gain Block DC 6000 16.7 4.4 21 37.4 1.4 2.1 5.8 100 – – SMT 50 Y
GALI-S66+ DF782 Low Noise Amplifier DC 3000 18.2 2.4 3.3 19.1 1.1 1.2 3.5 16 – – SMT 50 Y
GALI-S66-D+ Low Noise Amplifier DC 3000 18.2 2.4 3.3 19.1 1.1 1.2 3.5 16 – – Die 50 N
GVA-60+ DF782 Gain Block 10 5000 19.8 4 19.5 35.6 1.4 1.9 5 92 – – SMT 50 Y
GVA-60-D+ Gain Block 10 6000 19.3 3.9 18.2 29 1.45 2.2 5 93 – – Die 50 N
GVA-62+ DF782 Gain Block 10 6000 15.4 5.1 19.2 33.6 1.5 1.3 5 82 – – SMT 50 Y
GVA-62-D+ Gain Block 10 6000 15.7 5 19.4 32.8 1.4 1.4 5 82 – – Die 50 N
GVA-63+ DF782 Gain Block 10 6000 20 3.7 18.6 32.2 1.1 1.35 5 69 – – SMT 50 Y
GVA-63-D+ Gain Block 10 6000 20.5 3.7 18.2 31.9 1.18 1.5 5 69 – – Die 50 N
GVA-81+ DF782 Gain Block DC 6000 10 7.4 19.7 36.6 1.3 1.3 5 103 – – SMT 50 Y
GVA-81-D+ Gain Block DC 6000 10 7.4 19.7 36.6 1.3 1.3 5 103 – – Die 50 N
GVA-82+ DF782 Gain Block DC 7000 13.8 6.6 20.6 36 1.3 1.6 5 106 – – SMT 50 Y
GVA-83+ DF782 Gain Block DC 7000 17.1 6.2 18.6 31.5 1.3 1.8 5 72 – – SMT 50 Y
GVA-84+ DF782 Gain Block DC 7000 16 5.5 20.6 35.8 1.3 2.6 5 108 – – SMT 50 Y
GVA-84-D+ Gain Block DC 7000 16 5.5 21 35.8 1.28 2.58 5 108 – – Die 50 N
GVA-91+ DF782 Linear Amplifier 869 2170 20.4 6.4 28.8 40 1.8 1.3 5 147 – – SMT 50 Y
GVA-92+ DF782 Linear Amplifier 869 2170 21.2 6 24.1 42 1.8 2 5 99 – – SMT 50 Y
GVA-93+ DF782 Gain Block 10 9000 16.9 4 16.2 30 1.2 1.2 5 52 – – SMT 50 Y
GVA-123+ DF782 Gain Block 10 12000 16.9 4 16.2 30 1.2 1.2 5 52 – – SMT 50 Y
GVA-123-D+ Gain Block 10 12000 16.7 3.9 15.9 29.1 1.2 1.2 5 48 – – Die 50 N
HPA-25W-63+ NG1942 High Power Amplifier 700 6000 53 13 37 45 1.8 2.0 110/220 AC – N – Rack 50 N
HPA-25W-272+ NG1942-1 High Power Amplifier 20 2700 50 10 38 50 1.3 2.5 110/220 AC – N – Rack 50 N
HPA-50W-63+ NG1942 High Power Amplifier 700 6000 56 12 43 50 2.5 3 110/220 AC – N – Rack 50 N

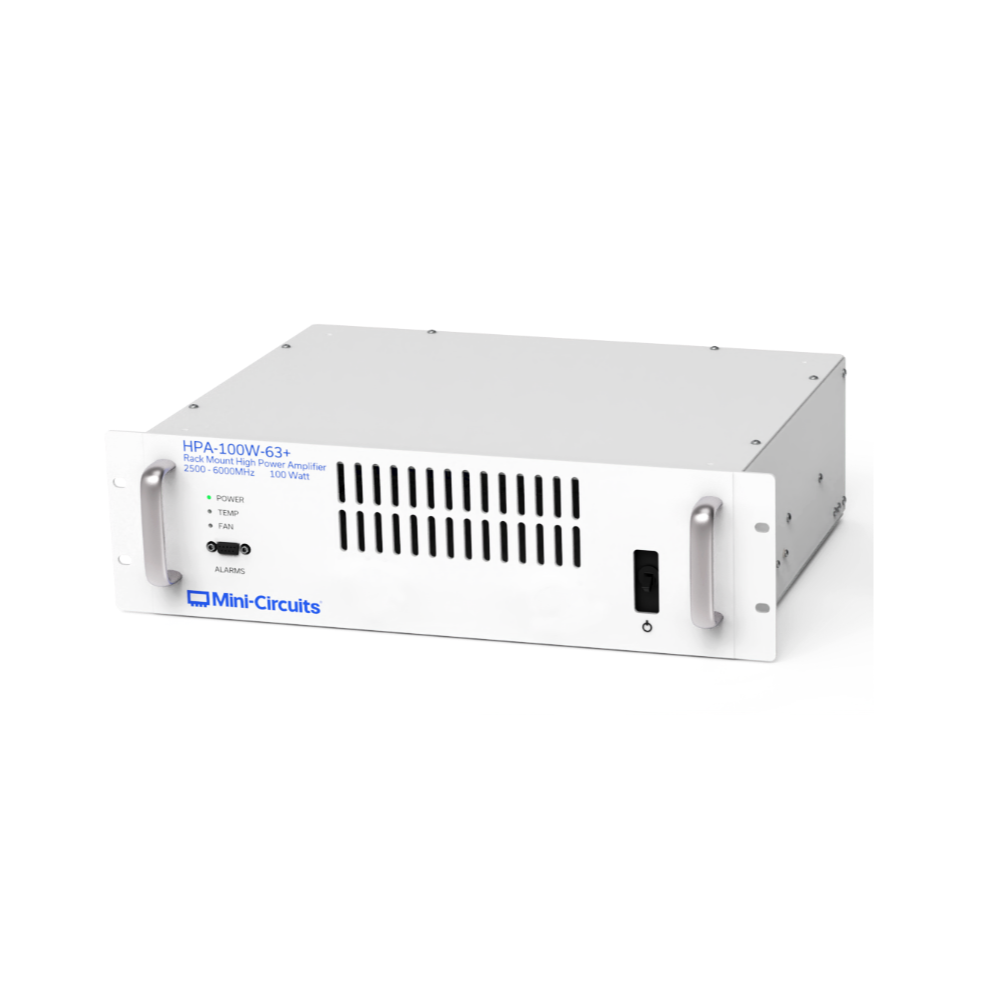

HPA-100W-63+ NG1942 High Power Amplifier 2500 6000 58 15 43 50 2.5 2.5 110/220 AC – N – Rack 50 N
HPA-272+ NG1942 High Power Amplifier 700 2700 48 8.2 49 55 1.3 1.3 110/220 AC – N – Rack 50 N
HXG-122+ LZ1671 Linear Amplifier 500 1200 15.3 2.2 23 46 1.6 1.8 5 144 – – SMT 50 N
HXG-242+ LZ1671 Linear Amplifier 700 2400 15 2.3 22.8 46.5 1.9 1.4 5 144 – – SMT 50 N
LEE-9+ FG873 Gain Block DC 8000 8.4 5.3 13.9 29.7 1.2 1.2 4 50 – – SMT 50 Y
LEE-19+ FG873 Gain Block DC 8000 12 6.5 10.2 24.5 1.5 1.4 3.6 40 – – SMT 50 Y
LEE-29+ FG873 Gain Block DC 8000 15.4 5.5 10.9 25.5 1.4 1.3 3.6 40 – – SMT 50 Y
LEE-39+ FG873 Low Noise Amplifier DC 8000 20.8 2.4 10.4 23.4 1.3 1.3 3.5 35 – – SMT 50 Y
LEE-49+ FG873 Gain Block DC 5000 14 5.5 16.4 33 1.6 1.4 4.9 65 – – SMT 50 Y
LEE-59+ FG873 Gain Block DC 5000 19.7 4.5 17.3 33 1.5 1.5 4.8 65 – – SMT 50 Y
LEE2-6+ MC1630-1 Low Noise Amplifier DC 7000 18.9 2.3 2.8 17.6 1.33 1.54 3.6 16 – – SMT 50 Y
LHA-1+ FG873 Linear Amplifier 50 6000 14.1 2.1 22.7 40 1.7 1.4 5 146 – – SMT 50 Y
LHA-1H+ FG873 Linear Amplifier 50 6000 12.2 2.5 22.7 40.9 1.87 1.27 5 145 – – SMT 50 Y
LHA-13HLN+ DQ1225 Low Noise Amplifier 1 1000 22.7 1.2 28 43.3 1.28 1.32 8 239 – – SMT 50 N
LHA-13LN+ DQ1225 Low Noise Amplifier 1 1000 22.4 1.1 23.3 38.3 1.28 1.28 5/3 143/73 – – SMT 50 N
LHA-23HLN+ DQ1225 Low Noise Amplifier 30 2000 21.5 1.3 28.3 44.7 1.9 1.5 8 244 – – SMT 50 Y
LHA-23LN+ DQ1225 Low Noise Amplifier 30 2000 21.2 1.2 23.8 36.9 1.9 1.25 5/3 146/75 – – SMT 50 Y
LHA-83W+ DQ1225 Gain Block 50 8000 16.8 3.1 23.3 35.1 1.14 1.21 5/9 40/105 – – SMT 50 Y
LHY-1H+ MC1630-1 Linear Amplifier 50 6000 14 2.1 22.5 41 1.79 1.26 5/4.5/4 144/116/80 – – SMT 50 Y
LHY-84+ MC1630-1 Gain Block DC 7000 20 5.4 21 33.1 1.43 2.1 5 111 – – SMT 50 Y
LVA-123+ DQ849 Gain Block 10 12000 17.3 3.9 15.6 28.2 1.2 1.35 5 52 – – SMT 50 Y
LZY-22+ BT1598 High Power Amplifier 0.1 200 43 8.9 42 52 1.4 4 24 6000 SMA Heat Sink Conn. 50 N
LZY-22X+ BT1598 High Power Amplifier 0.1 200 43 8.9 42 52 1.4 4 24 6000 SMA – Conn. 50 N
MAR-1SM+ WW107 Gain Block DC 1000 16.5 3.3 2.5 14 1.3 1.2 5 17 – – SMT 50 Y
MAR-2SM+ WW107 Gain Block DC 2000 12 3.7 7 22 1.3 1.3 5 25 – – SMT 50 Y
MAR-3+ VV105 Gain Block DC 2000 12 6 10 23 1.5 1.7 5 35 – – SMT 50 Y
MAR-3SM+ WW107 Gain Block DC 2000 12 3.7 10 28 1.3 1.3 5 35 – – SMT 50 Y
MAR-4+ VV105 Gain Block DC 1000 8 7 12.5 25.5 1.5 1.9 5.25 50 – – SMT 50 Y
MAR-4SM+ WW107 Gain Block DC 1000 8 6 12.5 25.5 1.6 2 5.3 50 – – SMT 50 Y
MAR-6+ VV105 Gain Block DC 2000 20 3 3 14.5 1.7 1.7 3.5 16 – – SMT 50 Y
MAR-6SM+ WW107 Low Noise Amplifier DC 2000 20.2 2.3 3.7 18.1 1.2 1.2 3.5 16 – – SMT 50 Y
MAR-7SM+ WW107 Gain Block DC 2000 12.5 5 3.5 19 1.3 1.3 4 22 – – SMT 50 Y
MAR-8A+ VV105 Gain Block DC 1000 25 3.1 12.5 25 1.4 1.8 3.7 36 – – SMT 50 Y
MAR-8A-D+ Gain Block DC 1000 31.5 3.1 12.5 25 1.4 1.79 3.7 36 – – Die 50 N
MAR-8ASM+ WW107 Gain Block DC 1000 25 3.1 12.5 25 1.4 1.8 3.7 36 – – SMT 50 Y
MAV-11BSM+ RRR137 Gain Block 50 1000 11.3 4.4 18 34 1.2 1.2 5.5 60 – – SMT 50 Y
MERA-533+ DL805 Dual Matched Amplifier DC 4000 18.8 3.5 17.5 33 1.4 1.5 4.9 65 – – SMT 50 Y
MERA-556+ DL1020 Dual Matched Amplifier DC 2200 19 3.5 17.6 35.5 1.2 1.4 4.9 65 – – SMT 50 Y
MERA-7433+ DL805 Dual Matched Amplifier DC 1000 19 2.7 18.3 35 1.25 1.8 4.8 80 – – SMT 50 Y
MERA-7456+ DL1020 Dual Matched Amplifier DC 1000 18.6 2.7 18.2 35 1.3 2 4.8 80 – – SMT 50 Y
MGVA-62+ DL1020 Dual Matched Amplifier 40 3000 15.7 4.8 19.6 37.9 1.65 1.24 5 82 – – SMT 50 Y
MGVA-63+ DL1020 Dual Matched Amplifier 40 3000 21.4 3.6 19.4 34.3 1.35 1.32 5 69 – – SMT 50 Y
MGVA-82+ JV2579 Dual Matched Amplifier DC 5200 14.1 7 20.2 36 1.3 1.7 5 100 – – SMT 50 Y
MNA-2A+ DQ849 Gain Block 500 2500 15 5.3 17.9 29 1.3 1.4 2.8/5.0 79/84 – – SMT 50 Y
MNA-2A-D+ Gain Block 500 4500 14.7 5.4 17.5 29 1.3 1.5 2.8/5.0 79/84 – – Die 50 N
MNA-2W+ DQ849 Gain Block 500 4500 14.7 5.4 17.5 29 1.3 1.5 2.8/5.0 79/84 – – SMT 50 Y
MNA-3A+ DQ849 Gain Block 500 2500 16.5 4 9.5 21 1.24 1.22 2.8/5.0 32.6/34.3 – – SMT 50 Y
MNA-3A-D+ Gain Block 500 2500 16.8 3.9 10.3 22 1.3 1.2 2.8/5.0 32.6/34.3 – – Die 50 N
MNA-4A+ DQ849 Gain Block 500 2500 17.8 4.4 18.6 30.8 1.5 1.1 2.8/5.0 70.6/75 – – SMT 50 Y
MNA-4A-D+ Gain Block 500 4500 17 4.5 16.8 27.9 1.5 1.5 2.8/5.0 70.6/75 – – Die 50 N
MNA-4W+ DQ849 Gain Block 500 4500 17 4.5 16.8 27.9 1.5 1.5 2.8/5.0 70.6/75 – – SMT 50 Y
MNA-5A+ DQ849 Gain Block 500 2500 22.8 3 10.4 21.3 1.2 1.7 5 34 – – SMT 50 Y
MNA-5A-D+ Gain Block 500 4500 19.2 3.2 8.7 19.1 1.3 1.6 2.8/5.0 32/34 – – Die 50 N
MNA-5W+ DQ849 Gain Block 500 4500 19.2 3.2 8.7 19.1 1.3 1.6 5 34 – – SMT 50 Y
MNA-6A+ DQ849 Low Noise Amplifier 500 2500 25 2.6 20.2 32.4 1.5 1.1 2.8/5.0 92/99 – – SMT 50 Y
MNA-6A-D+ Low Noise Amplifier 500 5500 23.2 2.7 19.2 30 1.4 1.2 2.8/5.0 92/99 – – Die 50 N
MNA-6W+ DQ849 Low Noise Amplifier 500 5500 23.2 2.7 19.2 30 1.4 1.2 2.8/5.0 92/99 – – SMT 50 Y
MNA-7A+ DQ849 Gain Block 1500 6000 17.7 5.7 17.1 28.5 1.8 1.2 2.8/5.0 77/82 – – SMT 50 Y
MNA-7A-D+ Gain Block 1500 6000 17.7 5.7 17.1 28.5 1.8 1.2 2.8/5.0 77/82 – – Die 50 N
MPGA-105+ DL1020 Dual Matched Amplifier 40 3000 14.4 1.9 21 37.8 1.2 1.4 5 63 – – SMT 50 Y
MPGA-122-75+ DG1847 CATV Amplifier 40 1250 15.3 3.2 30.6 48.8 1.21 1.36 9 391 – – SMT 75 N
MPGA-152+ DG1847 Dual Matched Amplifier 30 1500 14.6 3.2 29.6 43.6 1.21 1.23 9 407 – – SMT 50 Y
PGA-32-75+ DF782 CATV Amplifier 5 300 15.6 2.9 23.7/18.7 43.3/39.1 1.16 1.08 9.0/5.0 110/55 – – SMT 75 Y
PGA-102+ DF782 Low Noise Amplifier 50 6000 15.9 2.3 17.4 32.7 1.27 1.27 3.3 83 – – SMT 50 Y
PGA-103+ DF782 Low Noise Amplifier 50 4000 11 0.9 22.5 44.6 1.6 1.2 3.0/5.0 60/97 – – SMT 50 Y
PGA-103-D+ Low Noise Amplifier 50 4000 11.3 0.8 22.3 41.6 1.5 1.4 5 60/97 – – Die 50 N
PGA-105+ DF782 Low Noise Amplifier 40 2600 15.1 1.9 20.5 39.3 1.5 1.5 5 63 – – SMT 50 Y
PGA-105-D+ Low Noise Amplifier 40 2600 15.1 1.9 18.4 36.9 1.2 1.2 5 65 – – Die 50 N
PGA-106-75+ DF782 CATV Amplifier 50 1500 16.9 3.3 20.1 36.2 1.4 1.5 5 116 – – SMT 75 Y
PGA-106R-75+ DF782 CATV Amplifier 5 250 17.9 3.3 19.5 34.4 1.4 1.25 5 116 – – SMT 75 Y
PGA-106W-75+ DF782 CATV Amplifier 950 2150 15.9 3.6 19.5 35.6 1.4 1.5 5 116 – – SMT 75 Y
PGA-122-75+ DF782 CATV Amplifier 5 1500 15.5 2.8 23.8 41.4 1.26 1.36 9 115 – – SMT 75 Y
PGA-1021+ DF782 Low Noise Amplifier 50 6000 15.1 2.3 16.8 26.5 1.35 1.11 3.3 57 – – SMT 50 Y
PHA-1+ DF782 Linear Amplifier 50 6000 13.5 2.2 22.4 42 1.7 1.3 5 146 – – SMT 50 Y
PHA-1-D+ Linear Amplifier 50 6000 13.6 2.1 22.5 39 1.6 1.3 5 155 – – Die 50 N
PHA-1H+ DF782 Linear Amplifier 50 6000 13.8 2.2 22.6 41 1.39 1.23 5 132 – – SMT 50 Y
PHA-1H-D+ Linear Amplifier 50 6000 13.8 2.2 22.6 41 1.39 1.23 5 132 – – Die 50 N
PHA-11+ DL1020 Dual Matched Amplifier 50 3000 15 2.3 21.4 41.5 2.1 2.1 5 146 – – SMT 50 Y
PHA-13HLN+ DF782 Low Noise Amplifier 1 1000 22.7 1.1 28.7 43 1.3 1.3 8 234 – – SMT 50 Y
PHA-13HLN-D+ Low Noise Amplifier 1 1000 23 1.1 19/24/18 33/40/43 1.34 1.3 3.0/5.0/8.0 71/138/234 – – Die 50 N
PHA-13LN+ DF782 Low Noise Amplifier 1 1000 22.4 1 24.5 39 1.3 1.3 5.0/3/0 138/71 – – SMT 50 Y
PHA-22+ DL1020 Dual Matched Amplifier 50 1500 16 1.9 22 41 1.5 1.5 5 146 – – SMT 50 Y
PHA-22H+ DL1020 Dual Matched Amplifier 50 3000 16 2 22.2 39 1.3 1.28 5 141 – – SMT 50 Y
PHA-23HLN+ DF782 Low Noise Amplifier 30 2000 21.3 1.4 28.4 44.4 1.7 1.48 8 235 – – SMT 50 Y
PHA-23HLN-D+ Low Noise Amplifier 30 2000 21 1.2 19/24/28 31/37/44 1.94 1.48 3.0/5.0/8.0 72/141/235 – – Die 50 N
PHA-23LN+ DF782 Low Noise Amplifier 30 2000 21 1.2 23.9 37.4 1.7 1.25 5.0/3.0 171/72 – – SMT 50 Y
PHA-83W+ DF782 Gain Block 50 8000 15.7 3.3 23.3 35.5 1.57 1.28 5.0/9.0 41/110 – – SMT 50 Y
PHA-83W-D+ Gain Block 50 8000 15.7 3.3 23.3 35.5 1.57 1.28 5.0/9.0 41/110 – – Die 50 N
PHA-101+ DF782 Linear Amplifier 50 1500 15.2 4 25.8 45 1.8 1.9 9 182 – – SMT 50 Y
PHA-101-D+ Linear Amplifier 50 1500 15.2 4 25.8 45 1.824 1.894 9 182 – – Die 50 N
PHA-102+ DF782 Linear Amplifier 50 6000 14.5 3.4 26.4 50 1.5 1.32 9 192 – – SMT 50 Y
PHA-102-D+ Linear Amplifier 50 6000 14.5 3.4 26.4 50 1.5 1.32 9 192 – – Die 50 N
PHA-202+ DL1636 Linear Amplifier 30 2700 17 3.5 30.4 46.1 1.23 1.24 11 350 – – SMT 50 Y
PHA-202-D+ Linear Amplifier 30 2700 17 3.5 30.4 46.1 1.23 1.24 11 350 – – Die 50 N
PMA-183PLN+ JV2579 Low Noise Amplifier 6000 18000 27.5 1.2 9.6 22.4 1.5 1.5 2.6 57 – – SMT 50 Y
PMA-183PLN-D+ Low Noise Amplifier 6000 18000 27.5 1.2 9.6 22.4 1.5 1.5 2.6 57 – – Die 50 N
PMA-545+ DQ849 Low Noise Amplifier 50 6000 14.2 0.8 20.3 36.4 2.3 1.3 3 80 – – SMT 50 Y
PMA-545G1-D+ Low Noise Amplifier 400 2200 31.1 1 23.4 36.1 1.92 1.33 5 158 – – Die 50 N
PMA-545G1+ DQ849 Low Noise Amplifier 400 2200 31.3 1 22.2 33.6 1.6 1.4 5 158 – – SMT 50 Y
PMA-545G2+ DQ849 Low Noise Amplifier 1100 1600 30.4 1 22 33.6 1.6 1.4 5 158 – – SMT 50 Y
PMA-545G3+ DQ849 Low Noise Amplifier 700 1000 31.3 0.9 21.9 33.4 1.6 1.4 5 158 – – SMT 50 Y
PMA-5451+ DQ849 Low Noise Amplifier 50 6000 13.7 0.8 16.8 30.8 2.6 1.3 3 30 – – SMT 50 Y
PMA-5452+ DQ849 Low Noise Amplifier 50 6000 14 0.7 18.3 34.1 2.6 1.3 3 40 – – SMT 50 Y
PMA-5453+ DQ849 Low Noise Amplifier 50 6000 14.3 0.7 19.64 36.8 2.6 1.3 3 60 – – SMT 50 Y
PMA-5454+ DQ849 Low Noise Amplifier 50 6000 13.5 0.9 14.6 28.1 2.9 1.3 5 20 – – SMT 50 Y
PMA-5455+ DQ849 Low Noise Amplifier 50 6000 14 0.8 19.1 32.7 2.6 1.3 5 40 – – SMT 50 Y
PMA-5456+ DQ849 Low Noise Amplifier 50 6000 14.4 0.8 21.5 36 2.6 1.3 5 60 – – SMT 50 Y
PMA2-33LN+ MC1631-1 Low Noise Amplifier 400 3000 19.1 0.38 17.2 34.5 1.9 1.2 3 56 – – SMT 50 Y
PMA2-33LN-D+ Low Noise Amplifier 400 3000 18.4 0.47 17.6 33.8 1.5 1.1 3 58 – – Die 50 N
PMA2-43LN+ MC1631-1 Low Noise Amplifier 1100 4000 19.9 0.46 19.9 32.9 1.35 1.64 5 51 – – SMT 50 Y
PMA2-43LN-D+ Low Noise Amplifier 1100 4000 19.4 0.6 20.4 32.9 1.3 1.7 5 53 – – Die 50 N
PMA2-63LN+ MC1631-1 Low Noise Amplifier 400 6000 19.3 0.4 16.4 30.1 1.57 1.91 5 36.4 – – SMT 50 Y
PMA2-63LN-D+ Low Noise Amplifier 400 6000 19.3 0.4 16.4 30.1 1.57 1.91 5 36.4 – – Die 50 N
PMA2-123LN+ MC1631-1 Low Noise Amplifier 500 12000 16.8 2.6 14.9 27 1.96 1.17 5.0/6.0 51/68 – – SMT 50 Y
PMA2-123LN5+ MC1631-1 Low Noise Amplifier 500 12000 15.1 1.2 12.2 23.4 1.9 1.3 5 30 – – SMT 50 Y
PMA2-123LN5-D+ Low Noise Amplifier 500 12000 15.1 1.2 12.2 23.4 1.9 1.3 5 30 – – Die 50 N
PMA2-133LN+ MC1630-1 Low Noise Amplifier 10000 13000 15.3 1.3 13.5 28.6 1.24 1.08 3.0/5.0 13/29 – – SMT 50 N
PMA2-133LN-D+ Low Noise Amplifier 10000 13000 15.3 1.3 13.5 28.6 1.24 1.08 3.0/5.0 13/29 – – Die 50 N
PMA2-153LN+ MC1631-1 Low Noise Amplifier 500 15000 16.8 2.6 14.8 26.8 1.97 1.15 5.0/6.0 50/66 – – SMT 50 N
PMA2-153LN-D+ Low Noise Amplifier 500 15000 16.8 2.6 14.8 26.8 1.97 1.15 5.0/6.0 50/66 – – Die 50 N
PMA2-162LN+ MC1631 Low Noise Amplifier 700 1600 22.7 0.5 20 30 1.3 1.3 4 55 – – SMT 50 Y
PMA2-162LN-D+ Low Noise Amplifier 700 1600 22.7 0.5 20 30 1.3 1.3 4 55 – – Die 50 N
PMA2-162LNA+ MC1631-1 Low Noise Amplifier 700 1600 22.7 0.5 20 30 1.3 1.3 4 55 – – SMT 50 Y
PMA2-183LN+ MC1631-1 Low Noise Amplifier 4000 18000 10.4 2.5 14.2 25.6 1.79 1.43 5 48.2 – – SMT 50 N
PMA2-183LN-D+ Low Noise Amplifier 4000 18000 10.4 2.5 14.2 25.6 1.79 1.43 5 48.2 – – Die 50 N
PMA2-252LN+ MC1631 Low Noise Amplifier 1500 2500 17.6 0.8 17.8 30 1.3 1.3 4 57 – – SMT 50 Y
PMA2-252LNA+ MC1631-1 Low Noise Amplifier 1500 2500 17.6 0.8 17.8 30 1.3 1.3 4 57 – – SMT 50 Y
PMA3-14LN+ DQ1225 Low Noise Amplifier 50 10000 22.6 1.8 22 30.4 1.49 1.28 6 67 – – SMT 50 Y
PMA3-14LN-D+ Low Noise Amplifier 50 10000 22.6 1.8 22 30.4 1.49 1.28 6 67 – – Die 50 N
PMA3-34GLN+ DQ1225 Low Noise Amplifier 10000 30000 25.5 1.6 10 22 1.57 1.92 4 68 – – SMT 50 N
PMA3-63GLN+ DQ1225 Low Noise Amplifier 1800 6000 27.9 0.7 14.1 26.6 1.78 1.92 5.0 69 – – SMT 50 Y
PMA3-63GLN-D+ Low Noise Amplifier 1800 6000 27.9 0.7 14.1 26.6 1.78 1.92 5.0 69 – – Die 50 N
PMA3-83LN+ DQ1225 Low Noise Amplifier 500 8000 22.1 1.3 20.7 35.2 1.38 1.58 5.0/6.0 60/77 – – SMT 50 Y
PMA3-83LN-D+ Low Noise Amplifier 500 8000 21.9 1.2 21.2 35 1.4 1.8 5.0/6.0 60/77 – – Die 50 N
PMA3-83LNW+ DQ1225 Low Noise Amplifier 400 8000 22.6 1.2 21.7 37.0 1.32 1.5 5.0/6.0 58/75 – – SMT 50 Y
PMA3-83LNW-D+ Low Noise Amplifier 400 8000 22.6 1.2 21.7 37.0 1.32 1.5 5.0/6.0 58/75 – – Die 50 N
PMA3-83MP+ DQ1225 Gain Block 400 8000 21 3.2 27.8 37.9 1.78 1.43 8 144 – – SMT 50 Y
PMA3-83MP-D+ Gain Block 400 8000 21 3.2 27.8 37.9 1.78 1.43 8 144 – – Die 50 N
PMA3-223GLN+ DQ1225 Low Noise Amplifier 10000 22000 27.9 1.8 10 22.1 1.57 1.78 4 68 – – SMT 50 N
PMA3-313GLN+ DQ1225 Low Noise Amplifier 26500 31000 18.2 1.6 11 23.4 2.32 2.09 4 68 – – SMT 50 N
PMA3-352GLN+ DQ1225 Low Noise Amplifier 2500 3500 28.5 0.7 14.8 27.8 1.78 1.92 5.0 69 – – SMT 50 Y
PMA3-453+ DQ1225 Gain Block 10000 45000 25.5 2.4 11.7 23.4 1.92 1.43 4 68 – – SMT 50 N
PMA3-453-D+ Gain Block 10000 45000 25.5 2.4 11.7 23.4 1.92 1.43 4 68 – – Die 50 N
PMA3-15453+ DQ1225 Gain Block 15000 45000 17 3.2 17 25 1.58 1.67 5 128 – – SMT 50 N
PMA3-15453-D+ Gain Block 15000 45000 15.6 3.6 17 24 1.54 1.65 5 128 – – Die 50 N
PMA3-24323LN+ DQ1225 Low Noise Amplifier 24000 32000 17 2.8 17 24 1.50 1.78 5 128 – – SMT 50 N
PMA4-33GLN+ DG1886 Low Noise Amplifier 700 3000 38.9 0.47 22.6 40.4 1.6 1.9 5 152 – – SMT 50 Y
PSA-8A+ CA1389 Low Noise Amplifier DC 4000 31 3 12.8 25.8 1.28 1.25 5 36 – – SMT 50 Y
PSA-545+ CA1389 Low Noise Amplifier 50 4000 14.9 1 20.2 36.2 2.1 1.5 3 80 – – SMT 50 Y
PSA-0012+ CA1389 Low Noise Amplifier 50 6000 14.2 2.4 22 35 1.7 1.4 5 74 – – SMT 50 Y
PSA-0012-D+ Low Noise Amplifier 50 6000 15.6 2.4 22.2 35 1.51 1.34 5 92 – – Die 50 N
PSA-14+ MMM1362 Gain Block 10 10000 16.5 3.9 16.3 29.4 1.25 1.04 5 47 – – SMT 50 Y
PSA-39+ CA1389 Low Noise Amplifier DC 6000 23 2.2 10.7 23.3 1.28 1.22 5 32 – – SMT 50 Y
PSA-5451+ CA1389 Low Noise Amplifier 50 4000 14 1 16.2 30.2 2.6 1.2 3 30 – – SMT 50 Y
PSA-5453+ CA1389 Low Noise Amplifier 50 4000 14.7 1 19.4 36.8 2.6 1.2 3 60 – – SMT 50 Y
PSA-5454+ CA1389 Low Noise Amplifier 50 4000 13.6 1.1 14 26.3 2.6 1.4 5 20 – – SMT 50 Y
PSA-5455+ CA1389 Low Noise Amplifier 50 4000 14.4 1 18.5 32.2 2.3 1.3 5 40 – – SMT 50 Y
PSA4-5043+ MMM1362 Low Noise Amplifier 50 4000 18.4 0.75 18.8 33.5 1.7 1.5 3.0/5.0 33/58 – – SMT 50 Y
PSA4-5043-D+ Low Noise Amplifier 50 4000 18.4 0.8 19 34 1.7 1.5 5 33/58 – – Die 50 N
PVGA-123+ DQ1225 Variable Gain Amplifier 400 12000 15.8 4.3 20.2 29.5 1.39 1.34 6 77 – – SMT 50 N
PVGA-123-D+ Variable Gain Amplifier 400 12000 15.6 4.5 20.2 30.0 1.59 1.49 6 77 – – Die 50 N
RAM-2+ AF190 Gain Block DC 2000 11.8 6.5 4.5 17 1.2 1.4 5 25 – – SMT 50 Y
RAM-3+ AF190 Gain Block DC 2000 12 6 10 23 1.6 1.7 5 35 – – SMT 50 Y
RAM-4+ AF190 Gain Block DC 1000 8 6.5 12.5 25.5 1.4 1.9 5.3 50 – – SMT 50 Y
RAM-6A+ AF190 Low Noise Amplifier DC 2000 19.7 2.3 3.2 17.3 1.2 1.2 3.5 16 – – SMT 50 Y
RAM-7+ AF190 Gain Block DC 2000 12.5 4.5 5.5 19 2 1.8 4 22 – – SMT 50 Y
RAM-8A+ AF190 Low Noise Amplifier DC 1000 28 2.6 12.6 24.4 1.6 1.8 3.7 36 – – SMT 50 Y
RAMP-33LN+ CK605 Low Noise Amplifier 50 3000 13 1.1 16.5 30 2 1.4 5 80 – – SMT 50 N
RFE-24M30M075X+ VU3196 High Power Amplifier 24 30 16 – 42 – 1.9 – 65 1750 SMA – Conn. 50 N
RFE-24M30M1K7X+ VW3194 High Power Amplifier 24 30 25 – 62.2 – 1.35 – 65 33162 SMA-N – Conn. 50 N
SAV-331+ MMM1362 RF Transistors 10 4000 24.1 0.5 19.6 32.3 – – 4 60 – – SMT – Y
SAV-541+ MMM1362 RF Transistors 45 6000 23.2 0.5 19.2 33.1 – – 3 60 – – SMT – Y
SAV-541-D+ RF Transistors 450 6000 19.1 0.38 21 33.1 – – 3/4 15/30/60 – – Die 50 N
SAV-551+ MMM1362 RF Transistors 45 6000 20.9 0.5 17.5 24.3 – – 3 15 – – SMT – Y
SAV-581+ MMM1362 RF Transistors 45 6000 22.3 0.5 19 30.6 – – 3 30 – – SMT – Y
TAMP-72LN+ JQ1382 Low Noise Amplifier 400 700 20 1 21.5 36 1.35 1.15 5 90 – – SMT 50 N
TAMP-112-2W+ NP1933 Low Noise Amplifier 650 1200 31 2.8 30 41 1.9 2.1 5 750 – – Plug-In 50 N
TAMP-242GLN+ JQ1382 Low Noise Amplifier 1710 2400 30 0.85 20 36 1.25 1.4 5 120 – – SMT 50 N
TAMP-242LN+ JQ1382 Low Noise Amplifier 1710 2400 13 0.65 17 33.5 1.6 1.2 5 46 – – SMT 50 N
TAMP-272LN+ JQ1382 Low Noise Amplifier 2300 2700 14 0.85 19.5 30 1.3 1.45 5 70 – – SMT 50 N
TAMP-362GLN+ JQ1382 Low Noise Amplifier 3300 3600 20 0.9 16 29 1.3 1.3 5 100 – – SMT 50 N
TAMP-960LN+ JQ1382 Low Noise Amplifier 824 960 18 0.55 16.5 30 1.1 1.4 5 45 – – SMT 50 N
TAMP-1521GLN+ JQ1382 Low Noise Amplifier 1380 1520 35 0.6 13.5 27.5 1.2 1.15 5 50 – – SMT 50 N
TAV-541+ FG873 RF Transistors 45 6000 23.8 0.5 19.1 33.6 – – 3 60 – – SMT – Y
TAV-551+ FG873 RF Transistors 45 6000 21.3 0.5 17.5 23.5 – – 3 15 – – SMT – Y
TAV-581+ FG873 RF Transistors 45 6000 22.9 0.5 18.3 30.3 – – 3 30 – – SMT – Y
TAV1-331+ TE2769 RF Transistors 10 4000 24.1 0.6 20.1 31.8 – – 4 60 – – SMT 50 Y
TAV1-541+ TE2769 RF Transistors 45 6000 23.2 0.5 19.2 33.1 – – 3 60 – – SMT 50 Y
TAV1-551+ TE2769 RF Transistors 45 6000 21.6 0.5 16 23.9 – – 3 15 – – SMT 50 Y
TAV2-14LN+ MC1630-1 RF Transistors 50 10000 16.4 0.7 18.8 30.9 2.615 1.577 2/4 20/40 – – SMT 50 Y
TAV2-14LN-D+ RF Transistors 50 10000 16.4 0.7 18.8 30.9 2.615 1.577 2/4 20/40 – – Die 50 N
TAV2-501+ MC1631-1 RF Transistors 400 3900 15.1 1.3 27.7 42.9 – – 4.5 280 – – SMT 50 Y
TAV2-501-D+ – RF Transistors 400 3900 15.1 1.3 27.7 42.9 – – 4.5 280 – – Die 50 N
TO-1217LN+ QQ96 Low Noise Amplifier 1200 1700 20 1.6 10 25 2.5 2.5 15 70 – – Plug-In 50 N
TO-1724LN+ QQ96 Low Noise Amplifier 1700 2400 20 1.6 10 22 2.5 2.5 15 70 – – Plug-In 50 N
TSS-13HLN+ DQ1225 Low Noise Amplifier 1 1000 23 1.4 28.4 42.9 1.43 1.37 8 234 – – SMT 50 Y
TSS-13HLN-D+ Low Noise Amplifier 1 1000 23 1.4 28.4 42.9 1.43 1.37 8/5/3 234/142/72 – – Die 50 N
TSS-13LN+ DQ1225 Low Noise Amplifier 1 1000 22.8 1.1 24.5 39.2 1.28 1.32 5/3 142/72 – – SMT 50 Y
TSS-23HLN+ DQ1225 Low Noise Amplifier 30 2000 21.8 1.4 28.5 42.6 1.92 1.67 8 236 – – SMT 50 Y
TSS-23HLN-D+ Low Noise Amplifier 30 2000 21.8 1.4 28.5 42.6 1.92 1.67 8/5/3 236/139/74 – – Die 50 N
TSS-23LN+ DQ1225 Low Noise Amplifier 30 2000 21.5 1.2 24.1 36.4 1.92 1.67 5/3 139/74 – – SMT 50 Y
TSS-44+ DQ1225 Gain Block 22000 43500 17.6 3.2 6.9 12.7 1.37 1.28 4 22 – – SMT 50 N
TSS-44-D+ Gain Block 22000 43500 17.6 3.2 6.9 12.7 1.37 1.28 4 22 – – Die 50 N
TSS-53LNB+ DQ1225 Low Noise Amplifier 500 5000 21.7 1.4 20.6 33.9 1.46 1.33 5 82 – – SMT 50 Y
TSS-53LNB-D+ Low Noise Amplifier 500 6000 21.4 1.3 19.4 35 1.2 1.4 5 82 – – Die 50 N
TSS-53LNB3+ DQ1225 Low Noise Amplifier 500 5000 18.4 1.5 14.9 25 1.63 1.26 3 42 – – SMT 50 N
TSS-183A+ DQ849 Gain Block 5000 18000 14.2 4.4 17.9 28.9 1.37 1.28 5 145 – – SMT 50 Y
TSY-13LNB+ MC1631-1 Low Noise Amplifier 30 1000 14.7 1.2 17.1 26.4 1.5 1.3 2.7 7.7 – – SMT 50 Y
TSY-172LNB+ MC1631-1 Low Noise Amplifier 30 1700 13.1 1.4 17.5 24.7 1.9 1.5 2.7 7.7 – – SMT 50 Y
TSY-172LNB-D+ Low Noise Amplifier 30 1700 13.1 1.4 17.5 24.7 1.9 1.5 2.7 7.7 – – Die 50 N
TSY-173LN+ MC1630-1 Low Noise Amplifier 13500 17000 16.5 1.1 8.7 24.2 1.28 1.19 3 13.2 – – SMT 50 Y
TSY-173LN-D+ Low Noise Amplifier 13500 17000 16.5 1.1 8.7 24.2 1.28 1.19 3 13.2 – – Die 50 N
TVA-4W-422A+ PJ2059-2 High Power Amplifier 500 4200 25 10 34 44 1.6 2.5 110/220 AC – N – Rack 50 N
TVA-11-422A+ PJ2059-1 Gain Block 10 4200 39 10.5 30 40 1.7 1.8 110/220 AC – N – Rack 50 N
TVA-63-183 AP1601 Gain Block 6000 18000 23.6 6.9 18 26 1.5 1.25 110/220 AC – SMA – Rack 50 N
TVA-63-183A+ PJ2059 Gain Block 6000 18000 24 6.4 17 26 1.5 1.25 110/220 AC – SMA – Rack 50 N
TVA-82-213A+ PJ2059 Gain Block 800 21000 25 3 24 30 1.35 1.4 110/220 AC – SMA – Rack 50 N
TVA-R5-13A+ PJ2059-2 High Power Amplifier 0.5 1000 38 10 34 42 1.5 2.5 110/220 AC – N – Rack 50 N
VAM-3+ MMM168 Gain Block DC 2000 11 6 9 22 1.5 1.7 4.7 35 – – SMT 50 Y
VAM-6+ MMM168 Gain Block DC 2000 15 3 2 14 1.6 1.5 3.3 16 – – SMT 50 Y
VAM-7+ MMM168 Gain Block DC 2000 12 5 5.5 18 1.5 1.5 3.8 22 – – SMT 50 Y
VNA-25+ XX211-1 Gain Block 500 2500 18.6 5.5 18.2 29 1.5 1.6 5 85 – – SMT 50 Y
VNA-28B+ DL1020 Low Noise Amplifier 500 2500 23 2.9 11.4 22.7 1.31 1.83 2.8/5.0 32/34 – – SMT 50 Y
WVA-71863HP+ YS3481 Gain Block 71000 86000 39 – 22.5 – 2.00 1.50 10 500 WR12 Heat Sink Conn. 50 N
WVA-71863HPX+ YS3481 Gain Block 71000 86000 39 – 22.5 – 2.00 1.50 10 500 WR12 – Conn. 50 N
WVA-71863LNX+ YS3481 Low Noise Amplifier 71000 86000 39 4.5 14.5 – 1.60 1.50 10 185 WR12 – Conn. 50 N
YSF-122+ DL1636 Gain Block 800 1200 20.4 3.4 20.5 36 1.8 1.4 5 118 – – SMT 50 Y
YSF-272+ DL1636 Low Noise Amplifier 2300 2700 19 2.5 20 35 1.4 1.3 5 118 – – SMT 50 Y
YSF-322+ DL1636 Low Noise Amplifier 900 3200 19 2.5 20 35 1.4 1.3 5 118 – – SMT 50 Y
YSF-2151+ DL1636 Gain Block 900 2150 20 3.1 20 35 1.9 1.2 5 118 – – SMT 50 Y
YSIF-421+ DG1677-2 Low Noise Amplifier 220 380 37.2 1.6 22.2 38.3 1.78 1.08 5 189 – – SMT 50 N
ZEL-0812LN EEE132 Low Noise Amplifier 800 1200 20 1.5 8 18 2.5 2.5 15 70 SMA – Conn. 50 N
ZEL-1217LN+ EEE132 Low Noise Amplifier 1200 1700 20 1.5 10 25 2.5 2.5 15 70 SMA – Conn. 50 N
ZEL-1724LN+ EEE132 Low Noise Amplifier 1700 2400 20 1.5 10 22 2.5 2.5 15 70 SMA – Conn. 50 N
ZFL-11AD+ Y460 Gain Block 2 2000 8 6.5 -2 14 2.5 2 15 22 SMA – Conn. 50 N
ZFL-11ADB+ Y460 Gain Block 2 2000 8 6.5 -2 14 2.5 2 15 22 SMA Bracket Conn. 50 N
ZFL-272VH+ AW2740 Gain Block 30 2700 16.9 3.4 24.5 47.2 1.13 1.31 15 350 SMA – Conn. 50 N
ZFL-500+ Y460 Gain Block 0.05 500 20 4.2 9 18 1.9 1.9 15 80 SMA – Conn. 50 N
ZFL-500-BNC+ Y460 Gain Block 0.05 500 20 4.2 9 18 1.9 1.9 15 80 BNC – Conn. 50 N
ZFL-500B+ Y460 Gain Block 0.05 500 20 4.2 9 18 1.9 1.9 15 80 SMA Bracket Conn. 50 N
ZFL-500HLN+ Y460 Gain Block 10 500 19 3.8 16 30 1.5 1.5 15 110 SMA – Conn. 50 N
ZFL-500HLNB+ Y460 Gain Block 10 500 19 3.8 16 30 1.5 1.5 15 110 SMA Bracket Conn. 50 N
ZFL-500LN+ Y460 Low Noise Amplifier 0.1 500 24 2.9 5 14 1.5 1.6 15 60 SMA – Conn. 50 N
ZFL-500LN-BNC+ Y460 Low Noise Amplifier 0.1 500 24 2.9 5 14 1.5 1.6 15 60 BNC – Conn. 50 N
ZFL-500LNB+ Y460 Low Noise Amplifier 0.1 500 24 2.9 5 14 1.5 1.6 15 60 SMA Bracket Conn. 50 N
ZFL-500LNB-BNC+ Y460 Low Noise Amplifier 0.1 500 24 2.9 5 14 1.5 1.6 15 60 BNC Bracket Conn. 50 N
ZFL-1000+ Y460 Gain Block 0.1 1000 17 6 9 18 1.5 2 15 105 SMA – Conn. 50 N
ZFL-1000H+ SS98 Gain Block 10 1000 28 4 20 33 1.4 1.4 15 160 SMA Heat Sink Conn. 50 N
ZFL-1000HB+ SS98 Gain Block 10 1000 28 4 20 33 1.4 1.4 15 160 SMA Bracket Conn. 50 N
ZFL-1000LN+ Y460 Low Noise Amplifier 0.1 1000 20 2.9 3 14 1.5 2 15 60 SMA – Conn. 50 N
ZFL-1000LNB+ Y460 Low Noise Amplifier 0.1 1000 20 2.9 3 14 1.5 2 15 60 SMA Bracket Conn. 50 N
ZFL-1000VH+ SS98 Gain Block 10 1000 20 4.5 25 38 2 2.5 15 320 SMA – Conn. 50 N
ZFL-1000VH2+ SS98 Gain Block 10 1000 28 5 25 38 2 2.5 15 320 SMA – Conn. 50 N
ZFL-1000VH2X+ SS98 Gain Block 10 1000 28 5 25 38 2 2.5 15 320 SMA – Conn. 50 N
ZFL-1000VHB+ SS98 Gain Block 10 1000 20 4.5 25 38 2 2.5 15 320 SMA Bracket Conn. 50 N
ZFL-1000VHX+ SS98 Gain Block 10 1000 20 4.5 25 38 2 2.5 15 320 SMA – Conn. 50 N
ZFL-1200G+ Y39 Variable Gain Amplifier 10 1200 23 6.5 8 22 1.25 1.5 15 180 SMA – Conn. 50 N
ZFL-1200GB+ Y39 Variable Gain Amplifier 10 1200 23 6.5 8 22 1.25 1.5 15 180 SMA Bracket Conn. 50 N
ZFL-1200GH+ Y39 Variable Gain Amplifier 10 1200 29 5.5 13 28 1.25 1.5 15 230 SMA – Conn. 50 N
ZFL-1200GHB+ Y39 Variable Gain Amplifier 10 1200 29 5.5 13 28 1.25 1.5 15 230 SMA Bracket Conn. 50 N
ZFL-2000+ SS98 Gain Block 10 2000 20 7 16 25 2 2 15 120 SMA – Conn. 50 N
ZFL-2000B+ SS98 Gain Block 10 2000 20 7 16 25 2 2 15 120 SMA Bracket Conn. 50 N
ZFL-2000G+ Y39 Variable Gain Amplifier 10 2000 20 7.5 7 17 1.5 1.5 15 180 SMA – Conn. 50 N
ZFL-2000GH+ Y39 Variable Gain Amplifier 10 2000 27 5.5 14 25 1.4 1.5 15 230 SMA – Conn. 50 N
ZFL-2000GHB+ Y39 Variable Gain Amplifier 10 2000 27 5.5 14 25 1.4 1.5 15 230 SMA Bracket Conn. 50 N
ZFL-2000X+ SS98 Gain Block 10 2000 20 7 16 25 2 2 15 120 SMA – Conn. 50 N
ZFL-2500+ Y460 Gain Block 500 2500 28 8 15 27 2.5 2.5 5 220 SMA – Conn. 50 N
ZFL-2500B+ Y460 Gain Block 500 2500 28 8 15 27 2.5 2.5 5 220 SMA Bracket Conn. 50 N
ZFL-2500VH+ SS98 Gain Block 10 2500 20 5.5 23 35 1.7 2 15 300 SMA – Conn. 50 N
ZFL-2500VHB+ SS98 Gain Block 10 2500 20 5.5 23 35 1.7 2 15 300 SMA Bracket Conn. 50 N
ZFL-2500VHX+ SS98 Gain Block 10 2500 20 5.5 23 35 1.7 2 15 300 SMA – Conn. 50 N
ZHL-1-2W+ T35 Gain Block 5 500 29 7 33 44 2.1 2.1 24 900 BNC – Conn. 50 N
ZHL-1-2W-N+ T35 Gain Block 5 500 29 7 33 44 2.1 2.1 24 900 N – Conn. 50 N
ZHL-1-2W-S+ T35 Gain Block 5 500 29 7 33 44 2.1 2.1 24 900 SMA – Conn. 50 N
ZHL-1-2WX+ T35 Gain Block 5 500 29 7 33 44 2.1 2.1 24 900 BNC – Conn. 50 N
ZHL-1-2WX-S+ T35 Gain Block 5 500 29 7 33 44 2.1 2.1 24 900 SMA – Conn. 50 N
ZHL-1A+ S32 Gain Block 2 500 16 11 28 38 2 2 24 600 BNC – Conn. 50 N
ZHL-1A-S+ S32 Gain Block 2 500 16 11 28 38 2 2 24 600 SMA – Conn. 50 N
ZHL-1W-63-S+ U2847 High Power Amplifier 600 6000 35 12 30 35 2.5 3.5 15 1000 SMA Heat Sink Conn. 50 N
ZHL-1W-63X-S+ U2847 High Power Amplifier 600 6000 35 12 30 35 2.5 3.5 15 1000 SMA – Conn. 50 N
ZHL-2-8-S+ T34 Gain Block 10 1000 34 7 29 42 2 2 24 700 SMA – Conn. 50 N
ZHL-2-8X-S+ T34 Gain Block 10 1000 34 7 29 42 2 2 24 700 SMA – Conn. 50 N
ZHL-2-12+ T34 Gain Block 10 1200 26 5 29 45 2.2 2.2 24 750 SMA – Conn. 50 N
ZHL-2-12X+ T34 Gain Block 10 1200 26 5 29 45 2.2 2.2 24 750 SMA – Conn. 50 N
ZHL-2-S+ T34 Gain Block 10 1000 20 9 29 42 2 2.1 24 600 SMA – Conn. 50 N
ZHL-2W-63-S+ CP2548-1 High Power Amplifier 600 6000 42 12 33 38 2.5 3.5 28 2000 SMA Heat Sink Conn. 50 N
ZHL-2W-63X-S+ CP2548-1 High Power Amplifier 600 6000 42 12 33 38 2.5 3.5 28 2000 SMA – Conn. 50 N
ZHL-2X-S+ T34 Gain Block 10 1000 20 9 29 42 2 2.1 24 600 SMA – Conn. 50 N
ZHL-03-5WF+ CP641 High Power Amplifier 60 300 35 3 36 49 1.4 1.5 24 2800 SMA Heat Sink Conn. 50 N
ZHL-3A+ S32 Gain Block 0.4 150 24 11 29.5 38 2 2 24 600 BNC – Conn. 50 N
ZHL-03-5WFX+ CP641 High Power Amplifier 60 300 35 3 36 49 1.4 1.5 24 2800 SMA – Conn. 50 N
ZHL-3A-S+ S32 Gain Block 0.4 150 24 11 29.5 38 2 2 24 600 SMA – Conn. 50 N
ZHL-4W-422+ BT1972 High Power Amplifier 500 4200 25 10 34 44 1.6 2.6 28 3000 SMA Heat Sink Conn. 50 N
ZHL-4W-422X+ BT1972 High Power Amplifier 500 4200 25 10 34 44 1.6 2.6 28 3000 SMA – Conn. 50 N
ZHL-5W-1+ DDD131 High Power Amplifier 5 500 45 4 37 49 2 2.5 24 3300 SMA Heat Sink Conn. 50 N
ZHL-5W-1X+ DDD131 High Power Amplifier 5 500 45 4 37 49 2 2.5 24 3300 SMA – Conn. 50 N
ZHL-5W-2G+ DDD131 High Power Amplifier 800 2000 45 8 37 44 1.7 1.5 24 2000 SMA Heat Sink Conn. 50 N
ZHL-5W-2GX+ DDD131 High Power Amplifier 800 2000 45 8 37 44 1.7 1.5 24 2000 SMA – Conn. 50 N
ZHL-5W-63-S+ CP2548-2 High Power Amplifier 600 6000 45 12 37 42 2.5 3.5 28 3500 SMA Heat Sink Conn. 50 N
ZHL-5W-63X-S+ CP2548-2 High Power Amplifier 600 6000 45 12 37 42 2.5 3.5 28 3500 SMA – Conn. 50 N
ZHL-5W-202-S+ BT1689-1 High Power Amplifier 10 2000 50 10 36 45 1.2 2.0 28 3000 SMA Heat Sink Conn. 50 N
ZHL-5W-422+ BT1896 High Power Amplifier 500 4200 25 7 35 45 1.7 5.47 28 3000 SMA Heat Sink Conn. 50 N
ZHL-5W-422X+ BT1896 High Power Amplifier 500 4200 25 7 35 45 1.7 5.47 28 3000 SMA – Conn. 50 N
ZHL-6A+ S32 Gain Block 0.0025 500 25 9.5 22 34 1.8 2 24 350 BNC – Conn. 50 N
ZHL-6A-S+ S32 Gain Block 0.0025 500 25 9.5 22 34 1.8 2 24 350 SMA – Conn. 50 N
ZHL-10M4G21W0+ U36 Gain Block 10 4200 37 6 32 44 1.3 1.5 28 800 SMA Heat Sink Conn. 50 N
ZHL-10M4G21W0X+ U36 Gain Block 10 4200 37 6 32 44 1.3 1.5 28 800 SMA – Conn. 50 N
ZHL-10M4G21W1+ U36 Gain Block 10 4200 44 5.6 33 46 1.3 1.5 28 860 SMA Heat Sink Conn. 50 N
ZHL-10M4G21W1X+ U36 Gain Block 10 4200 44 5.6 33 46 1.3 1.5 28 860 SMA – Conn. 50 N
ZHL-10M4G21W2+ PJ2059-1 Gain Block 10 4200 44 5.6 33 46 1.3 1.5 110/220 AC – N – Conn. 50 N
ZHL-10W-2G+ BT1204 High Power Amplifier 800 2000 43 7 40 50 1.3 1.3 24 5000 SMA Heat Sink Conn. 50 N
ZHL-10W-2GX+ BT1204 High Power Amplifier 800 2000 43 7 40 50 1.3 1.3 24 5000 SMA – Conn. 50 N
ZHL-10W-202-S+ BT1689-1 High Power Amplifier 10 2000 50 10 38 45 2.0 2.0 28 5000 SMA Heat Sink Conn. 50 N
ZHL-15W-422-S+ CP2548 High Power Amplifier 600 4200 46 10 39 47 1.7 3.5 28 3500 SMA Heat Sink Conn. 50 N
ZHL-15W-422X-S+ CP2548 High Power Amplifier 600 4200 46 10 39 47 1.7 3.5 28 3500 SMA – Conn. 50 N
ZHL-16W-43+ BT1344 High Power Amplifier 1800 4000 45 6 41 47 1.5 1.3 28 4300 SMA Heat Sink Conn. 50 N
ZHL-20W-13+ CP641 High Power Amplifier 20 1000 50 3.5 41 50 1.7 2.5 24 2800 SMA Heat Sink Conn. 50 N
ZHL-20W-13SW+ CP1683 High Power Amplifier 20 1000 50 3.5 41 50 1.7 2.5 24 2800 SMA Heat Sink Conn. 50 N
ZHL-20W-13SWX+ CP1683 High Power Amplifier 20 1000 50 3.5 41 50 1.7 2.5 24 2800 SMA – Conn. 50 N
ZHL-20W-13X+ CP641 High Power Amplifier 20 1000 50 3.5 41 50 1.7 2.5 24 2800 SMA – Conn. 50 N
ZHL-20W-83-S+ CP2548-2 High Power Amplifier 4000 8000 56 11 39 50 1.6 1.7 28 4000 SMA Heat Sink Conn. 50 N
ZHL-20W-83X-S+ CP2548-2 High Power Amplifier 4000 8000 56 11 39 50 1.6 1.7 28 4000 SMA – Conn. 50 N
ZHL-20W-202-S+ BT1689-1 High Power Amplifier 20 2000 53 10 39 45 2.0 3.5 28 4000 SMA Heat Sink Conn. 50 N
ZHL-20W-202X-S+ BT1689-1 High Power Amplifier 20 2000 53 10 39 45 2.0 3.5 28 4000 SMA – Conn. 50 N
ZHL-25W-63+ BT1834-2 High Power Amplifier 700 6000 53 13 37 45 1.8 2 24 12000 SMA Heat Sink Conn. 50 N
ZHL-25W-63X+ BT1834-2 High Power Amplifier 700 6000 53 13 37 45 1.8 2 24 12000 SMA – Conn. 50 N
ZHL-25W-272+ BT2119 High Power Amplifier 20 2700 50 10 40 49 2 3.5 28 3700 SMA Heat Sink Conn. 50 N
ZHL-25W-272X+ BT2119 High Power Amplifier 20 2700 50 10 40 49 2 3.5 28 3700 SMA – Conn. 50 N
ZHL-30W-252+ BT1344 High Power Amplifier 600 2500 50 5.5 44 52 1.3 1.2 28 6300 SMA Heat Sink Conn. 50 N
ZHL-30W-252X-S+ BT1344 High Power Amplifier 600 2500 50 5.5 44 52 1.3 1.2 28 6300 SMA – Conn. 50 N
ZHL-30W-262+ BT1344 High Power Amplifier 2300 2550 50 7 43 50 1.3 1.3 28 4300 SMA Heat Sink Conn. 50 N
ZHL-30W-262X-S+ BT1344 High Power Amplifier 2300 2550 50 7 43 50 1.3 1.3 28 4300 SMA – Conn. 50 N
ZHL-32A+ S32 Gain Block 0.05 130 25 10 29 38 2 2 24 600 BNC – Conn. 50 N
ZHL-32A-S+ S32 Gain Block 0.05 130 25 10 29 38 2 2 24 600 SMA – Conn. 50 N
ZHL-40W-372-S+ BT1344 High Power Amplifier 3400 3700 50 15 46 52 1.5 1.5 28 6200 SMA Heat Sink Conn. 50 N
ZHL-42+ U36 Gain Block 600 4200 34 8 30 38 2.5 2.5 15 1000 SMA Heat Sink Conn. 50 N
ZHL-42W+ U36 Gain Block 10 4200 30 8 28 38 2.5 2.5 15 880 SMA Heat Sink Conn. 50 N
ZHL-42WX+ U36 Gain Block 10 4200 30 8 28 38 2.5 2.5 15 880 SMA – Conn. 50 N
ZHL-42X+ U36 Gain Block 600 4200 34 8 30 38 2.5 2.5 15 1000 SMA – Conn. 50 N
ZHL-50W-52+ BT1165 High Power Amplifier 50 500 50 6 47.5 55 1.6 2 24 9300 SMA Heat Sink Conn. 50 N
ZHL-50W-63+ BT2533 High Power Amplifier 700 6000 59 11 42 53 1.5 1.5 40 6000 SMA Heat Sink Conn. 50 N
ZHL-50W-GAN+ BT1165 High Power Amplifier 20 500 43.5 7 48 55 1.7 2.6 28 7400 SMA Heat Sink Conn. 50 N
ZHL-50W-GANX+ BT1165 High Power Amplifier 20 500 43.5 7 48 55 1.7 2.6 28 7100 SMA – Conn. 50 N
ZHL-72A+ S32 Pulse Amplifier 0.0025 700 25 7.7 24 34 2 2 24 350 BNC – Conn. 50 N
ZHL-100W-13+ BT1689 High Power Amplifier 800 1000 50 7 49 60 1.3 1.4 28 14500 SMA-N Heat Sink Conn. 50 N
ZHL-100W-52+ BT1165 High Power Amplifier 50 500 50 6.5 48.5 57 1.45 2.5 24 10500 SMA Heat Sink Conn. 50 N
ZHL-100W-63+ BT1834-3 High Power Amplifier 2500 6000 58 12 43 54 2 1.2 30 8000 SMA-N Heat Sink Conn. 50 N
ZHL-100W-272+ BT2247 High Power Amplifier 700 2700 48 8.2 49 50 1.5 1.5 30 16000 SMA-N Heat Sink Conn. 50 N
ZHL-100W-352+ BT1834 High Power Amplifier 3000 3500 50 7.3 50 55 1.35 1.5 28 20000 SMA-N Heat Sink Conn. 50 N
ZHL-100W-382+ BT1834 High Power Amplifier 3250 3850 50 9.5 50 58 1.3 1.3 28 18000 SMA-N Heat Sink Conn. 50 N
ZHL-100W-GAN+ BT1165 High Power Amplifier 20 500 42 7 49 60 1.5 2.5 30 9400 SMA Heat Sink Conn. 50 N
ZHL-100W-GANX+ BT1165 High Power Amplifier 20 500 42 7 49 60 1.5 2.5 30 9400 SMA – Conn. 50 N
ZHL-122LM+ S860 Dual Matched Amplifier 40 1200 12.3 3.9 23 40 1.5 1.5 6 260 SMA – Conn. 50 N
ZHL-0812HLN+ NN92 Low Noise Amplifier 800 1200 36 1.5 26 36 1.4 1.3 15 725 SMA Heat Sink Conn. 50 N
ZHL-0812HLNX+ NN92 Low Noise Amplifier 800 1200 36 1.5 26 36 1.4 1.3 15 725 SMA – Conn. 50 N
ZHL-1000-3W+ DDD131 High Power Amplifier 500 1000 44 3.5 37 45 2 2.5 24 2250 SMA Heat Sink Conn. 50 N
ZHL-1000-3WX+ DDD131 High Power Amplifier 500 1000 44 3.5 37 45 2 2.5 24 2250 SMA – Conn. 50 N
ZHL-1010+ S32 Gain Block 50 1000 9.5 3.5 26 46 2 2 12 525 SMA – Conn. 50 N
ZHL-1042J+ NN92 Gain Block 10 4200 25 6 20 30 2.5 2.5 15 330 SMA Heat Sink Conn. 50 N
ZHL-1042JX+ NN92 Gain Block 10 4200 25 6 20 30 2.5 2.5 15 330 SMA – Conn. 50 N
ZHL-1217HLN+ NN92 Low Noise Amplifier 1200 1700 36 1.5 26 36 1.4 1.3 15 725 SMA Heat Sink Conn. 50 N
ZHL-1217HLNX+ NN92 Low Noise Amplifier 1200 1700 36 1.5 26 36 1.4 1.3 15 725 SMA – Conn. 50 N
ZHL-1217MLN+ S32 Low Noise Amplifier 1200 1700 35 1.1 22 36 1.4 1.3 15 380 SMA – Conn. 50 N
ZHL-1724HLN+ NN92 Low Noise Amplifier 1700 2400 30 1.5 26 36 1.4 1.6 15 725 SMA Heat Sink Conn. 50 N
ZHL-1724HLNX+ NN92 Low Noise Amplifier 1700 2400 30 1.5 26 36 1.4 1.6 15 725 SMA – Conn. 50 N
ZHL-2010+ S32 Gain Block 50 1000 20 3.7 26 46 2 2 12 900 SMA – Conn. 50 N
ZHL-2150+ S860-1 Gain Block 950 2450 30 3.5 11 25 1.3 1.3 12 110 SMA – Conn. 50 N
ZHL-2425-250X+ VU3193 High Power Amplifier 2400 2500 42 – 54.5 – 1.9 – 32 15000 MCX / N – Conn. 50 N
ZHL-3010+ S32 Gain Block 50 1000 30 5.5 26 46 2 1.6 12 1000 SMA – Conn. 50 N
ZHL-4240+ U36 Gain Block 600 4200 42 8 30 38 2.5 2.5 15 1000 SMA Heat Sink Conn. 50 N
ZHL-4240W+ U36 Gain Block 10 4200 42 6 30 38 2.5 2.5 15 1000 SMA Heat Sink Conn. 50 N
ZHL-4240WX+ U36 Gain Block 10 4200 42 6 30 38 2.5 2.5 15 1000 SMA – Conn. 50 N
ZHL-4240X+ U36 Gain Block 600 4200 42 8 30 38 2.5 2.5 15 1000 SMA – Conn. 50 N
ZHL0G60G7100+ BT3411 High Power Amplifier 600 700 50 7 48.5 – 1.6 – 28 14000 SMA-N Heat Sink Conn. 50 N
ZHL0G60G7100X+ BT3411 High Power Amplifier 600 700 50 7 48.5 – 1.6 – 28 14000 SMA-N – Conn. 50 N
ZHL2G02G4125+ BT1689 High Power Amplifier 2000 2400 52 7 49.5 – 2 – 28 17000 SMA-N Heat Sink Conn. 50 N
ZHL6G018G020+ BT3013 High Power Amplifier 6000 18000 57 6.8 34 42 1.4 2 20 5000 SMA Heat Sink Conn. 50 N
ZHL6G018G020X+ BT3013 High Power Amplifier 6000 18000 57 6.8 34 42 1.4 2 20 5000 SMA – Conn. 50 N
ZJL-3G+ BW459 Gain Block 20 3000 14 3.8 8 22 1.4 1.6 12 45 SMA – Conn. 50 N
ZJL-4G+ BW459 Gain Block 20 4000 12.4 5.5 14 30.5 1.4 1.6 12 75 SMA – Conn. 50 N
ZJL-4HG+ BW459 Gain Block 20 4000 17 4.5 15 30 1.5 1.4 12 75 SMA – Conn. 50 N
ZJL-5G+ BW459 Gain Block 20 5000 9 8.5 15 32 1.6 1.3 12 80 SMA – Conn. 50 N
ZJL-6G+ BW459 Gain Block 20 6000 13 4.5 10 24 1.5 1.4 12 50 SMA – Conn. 50 N
ZJL-7G+ BW459 Gain Block 20 7000 10 5 9 24 1.5 1.5 12 50 SMA – Conn. 50 N
ZJL-153+ BW459 Gain Block 5000 15000 13 6 18 23 1.7 1.7 5 180 SMA – Conn. 50 N
ZKL-1R5+ BY493 Gain Block 10 1500 40 3 15 31 1.4 1.6 12 115 SMA – Conn. 50 N
ZKL-2+ BY493 Gain Block 10 2000 33.5 4 15 31 1.4 1.4 12 120 SMA – Conn. 50 N
ZKL-2R5+ BY493 Gain Block 10 2500 30 5 15 31 1.4 1.4 12 120 SMA – Conn. 50 N
ZKL-2R7+ BY493 Gain Block 10 2700 24 5 13 30 1.3 1.4 12 120 SMA – Conn. 50 N
ZKL-33ULN-S+ BY493 Low Noise Amplifier 400 3000 35 0.36 18 37 1.3 1.4 5 100 SMA – Conn. 50 N
ZPUL-30P+ S32 Pulse Amplifier 0.0025 700 35 7.7 22 34 2 2 24 400 BNC – Conn. 50 N
ZQL-900LN+ CW686 Low Noise Amplifier 824 849 15 1.3 21 35 1.2 1.1 15 160 SMA – Conn. 50 N
ZQL-900MLN+ CW686 Low Noise Amplifier 824 849 25.5 1.5 24.5 41 1.3 1.4 15 230 SMA – Conn. 50 N
ZQL-1900LN+ CW686 Low Noise Amplifier 1850 1910 15 1.5 19 37 1.15 1.25 15 160 SMA – Conn. 50 N
ZQL-2700MLNW+ CW686 Low Noise Amplifier 2200 2700 25 1.5 25 38 1.25 1.15 15 350 SMA – Conn. 50 N
ZRL-400+ FJ893 Low Noise Amplifier 150 400 31 2.5 25 42 1.5 1.25 12 450 SMA – Conn. 50 N
ZRL-700+ FJ893 Low Noise Amplifier 250 700 30 2 23.5 46 1.1 1.1 12 575 SMA – Conn. 50 N
ZRL-1150LN+ FJ893 Low Noise Amplifier 650 1400 33 1 25 41 1.4 1.3 12 500 SMA – Conn. 50 N
ZRL-1200+ FJ893 Low Noise Amplifier 650 1200 28 2 23.5 46 1.2 1.2 12 575 SMA – Conn. 50 N
ZRL-2150+ FJ893 Low Noise Amplifier 950 2150 25 1.5 22 34 1.3 1.2 12 300 SMA – Conn. 50 N
ZRL-2300+ FJ893 Low Noise Amplifier 1400 2300 29 2.5 26 42 1.2 1.16 12 470 SMA – Conn. 50 N
ZRL-2400LN+ FJ893 Low Noise Amplifier 1000 2400 30 1 23 39 1.6 1.4 12 520 SMA – Conn. 50 N
ZRL-3500+ FJ893 Low Noise Amplifier 700 3500 21 2.4 24 45 1.4 1.3 12 460 SMA – Conn. 50 N
ZRON-8G+ AV243 Gain Block 2000 8000 20 6 20 30 2 2 15 310 SMA Heat Sink Conn. 50 N
ZRON-8GX+ AV243 Gain Block 2000 8000 20 6 20 30 2 2 15 310 SMA – Conn. 50 N
ZVA-0.5W303G+ AV2554-3 Gain Block 10 30000 24.5 4.5 25 35 1.6 1.8 12 460 2.92mm Heat Sink Conn. 50 N
ZVA-0.5W303GX+ AV2554-3 Gain Block 10 30000 24.5 4.5 25 35 1.6 1.8 12 460 2.92mm – Conn. 50 N
ZVA-1W-103+ CP3191 Gain Block 500 10000 39 4 30 39 1.5 1.4 15 750 SMA Heat Sink Conn. 50 N
ZVA-1W-103X+ CP3191 Gain Block 500 10000 39 4 30 39 1.5 1.4 15 750 SMA – Conn. 50 N
ZVA-183-S+ AV1280 Gain Block 700 18000 26 3 24 33 1.35 1.25 12 400 SMA Heat Sink Conn. 50 N
ZVA-183A-S+ AV2554-3 Gain Block 700 18000 24.5 4.5 24 34 1.35 1.35 12 400 SMA Heat Sink Conn. 50 N
ZVA-183G-S+ CP1755 Gain Block 500 18000 38 3 25 36 1.9 2 15 770 SMA Heat Sink Conn. 50 N
ZVA-183W-S+ CP1755 Gain Block 100 18000 28 3 26 34.5 1.3 1.6 15 625 SMA Heat Sink Conn. 50 N
ZVA-183X-S+ AV1280 Gain Block 700 18000 26 3 24 33 1.35 1.25 12 400 SMA – Conn. 50 N
ZVA-183AX-S+ AV2554-3 Gain Block 700 18000 24.5 4.5 24 34 1.35 1.35 12 400 SMA – Conn. 50 N
ZVA-183GX-S+ CP1755 Gain Block 500 18000 38 3 25 36 1.9 2 15 770 SMA – Conn. 50 N
ZVA-183WA-S+ AV2554-3 Gain Block 100 18000 25 4 29 38 1.3 1.5 12 500 SMA Heat Sink Conn. 50 N
ZVA-183WX-S+ CP1755 Gain Block 100 18000 28 3 26 34.5 1.3 1.6 15 625 SMA – Conn. 50 N
ZVA-183WAX-S+ AV2554-3 Gain Block 100 18000 25 4 29 38 1.3 1.5 12 500 SMA – Conn. 50 N
ZVA-203GX+ AV2554-1 Low Noise Amplifier 1500 21000 29 3 15.5 27.5 1.5 1.6 5 450 2.92mm – Conn. 50 N
ZVA-213-S+ AV1280 Gain Block 800 21000 26 3 24 33 1.35 1.25 12 400 SMA Heat Sink Conn. 50 N
ZVA-213A-S+ AV2554-3 Gain Block 800 21000 24.5 4.5 24 34 1.35 1.35 12 400 SMA Heat Sink Conn. 50 N
ZVA-213X-S+ AV1280 Gain Block 800 21000 26 3 24 33 1.35 1.25 12 400 SMA – Conn. 50 N
ZVA-213AX-S+ AV2554-3 Gain Block 800 21000 24.5 4.5 24 34 1.35 1.35 12 400 SMA – Conn. 50 N
ZVA-213UWX+ RN2486-1 Gain Block 100 20000 14 3 16 29 1.3 1.4 +12, -5 84 2.92mm – Conn. 50 N
ZVA-403GX+ AV2578 Gain Block 0.05 40000 11 4.5 11 21 1.45 1.6 5 100 2.92mm – Conn. 50 N
ZVA-443HGX+ T2704-1 Gain Block 10 43500 33 5 9 18 1.5 1.8 15 170 2.92mm – Conn. 50 N
ZVA-443X+ AV2578 Gain Block 0.05 43500 11 4.5 10 22 1.8 1.9 5 80 2.4mm – Conn. 50 N
ZVA-543+ VN3071-4 Gain Block 18000 54000 34 6 26 34 1.30 1.40 10 850 1.85mm Heat Sink Conn. 50 N
ZVA-543HP+ VN3071-4 Gain Block 18000 54000 31 6.5 28 37 1.50 1.50 10 1650 1.85mm Heat Sink Conn. 50 N
ZVA-543HPX+ VN3071-4 Gain Block 18000 54000 31 6.5 28 37 1.50 1.50 10 1500 1.85mm – Conn. 50 N
ZVA-543LN+ VN3071-4 Low Noise Amplifier 20000 54000 40 3.5 29 36 1.4 1.4 10 1650 1.85mm Heat Sink Conn. 50 N
ZVA-543LNX+ VN3071-4 Low Noise Amplifier 20000 54000 40 3.5 29 36 1.4 1.4 10 1500 1.85mm – Conn. 50 N
ZVA-543X+ VN3071-4 Gain Block 18000 54000 34 6 26 34 1.30 1.40 10 800 1.85mm – Conn. 50 N
ZVA-01243+ RN2486-2 Gain Block 1000 22000 12.8 5 21.6 27.5 1.7 1.4 8 170 2.92mm – Conn. 50 N
ZVA-02303HP+ T2704 Gain Block 500 30000 38 3.8 27 35 1.3 1.2 15 400 2.92mm Heat Sink Conn. 50 N
ZVA-02303HPX+ T2704 Gain Block 500 30000 38 3.8 27 35 1.3 1.2 15 400 2.92mm – Conn. 50 N
ZVA-02443HP+ T2704 Gain Block 2000 43500 37 5 17 25 1.5 2.5 15 280 2.92mm Heat Sink Conn. 50 N
ZVA-02443HPX+ T2704 Gain Block 2000 43500 37 5 17 25 1.5 2.5 15 280 2.92mm – Conn. 50 N
ZVA-02653G+ WC3071-6 Gain Block 2000 65000 21 5 16 23 1.5 1.5 10 270 1.85mm Heat Sink Conn. 50 N
ZVA-02653GX+ WC3071-6 Gain Block 2000 65000 21 5 16 23 1.5 1.5 10 270 1.85mm – Conn. 50 N
ZVA-5803X+ VP3085-2 Gain Block 500 80000 17 5 10 23 1.5 1.5 10 130 1.0mm – Conn. 50 N
ZVA-18403G+ T2704 Low Noise Amplifier 18000 40000 43 3.8 22 28 1.8 2.5 15 190 2.92mm Heat Sink Conn. 50 N
ZVA-18403GX+ T2704 Low Noise Amplifier 18000 40000 43 3.8 22 28 1.8 2.5 15 190 2.92mm – Conn. 50 N
ZVA-24443G1+ T2704 Low Noise Amplifier 24000 43500 45 1.7 20 27 2 2.5 15 160 2.92mm Heat Sink Conn. 50 N
ZVA-24443G1X+ T2704 Low Noise Amplifier 24000 43500 45 1.7 20 27 2 2.5 15 160 2.92mm – Conn. 50 N
ZVA-35703+ VP3085-1 Gain Block 35000 71000 17.5 – 19.5 28 1.50 1.50 15 210 1.85mm Heat Sink Conn. 50 N
ZVA-35703X+ VP3085-1 Gain Block 35000 71000 17.5 – 19.5 28 1.50 1.50 15 210 1.85mm – Conn. 50 N
ZVA-40703G+ WC3071-7 Gain Block 40000 70000 34 6.5 22 30 1.50 1.50 10 470 1.85mm Heat Sink Conn. 50 N
ZVA-40703GX+ WC3071-7 Gain Block 40000 70000 34 6.5 22 30 1.50 1.50 10 470 1.85mm – Conn. 50 N
ZVA-44703LN+ WC3071-7 Low Noise Amplifier 44000 70000 45 2.7 18 28 1.6 1.6 10 300 1.85mm Heat Sink Conn. 50 N
ZVA-44703LNX+ WC3071-7 Low Noise Amplifier 44000 70000 45 2.7 18 28 1.6 1.6 10 300 1.85mm – Conn. 50 N
ZVA-50953G+ WC3071-5 Gain Block 50000 95000 28 – 17 – 1.67 1.67 10 370 1.0mm Heat Sink Conn. 50 N
ZVA-50953GX+ WC3071-5 Gain Block 50000 95000 28 – 17 – 1.67 1.67 10 370 1.0mm – Conn. 50 N
ZVA-50953X+ VP3085-2 Gain Block 45000 95000 17 – 14 – 1.7 1.7 10 140 1.0mm – Conn. 50 N
ZVA-71863HP+ WC3071-5 Gain Block 71000 86000 37 – 22 – 1.60 1.60 10 490 1.0mm Heat Sink Conn. 50 N
ZVA-71863HPX+ WC3071-5 Gain Block 71000 86000 37 – 22 – 1.60 1.60 10 490 1.0mm – Conn. 50 N
ZVA-71863LNX+ WC3071-5 Low Noise Amplifier 71000 86000 37 4.5 13 – 1.60 1.60 10 180 1.0mm – Conn. 50 N
ZVE-2W-272+ CP1978 High Power Amplifier 700 2700 33 9.5 32 39.5 1.9 1.5 15 800 SMA Heat Sink Conn. 50 N
ZVE-2W-272X+ CP1978 High Power Amplifier 700 2700 33 9.5 32 39.5 1.9 1.5 15 800 SMA – Conn. 50 N
ZVE-3W-83+ BN1327 High Power Amplifier 2000 8000 35 5.8 33 42 1.5 1.4 15 1500 SMA Heat Sink Conn. 50 N
ZVE-3W-83X+ BN1327 High Power Amplifier 2000 8000 35 5.8 33 42 1.5 1.4 15 1500 SMA – Conn. 50 N
ZVE-3W-183+ BN1327 High Power Amplifier 5900 18000 35 5.5 34 44 1.5 1.2 15 2200 SMA Heat Sink Conn. 50 N
ZVE-6W-83+ CP1978-1 High Power Amplifier 2000 8000 33 10 37 40 1.9 1.4 15 5000 SMA Heat Sink Conn. 50 N
ZVE-6W-83X+ CP1978-1 High Power Amplifier 2000 8000 33 10 37 40 1.9 1.4 15 5000 SMA – Conn. 50 N
ZVE-8G+ BN333 Gain Block 2000 8000 30 4 30 40 2 2 12 1200 SMA Heat Sink Conn. 50 N
ZVE-8GX+ BN333 Gain Block 2000 8000 30 4 30 40 2 2 12 1200 SMA – Conn. 50 N
ZVE-143-S+ AV243 Gain Block 8000 14000 19 4.5 28 35 1.5 1.5 12 450 SMA Heat Sink Conn. 50 N
ZVE-143X-S+ AV243 Gain Block 8000 14000 19 4.5 28 35 1.5 1.5 12 450 SMA – Conn. 50 N
ZVE-323LN-K+ AV1280-1 Low Noise Amplifier 18000 32000 20 3 10 23 1.9 1.8 12 50 2.92mm Heat Sink Conn. 50 N
ZVE-323LNX-K+ AV1280-1 Low Noise Amplifier 18000 32000 20 3 10 23 1.9 1.8 12 50 2.92mm – Conn. 50 N
ZVE-373LN-K+ AV1280-1 Low Noise Amplifier 28000 37000 20 2.5 9 20 1.5 1.4 12 75 2.92mm Heat Sink Conn. 50 N
ZVE-373LNX-K+ AV1280-1 Low Noise Amplifier 28000 37000 20 2.5 9 20 1.5 1.4 12 75 2.92mm – Conn. 50 N
ZVE-403-K+ AV1280-2 Gain Block 26000 40000 22 9 19 21 2 2 12 300 2.92mm Heat Sink Conn. 50 N
ZVE-453+ VN3071-4 Gain Block 18000 45000 33 – 28 37 1.50 1.50 15 750 2.4mm Heat Sink Conn. 50 N
ZVE-453G+ VN3071-4 Gain Block 18000 45000 41 – 27 39 1.50 1.50 15 730 2.4mm Heat Sink Conn. 50 N
ZVE-453GX+ VN3071-4 Gain Block 18000 45000 41 – 27 39 1.50 1.50 15 730 2.4mm – Conn. 50 N
ZVE-453HP+ VN3071-4 Gain Block 18000 45000 39 – 30 40 1.50 1.50 15 1100 2.4mm Heat Sink Conn. 50 N
ZVE-453HPX+ VN3071-4 Gain Block 18000 45000 39 – 30 40 1.50 1.50 15 1100 2.4mm – Conn. 50 N
ZVE-453X+ VN3071-4 Gain Block 18000 45000 33 – 28 37 1.50 1.50 15 750 2.4mm – Conn. 50 N
ZVM-273HP+ CP1973 Gain Block 13000 26500 14.5 9 25 34 1.1 1.5 12 559 2.92mm Heat Sink Conn. 50 N
ZVM-273HPX+ CP1973 Gain Block 13000 26500 14.5 9 25 34 1.1 1.5 12 559 2.92mm – Conn. 50 N
ZX60-14LN-S+ GC957 Low Noise Amplifier 50 10000 22 1.5 21 32 1.4 1.3 6 72 SMA – Conn. 50 N
ZX60-24-S+ GC957 Gain Block 5000 20000 24 6.8 18 27 1.4 1.4 5 260 SMA – Conn. 50 N
ZX60-24A-S+ GC957 Gain Block 5000 20000 24 6.4 18.3 25.4 1.2 1.6 5 270 SMA – Conn. 50 N
ZX60-33LNR-S+ GC957 Low Noise Amplifier 50 3000 14.1 1.1 19 35 2 1.6 5 80 SMA – Conn. 50 N
ZX60-43-S+ GC957 Gain Block 0.5 4000 17 5.4 17.3 33 1.2 2 5 110 SMA – Conn. 50 N
ZX60-53LN+ GC957 Low Noise Amplifier 500 5000 21 1.45 19 32 1.6 1.3 5 80 SMA – Conn. 50 N
ZX60-53LNB-S+ GD958 Low Noise Amplifier 500 5000 20 1.45 19.5 32 1.6 1.2 5 105 SMA – Conn. 50 N
ZX60-63GLN+ GC957 Low Noise Amplifier 1800 6000 27.8 1.2 13.6 26 1.7 1.7 5 67 SMA – Conn. 50 N
ZX60-83LN-S+ GC957 Low Noise Amplifier 500 8000 22.1 1.4 20.7 35.2 1.38 1.58 5.0/6.0 60/70 SMA – Conn. 50 N
ZX60-83LN12+ GC957 Low Noise Amplifier 500 8000 22.1 1.4 20.7 35.2 1.38 1.58 12 77 SMA – Conn. 50 N
ZX60-83MP-S+ GC957 Gain Block 400 8000 20 3.2 27 40 1.6 1.5 8 144 SMA – Conn. 50 N
ZX60-100VH+ MM1750 Gain Block 0.3 100 36 4 30 43 1.6 1.5 12 370 SMA Heat Sink Conn. 50 N
ZX60-100VHX+ MM1750 Gain Block 0.3 100 36 4 30 43 1.6 1.5 12 370 SMA – Conn. 50 N
ZX60-112LN+ GA955 Low Noise Amplifier 400 1100 27 1.2 16.5 30 1.4 1.3 5 190 SMA – Conn. 50 N
ZX60-123LN-S+ GC957 Low Noise Amplifier 500 12000 17 2.4 16 28 1.45 1.3 12 82 SMA – Conn. 50 N
ZX60-153LN-S+ GC957 Low Noise Amplifier 500 15000 16 2.8 15 27 2 1.5 12 82 SMA – Conn. 50 N
ZX60-183-S+ GC957 Gain Block 6000 18000 23.5 6.9 18.1 27.2 1.4 1.4 5 260 SMA – Conn. 50 N
ZX60-183A-S+ GC957 Gain Block 6000 18000 28 5 18 27 1.4 1.4 5 260 SMA – Conn. 50 N
ZX60-242GLN-S+ GA955 Low Noise Amplifier 1710 2400 30 0.85 20 37 1.4 1.6 5 150 SMA – Conn. 50 N
ZX60-242LN-S+ GA955 Low Noise Amplifier 1710 2400 13 0.75 16.5 33 1.2 1.6 5 46 SMA – Conn. 50 N
ZX60-272LN-S+ GA955 Low Noise Amplifier 2300 2700 14 0.8 18.5 31.5 1.2 1.6 5 70 SMA – Conn. 50 N
ZX60-362GLN-S+ GA955 Low Noise Amplifier 3300 3600 20 0.9 16 29 1.2 1.4 5 140 SMA – Conn. 50 N
ZX60-362LN-S+ GA955 Low Noise Amplifier 3300 3600 11.5 0.9 10.5 22 1.4 1.4 5 30 SMA – Conn. 50 N
ZX60-542LN-S+ GA955 Low Noise Amplifier 4400 5400 24 1.9 10 23 1.5 1.5 12 80 SMA – Conn. 50 N
ZX60-0916LN-S+ GA955 Low Noise Amplifier 824 960 18 0.55 16.5 30 1.2 1.4 5 45 SMA – Conn. 50 N
ZX60-1215LN-S+ GA955 Low Noise Amplifier 800 1400 16 0.4 12.5 27 1.7 1.4 12 50 SMA – Conn. 50 N
ZX60-1614LN-S GA955 Low Noise Amplifier 1217 1620 14 0.5 13.5 30 1.3 1.3 12 50 SMA – Conn. 50 N
ZX60-02203+ GC957 Gain Block 2000 20000 21.5 6.5 14.6 28 1.75 1.55 5 155 SMA – Conn. 50 N
ZX60-02203LPN+ GC957 Gain Block 2000 20000 16 5 17 31 1.92 1.67 5 79 SMA – Conn. 50 N
ZX60-2411BM-S+ GA955 Gain Block 800 2400 11.5 3.5 24 46.5 1.2 1.2 5 280 SMA – Conn. 50 N
ZX60-2510MA-S+ GC957 Gain Block 500 2500 15 5.4 20 32 1.4 1.4 2.8/5.0 104 SMA – Conn. 50 N
ZX60-2514MA-S+ GC957 Gain Block 500 2500 17.8 4.5 19 31 1.4 1.5 2.8/5.0 94 SMA – Conn. 50 N
ZX60-2522MA-S+ GC957 Low Noise Amplifier 500 2500 24 2.6 20.5 32 1.4 1.4 2.8/5.0 110 SMA – Conn. 50 N
ZX60-2531MA-S+ GA955 Gain Block 500 2500 40 3.1 19 26 1.3 1.7 2.8/5.0 130 SMA – Conn. 50 N
ZX60-2534MA-S+ GA955 Low Noise Amplifier 500 2500 43 2.6 19 18 1.6 1.6 2.8/5.0 190 SMA – Conn. 50 N
ZX60-3011+ GC957 Low Noise Amplifier 400 3000 11 1.7 21.1 31 1.7 1.6 12 120 SMA – Conn. 50 N
ZX60-3018G-S+ GC957 Low Noise Amplifier 20 3000 20 2.7 11.8 25 1.3 1.4 12 34 SMA – Conn. 50 N
ZX60-3800LN-S+ GA955 Low Noise Amplifier 3300 3800 23 0.9 18 36 1.2 1.4 5 110 SMA – Conn. 50 N
ZX60-4016E-S+ GC957 Gain Block 20 4000 18 3.9 16.5 30 1.3 1.3 12 65 SMA – Conn. 50 N
ZX60-05113LN+ GC957 Low Noise Amplifier 5000 11000 21.4 1.9 13 24.5 1.9 1.5 5 42 SMA – Conn. 50 N
ZX60-5916MA-S+ GC957 Gain Block 1500 6000 18 6.6 16.5 27 1.6 1.7 2.8/5.0 103 SMA – Conn. 50 N
ZX60-6013E-S+ GC957 Gain Block 20 6000 14 3.3 10.3 28.7 1.5 1.2 12 39 SMA – Conn. 50 N
ZX60-06183LN+ GC957 Low Noise Amplifier 6000 18000 19 2.6 15 26.5 1.9 1.65 5 110 SMA – Conn. 50 N
ZX60-06203ALN+ GC957 Low Noise Amplifier 6000 20000 19 2.6 15 26.5 1.9 1.65 5 110 SMA – Conn. 50 N
ZX60-8008E-S+ GC957 Gain Block 20 8000 9 4.1 9.3 24 1.4 1.7 12 39 SMA – Conn. 50 N
ZX60-14012L-S+ GC957 Gain Block 0.3 14000 12 5.5 11 20 1.3 1.7 12 62 SMA – Conn. 50 N
ZX60-H242+ GC957 Gain Block 700 2400 14.5 3 23 46 1.4 1.5 5.5 145 SMA – Conn. 50 N
ZX60-P33ULN+ GC957 Low Noise Amplifier 400 3000 14.8 0.4 17.4 35 1.9 1.3 3 67 SMA – Conn. 50 N
ZX60-P103LN+ GC957 Low Noise Amplifier 50 3000 13 0.6 22.5 40 1.6 1.6 5 120 SMA – Conn. 50 N
ZX60-P105LN+ GC957 Low Noise Amplifier 40 2600 15 2 20 35 1.5 1.5 5 77 SMA – Conn. 50 N
ZX60-P162LN+ GC957-2 Low Noise Amplifier 700 1600 22.5 0.5 19.9 29.9 1.2 1.4 4 60 SMA – Conn. 50 N
ZX60-V62+ GC957 Gain Block 50 6000 15.4 5.1 19 33.4 1.3 1.8 5 82 SMA – Conn. 50 N
ZX60-V63+ GC957 Gain Block 50 6000 20.3 3.7 17.8 31.2 1.5 1.5 5 69 SMA – Conn. 50 N
ZX60-V81-S+ GC957 Gain Block 20 6000 9.7 8 18.5 36 1.2 1.25 5 103 SMA – Conn. 50 N
ZX60-V82-S+ GC957 Gain Block 20 6000 13.5 6.8 20 35.8 1.3 1.5 5 100 SMA – Conn. 50 N
ZX60-V83-S+ GC957 Gain Block 20 4700 16.8 6 17 31 1.25 1.7 5 72 SMA – Conn. 50 N
