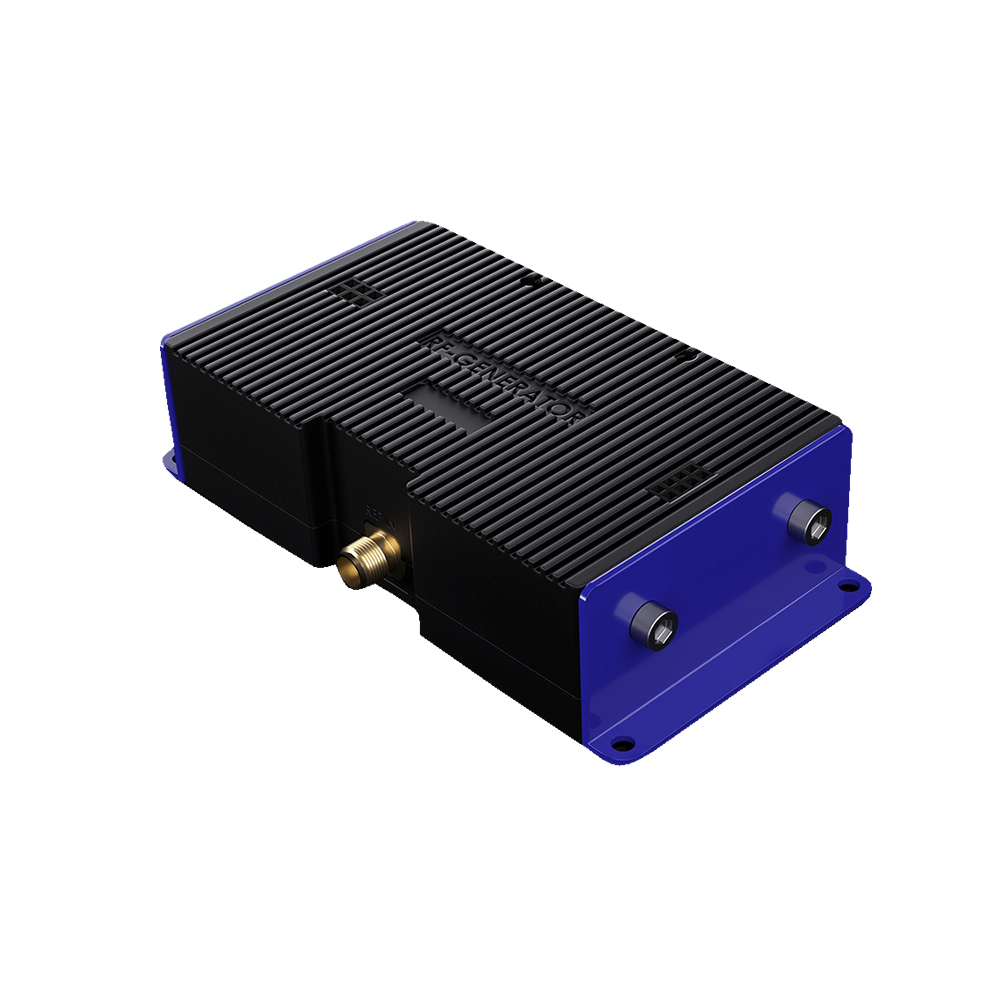

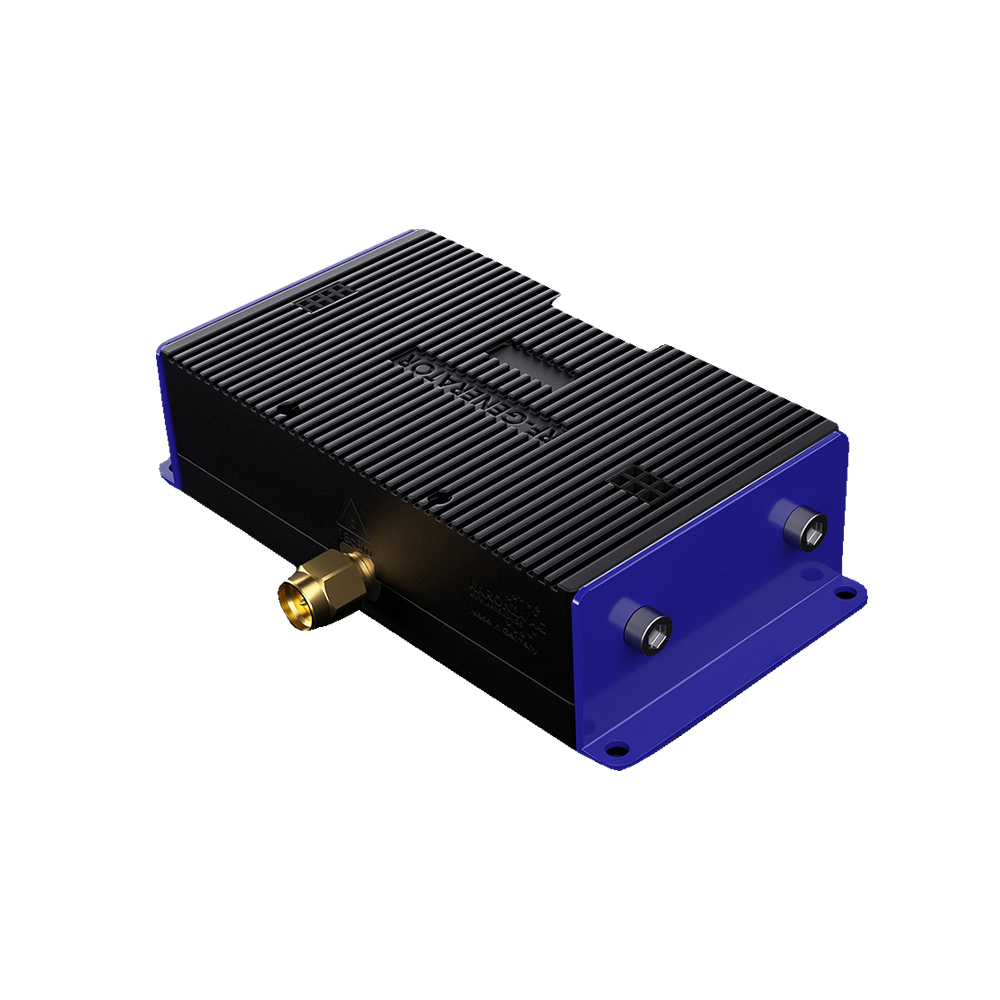

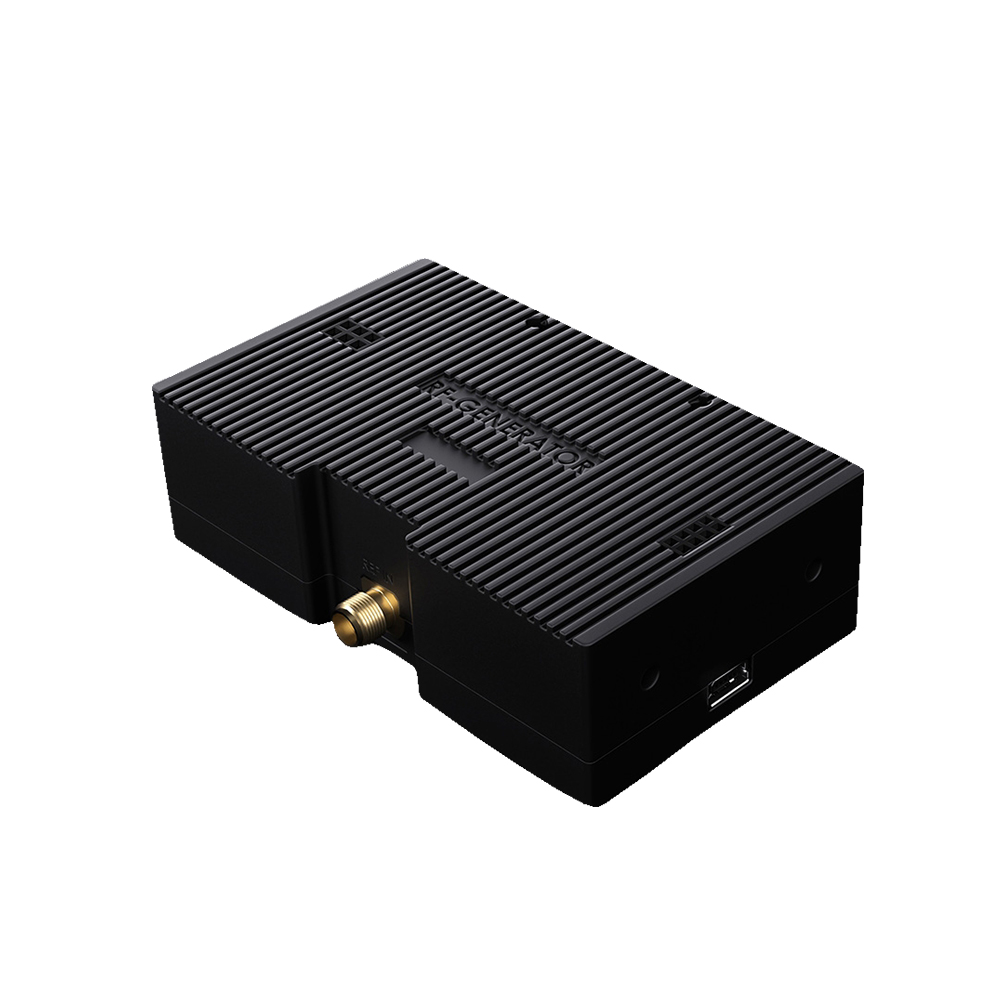

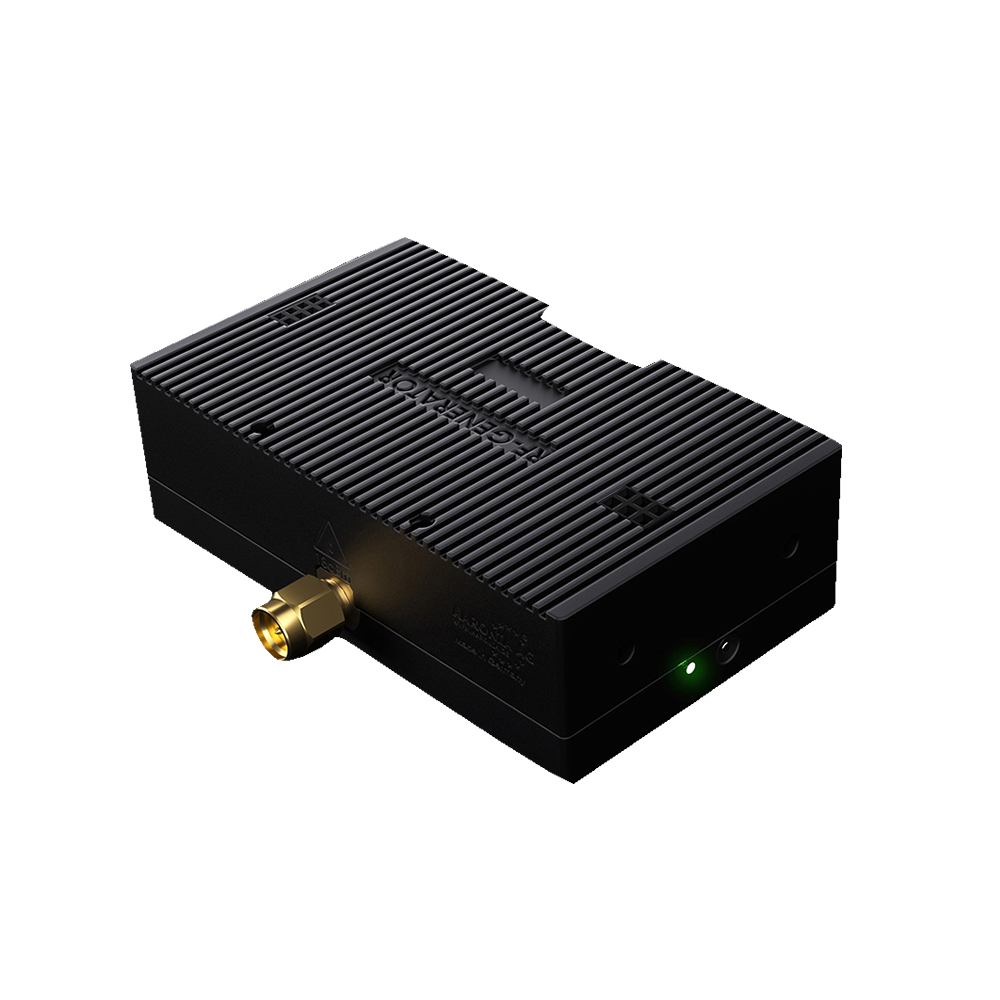

Compact, cost-effective and portable (battery-powered) RF signal generator BPSG6 OEM (23.5MHz – 6GHz).
• Frequency range: 23.5 MHz bis 6 GHz
• Up to +18dBm output power
• Smallest power level: -45dBm
• Up to 63dB dynamic range (depending on frequency)
• Frequency accuracy: 1Hz (<600MHz) and 20Hz (> 600MHz)
• Modulations: AM, FM, PM
• Mounting drillings from all sides. Perfect for OEM installation
• Onboard TCXO for very high frequency accuracy
• Female SMA-connector
• Can be connected to external reference clock for even higher accuracy (female SMA-connector)
• Onboard CPU and memory for intelligent self-running profiles
• Stand alone operation (no PC or USB connection required)
• Battery operation up to 4h
• USB connector for realtime PC control or for storing programs
• Incl. 12V power supply for continuous operation
• Can be operated from 12V Car and Truck power system

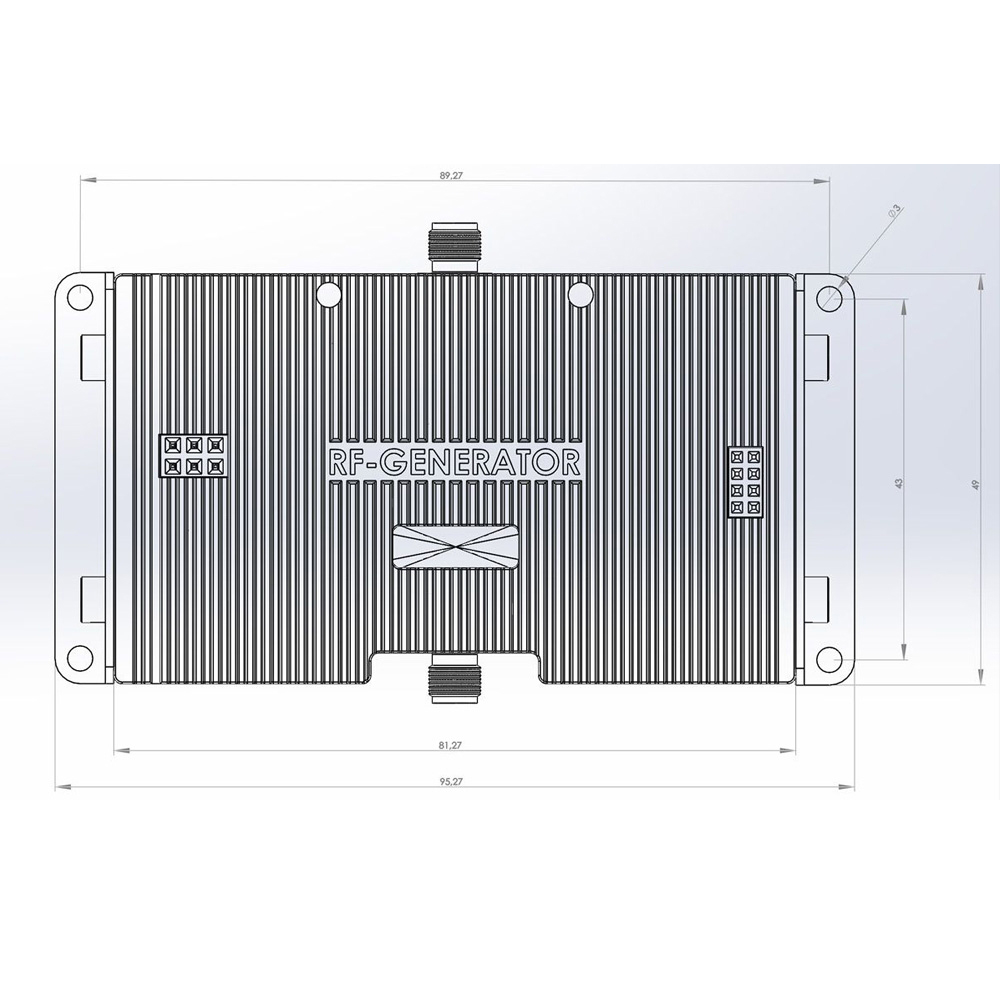

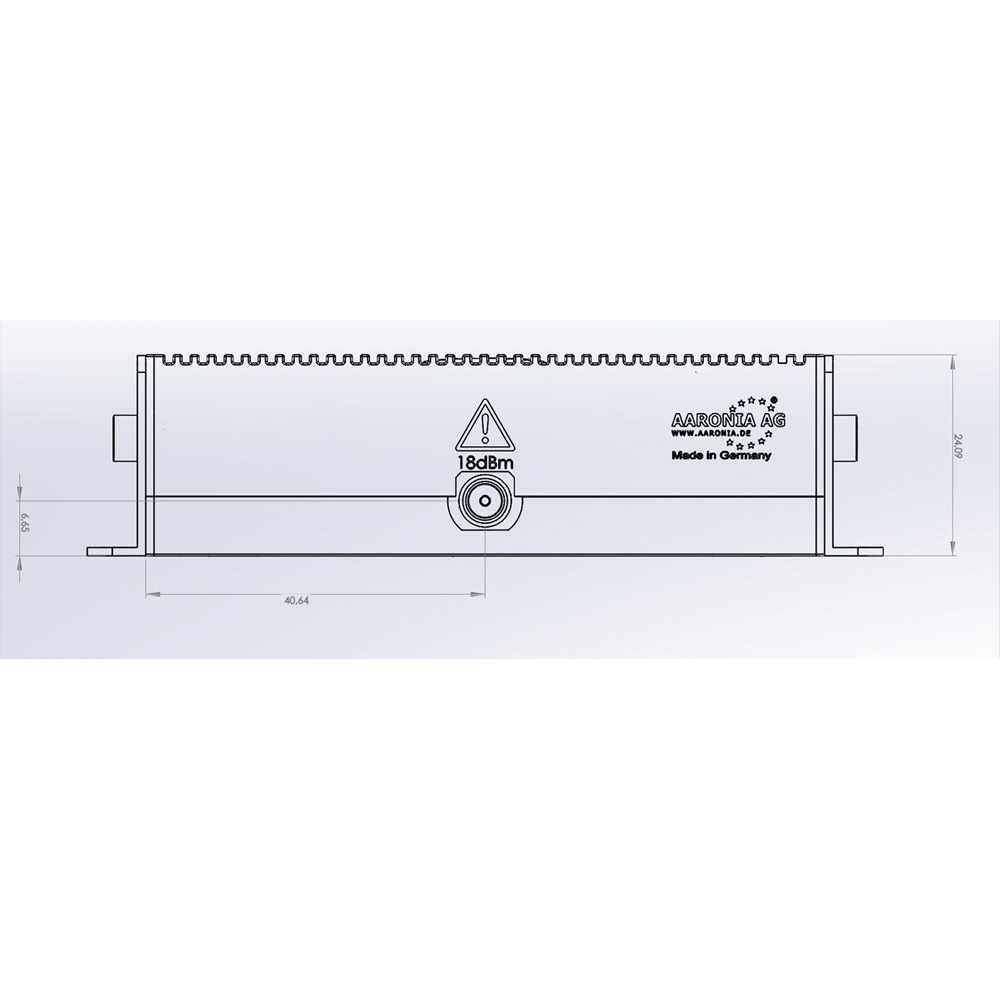

• Very small form factor, 81x49x24mm only
• Very lightweight, only 150gr incl. battery
The new signal generator series BPSG from Aaronia offer an unprecedented mix of performance, design and functions, especially in its price category.
Due to the OEM housing the BPSG6 OEM is perfect for installation in existing systems. The provided screw holes make installation here immensely.
Please note, that this version is designed specifically for OEM integration and as such the device can only be fully controlled when connected to an external controller. For further information, please read pages 9 and 10 of the manual.
Highlights
• World smallest battery powered and intelligent stand alone RF generator up to 6GHz
• Generator can be programmed with simple or very complex batch programs which start automatically after every power on (e.g. generate a fixed frequency and level OR start a specific sweep etc. )
• Can be used as mini RF frequency and power level calibrator
