Sweep function
Optional components, together with near-field probes, help you find and improve EMI defects in advance
Multiple modulation modes
Provide AM, FM, PM, FSK, ASK, PSK and PWM seven analog and digital modulation methods, use more fields
Rich burst function
Provides three pulse train generation methods, making it more flexible to generate various pulse trains

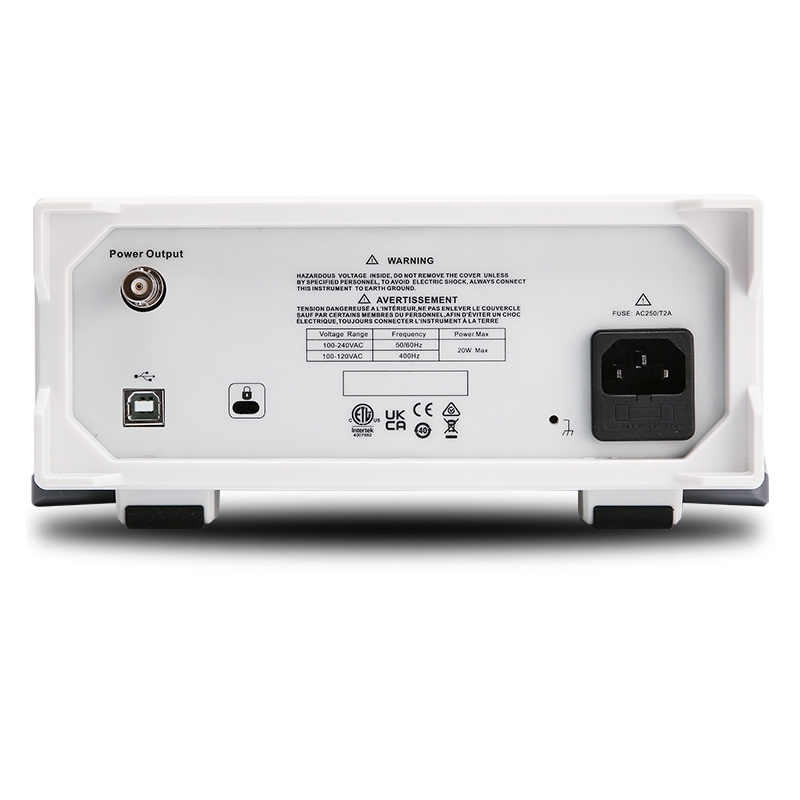

Optional power amplifier module
-PA model is equipped with a standard power amplifier module, which can provide a maximum of 4W waveform signal to meet the test requirements of some power devices
High signal-to-noise ratio
Large offset and small signal output are more pure, ultra-high signal-to-noise ratio, superior to products of the same grade
Ultra-low jitter
Can generate up to 10MHz square wave, fast edge, jitter less than 200ps, purer signal
Equal performance dual channel
Simultaneously provide two channels of high-performance output. High amplitude output can still be guaranteed at high frequency
| Model | Max. Output Frequency | Sample Rate | Vertıcal Resolutıon | Channels | Arbıtrary Wave Length | Dısplay |
|---|---|---|---|---|---|---|
| UTG1022X | 20MHz | 200MSa/s | 16-bit | 2 | 4kpts | 4.3 inch TFT LCD |
| UTG1022X-PA | 20MHz | 200MSa/s | 16-bit | 2 | 4kpts | 4.3 inch TFT LCD |

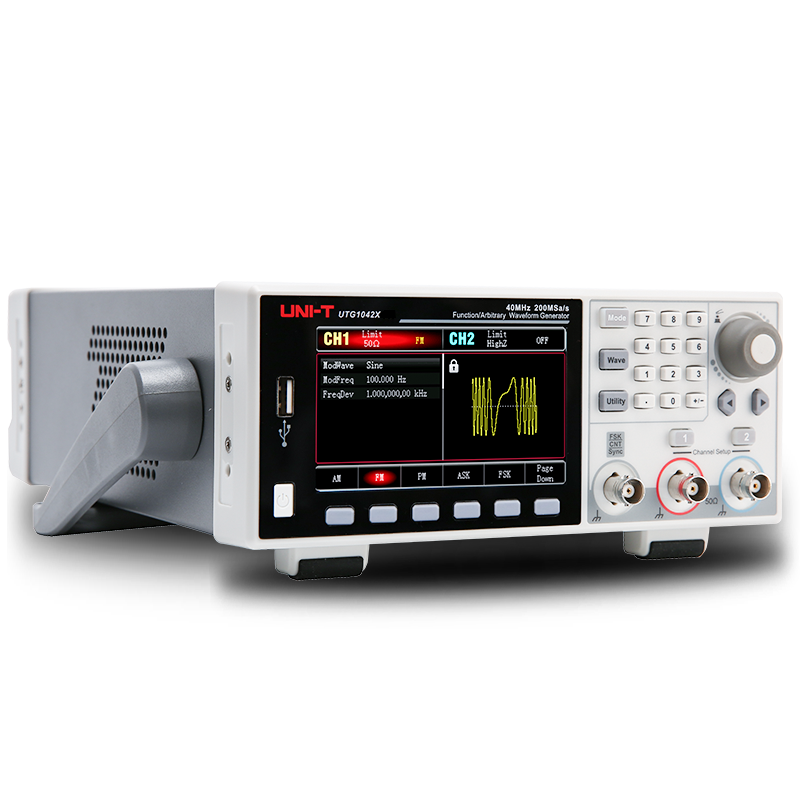

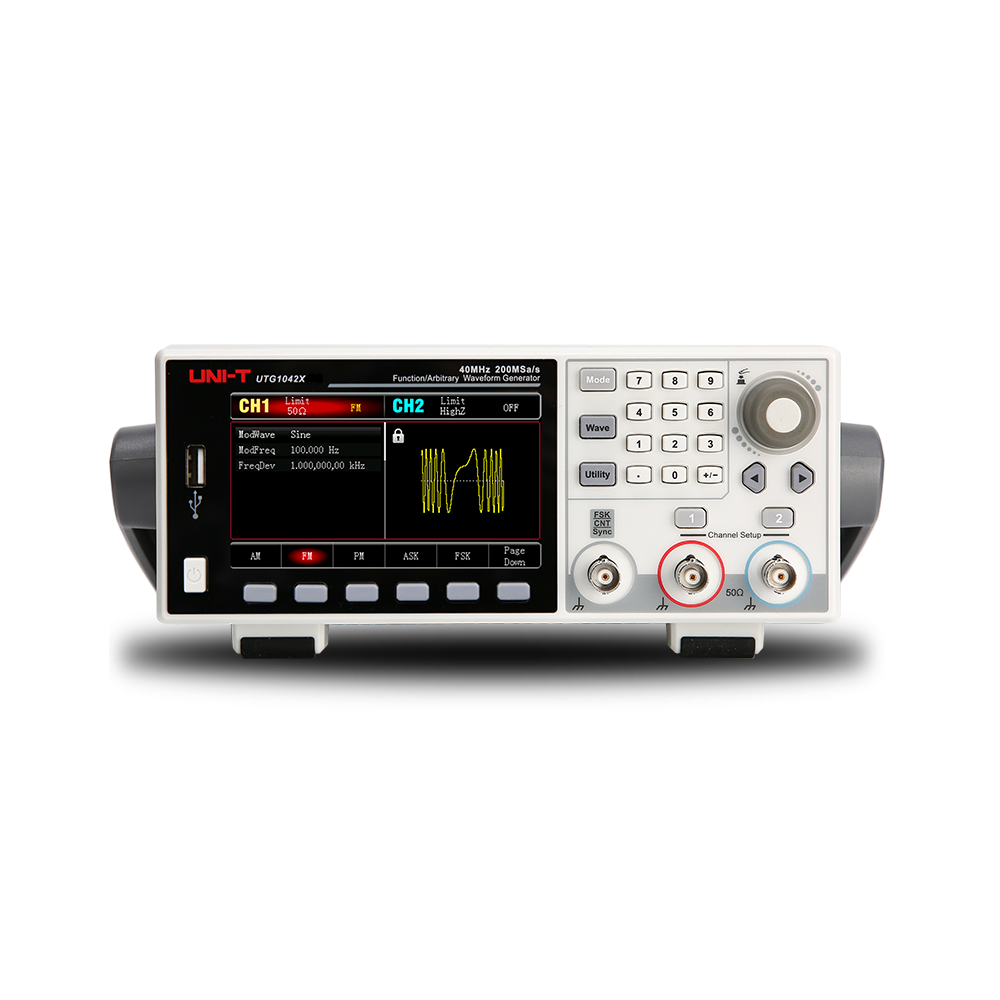

| UTG1042X | 40MHz | 200MSa/s | 16-bit | 2 | 4kpts | 4.3 inch TFT LCD |
