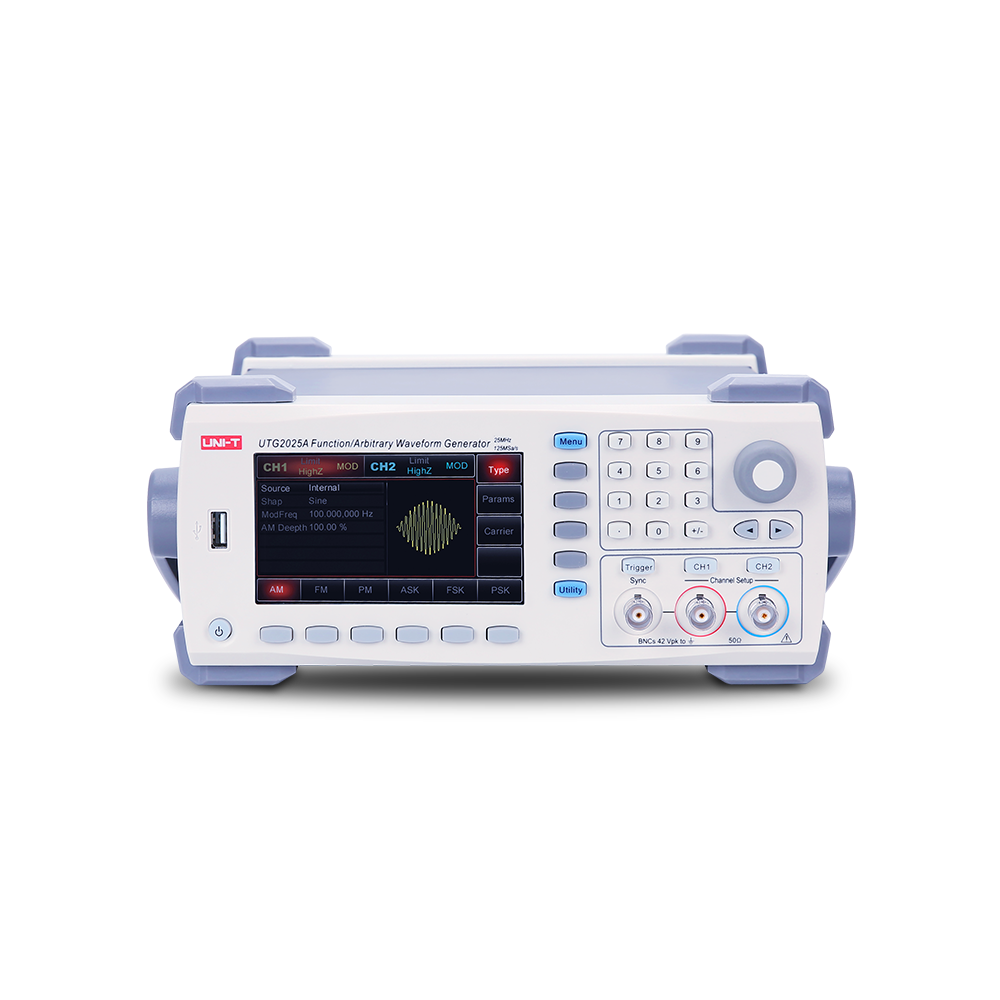

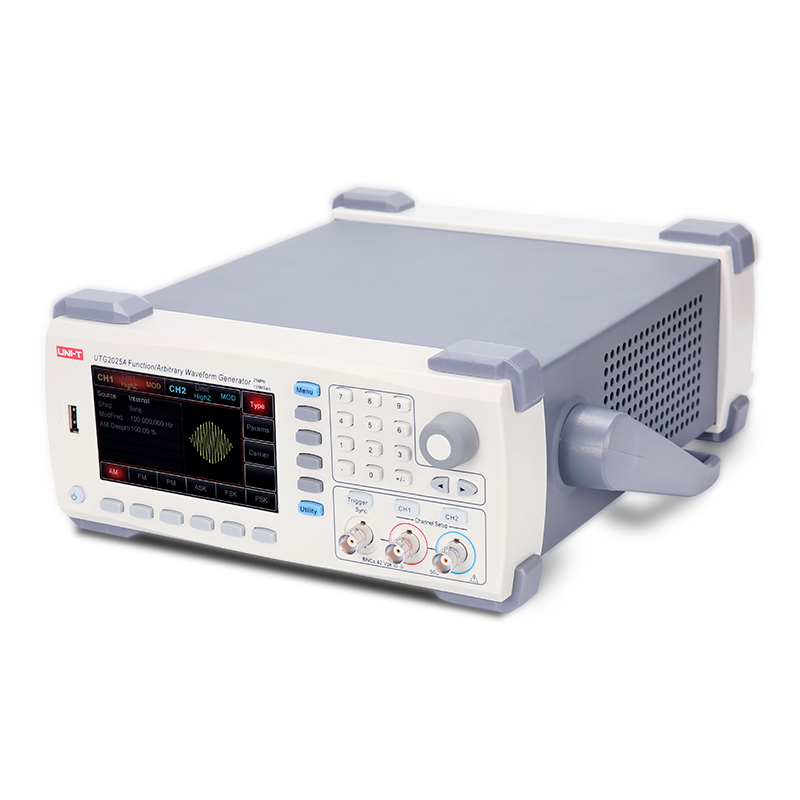

UTG2000A SERIES
Waveform Generators

The UTG2000A Series redefines the entry level waveform generator

by bringing advanced capabilities like 14-bit high resolution,

125MSa/s sampling rate to our most affordable line of generators.

200 built-in arbitrary waveforms enable.

the UTG2000A Series delivers a powerful low cost signal generator for

students and engineers alike.



MAX. OUTPUT FREQUENCY
SAMPLE RATE
25 MHz
125 MSa/s



VERTICAL RESOLUTION
CHANNELS
14 bits
2



ARBITRARY WAVE LENGTH
8 Kpts

25MHz maximum frequency output, multiple waveform signals

2Channl,25MHz maximum frequency output,

multiple waveform signals are available:

sine wave, square, ramp, pulse, noise, DC, arbitrary waveform

Multiple modulation functions

Multiple analog and numerical modulation functions

Modulation type;AM、FM、PM、ASK、FSK、PSK、PWM

Built-in 48 arbitrary waveforms

UTG2000A built-in non-volatile 48 kinds of standard waveforms,

commonly used functions, mathematical functions,

trigonometric functions, window functions

Sweep mode and burst mode function

Sweep mode:

It can scan output in linear or logarithmic mode from high to low and low to high.

Burst mode function:

Provides three types of pulse trains: N cycle cycle, infinite and gated.

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Display
UTG2025A 25 MHz 125 MSa/s 14-bit 2 8 kpts 4.3 inches TFL LCD
