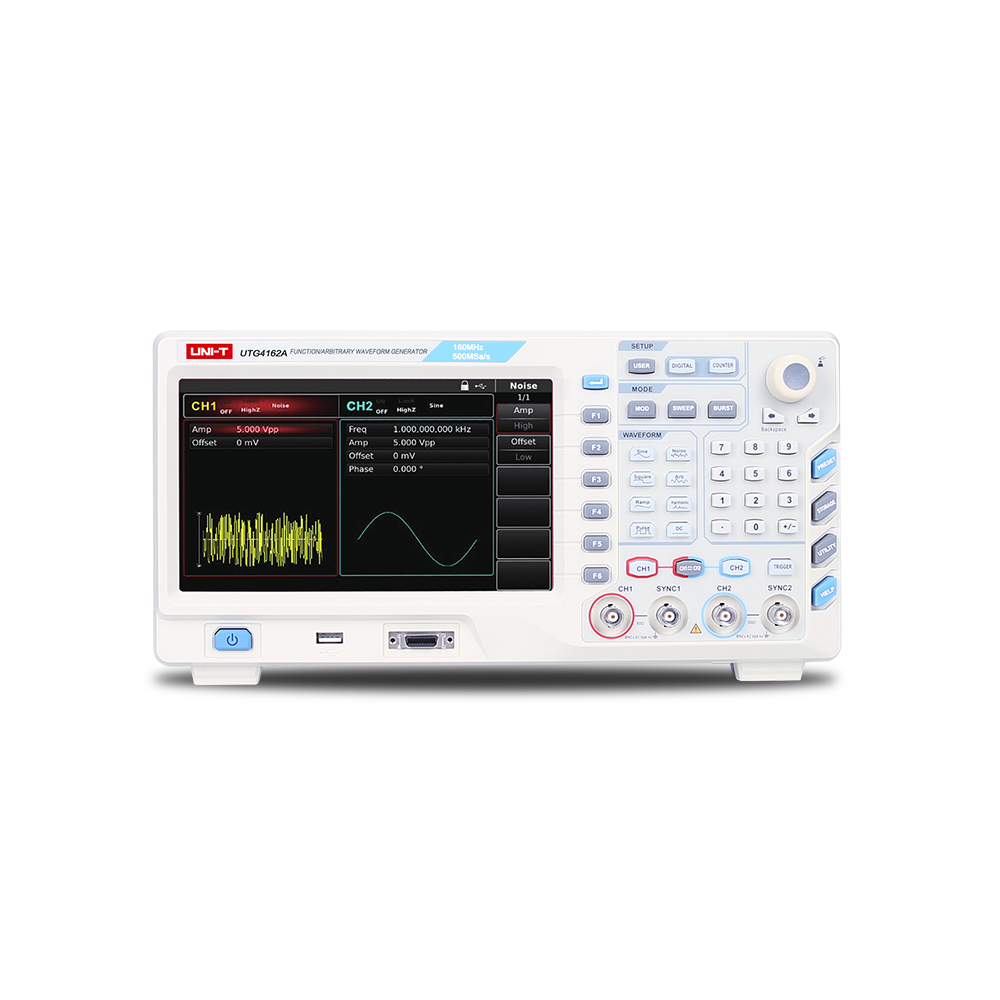

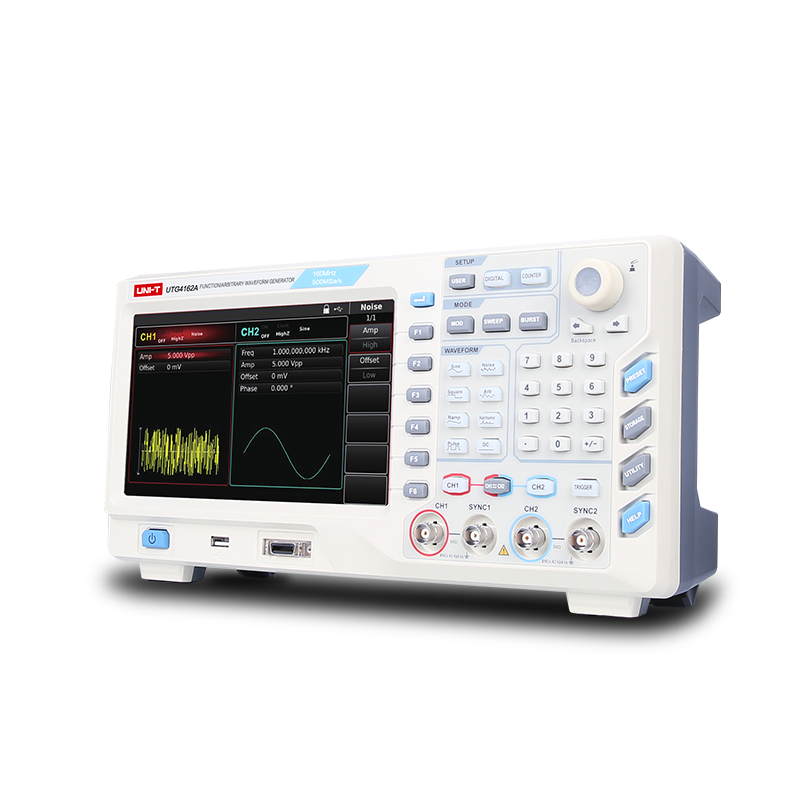

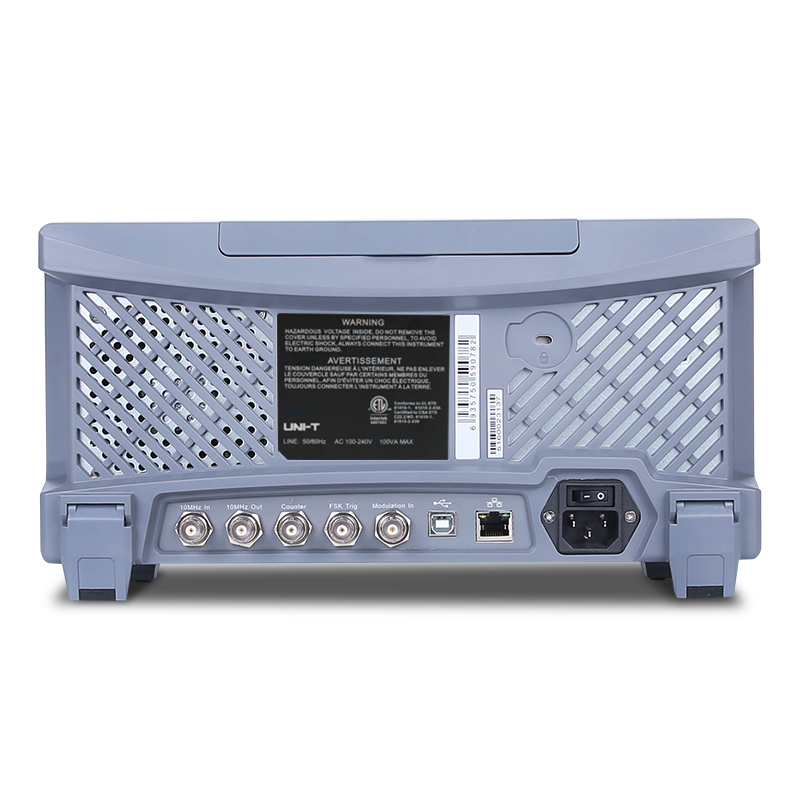

UTG4000A SERIES
Waveform Generators

The UTG4000A Series waveform generators are applied to a wide range of application domain,integrating multiple waveforms for Function Generation, Arbitrary Waveform Generation,Pulse Generation,Harmonic Generation,Analog/Digital Modulation source. The UTG4000A Series is a waveform generator with high sampling rate up to 500MS/s, MAX waveform length up to 32Mpt. To generate stable, precise, low distortion signals The UTG4000A Series adopts Direct Digital Synthesizer (DDS) technology. User-friendly interface design with high resolution 8 inches display screen and rational panel layout to improve operational efficiency



MAX. OUTPUT FREQUENCY
SAMPLE RATE
200 MHz
500 MSa/s



VERTICAL RESOLUTION
CHANNELS
16 bits
2



ARBITRARY WAVE LENGTH
32Mpts

Rich modulation functions

Rich analog and digital modulation types:

 AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM

Harmonic output function

Up to 16 harmonic output function, with specified order,

amplitude and phase of harmonics, the order of harmonics can be set.

Built-in arbitrary waveform available at any time

Built-in up to 160 arbitrary waveforms,

32Mpts arbitrary waveform memory, 7GB non-volatile waveform storage

Sweep function

Support scanning output from low frequency to high frequency or from

high frequency to low frequency.

scanning types include linear and logarithmic.

Unique digital interface

Optional digital signal output interface: SPI, IIC, UART

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Display
UTG4082A 80 MHz 500 MSa/s 16-bit 2 32 Mpts 8 inch TFT LCD
UTG4122A 120 MHz 500 MSa/s 16-bit 2 32 Mpts 8 inch TFT LCD
UTG4162A 160 MHz 500 MSa/s 16-bit 2 32 Mpts 8 inch TFT LCD
UTG4202A 200 MHz 500 MSa/s 16-bit 2 32 Mpts 8 inch TFT LCD
