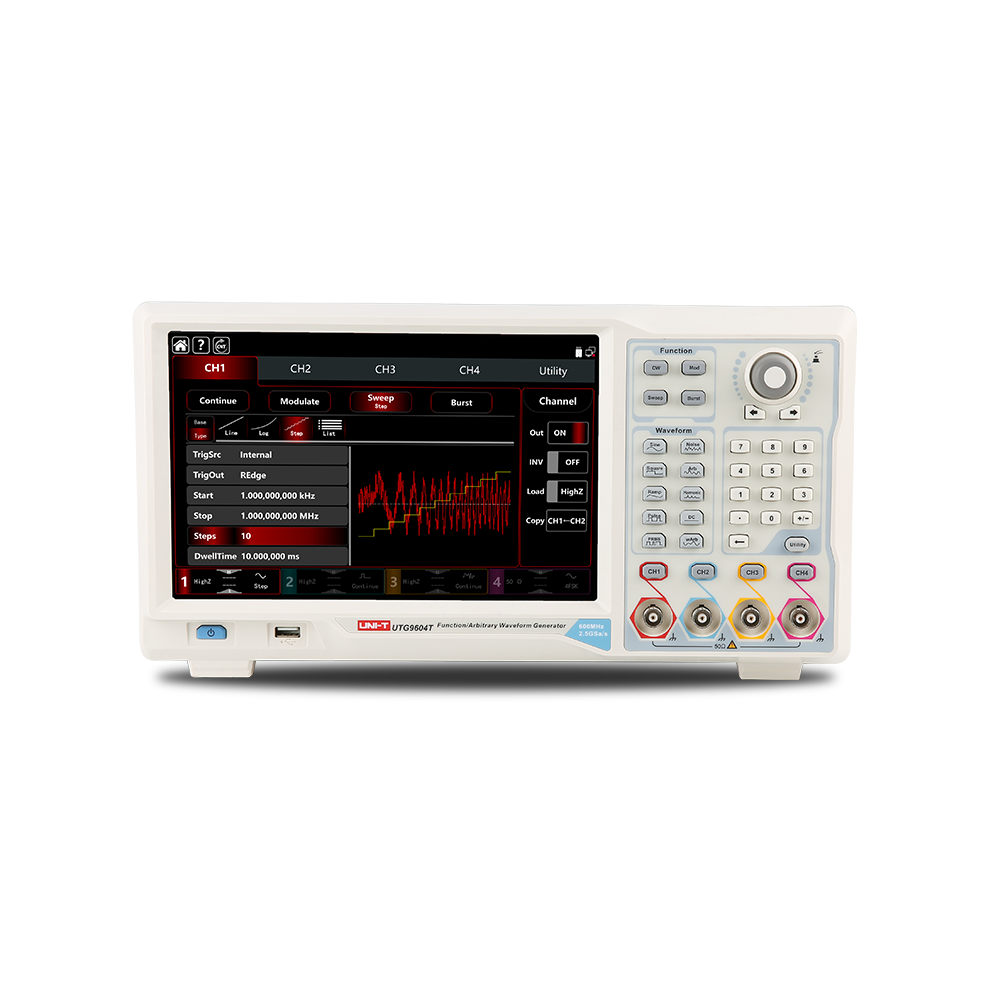

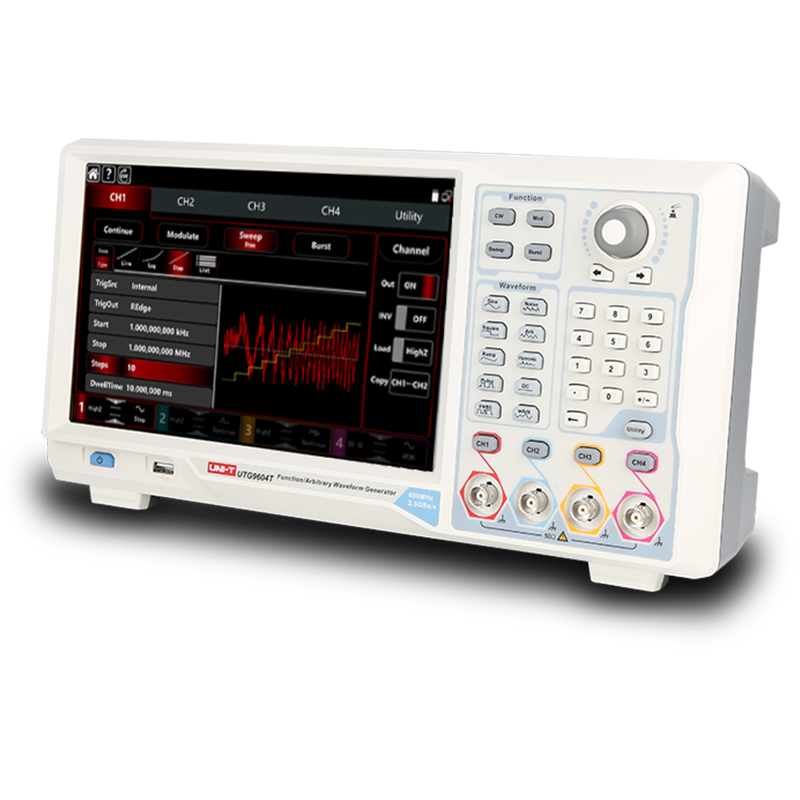

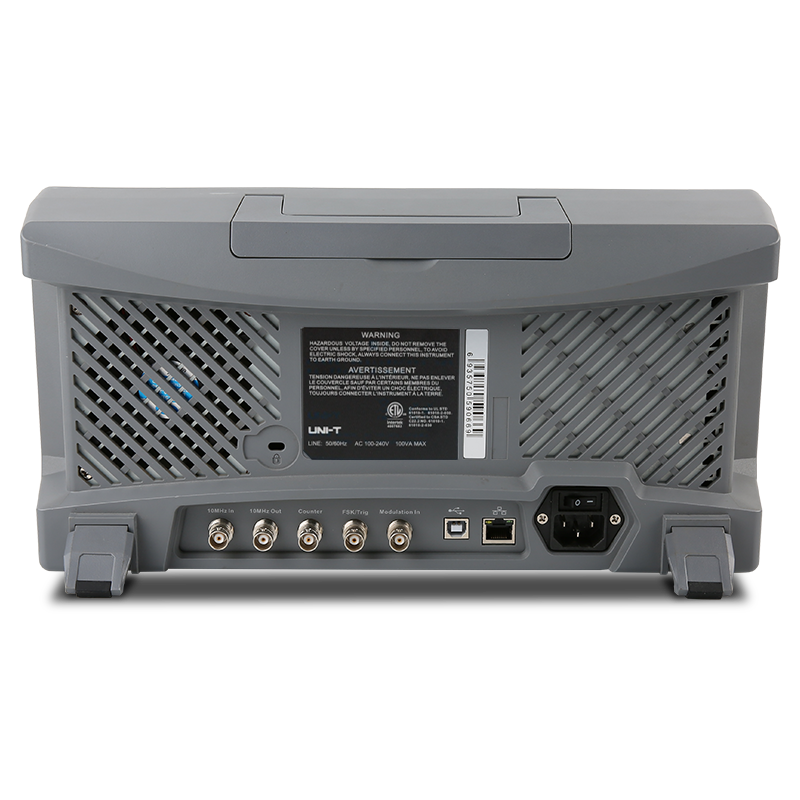

10.1 inch large touch screen
10.1 inches capacitive touchscreen with 1280*800 resolution，
The new UI design brings a different user experience.
4 channel output, 4 scan function modes
With standard analog 4-channel output,
4 scanning function modes: linear, logarithmic, step, list
High-precision frequency meter
100mHz~800MHz 8-bit high-precision frequency counter
which can measure the frequency, period, duty cycle,
positive pulse width and negative pulse width of external input signals
Multiple modulation modes and multiple output arbitrary waveforms
Abundant analog and digital modulation types include
AM,FM,PM,DSB-AM,QAM,ASK,FSK,3FSK,4FSK,PSK,BPSK,QPSK,OSK,PWM,SUM
to meet the needs of more teaching or communication system testing.
Built-in more than 200 kinds of arbitrary waveforms commonly used, engineering,
bioelectricity, medical, standard, mathematics, trigonometric functions,
inverse triangles, complex waveforms, etc. for classification
Protocol output
Three standard digital protocol output: SPI, IIC, UART
With PRBS pseudo-random wave and a signal-to-noise ratio function
The bit error rate of high-speed serial channel transmission
can be tested by sending PRBS codes.
One-key signal-to-noise ratio:
The noise superposition function supports superimposing a
Gaussian noise on the main output signal, which can be used
to test the anti-noise performance of the equipment.
| Model | Max. Output Frequency | Sample Rate | Vertical Resolution | Channels | Arbitrary Wave Length | Display |
|---|---|---|---|---|---|---|
| UTG9354T | 350 MHz | 2.5 GSa/s | 16-bit/14-bit | 4 | 64 Mpts | 10.1 inch |
| UTG9504T | 500 MHz | 2.5 GSa/s | 16-bit/14-bit | 4 | 64 Mpts | 10.1 inch |
| UTG9604T | 600 MHz | 2.5 GSa/s | 16-bit | 4 | 64 Mpts | 10.1 inch |
