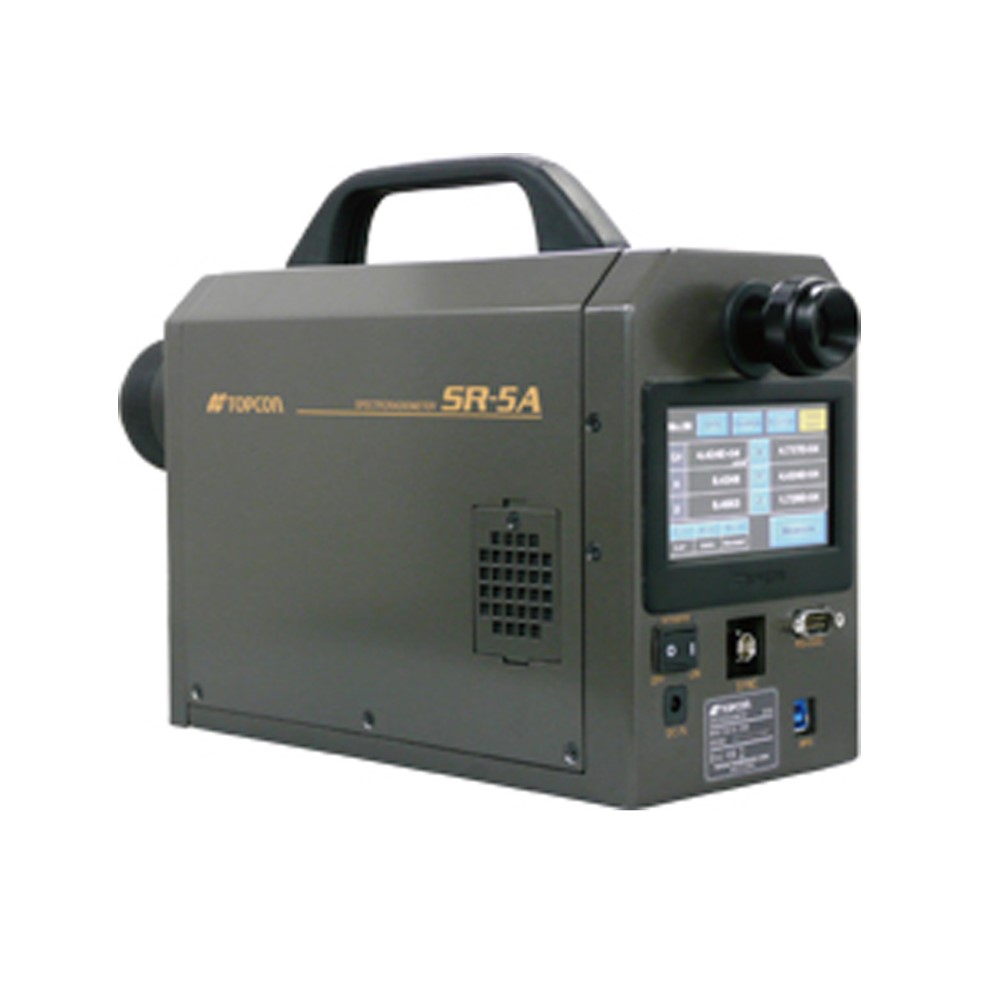

SR-5AS is a new generation spectroradiometer that can measure from ultra-low luminance to ultra-high luminance with high sensitivity and high speed.
Measurement range at measurement angle 2° is ultra-low luminance from 0.0001 cd / m² to expands the range of high luminance to 500,000,000 cd / m².
SR-5AS can measure ultra-high brightness LED without using an external ND filter.
SR-5AS realize reduction of measurement time with renewal the optical system and improvement of internal system algorithm.

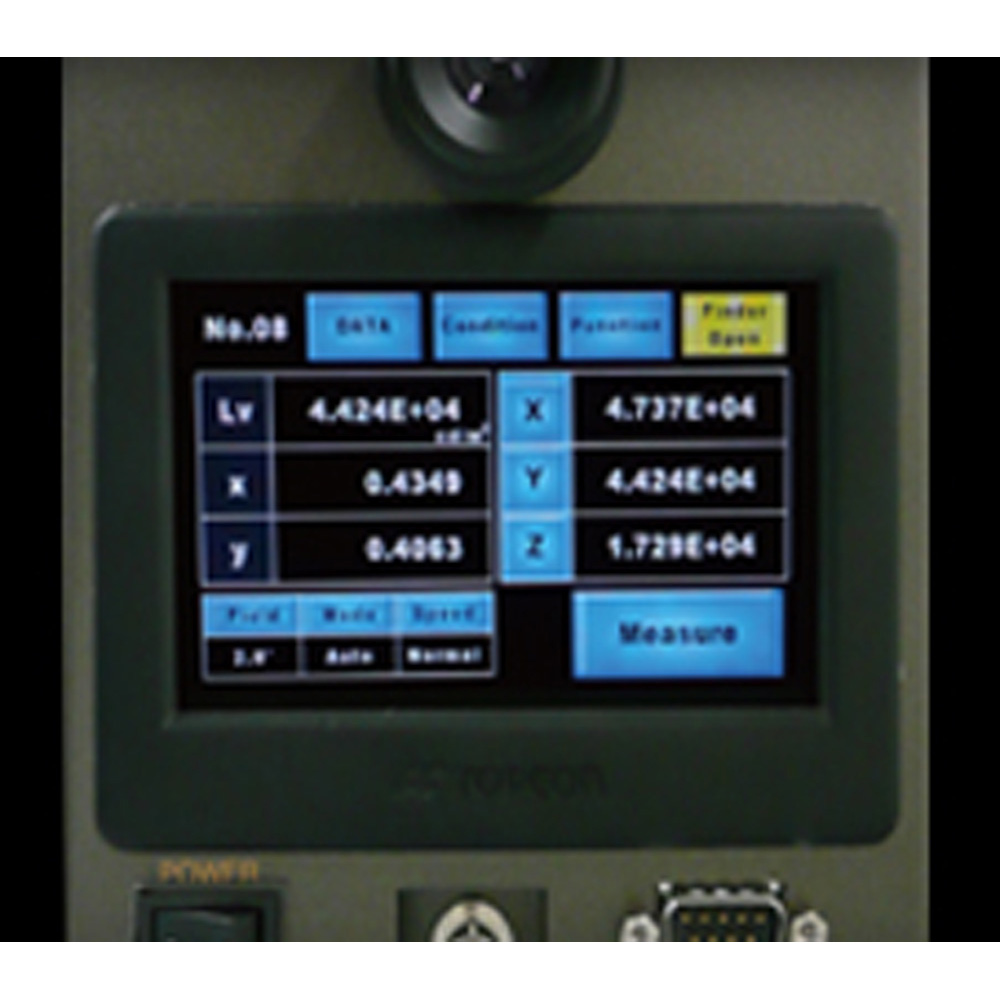

Significant improvement in usability by adopting big-size color touch panel.
FEATURES
- High dynamic range measuring(0.0001 – 500,000,000cd/m²)
- Reduction of measuement speed. It can measure more speedy using High speed mode.
- Significant improvement in usability by adopting a color touch panel.
- Pursuit of the best function and compatibility for measurement system installation.
- High accuracy measurement of flashing light (Synchronous measurement function / Integral time delay function).
- Standard accessory software can control SR-5AS and can process measured data with simple operation.
PRINCIPAL USE
- Luminance, Chromaticity, Color rendering index and Color temperature for LED Back light, LED lighting.
- Luminance and Chromaticity of µLED/Mini LED、OLED、LCD, Tablet, Smart phone display.
- Luminance and Chromaticity of head light and interior panel of automobile.
- Used as optical characteristic evaluation sensor for system equipment.
- Production line(high precision gamma measurement with spectral measuring),R&D(various evaluation such as IVL-measuring).
- Used as optical characteristic evaluation sensor for system equipment.).
SPECIFICATIONS
| Photo detector | Electronically cooled linear CCD |
|---|---|
| Dispersion element | Diffraction grating |
| Optical system | Object lens : f= 82mm F2.5, Eyepiece lens : 5° view field |
| Measuring angle | 2°/1°/0.2°/0.1° Selectable (Electric motor moved) |
| Measuring distance | 250mm – ∞ (Distance from metallic tip of objective lens) |
| Spectral band width | 5nm (Half bandwidth) |
| Spectral accuracy | ±0.3nm *Hg emission lamp |
| Wavelength range | 380 – 780nm |
| Wavelength resolution | 1nm |
| Measurement mode | Auto/Manual(Integral time/Frequency) External vertical sync signal input |
| Measuring object | Spectral radiance : W･sr-1･m-2･nm-1 |
| Measuring function | Radiance Le : W･sr-1･m-2, Luminance Lv : cd･m-2, CIE1931 chromaticity coordinates xy, CIE1976 chromaticity coordinates u’ v’, Tristimulus value XYZ, Correlated color temperature and Deviation, Dominant wavelength : nm , Peak wavelength : nm CIE standard observer 2°/ 10° |
| Measuring luminance range(*1)(*2) | 2°：0.0001 – 1,500,000 cd/m2
1°：0.0005 – 4,500,000 cd/m2 0.2°：0.0125 – 100,000,000 cd/m2 0.1°： 0.05 – 500,000,000 cd/m2 |
| Accuracy : luminance(*1) | ±2% or less |
| Accuracy : chromaticity：(x,y) (*1) | x : ±0.0015、y : ±0.001 (2° : 0.0005 cd/m2 – 、1° : 0.0015 cd/m2 – 、0.2° : 0.0375 cd/m2 – 、0.1° : 0.15 cdm2 – ) |
| Repeat accuracy : luminance(*3) | 1.5% ： 0.0005 – 0.005 cd/m2 0.4% ： 0.005 – 0.1 cd/m2 0.3% ： 0.1 cd/m2 – |
| Repeat accuracy : chromaticity(*4) | 0.005 ： 0.0005 – 0.005 cd/m2 0.0015 ： 0.005 – 0.1 cd/m2 0.0005 ： 0.1 cd/m2 – |
| Polarization characteristics | Luminance 1％ or less Spectral radiance 2％ or less (400 – 780nm) |
| Interface | RS-232C、 USB 3.0 |
| Power supply | Dedicated AC adapter AC100V-240V, 50/60Hz, DC12V |
| Power Consumption | Approx. 30W |
| Operating conditions | Temperature: 5 – 30℃, Humidity: 80%RH or less (No condensation) |
| External dimensions (W×D×H) | 422×130×244mm |
| Weight | Approx : 5.5kg |
*1 For standard illuminant A.
*2 Measurable range in Normal and High speed mode.
*3 2σ from 10 times continuous measurement at measuring angle 2° in normal speed mode.
*4 (Max – Min) value from 10 times continuous measurement at measuring angle 2°in normal mode.
MEASUREMENT DIAMETER
| Measuring angle | Measurement distance [mm]* | |||||
|---|---|---|---|---|---|---|
| 250 | 350 | 500 | 800 | 1000 | 2000 | |
| 2° | 6.5 | 10.0 | 15.1 | 25.4 | 32.2 | 66.4 |
| 1° | 3.25 | 4.99 | 7.55 | 12.7 | 16.1 | 33.2 |
| 0.2° | 0.65 | 1.00 | 1.51 | 2.54 | 3.22 | 6.64 |
| 0.1° | 0.33 | 0.50 | 0.76 | 1.27 | 1.61 | 3.32 |
* The measurement distance is the distance from the tip of the metal fixture on the instrument of the objective lens.
ACCESSORIES
- Attachment Lens : AL-6
- Attachment Lens : AL-11
- Attachment Lens : AL-12
- Reference White Board : WS-3
- CCD Adapter : IA-1A
- Fiber probe : FP-3P
- Tripod 5N : Tripod5N
- Fine Control Table : S-4
- Neutral Density Filter : ND-10/100
- Illuminance Adapter : ZV-30
