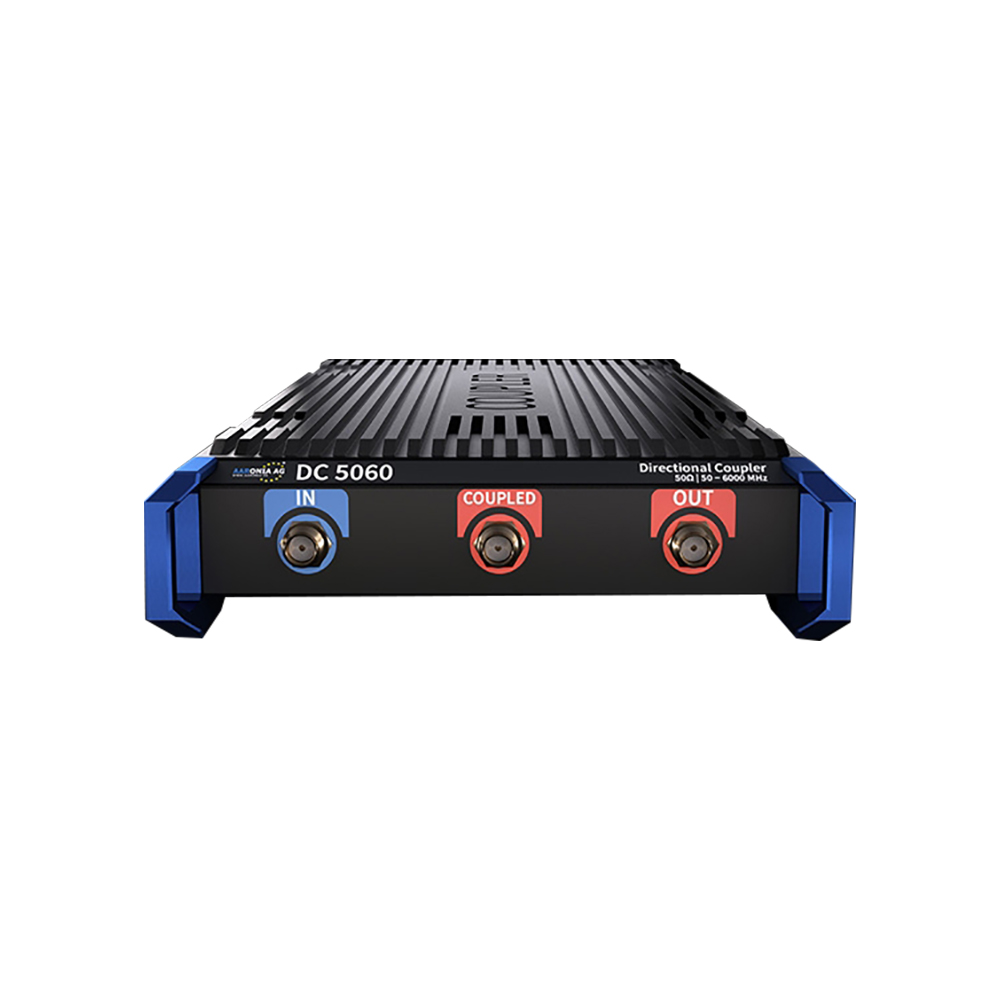

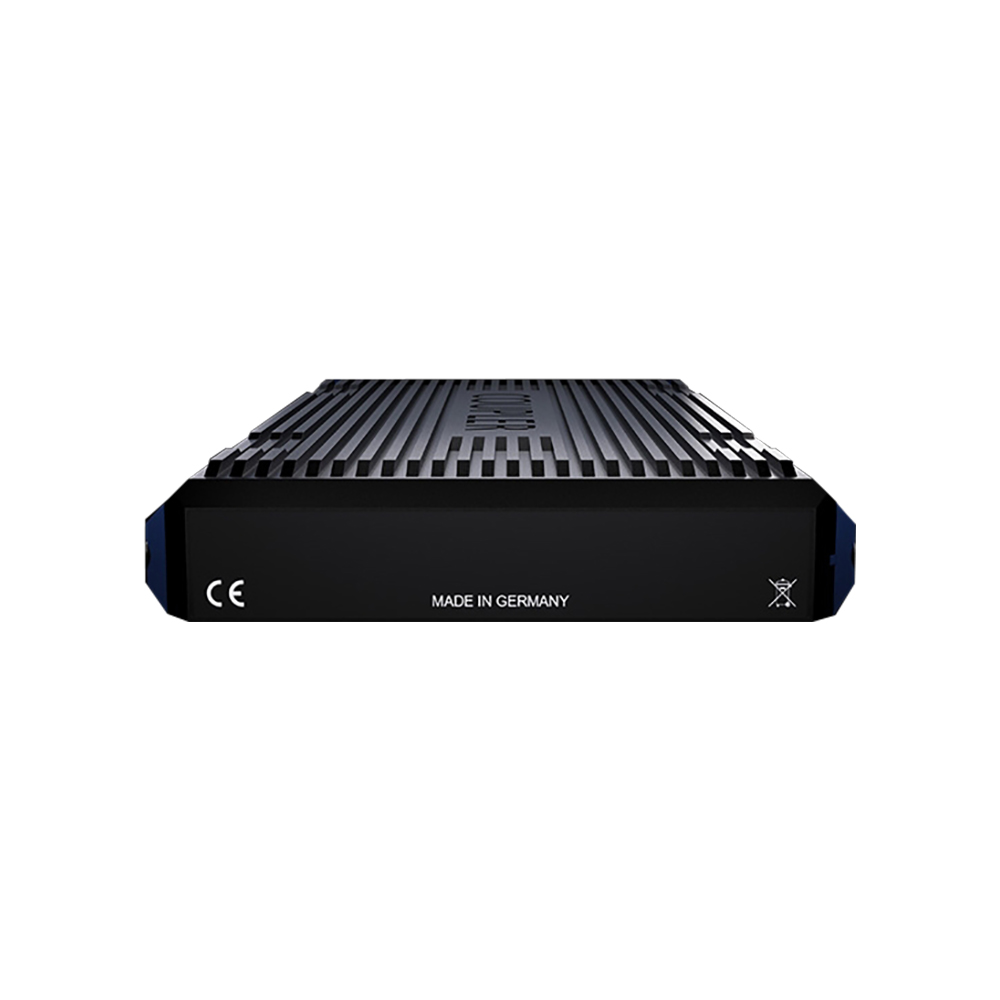

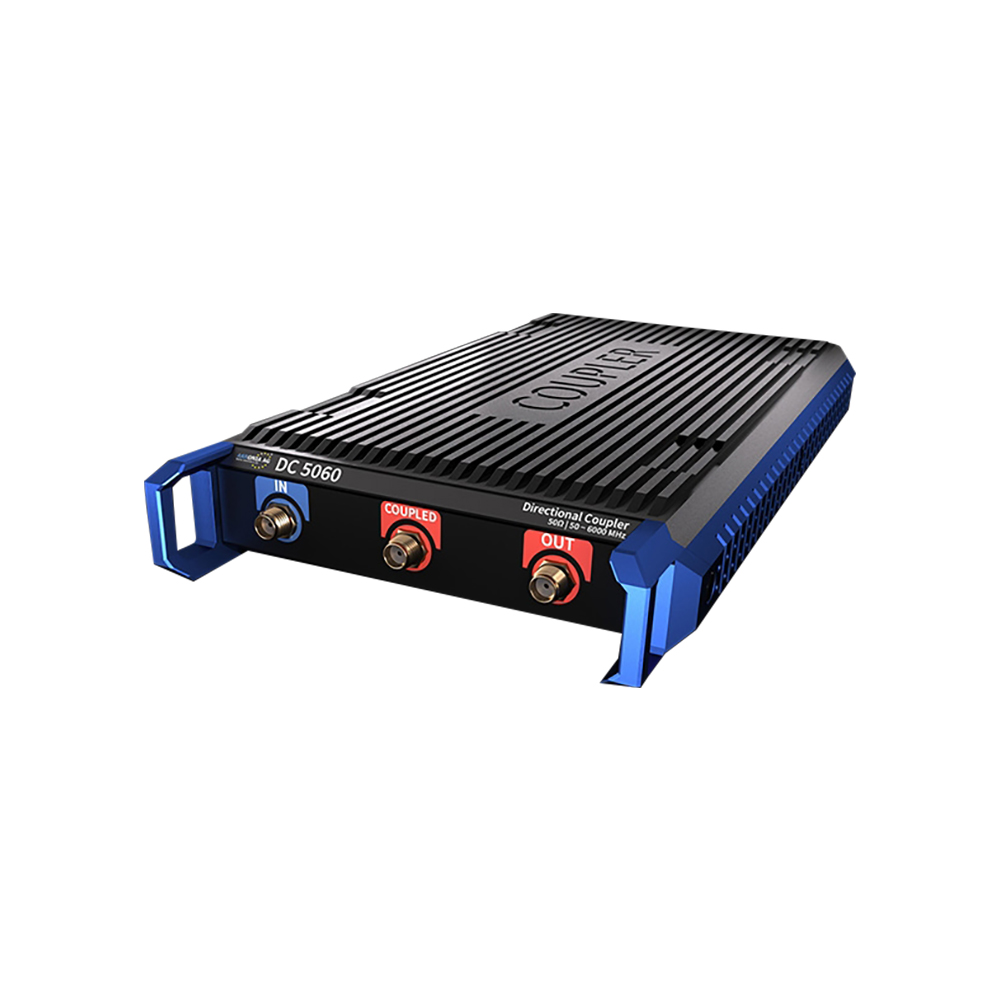

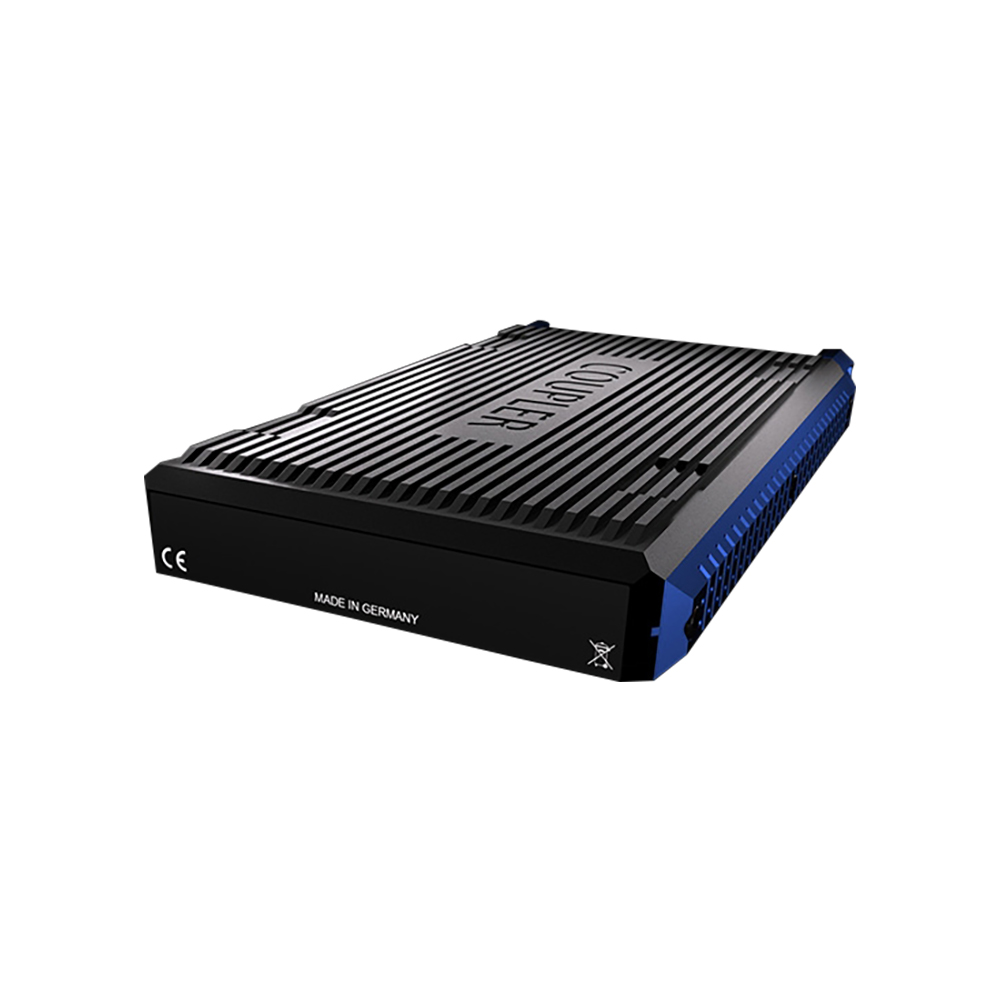

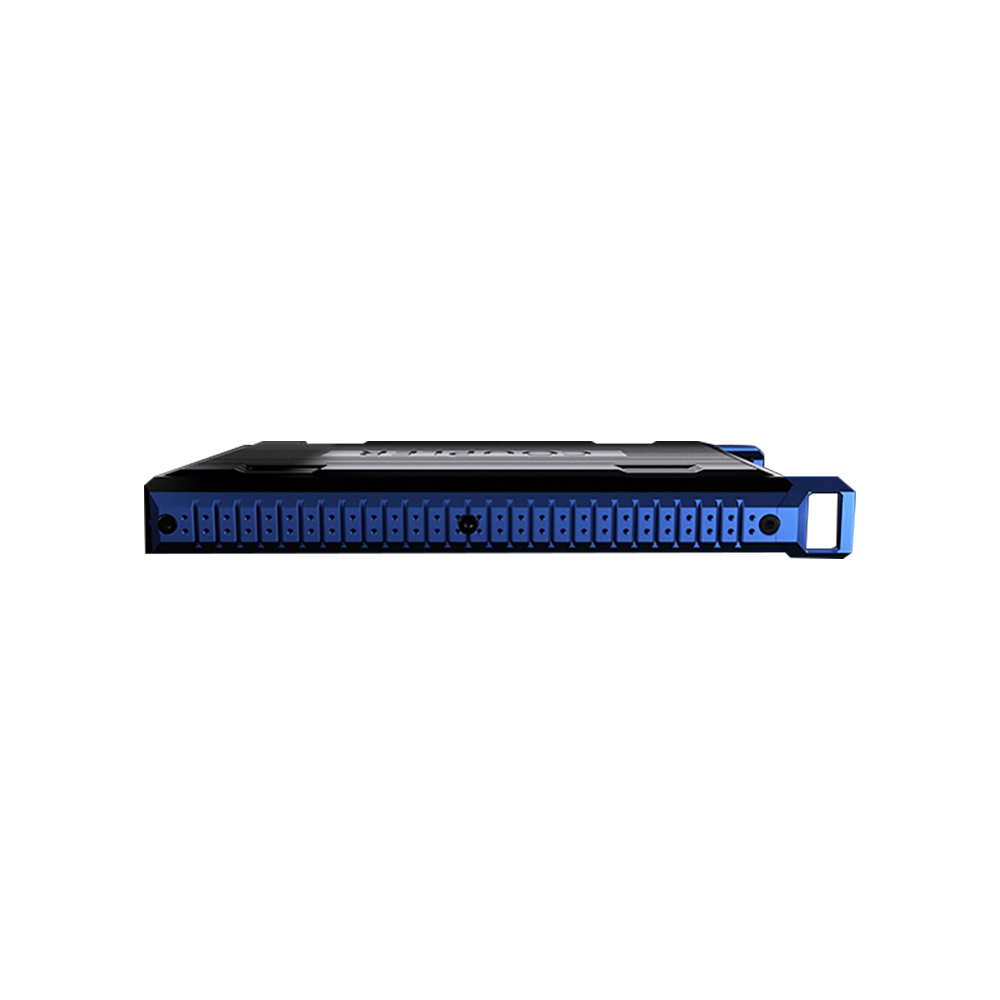

Coupler
With High Directivity and Linearity of the Coupling Output from 50 to 6000 MHz

KEYFACTS
Frequency Range 50 MHz – 6 GHz
Connectors SMA (f)
Impedance 50 Ohm
Coup. flatness ± 0.45dB
Directivity up to 33dB
VSWR (typ.) 1.2:1
Insertion loss 2dB
Op. Temp. -40 – 85°C
Storage Temp. -55 – 100°C

High-directivity directional coupler. Provides outstanding directivity and excellent coupling flatness from 50 to 6000 MHz, making S-parameter measurements and intermodulation measurements as well as other test and system applications possible.

Features:
• Wideband: 50 to 6000 MHz
• High directivity: 32 dB (typ.)
• Flat coupling: ±0.45 dB (typ.)
• Good VSWR: 1.20:1 (typ.)
• Dimensions: 210 x 115 x 30 mm
• Weight: 850 g

MORE INFORMATION

Frequency range: 50MHz – 6GHz
