APPLICATION
The main purpose of the GPS logger consists of recording the position and even the orientation of the Aaronia antennas (HyperLOG X , HyperLOG EMI or Magnotracker series).
The GPS sensor allows for easy collection and documentation of your measurement position, including elevation information.

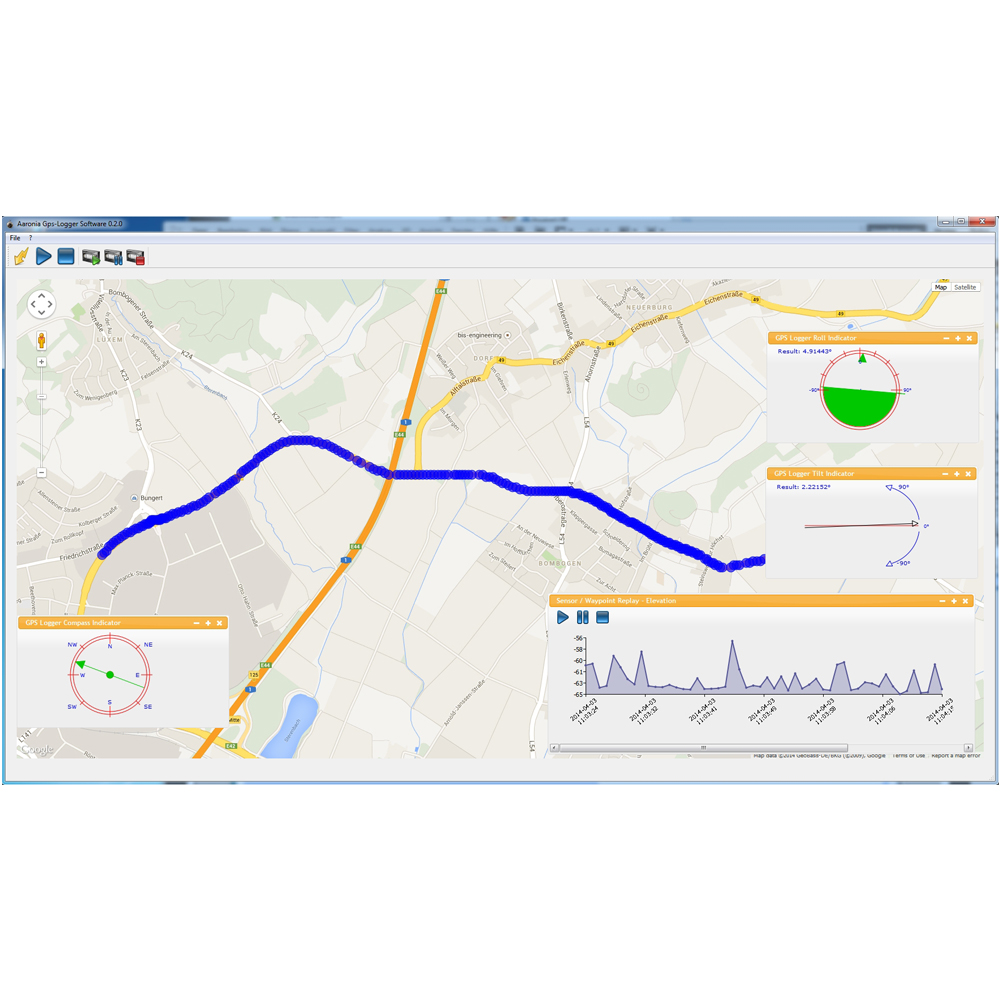

Even more interesting is the Tilt-sensor and the digital compass, hereby the inclination and orientation of the antenna can be recorded and evaluated during the measurement. This special feature allows you to easily create an ” RF heat map ” including frequency, direction and strength of an RF source within 360 degrees.
Of course, the Aaronia GPS Logger can also be used for other purposes.
SPEED/DATA VOLUME
The Aaronia GPS-Logger offers a very fast update rate of up to 35 complete logs with all sensor data per second (on µSD-Card and/OR USB-Streaming) offering a “real time” display of the unit orientation. At maximum rate the Aaronia GPS-Logger will produce around 50MB/hour (uncompressed)!
The maximum usable µSD volume is 2GB, offering a maximum recording time of about 2 days at full speed on the µSD card.
The data rate can be adjusted to much lower rates to keep data volume much lower offering long time recording on the µSD card over weeks or even months.
OPERATION
The Aaronia GPS – Logger is powered by the internal LiPo battery (standalone).

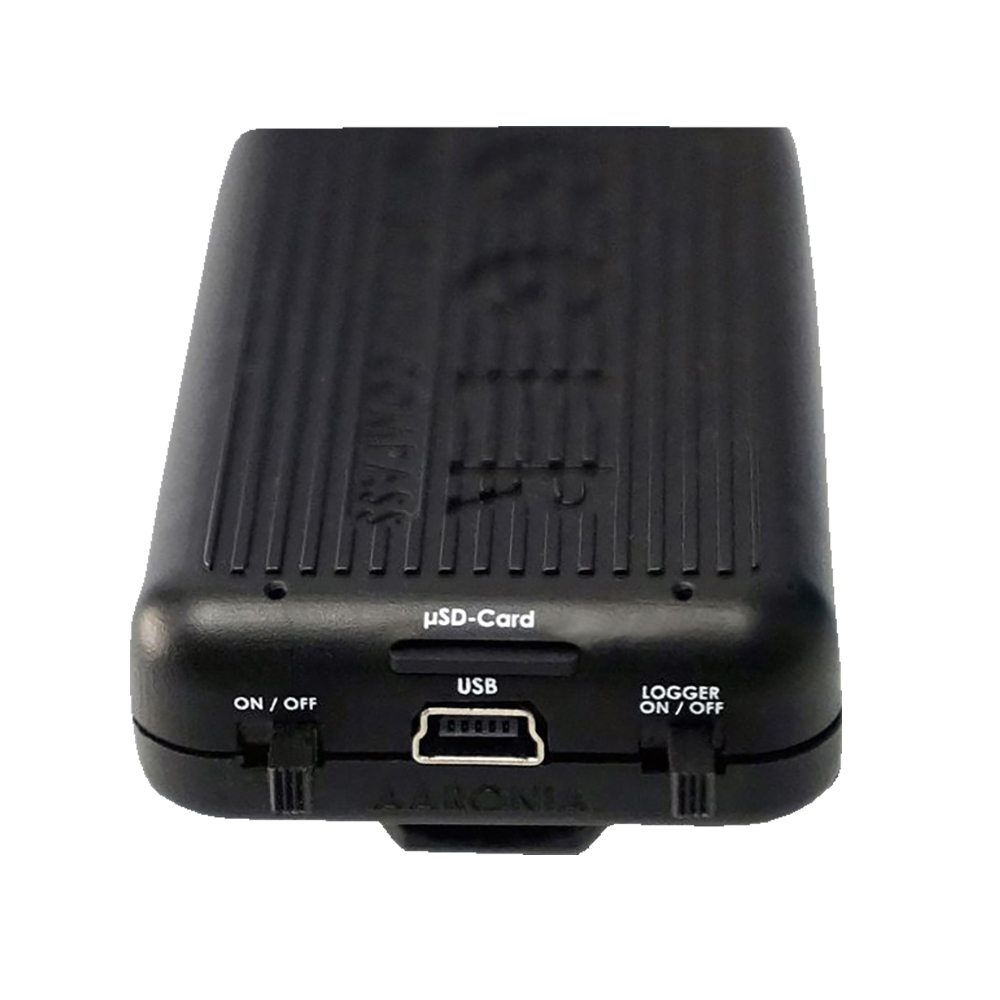

The logger has three operating modes:
– Streaming / logging on the internal (removable) μSD Card, completely independently as a stand- alone device
– Continuous recording via USB port (PC or MAC OS)
– Transfer of files stored in internal μSD Card (PC or MAC OS)
ASSEMBLY

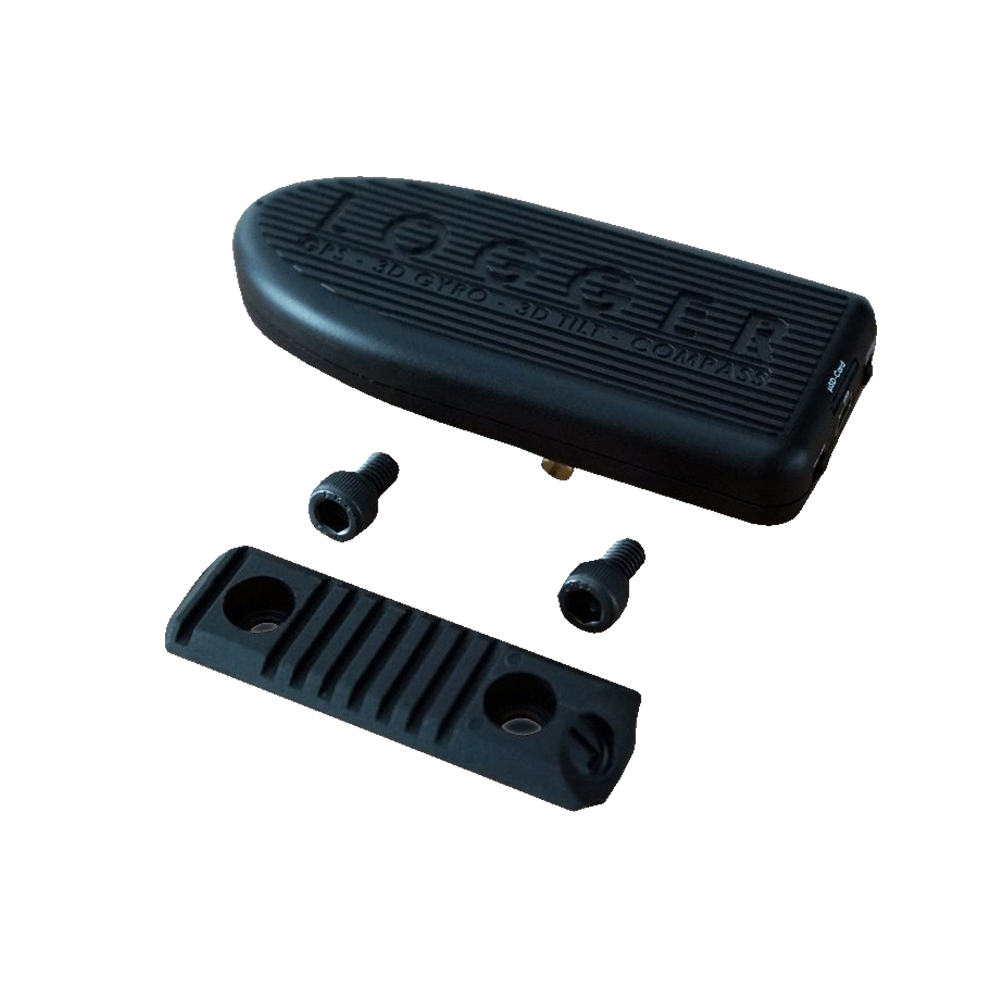

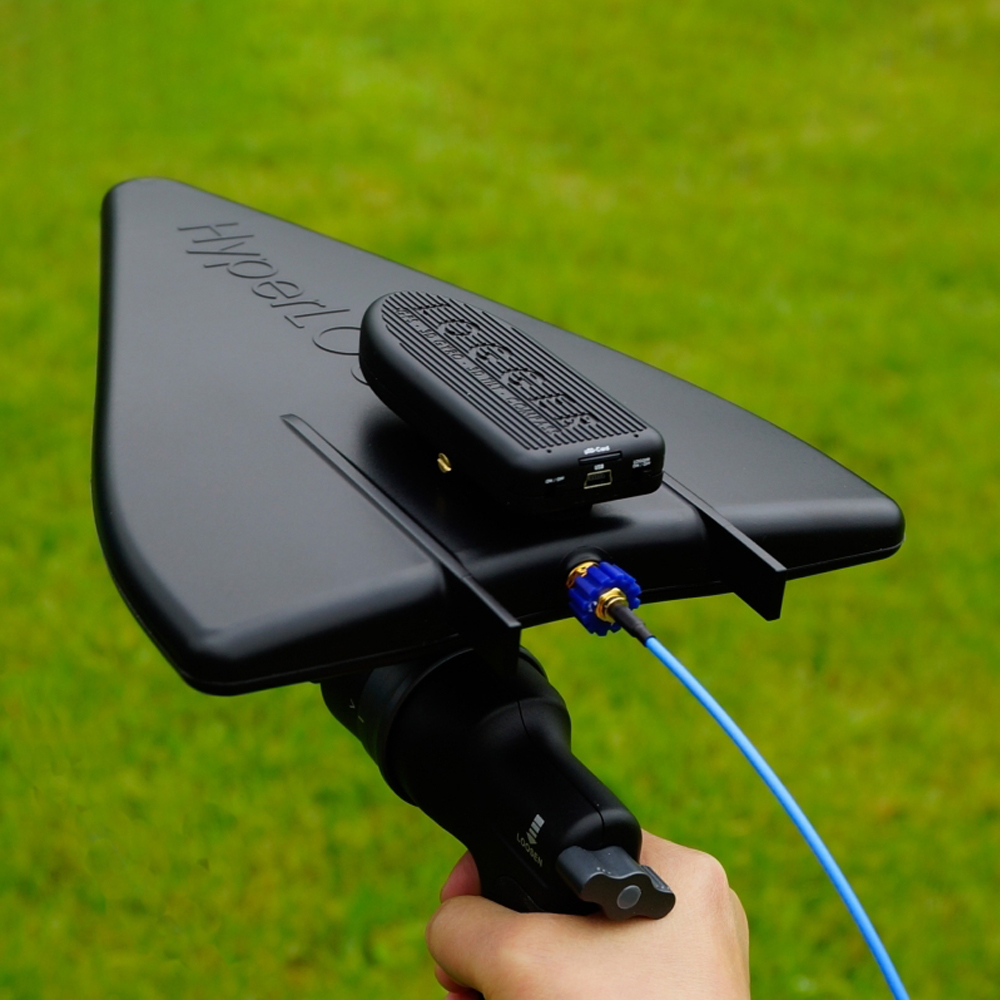

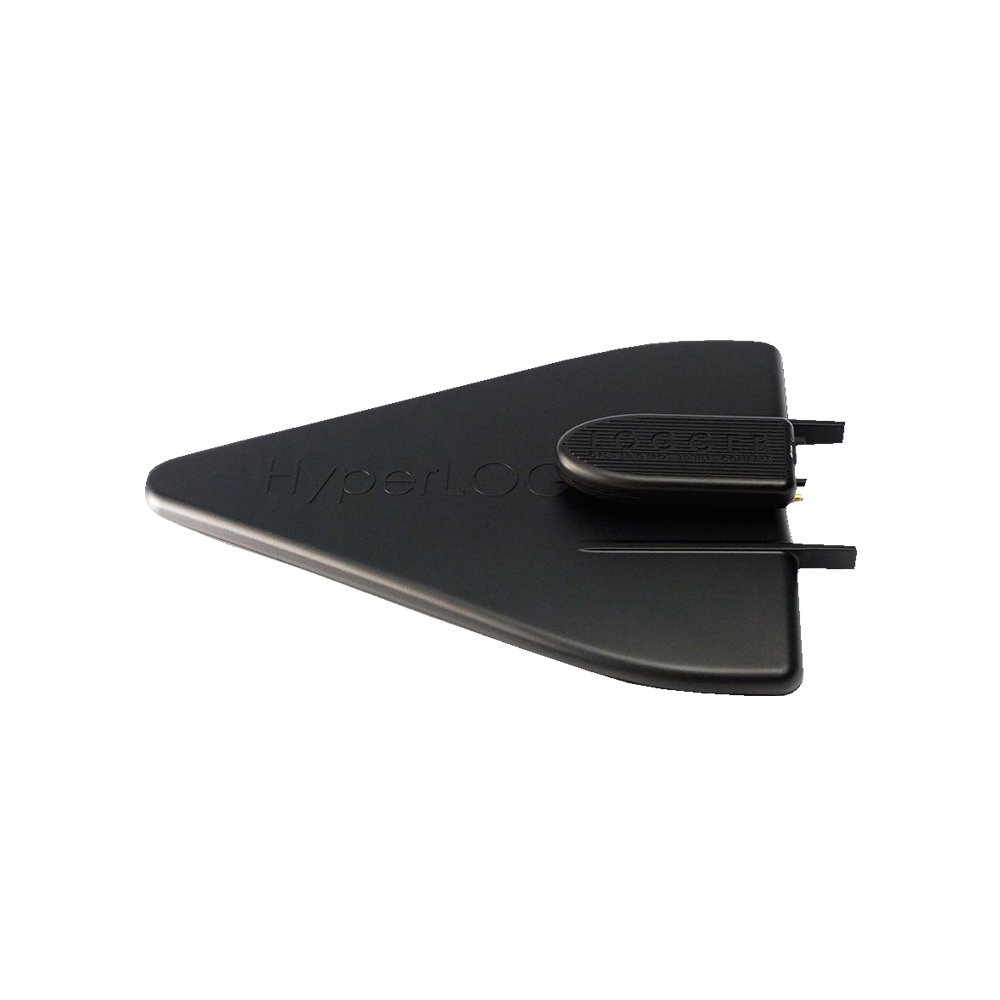

The Aaronia GPS – logger can be mounted directly on HyperLOG X, BicoLOG and HyperLOG EMI antennas (screws and adapter included).
It can also be mounted on any other device , car, etc. with the included adapter. This only requires 2 holes to be drilled to attach the supplied adapter.
