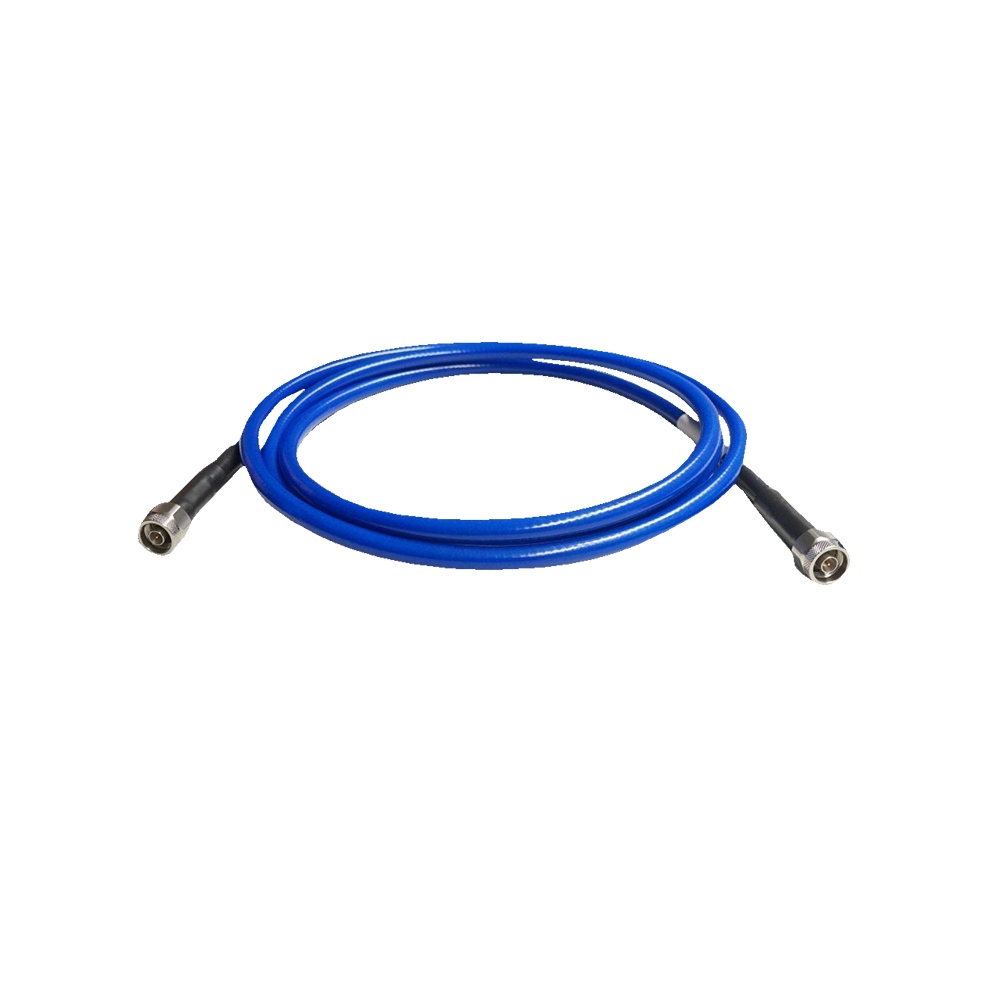

This high-grade, waterproof cable with N-connector can be used to connect Antennas with N connector (e.g. IsoLOG 3D, 3D Mobile or HyperLOG EMI) with Spectrum Analyzers offering an N input (e.g. Spectran XFR V5 PRO, Spectran RSA).
• Length: 3m
• Colour: blue
• Outer diameter: 10,8mm
• Plug: 2 x N plug (male)
• Nominal impedance: 50 Ohms
• Capacity: 96,4pF/m
• VSWR: max. 1,15:1 (6GHz)
• Damping 1GHz: 1,25dB
• Damping 2GHz: 1,8dB
• Damping 3GHz: 2,25dB
• Damping 6GHz: 3,4dB
• Max. power capacity: 540W (1GHz)
• Temperature range: -40°C to 105°C
• Weight: 0,8kg
