External 4-way low-loss splitter/combiner 700MHz – 6GHz (e.g. stitch multiple V6 units to expand the real-time bandwith).
Automatically locking and stackable on SPECTRAN® V6 devices, RF-over-Fibre-converter-systems and V6 powerbanks.

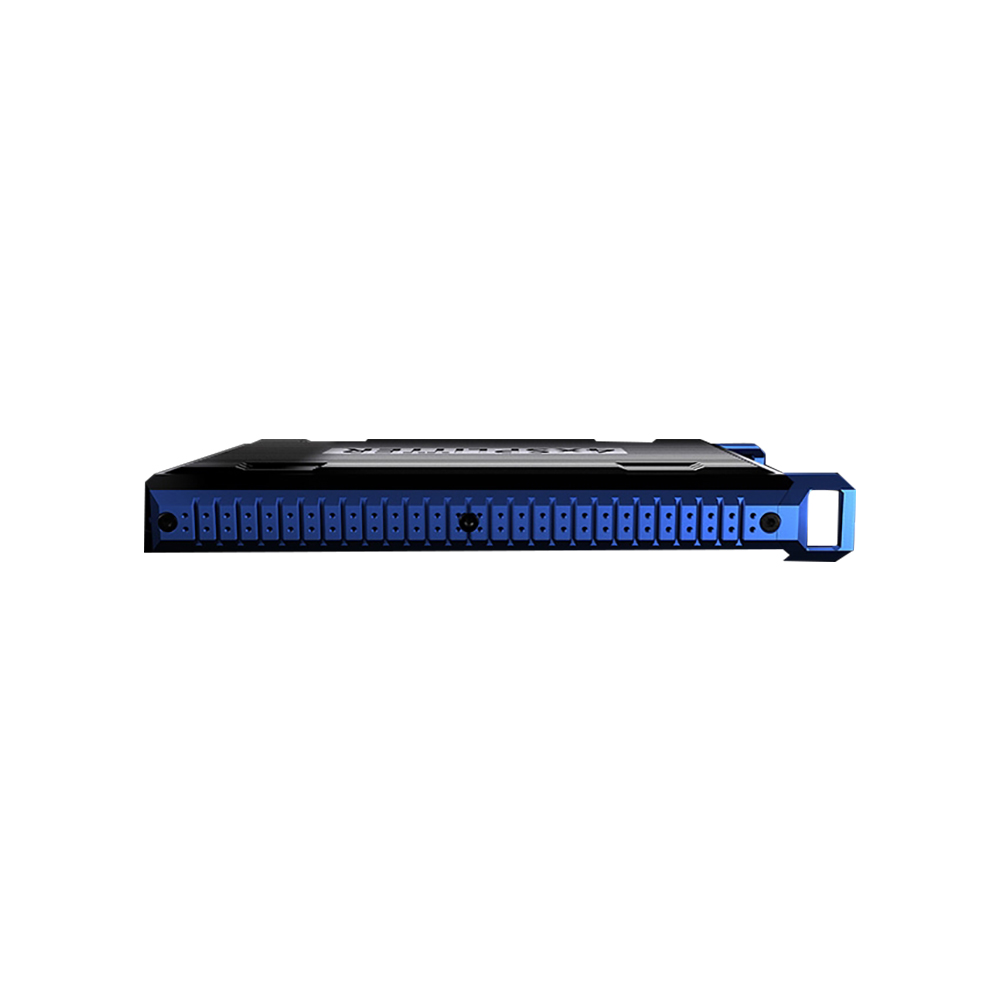

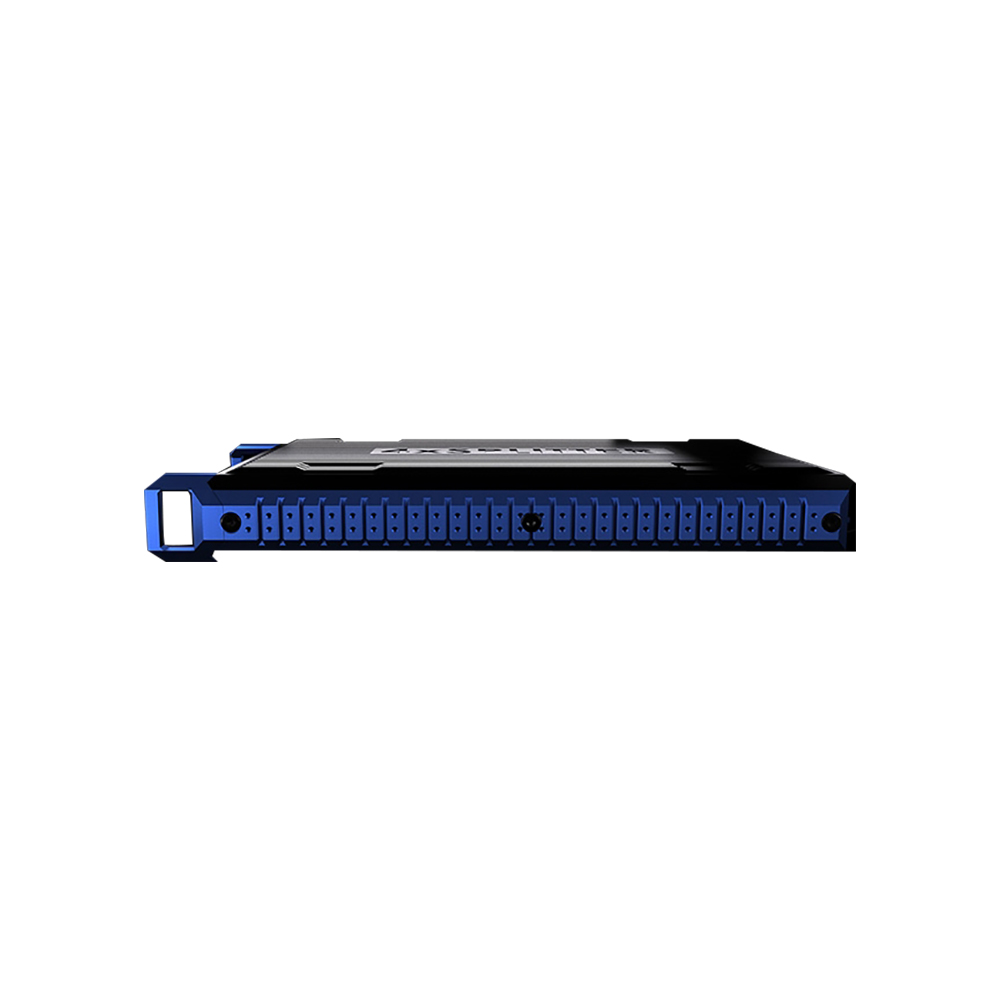

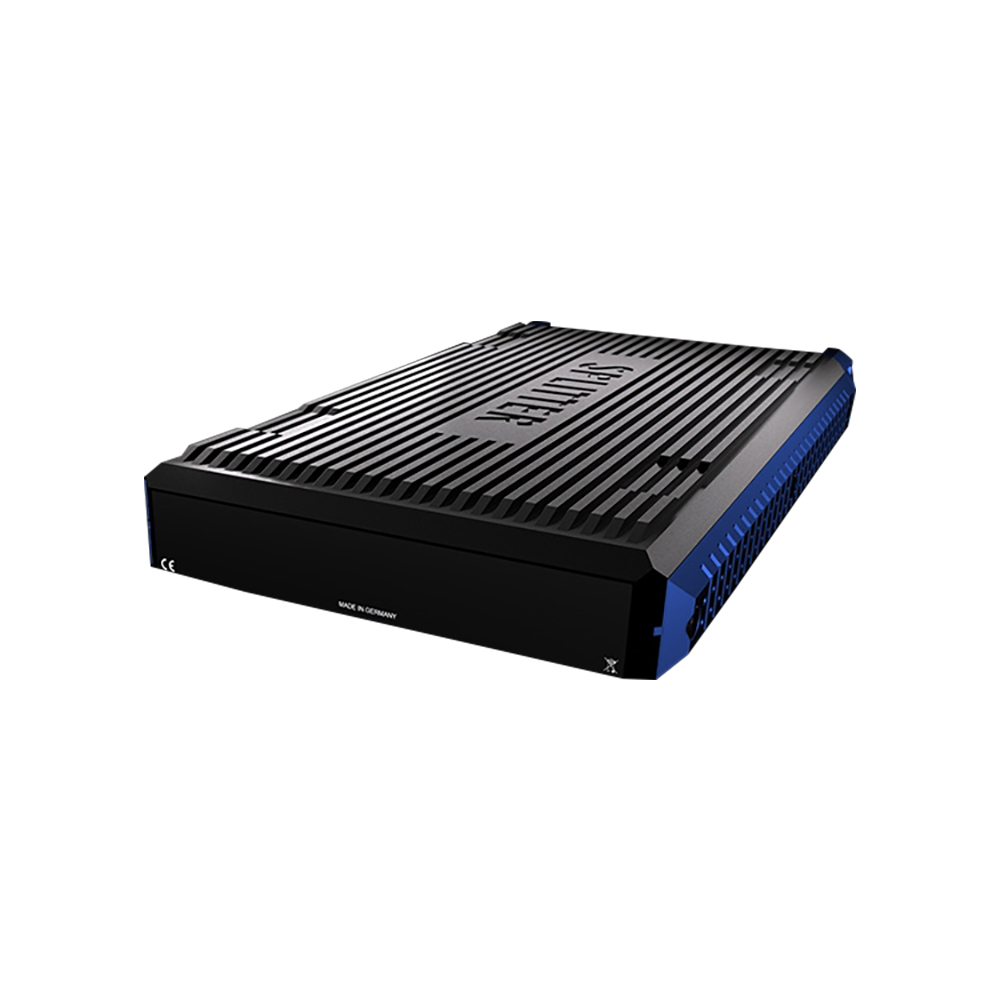

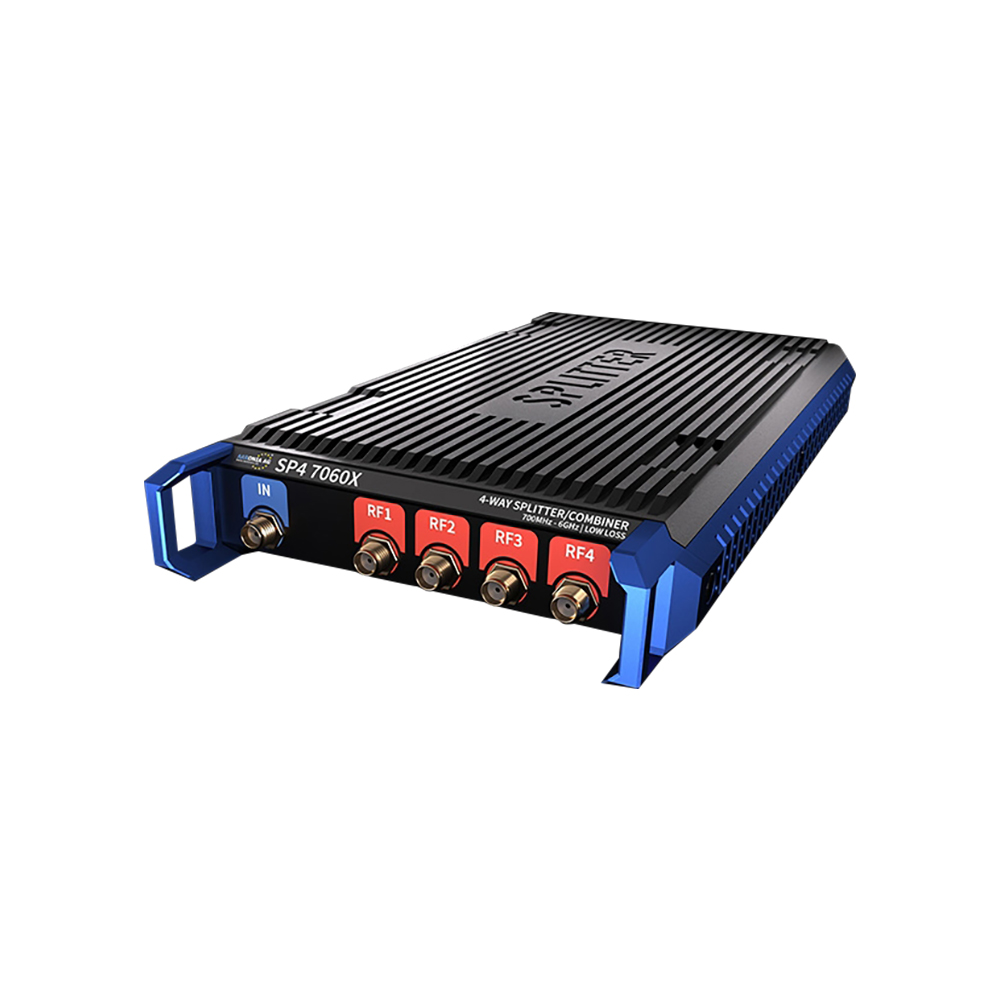

SP4-7060X Splitter
4-Way Splitter/Combiner
| KEYFACTS | |
|---|---|
| Frequency Range | 700MHz – 6GHz |
| Isertion Loss | ≤ 15 dB |
| VSWR IN | ≤ 1.60:1 |
| VSWR OUT | ≤ 1.50:1 |
| Amp. Balance | ± 0.8 dB |
| Isolation | ≥ 6 dB |
| Impedance | 50 Ω |
| Power Handling | 2 Watt |
| Connectors | SMA (f) |
| Design | USB-Desktop |
