SPECTRAN NF-5030 S
Usable for ICNIRP/VDE0848

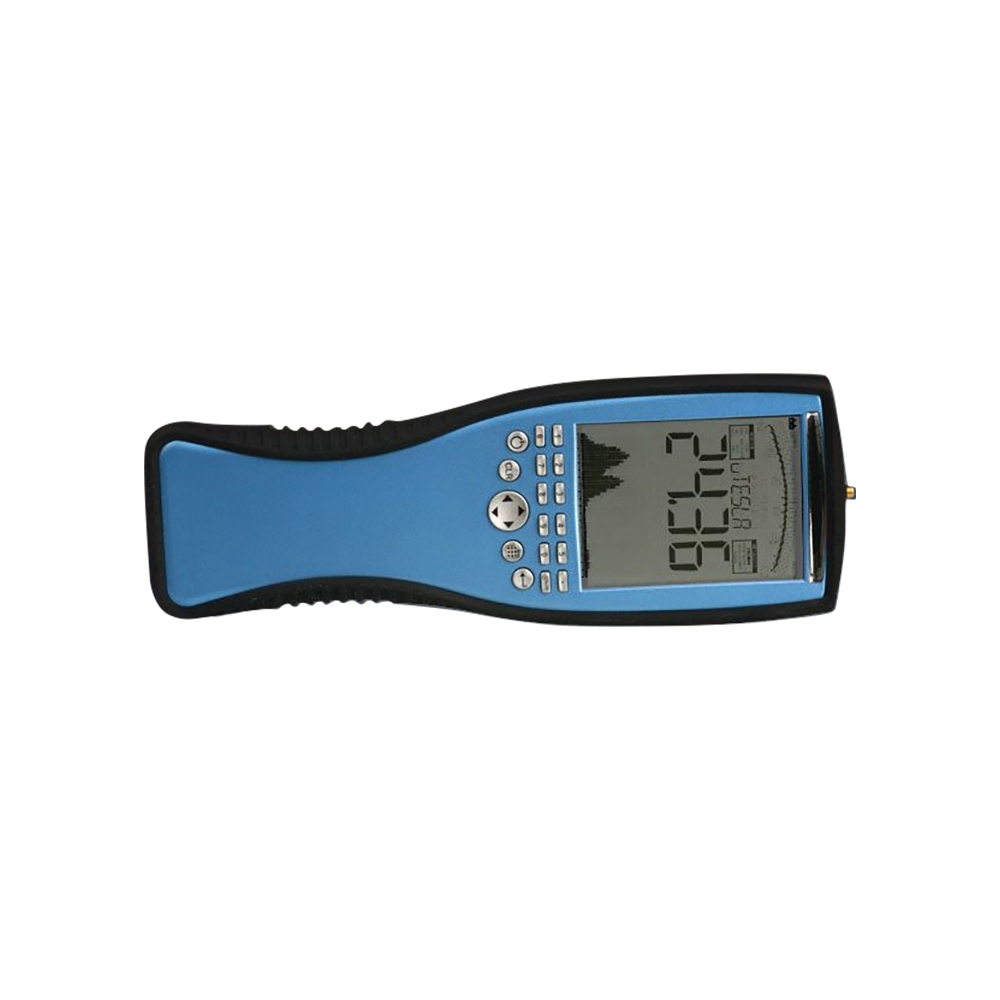

Technical details Spectrum Analyzer SPECTRAN NF-5030S

• Vastly expanded range
• Measurement range up to DIN/VDE 0848
• 65 MSPS
• Lots of options
• Frequency range: 1 Hz to 1 MHz (optional 30 MHz)
• Typ. level range E-Field: 1 V/m to 50 kV/m
• Typ. level range H-Field: 1 pT bis 500 μT
• Typ. level range Analog in: 200 nV to 200 mV / -150 dBm (Hz)
• Typ. accuracy: 3%

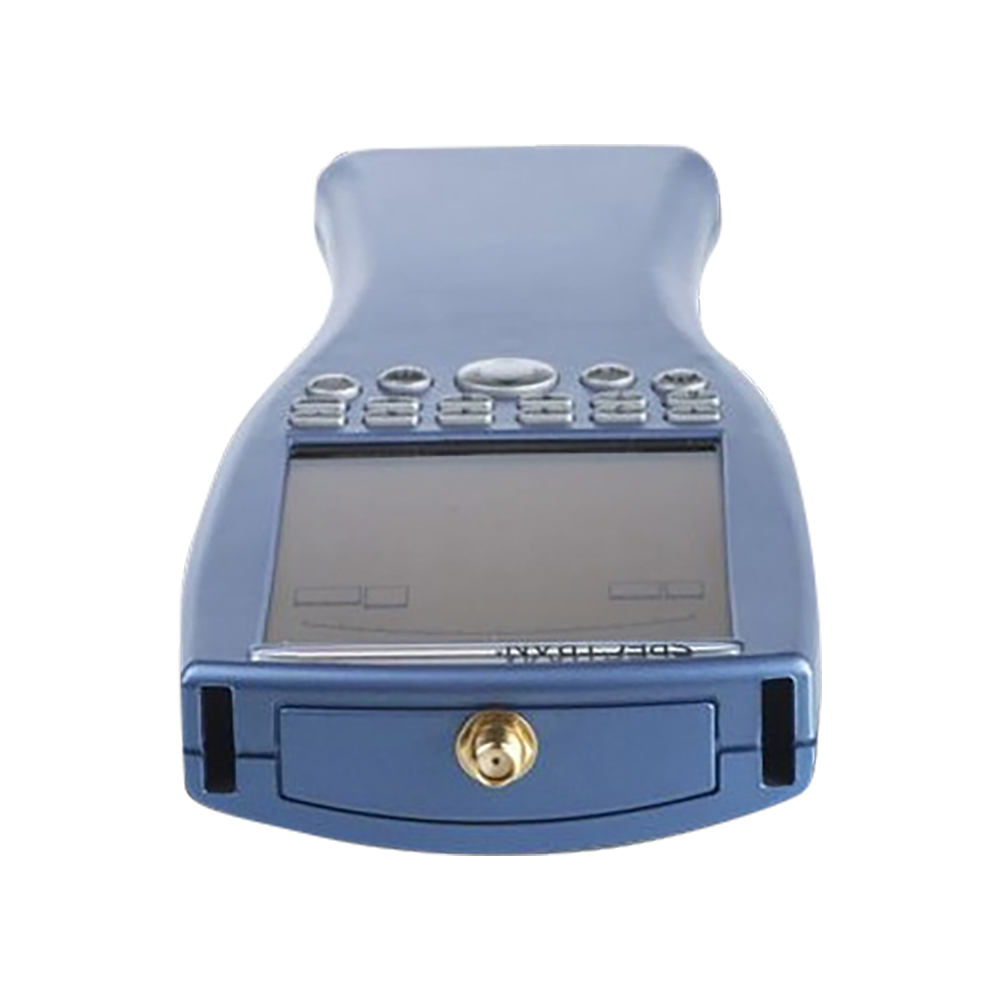

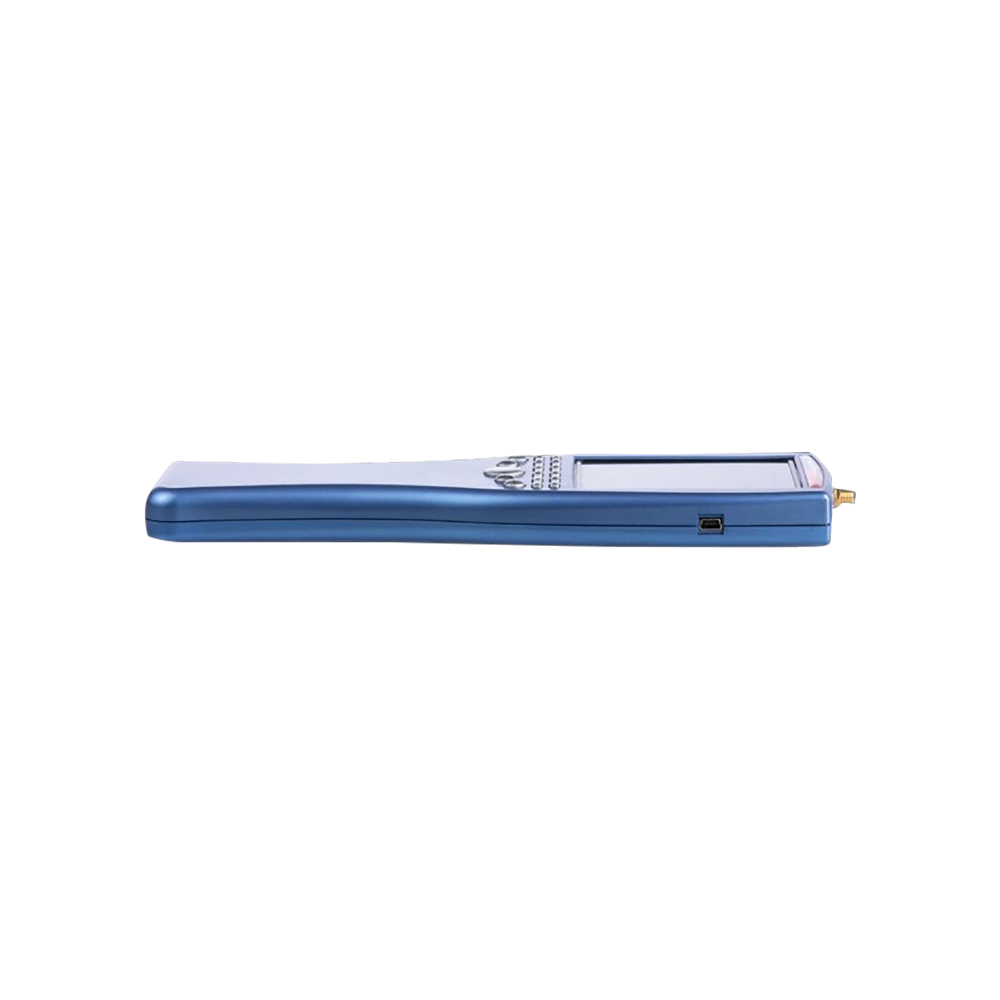

• External SMA signal input
• USB 2.0 Interface

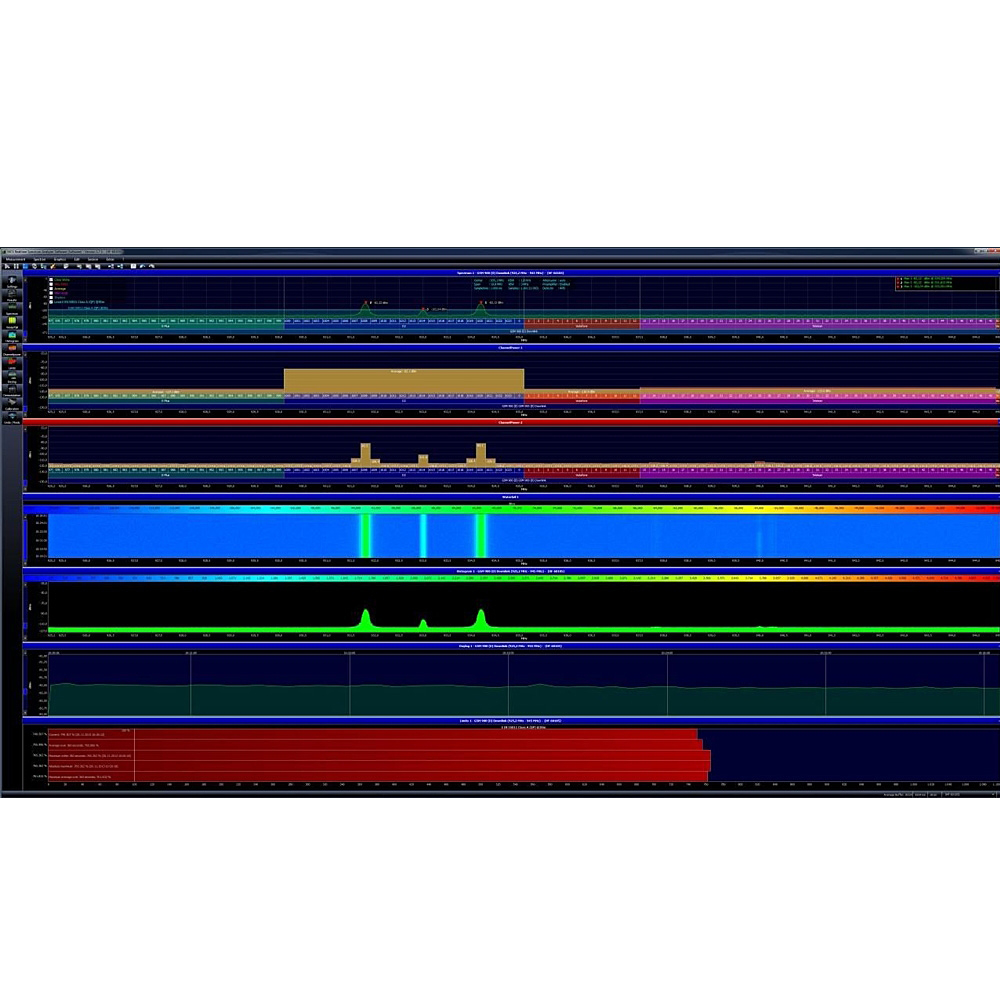

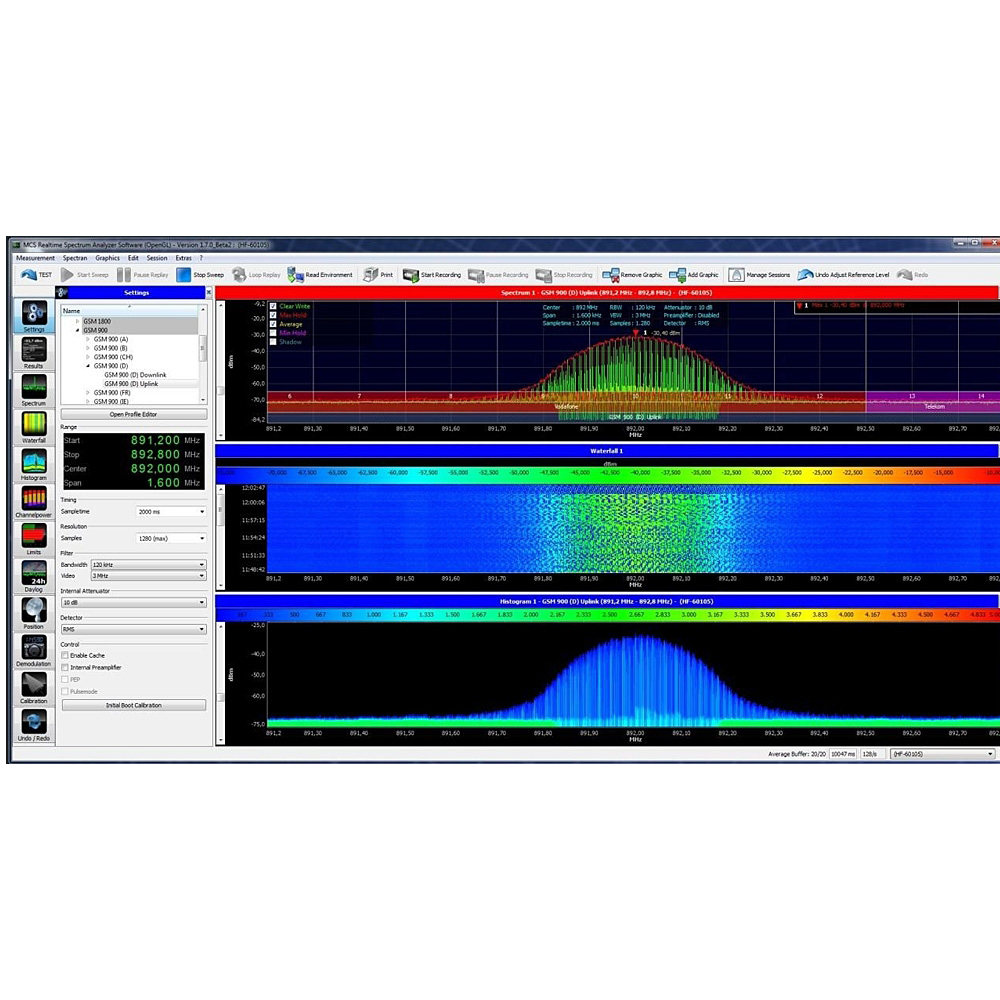

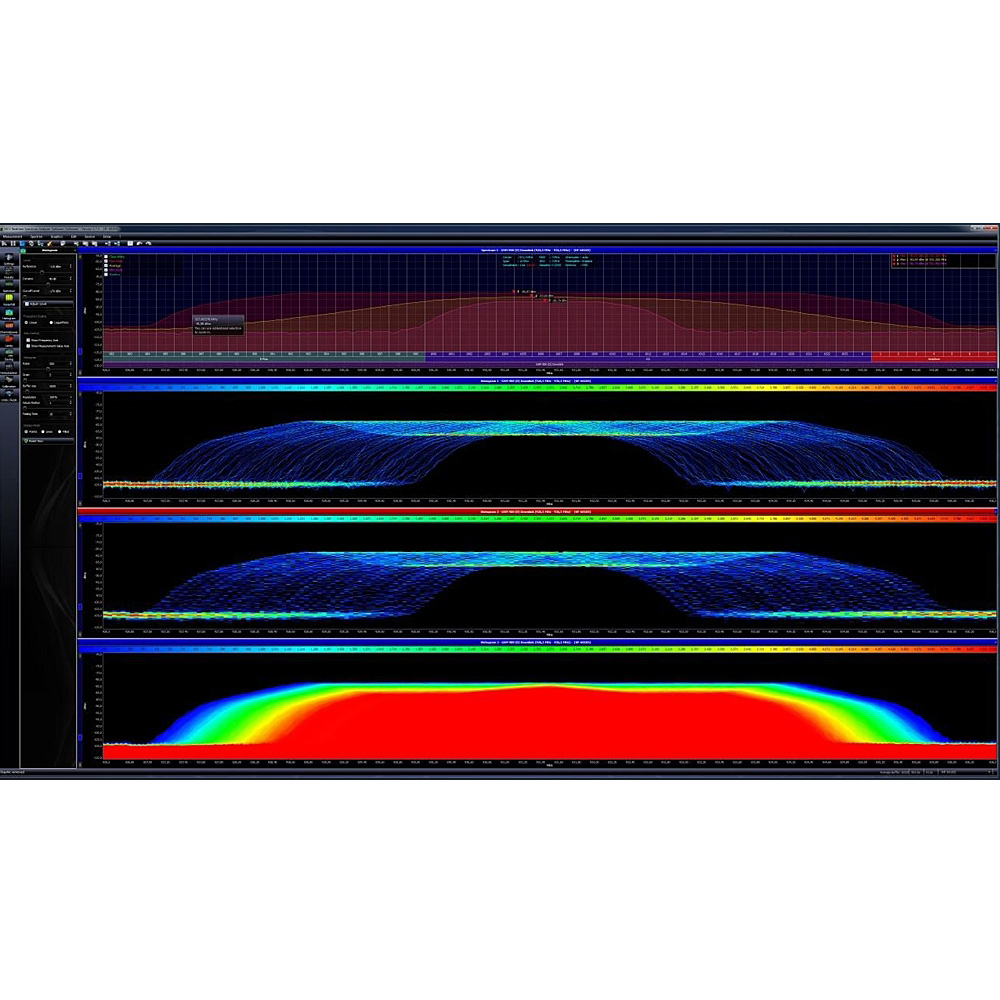

• Real-time FFT/DFT spectrum display
• Resolution (RBW):
0,3Hz to 10MHz (1-3-10 step)
• Detectors: RMS, Min/Max • Units: V, V/m, T, G, A/m
• Demodulator: AM, FM
• Simultaneous M-Display X, Y, Z axes
• 3D magnetic field measurement
• True RMS signal strength measurement
• Average (AVG) measurement
• PEAK Hold
• Frequency and signal strength display
• High resolution multifunction display
• DIN/VDE 0848 exposure limit calculation
• Internal data logger
• Internet flash software updates

Our high power spectrum analyzer for the professional at an unbeatable price!
Ultra broad range and high accuracy. Frequency range according to complete ICNIRP (public)! Perfect for Pre-Compliance and EMC/EMI tests up to 30 MHz.

By adding the 20 MHz or 30 MHz frequency extensions, complete new applications become possible, e.g. assessment of the 13.56 MHz RFID and VDSL2 frequency bands. A MUST-HAVE for EMC measurements. An ideal solution for technicians and authorities for accurate examination of signal sources up to 30 MHz.

MORE INFORMATION

Country of Manufacture: Germany
Frequency range: 1Hz to 1MHz (opt. 20MHz / 30MHz)
Weight: 430g
Vector power measurement (I/Q) and True RMS: Yes
FFT (Resolution in points): 1024
Filter bandwidth (min/max): 0,3Hz (min) / 10MHz (max)
Typ. precision base unit: 3%
Typ. level range: 1pT to 500μT

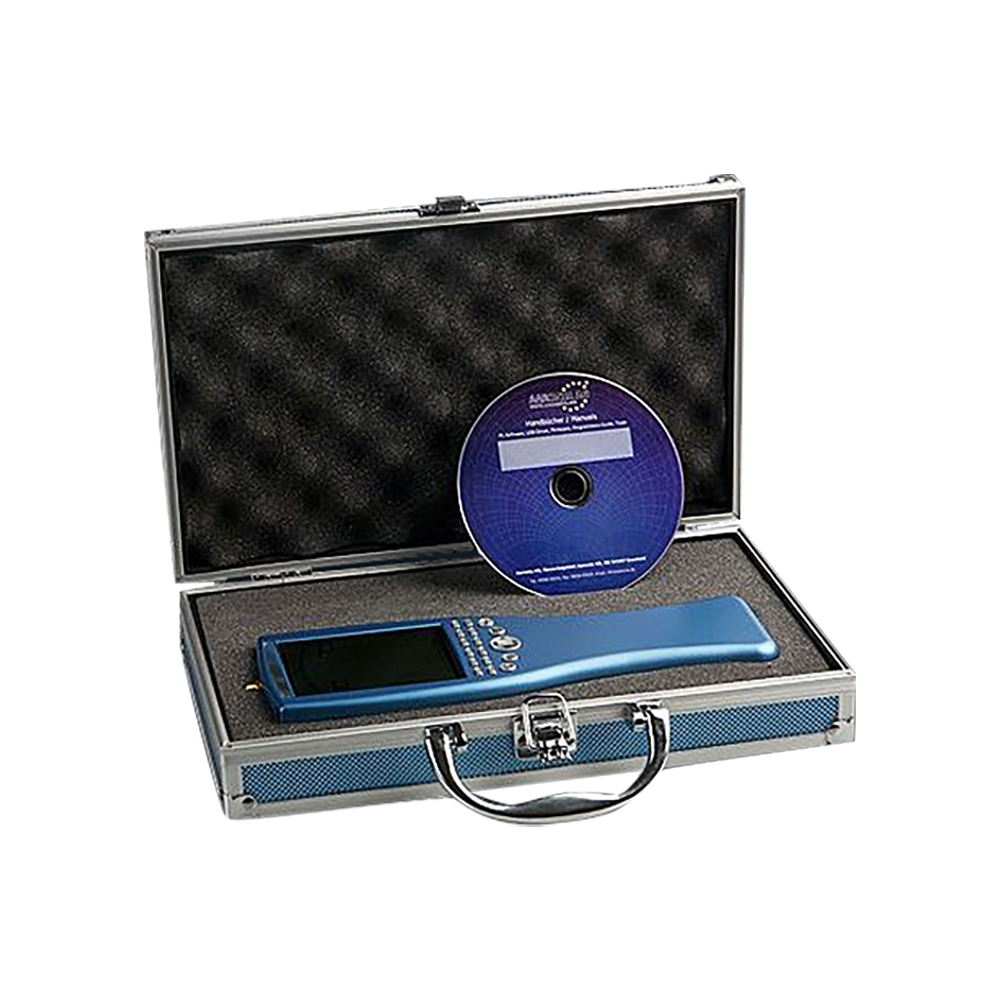

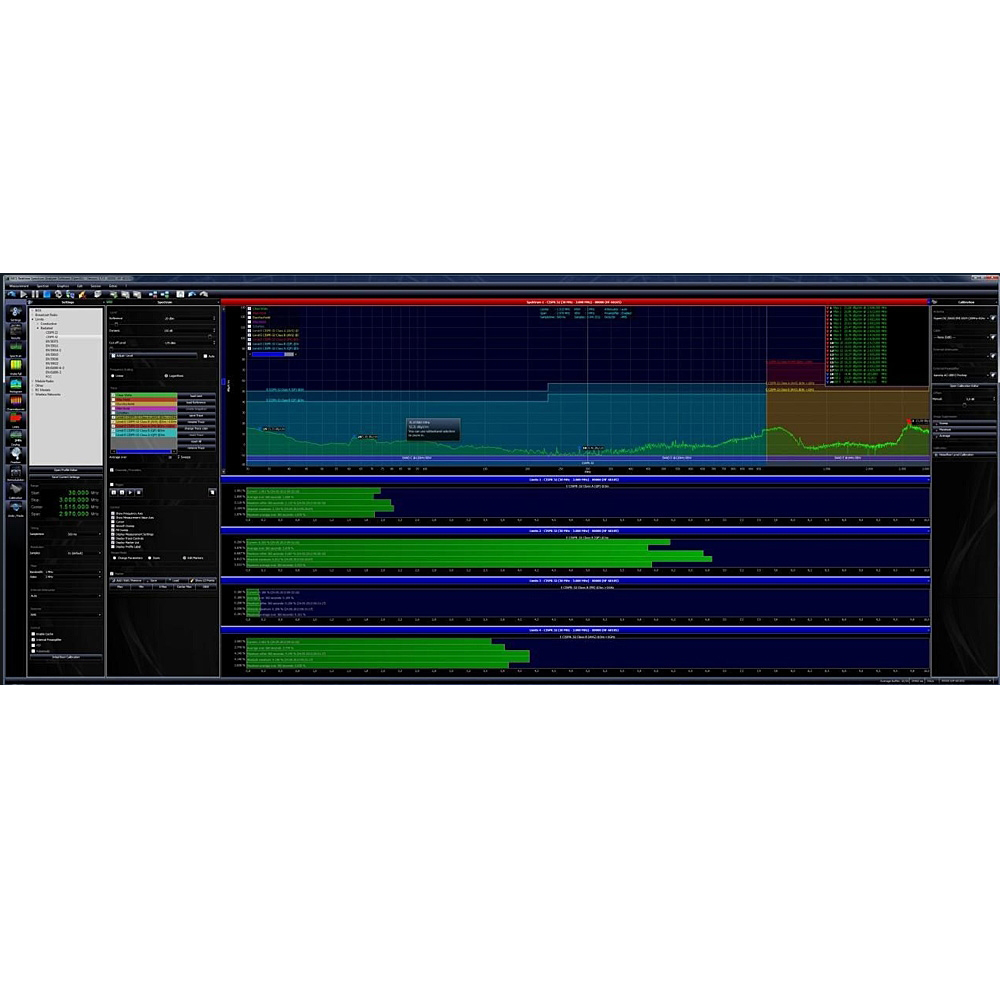

Included with delivery: Spectrum Analyzer SPECTRAN NF-5030S, 1300mAh battery, battery charger, car power adapter, aluminum carrying case, PC Analyzer Software and detailed English manual (on CD)
Range Analog input (typical) 200nV (min) – 200mV (max)

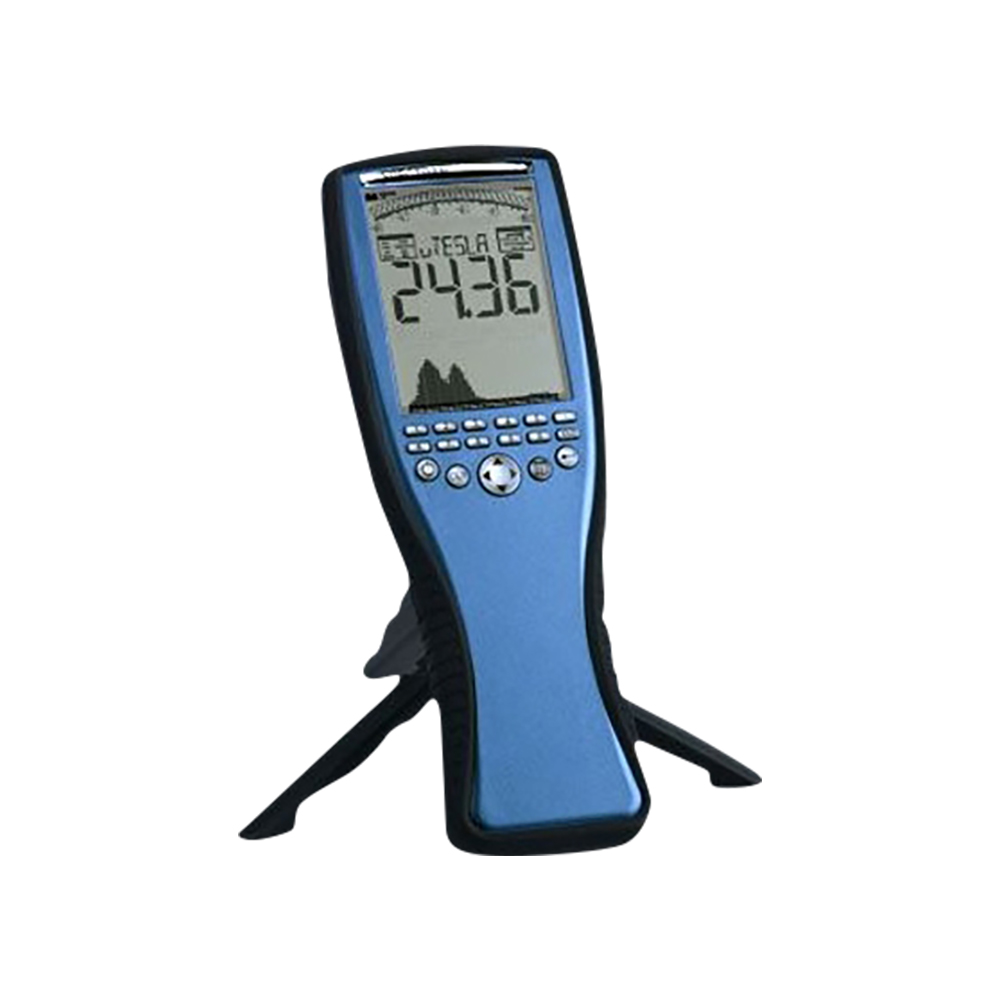

Tripod connection: 1/4″
