OVERVIEW

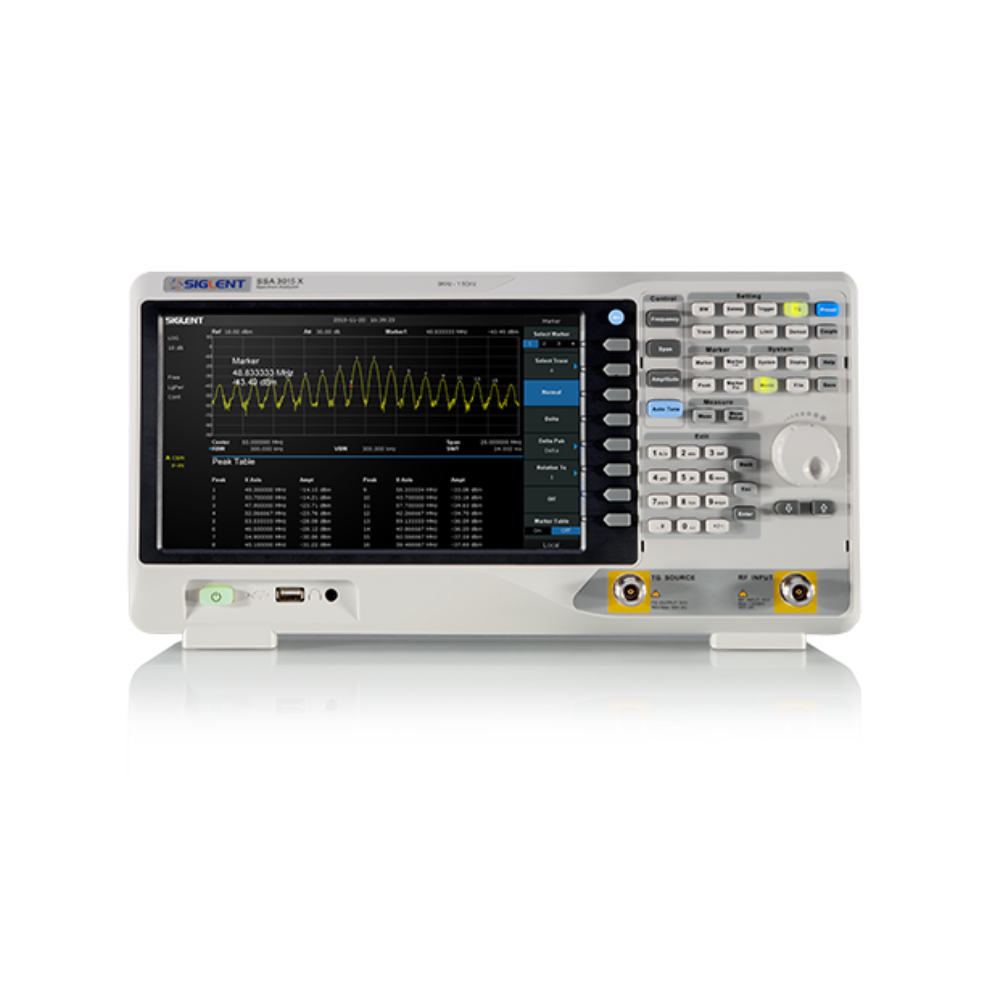

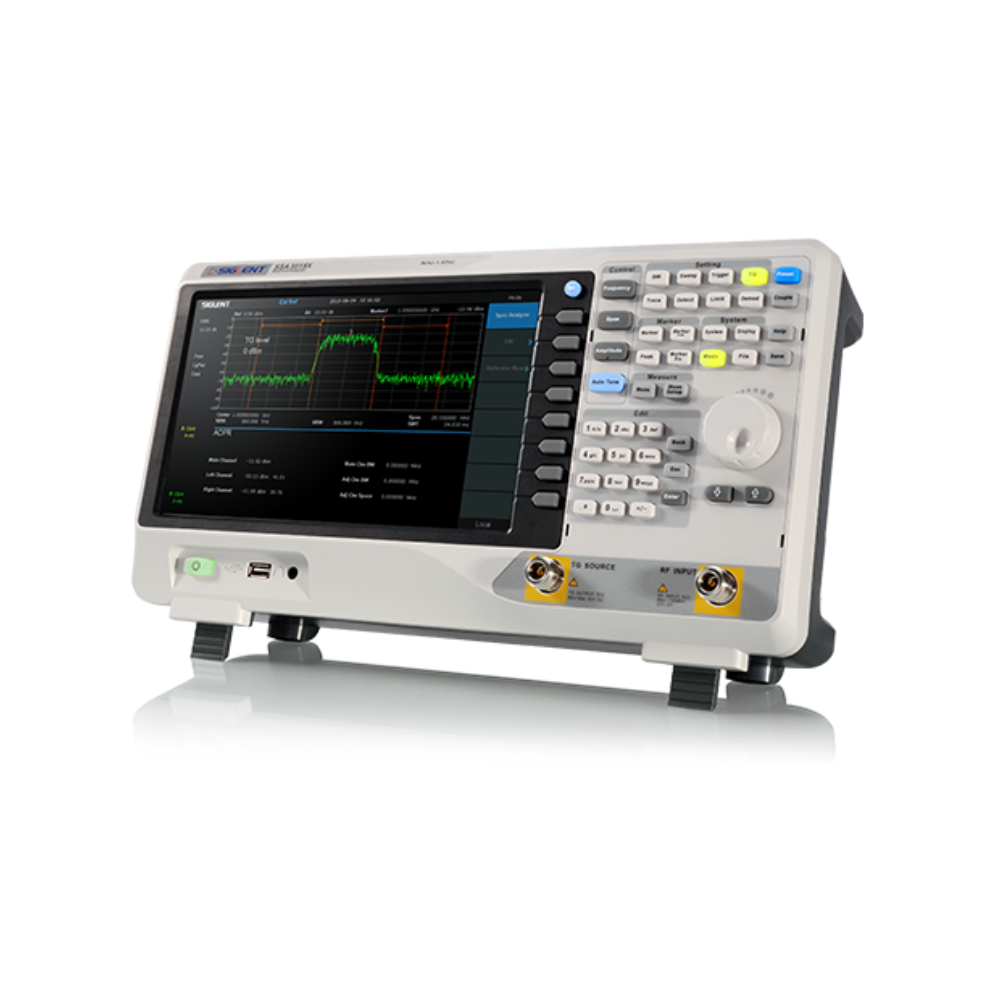

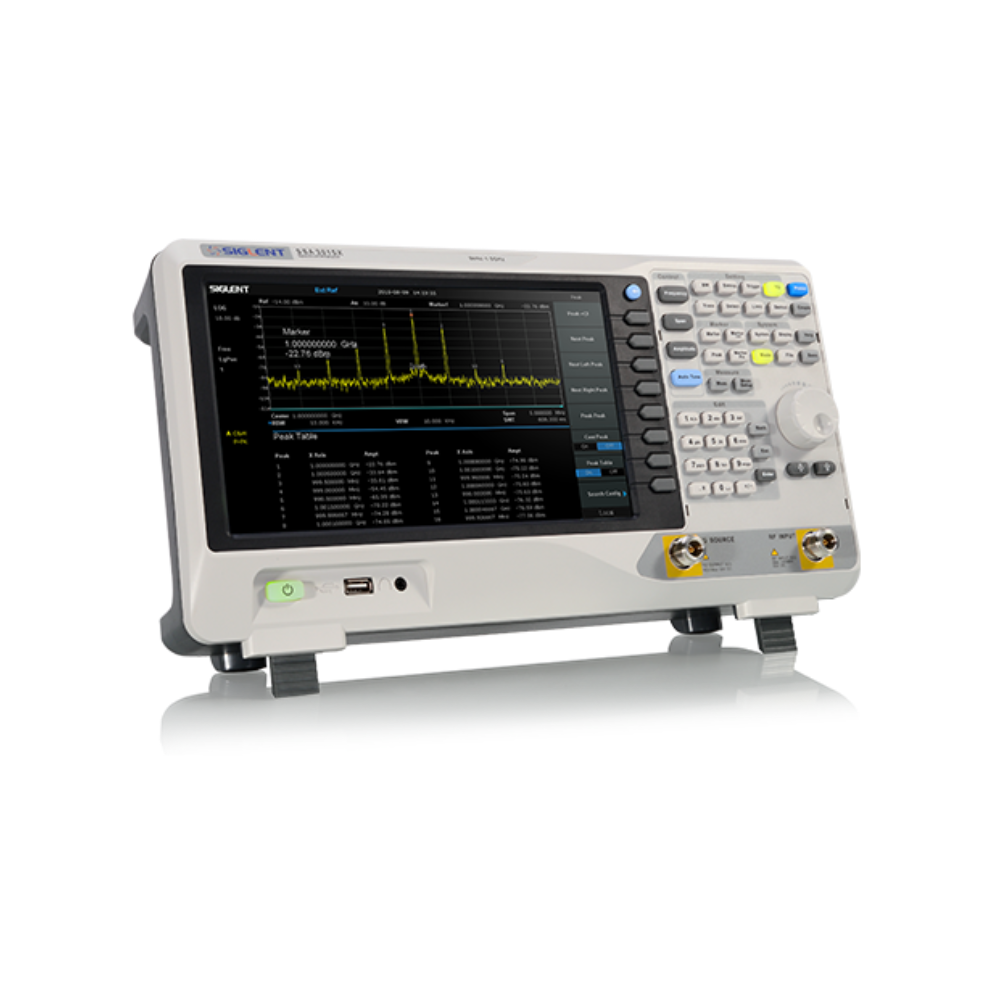

Economical Spectrum Analyzer with Excellent Performance
With their light weight, small size, and friendly user interface, the SSA3000X present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.
- Bandwidth 9 kHz to 2.1 GHz / 3.2 GHz, minimum resolution bandwidth 1 Hz
- Display average noise level below -161 dBm/Hz, full amplitude accuracy better than 0.7 dB
- Standard preamplifier, remote control instruction set, EasySpectrum PC software
- Free tracking generator, transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test
Low-cost EMI Pre-compliance Solution
Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including:
- Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
- Support Limit line , Including EMI international standard limit template, or user-defined limit line
- Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time
- Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
- Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
- EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
- The PC software also supports the file configuration of the whole process, which is convenient for project management.
SWR and Transmission Response Measurement
The SSA3000X can be used as a network analyzer:
- With the tracking generator, the filter transmission response and the cable insertion can be measured
- With tracking source and external directional coupler (RB3X20), it can measure antenna and cable standing wave ratio VSWR, return loss
Abundant Power Measurement
With a wealth of wireless communication signal power measurement capabilities:
- CHP, Channel Power
- ACPR, Adjacent Channel Power Ratio
- OBW, Occupied Bandwidth
- T-Power, Time Domain Power
- TOI, Third-Order Intercept
- Spectrum Monitor
Specifications
| Frequency Range | SSA3032X：9 kHz~3.2 GHz SSA3021X：9 kHz~2.1 GHz |
| Resolution Bandwidth | SSA3032X：1 Hz~1 MHz SSA3021X：1 Hz~1 MHz |
| Displayed Average Noise Level | SSA3032X：-161 dBm/Hz, Normalize to 1 Hz (typ.) SSA3021X：-161 dBm/Hz, Normalize to 1 Hz (typ.) |
| Phase Noise | < -98 dBc/Hz@1 GHz, 10 kHz offset |
| Tracking Generator | SSA3032X：100 kHz~3.2 GHz SSA3021X：100 kHz~2.1 GHz |
| Amplitude Precision | SSA3032X：< 0.7 dB SSA3021X：< 0.7 dB |
| Standard Function | Preamplifer |
| Optional Function | Tracking Generator Kit Reflection Measurement Kit Advanced Measurement Kit EMI Pre-compliance Test Kit |
| Display | 10.1 inch（1024×600）display |
