OVERVIEW
Spectrum Analyzer Mode

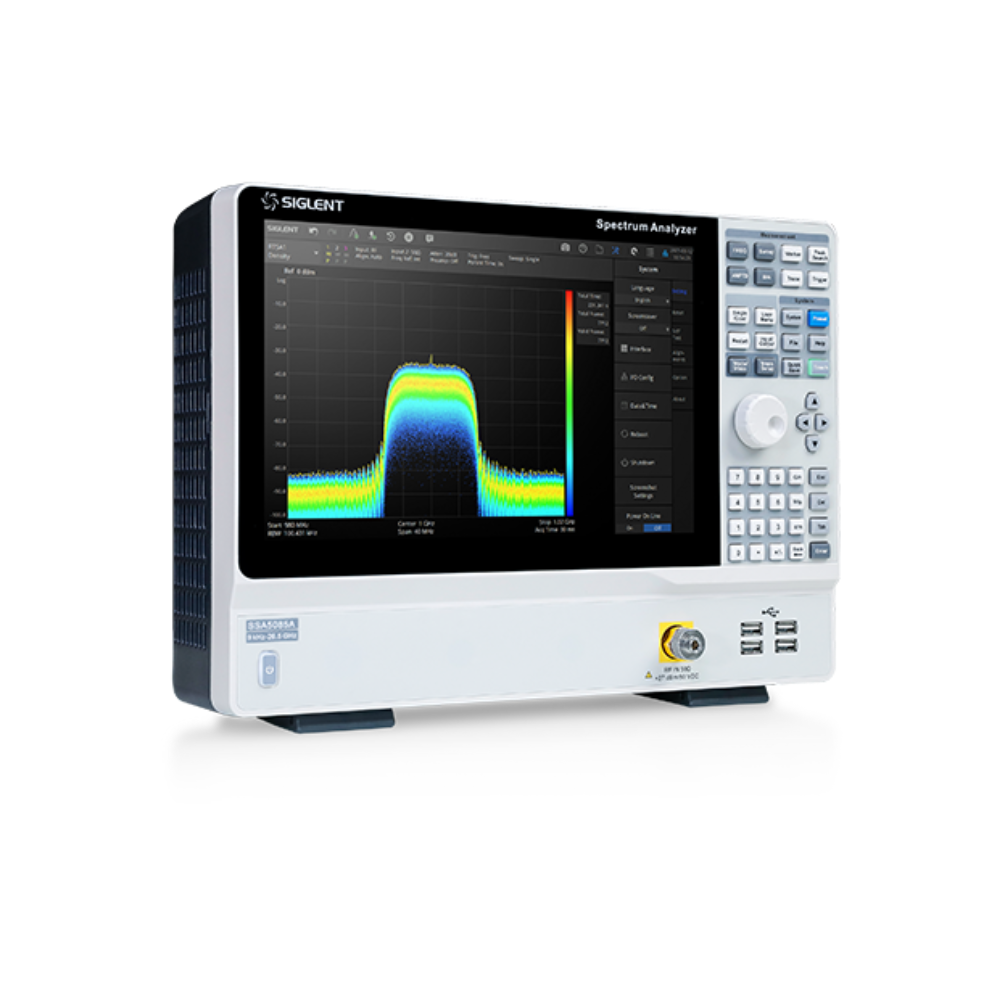

The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis with a frequency range of 9 kHz up to 13.6 GHz/26.5 GHz.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and bluetooth surveying, research and development, education, production, and maintenance.

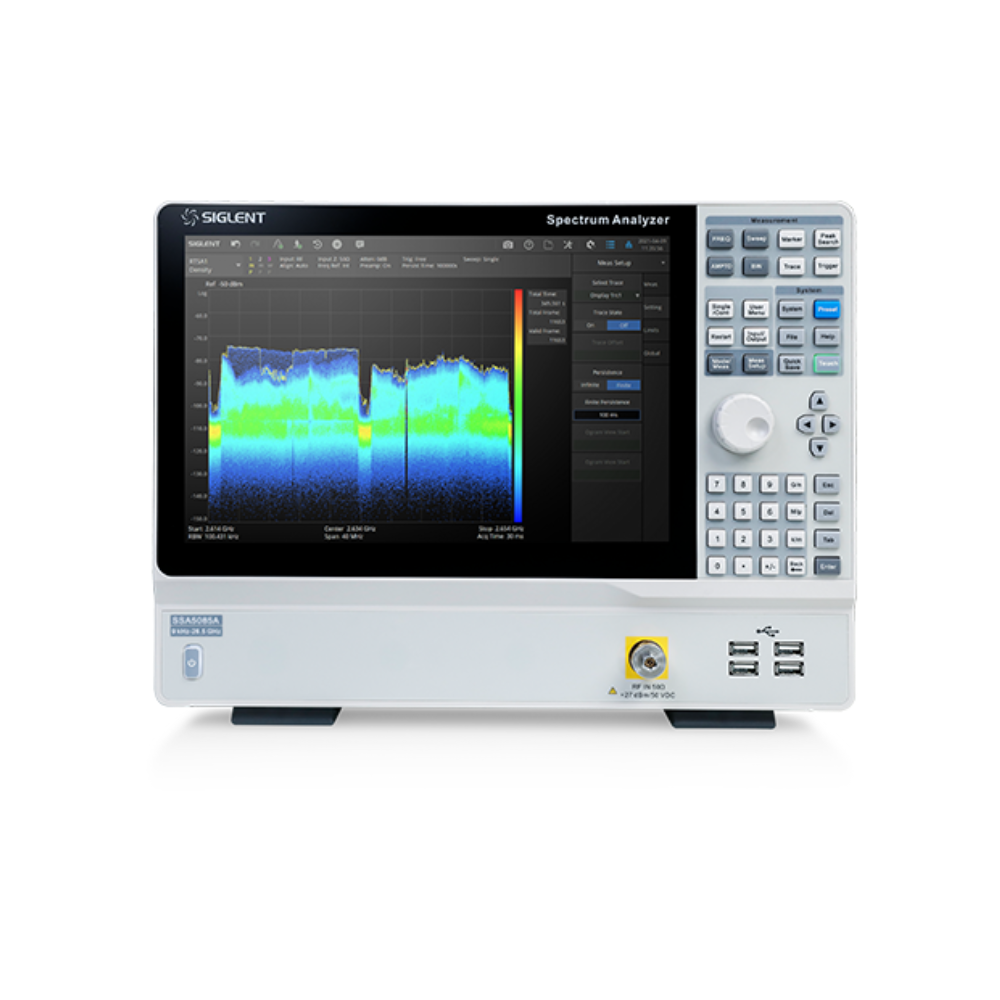

Real Time Analysis Mode
The SSA5000A series has real-time spectrum analysis capability. The analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

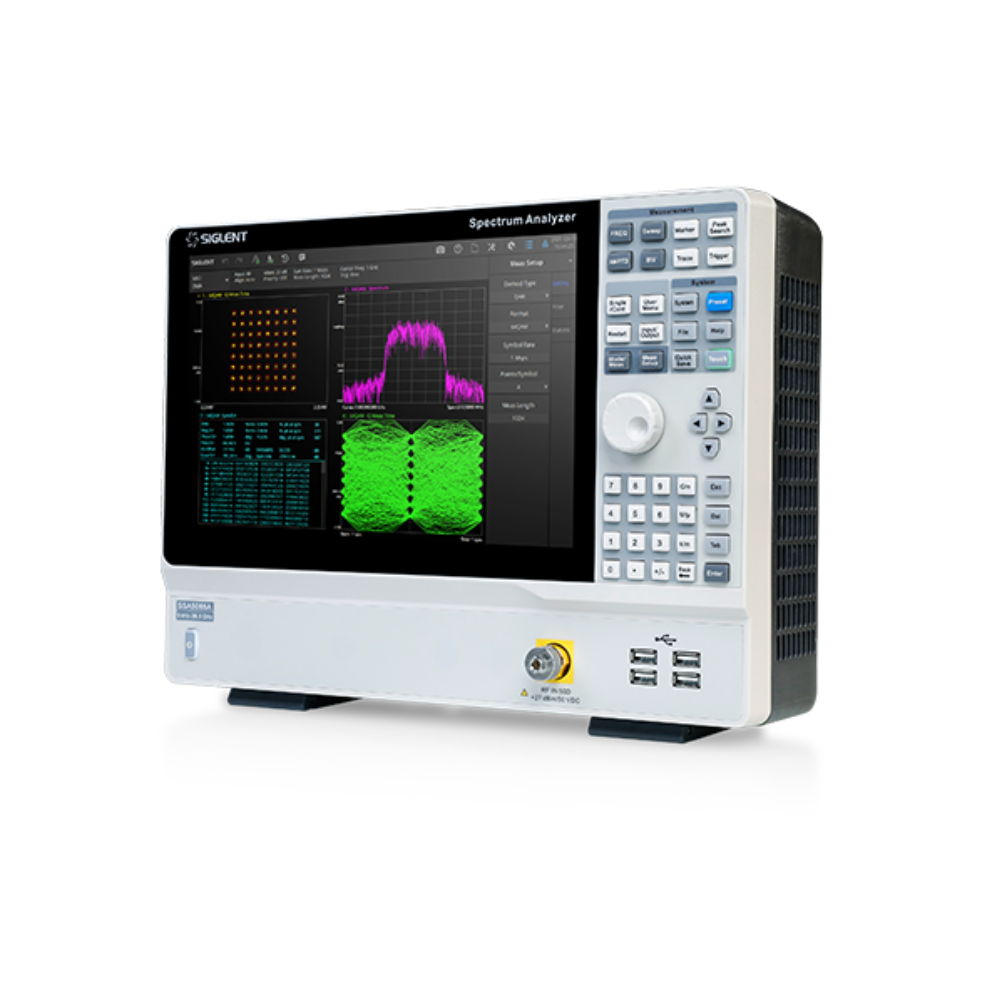

Modulation Analysis Mode
AM/FM/PM analog modulation, and ASK/FSK/PSK/MSK/QAM vector modulation analysis are useful in transceiver testing. With measurement of EVM, constellation and eye-diagram display, there are plenty of methods to evaluate communication quality.
Specifications
| Frequency Range | SSA5083A：9 kHz~13.6 GHz SSA5085A：9 kHz~26.5 GHz |
| Resolution Bandwidth | 1 Hz~10 MHz |
| Displayed Average Noise Level | -165 dBm/Hz |
| SSB Phase Noise | -105 dBc/Hz |
| Analysis Bandwidth | 40 MHz |
| Frequency resolution | 1 Hz |
| Advanced Measurement (opt.) | CHP， ACPR， OBW， CNR， Harmonic， TOI， Monitor |
| Modulation Analysis (opt.) | AM， FM， ASK， FSK， MSK， PSK， QAM |

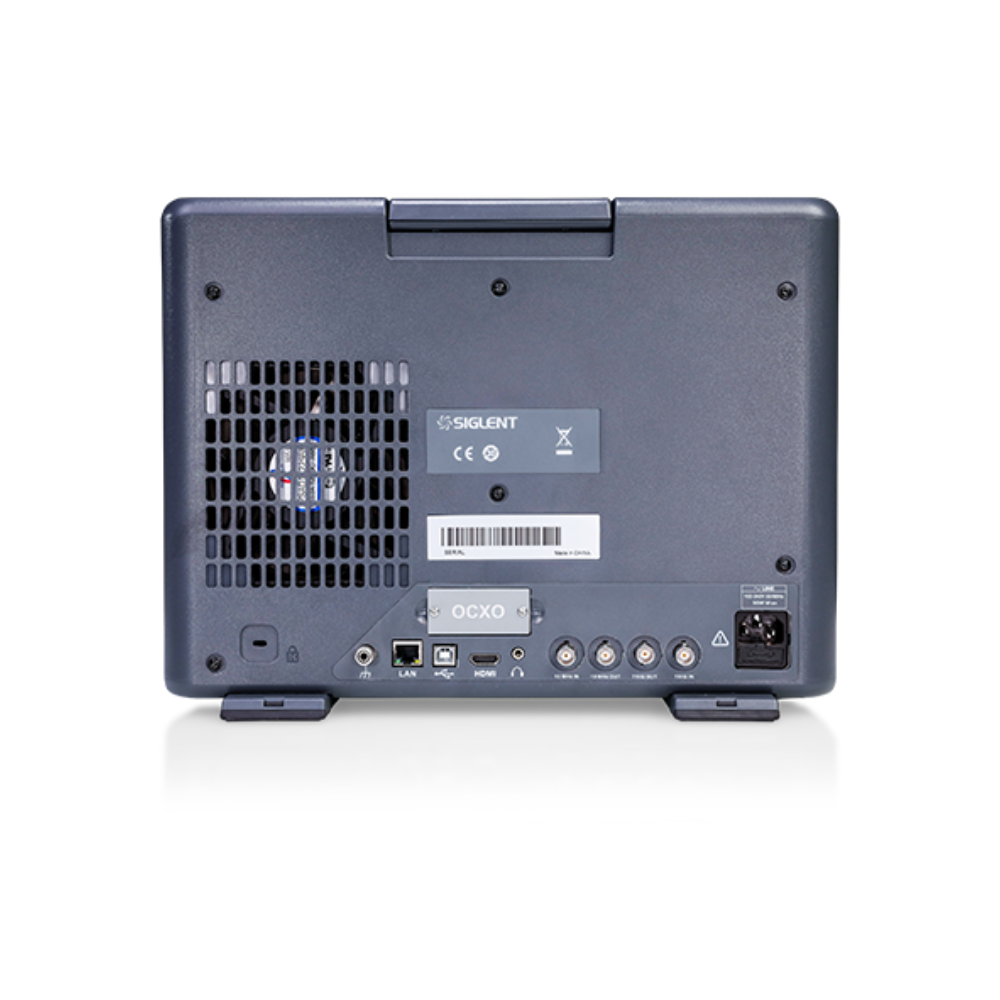

| Communication Interface | LAN， USB Device， USB Host(USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/I-MAX， Web Browser， Easy Spectrum software， File Explorer |
| Display | TFT LCD, 1200 ×800, 12.1 inch capacitive multi-touch screen |
