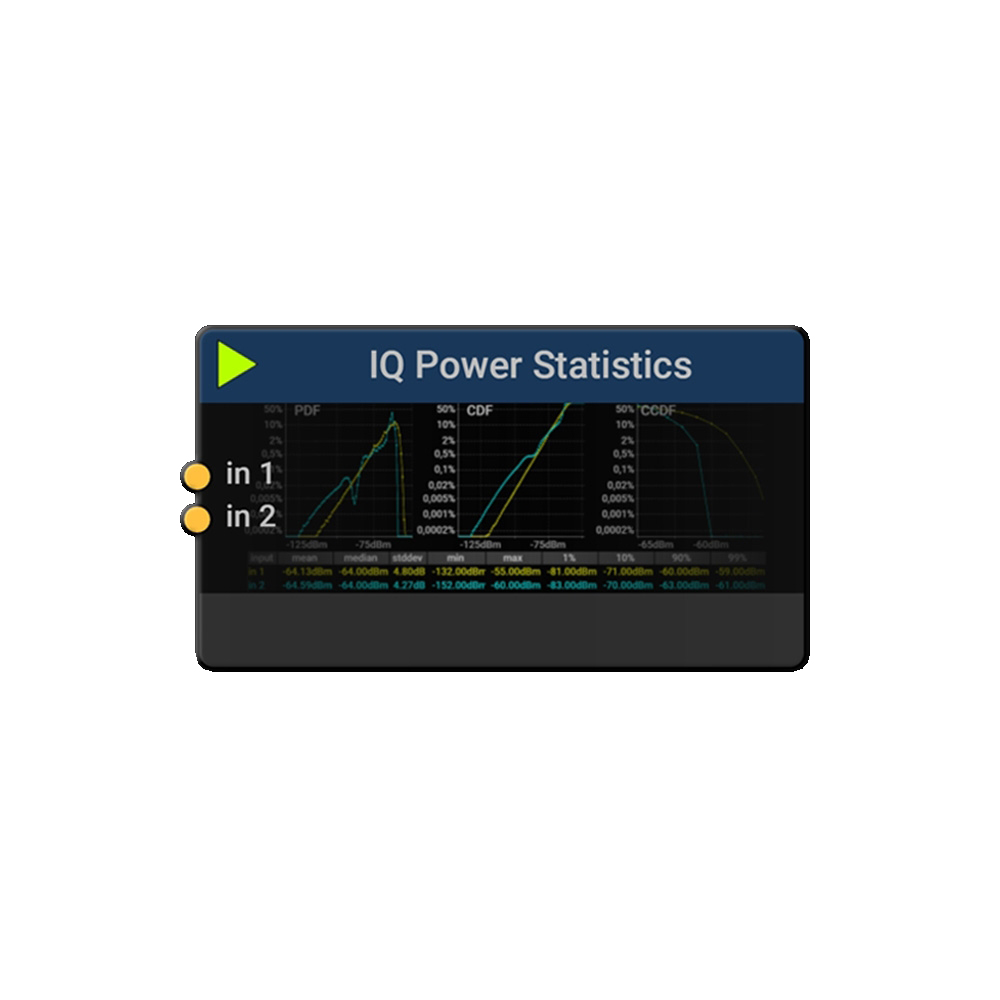

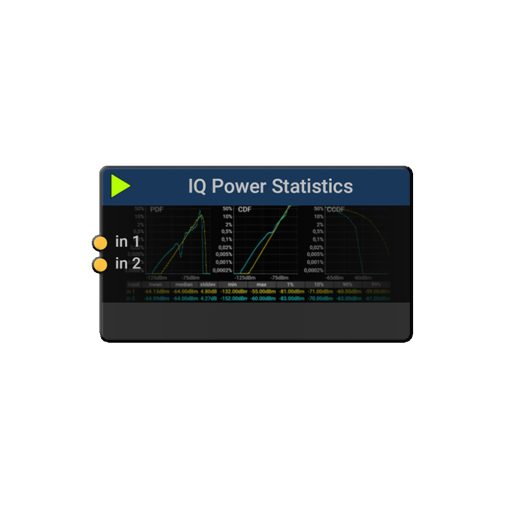

The block is a very important measurement tool for designing and testing of modern radio frequency aplications since it offers complex RF power measurements e.g. to see how the power is distributed or to measure its propability.
Such CCDF measurements are perfect to quantify devices e.g. an amplifier distortion or compression point. Since we have two inputs you can measure the signal before and after the amplifier at the same time and can even compare the measurement graphs in real-time.
But even a filter or a complete signal path of your DUT can be analyzed in the same way.
The block offers multiple of such measurements and graphs at the same time:
PDF (Propability Densits Function)
CDF (Comulative Distribution Function)
CCDF (Complementary Comulative Distribution Function)
Relative CCDF (Relative Complementary Comulative Distribution Function)
The complete measurement table or only part of it can be exported via the right mouse button as:
Comma Seperated Values (*.csv)
Semicolon Seperated Values (*.csv)
XML Files (*.xml)
JSON Files (*json)
