The IQ Pulse Inspector block offers a fully automatic digital signal burst/pulse classification and demodulation/decoder.

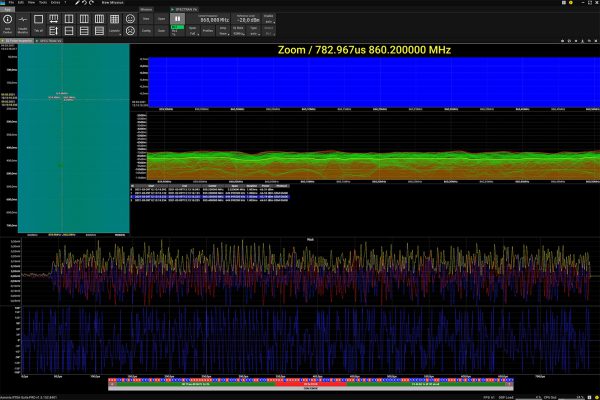

You can record IQ data and get this displayed within a waterfall view.
Within this view you can mark and select any signal of interest and get an automatic real-time classification and decoding. You can also run an automatic classification over the full recording which will give you a table of all found signals (which can go into the thousands).
You can then select any signal within the table for an automatic decoding.
The IQ Pulse Inspector supports the following decoder:
Auto
Auto Basic
ASK
PSK
FSK
GFSK
BPSK
DBPSK
QPSK
QPSK_C
DQPSK
P4DQPSK
8DPSK
QAM16
QAM64
QAM256
QAM1024
Bluetooth LE (Low Energy)
Bluetooth EDR 2M
Bluetooth EDR 3M
DECT
GSM
Wifi 802.11b
Wifi 802.11g (5MHz)
Wifi 802.11g (10MHz)
Wifi 802.11g (20MHz)
Enhanced Shockburst
Various IoT protocolls like Zigbee 802.15.4 and many more on customer request.
More Information about this block in the SPECTRAN V6 Forum: https://v6-forum.aaronia.de/forum/topic/iq-pulse-inspector/
