SPECTRAN® V6 MIL
Outdoor Real-Time Monitoring Receiver

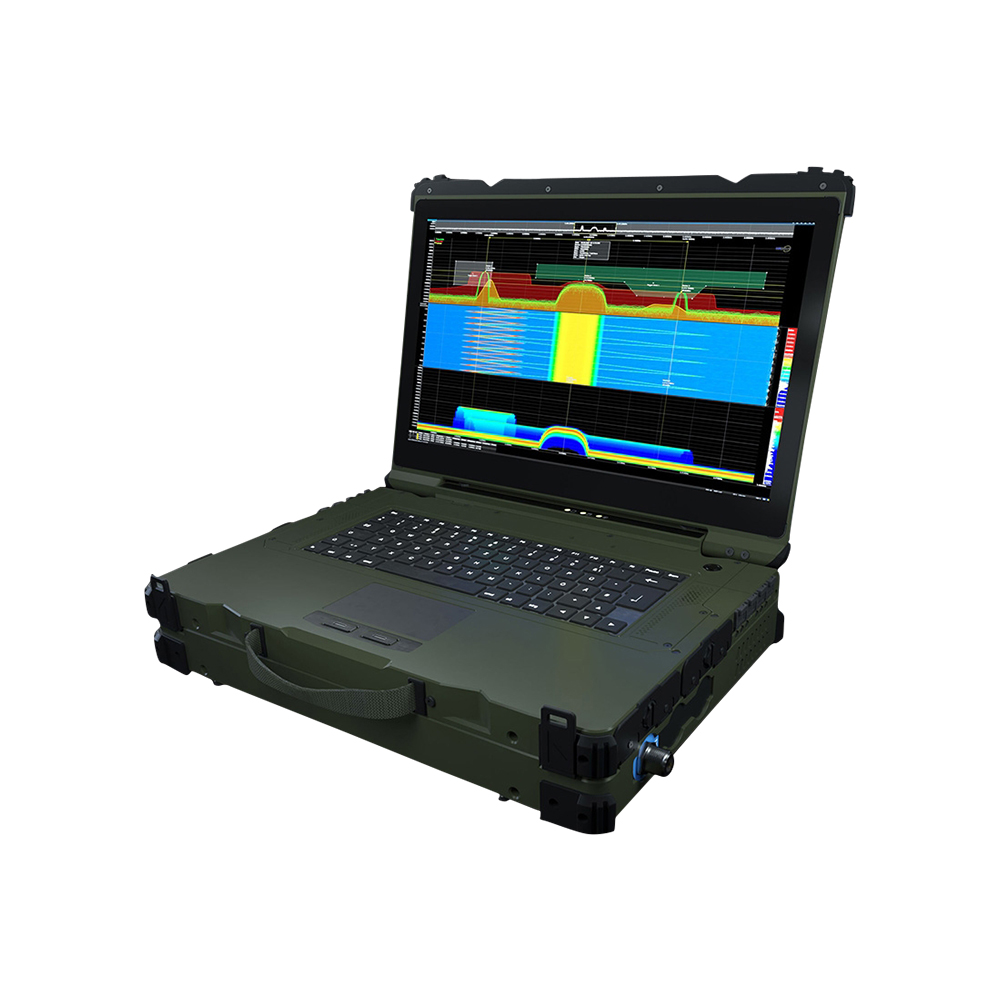

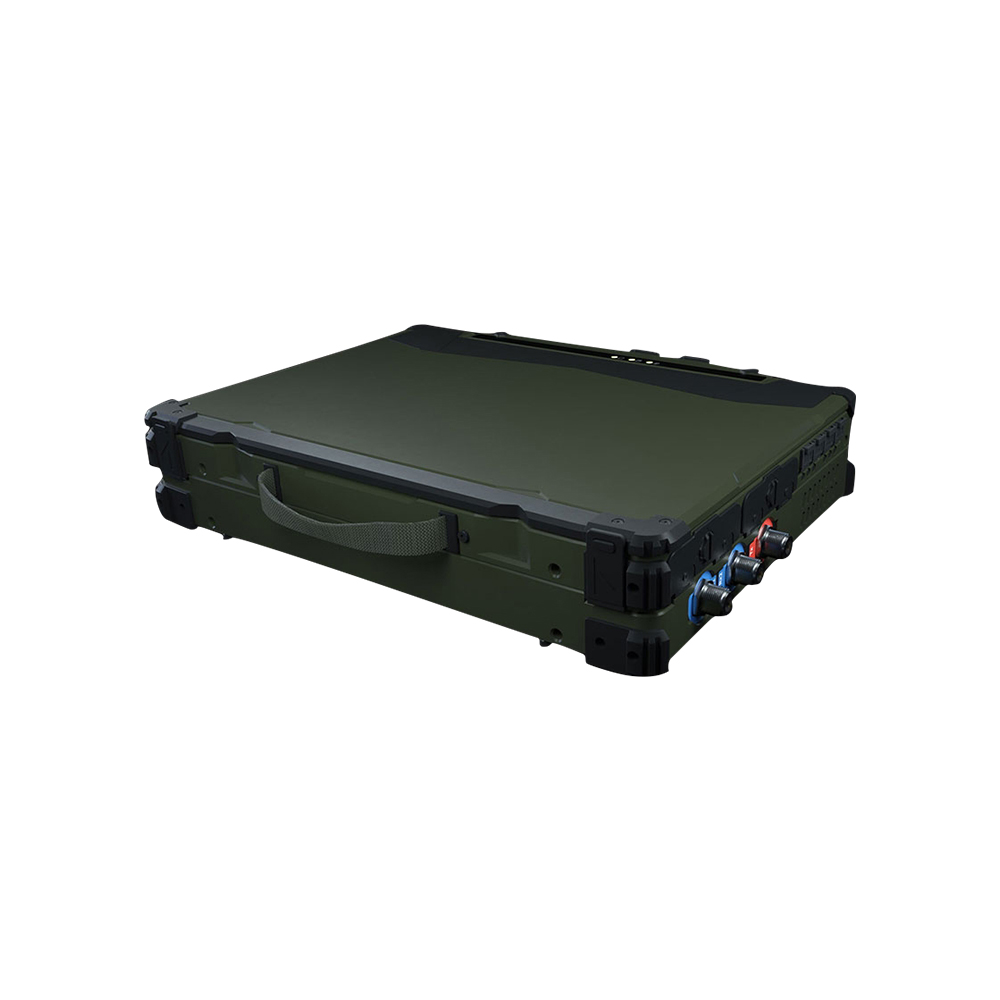

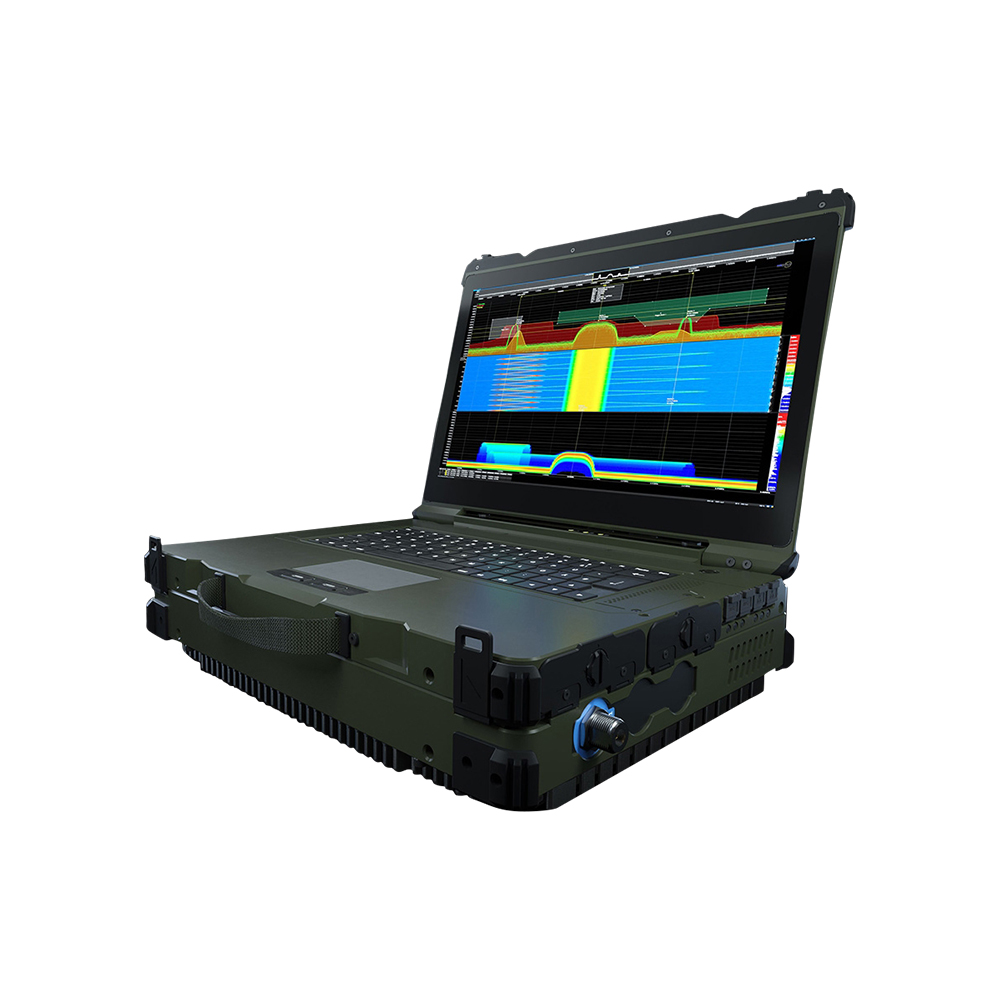

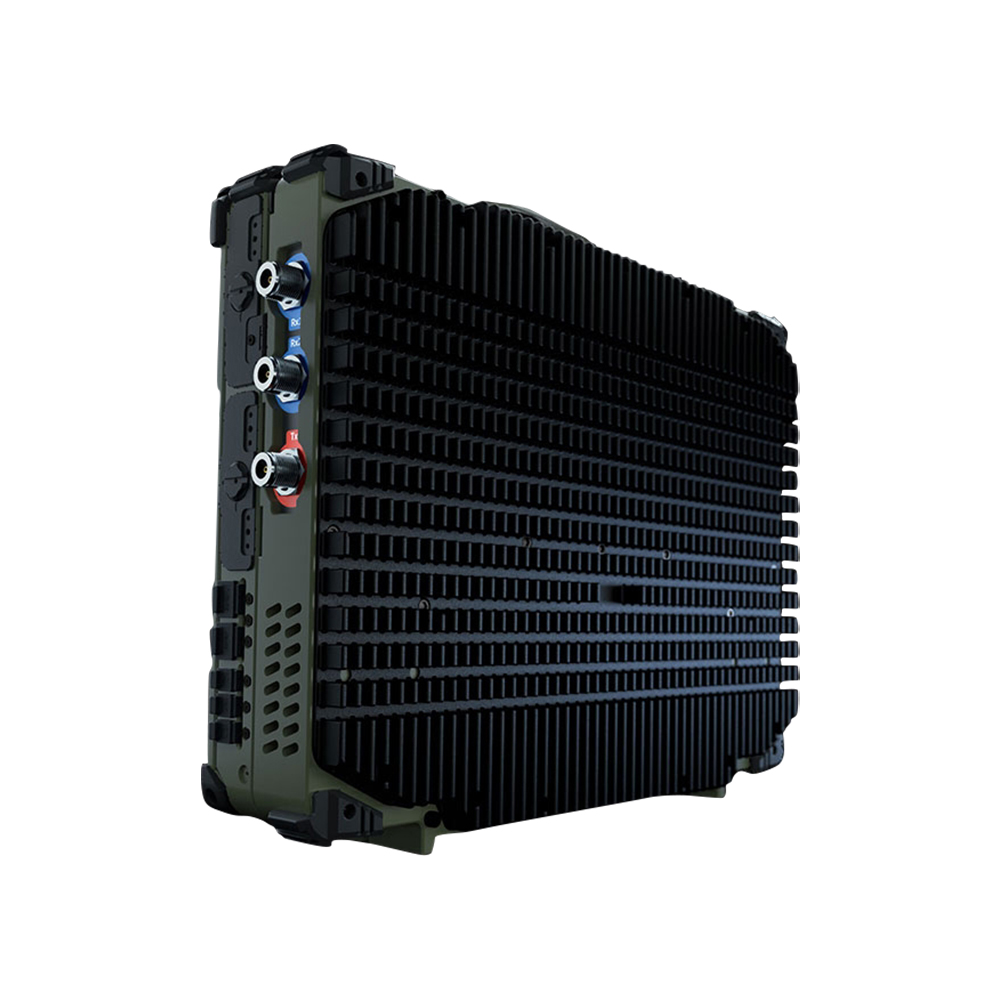

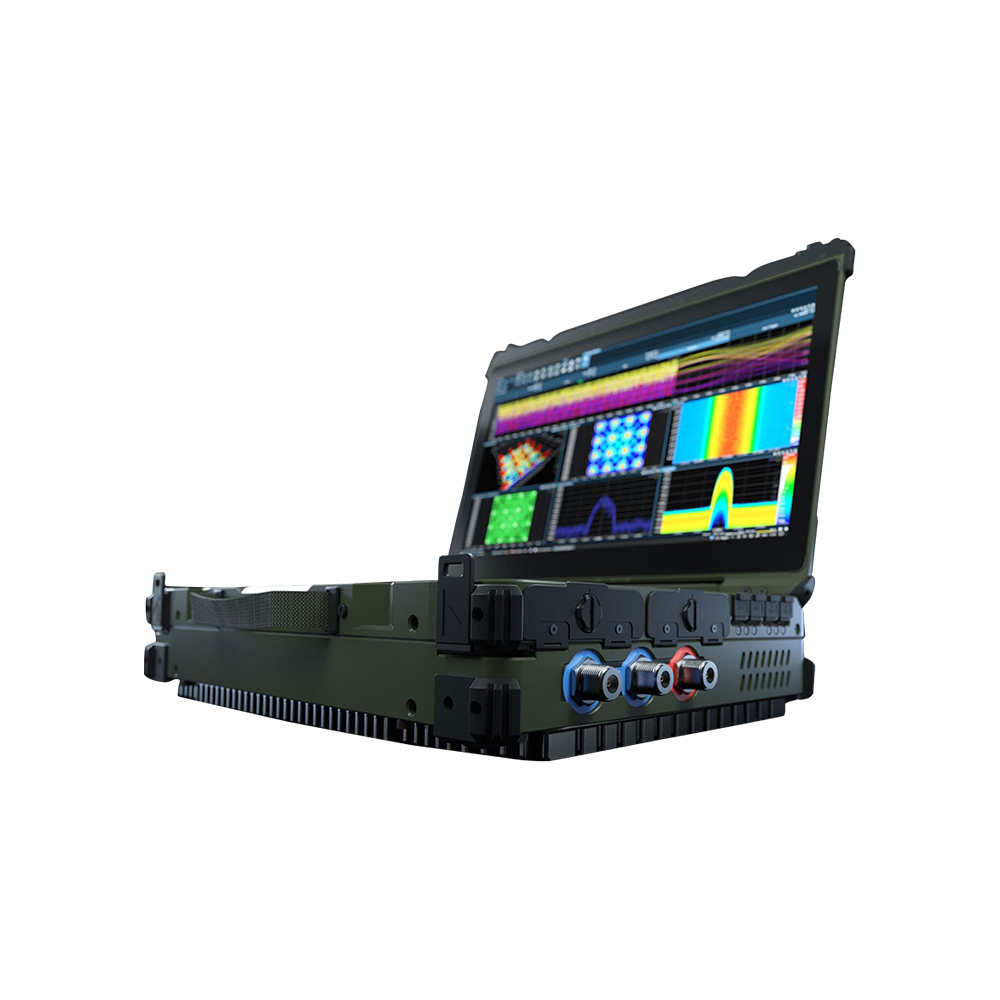

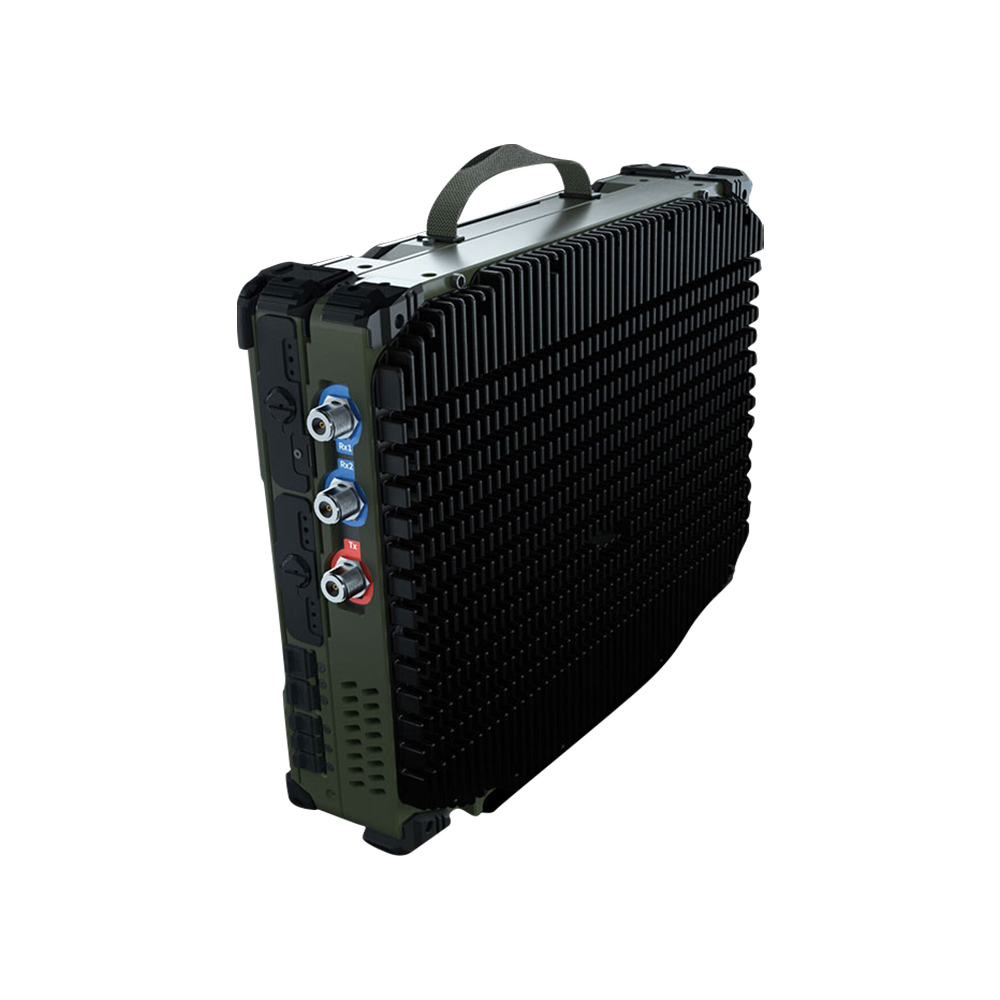

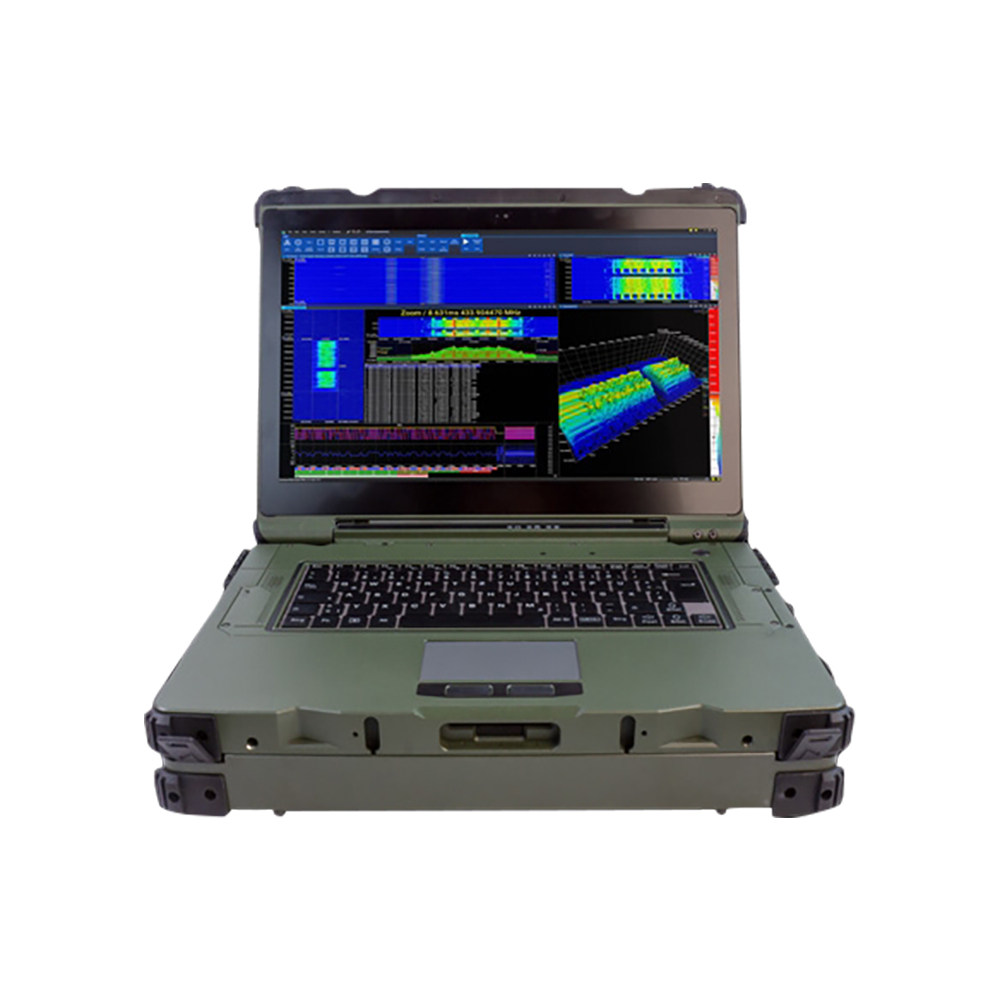

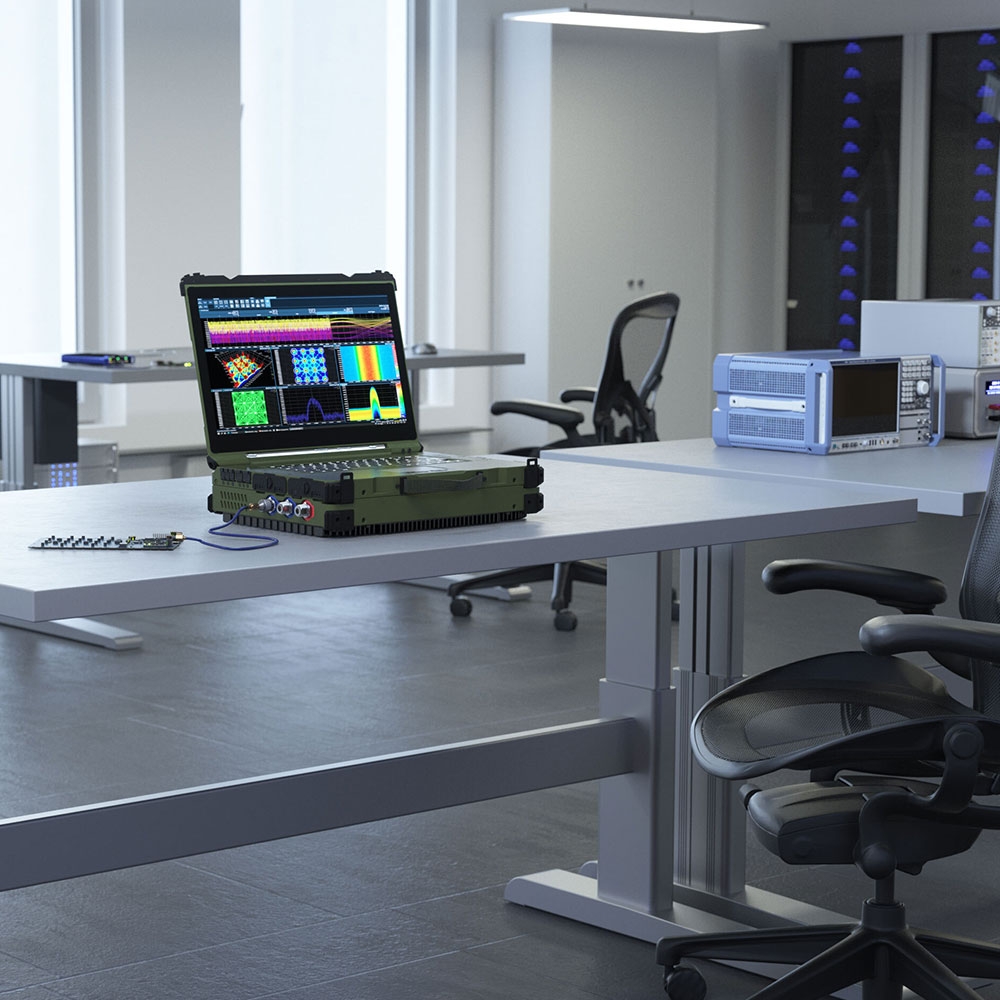

The new SPECTRAN® V6 MIL consists of an entry-level real-time spectrum analyzer built into a powerful and extremely shock-resistant outdoor laptop. It is capable of capturing and displaying signal transmissions in a variety of ways, enabling analysis on an unprecedented scale. For capturing ultra-short signal bursts, we recommend the SPECTRAN® V6 EE with a POI of up to 10ns.
The laptop, certified to MIL-STD-810G and IP65 standards with the latest processor technology, has 64GB of RAM and 1TB of high-speed SSD (expandable to 16TB). An NVIDIA® graphics card displays real-time measurement results on the sunlight-readable 15.6″ full-HD display. In addition, the Windows® operating system makes it possible to install all the usual programs, such as Office applications. This speeds up the work in the field, as all steps from measurement to report generation can be done immediately and with only one device.
The integrated SPECTRAN® V6 spectrum analyzer is up to any challenge. Whether simple outdoor or indoor frequency monitoring, high frequency signal measurements, interference pulse location or mobile pre-compliance testing, the SPECTRAN® V6 is the ideal spectrum analyzer for fast and reliable measurements, as well as detailed analysis.

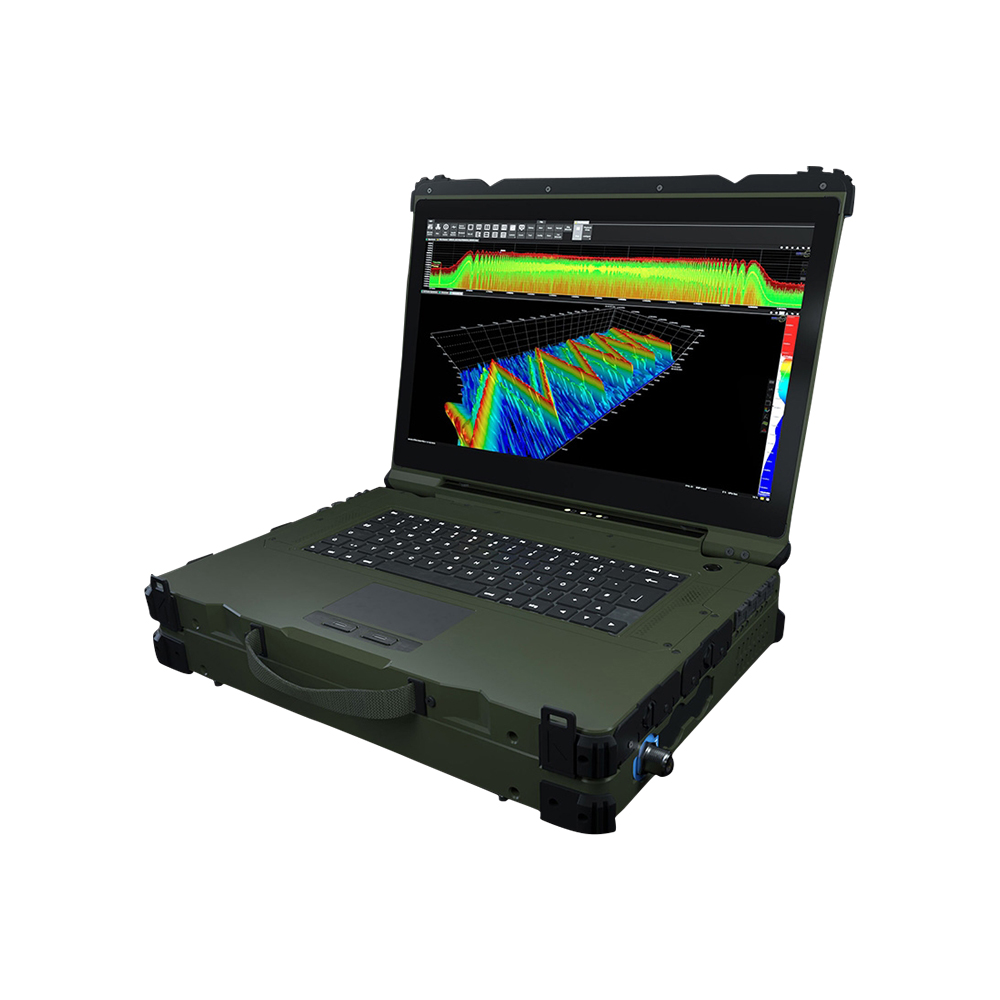

Storing and replaying FFT or even IQ raw data is also part of the feature set: with a recording time limited only by the storage medium (1 TB, expandable up to 16 TB), the SPECTRAN® V6 MIL allows you to record real-time measurement data over a period of several hours. The “Smart Buffering” feature can be used to automatically overwrite the oldest data, allowing for virtually unlimited recording time. The recorded data can be reloaded at will and replayed for more in-depth analysis, such as 3D spectrogram.
The modular RTSA-Suite PRO software is pre-installed and pre-configured. It has been specially developed to detect unknown signals in a wide frequency range, to display them intuitively, to analyze them in detail and thus to detect unauthorized signal transmissions if necessary.
Recommended software extension:
Signal Strength Locator – allows locating or manually triangulating signal sources in combination with a directional antenna.
Incl. RTSA-Suite PRO Software
Powerful Real-Time Spectrum Analysis Software
