HS7
High-Speed Digital Cameras

Fastec Imaging’s HS Series high-speed camera is designed with the serious researcher in mind. Image access as well as storage and retrieval have been rethought in order to maximize utility and reduce cycle times.y

FEATURES

Fastec Imaging’s HS Series high-speed camera is designed with the serious researcher in mind. Image access as well as storage and retrieval have been rethought in order to maximize utility and reduce cycle times.

STANDARD HS CAMERA FEATURES

STANDARD HS CAMERA FEATURES

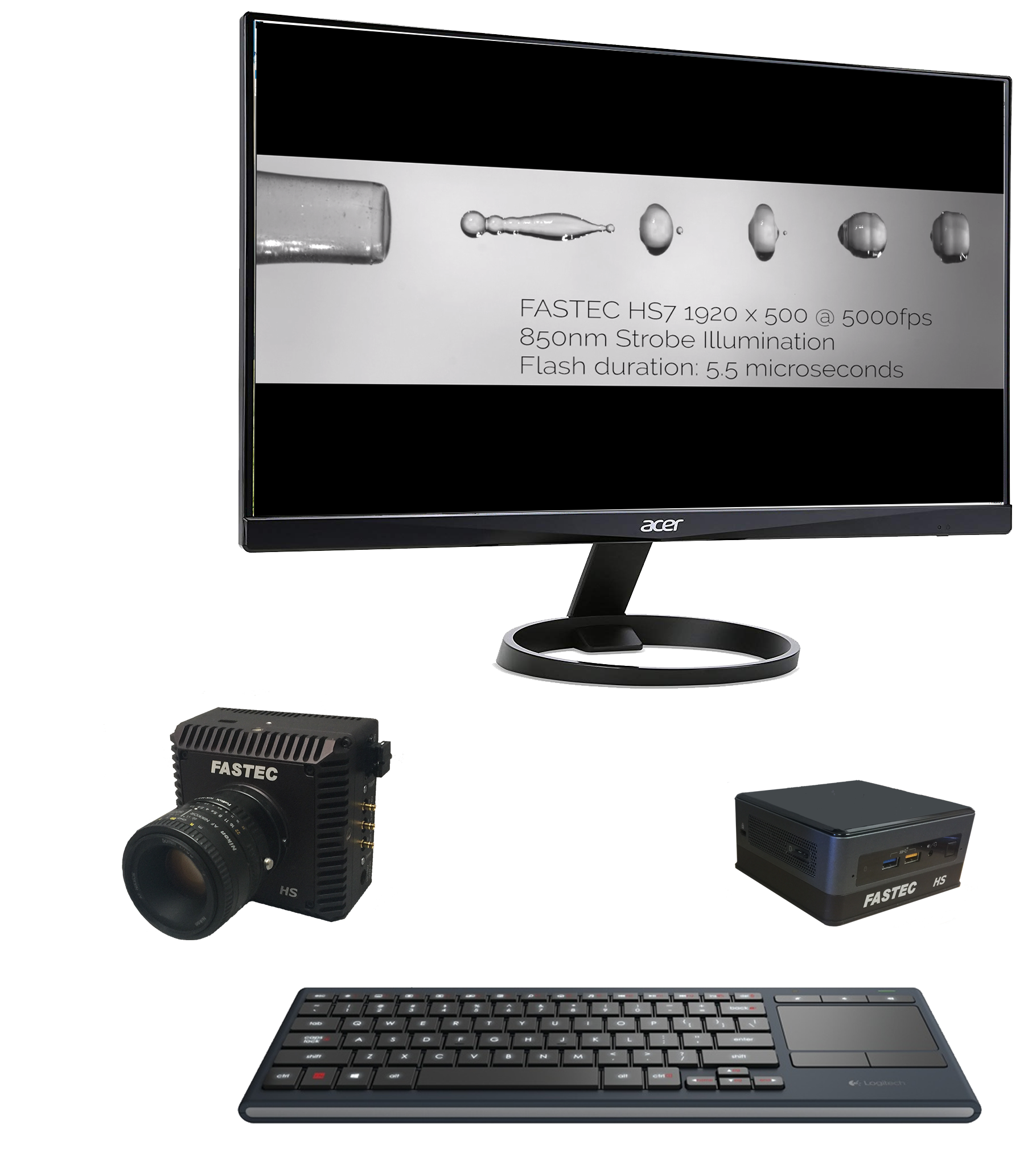

• Camera Controller eliminates the need for a dedicated PC
• May be run locally or via any networked PC or Mac
• Advanced application software with multi-camera controls and batch downloads
• Synchronization of multiple cameras, including TS, IL, and HiSpec
• Synchronization with strobe lights or other devices via TTL or LVTTL signals
• Multiple high-speed mass storage interfaces
• Proprietary high-speed fiber optic interface using COTS cabling
• Flexible triggering: Hardware, Software, Timed, or Image Trigger
• Software control for MFT (micro four thirds) lenses

OPTİONAL CAMERA FEATURES
• Up to 32GB internal image memory
• Internal SSD up to 2TB
• SSD streaming modes for extended recordings

FASTEC HS SERIES HIGH-SPEED CAMERAS

• Advanced CMOS image sensors from 1.3 to 5MP

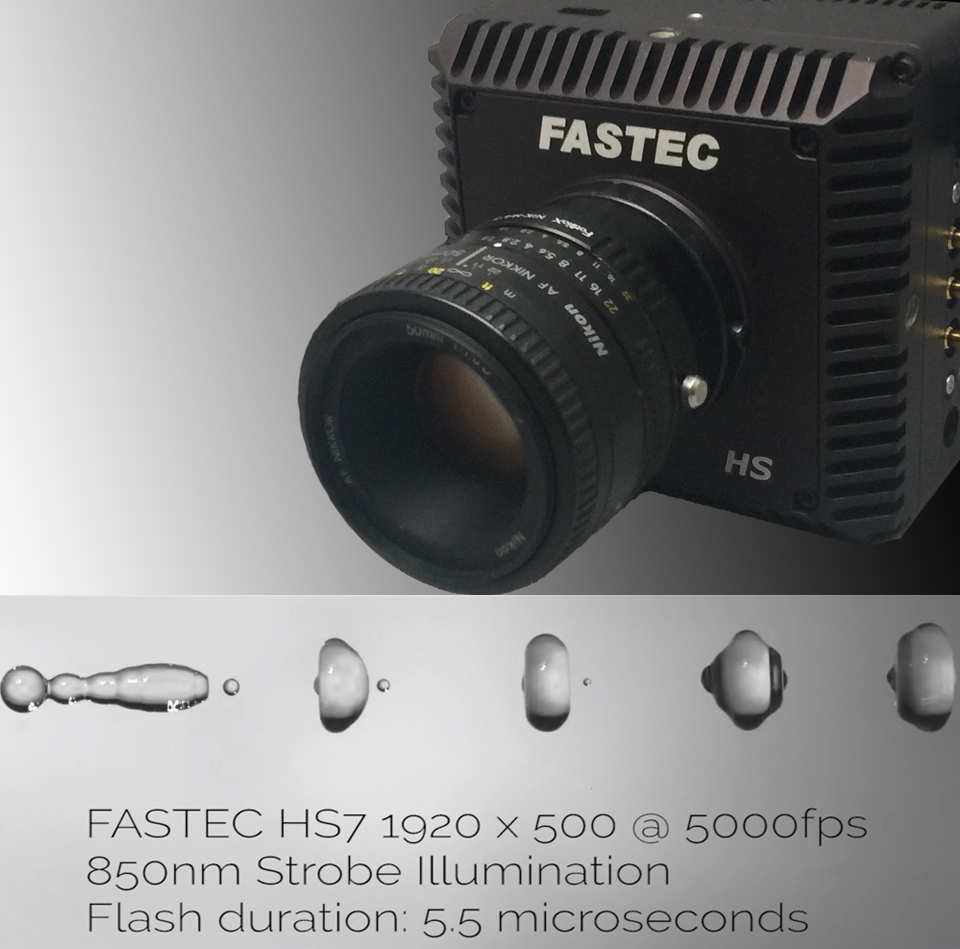

• HS7: Full HD (1080p) @ 2500 frames per second (10 bits)

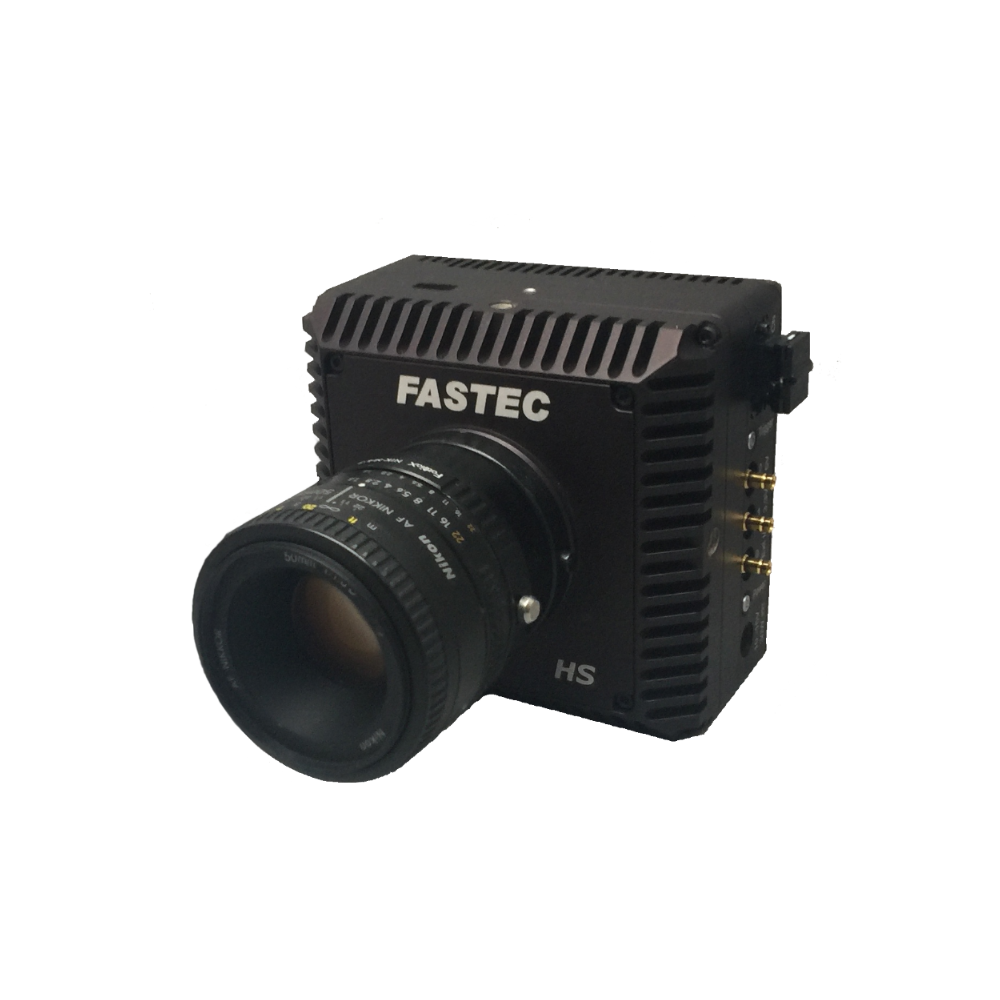

• HS5: Quad HD (1440p) @ 350 frames per second (12 bits)

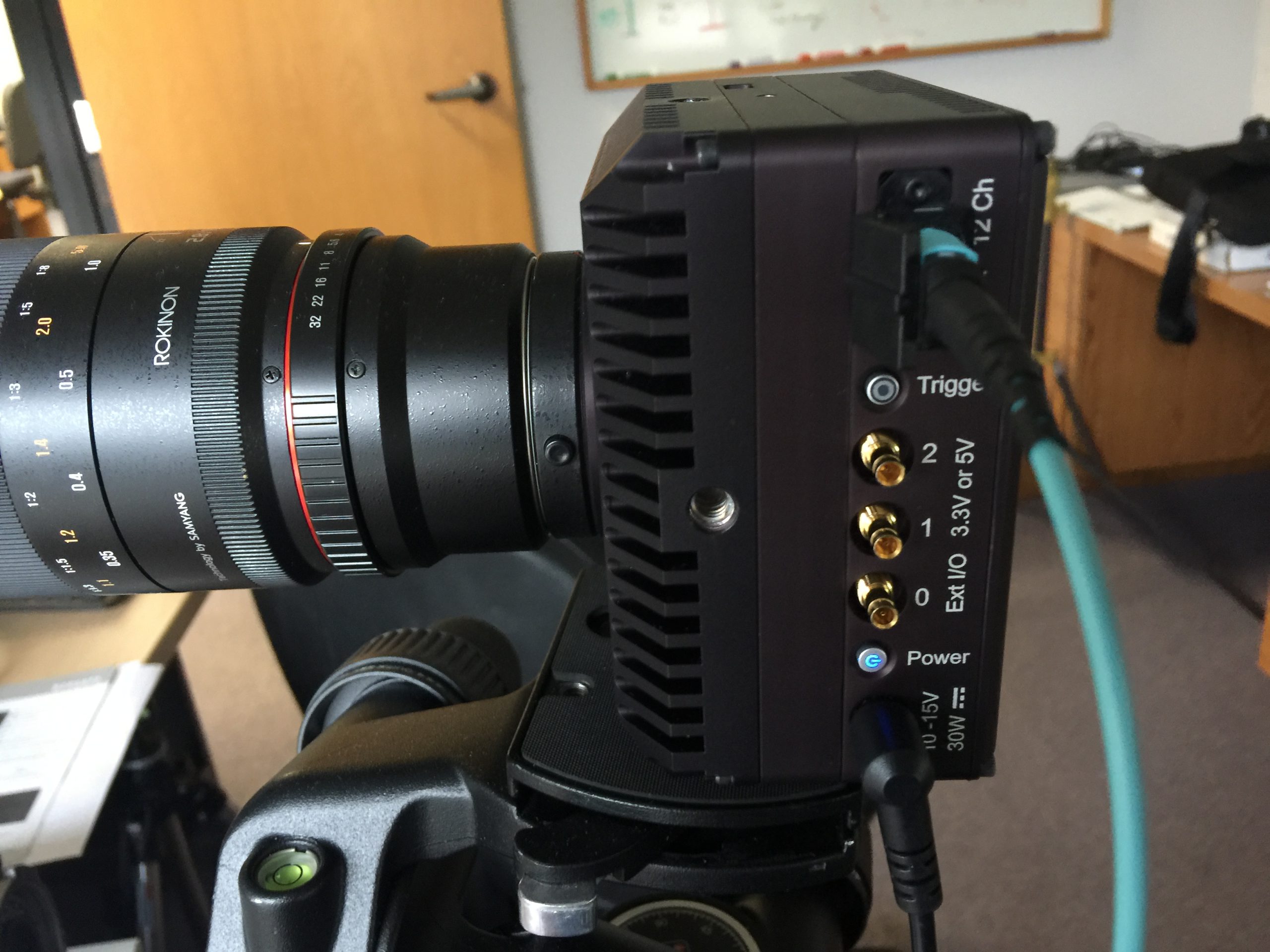

• Configurable I/O ports for data capture, triggering, and sync
• Excellent depth of field and high system magnification
• Binning and sub-sampling on some models
• Wide ISO range

FEATURES OUR CUSTOMERS LOVE

• Autonomous systems available
• Setup and control via multiple interfaces
• Exceptional resolution and frame rate options
• Advanced synchronization and control of multi-camera systems
• Unique imaging capabilities for greater system magnification & depth of field
• Long record times – onboard mass storage up to 1TB
• Flexible workflows for unique applications

DATASHEET

HS7 Datasheet
